Ironton Tow-Behind Trailer Broadcast and Spot Sprayer, 13 Gallons, 1 GPM, 12 Volt DC

Item# 282790
"Ironton Tow-Behind Trailer Broadcast and Spot Sprayer, 13 Gallons, 1 GPM, 12 Volt DC"
Top Seller
Ironton Tow-Behind Trailer Broadcast and Spot Sprayer, 13 Gallons, 1 GPM, 12 Volt DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Tow-Behind Trailer Broadcast and Spot Sprayer, 13 Gallons, 1 GPM, 12 Volt DC

Click or Tap image to Zoom

$299.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Call Store for Availability
  • 1 GPM Ironton pump with durable chemical-resistant components
  • 13-gallon tank is UV resistant and compatible with virtually all pesticides
  • Gallon marks molded into tank make it easy to monitor fluid levels
  • Tank has a 7-1/2in. opening and an easy-empty bottom drain
  • Spray gun nozzle adjusts from stream to cone

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Tow the versatile Ironton Tow-Behind Trailer Broadcast and Spot Sprayer behind your ATV or garden tractor to spray weeds, fence lines and the tops of 12ft. trees. It's a feature-packed sprayer perfect for homeowners. It features a 1 GPM Ironton pump with durable chemical-resistant components. The 13-gallon tank is UV resistant and compatible with virtually all pesticides. Gallon marks molded into tank make it easy to monitor fluid levels. Tank has a 7-1/2in. opening and an easy-empty tank bottom drain. Spray gun nozzle adjusts from stream to cone. Stream has 12ft. vertical and 20ft. horizontal maximum spray distance. Lightweight 3/8in. x 11ft. clear PVC hose reinforced with braided synthetic cord for durability. Includes remote switch with battery clips.

What's Included

    (1) Tow-behind trailer broadcast and spot sprayer (1) Remote switch

Downloads

Product Manual
Play Item Video

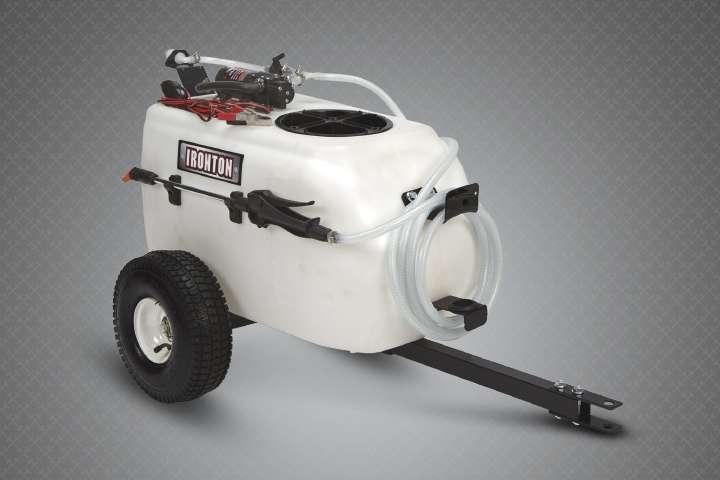

VERSATILE APPLICATION

Perfect for spraying WEEDS, FENCE LINES and even reaching the tops of 12 FOOT TREES, this sprayer is a homeowner’s ideal tool for maintaining their property

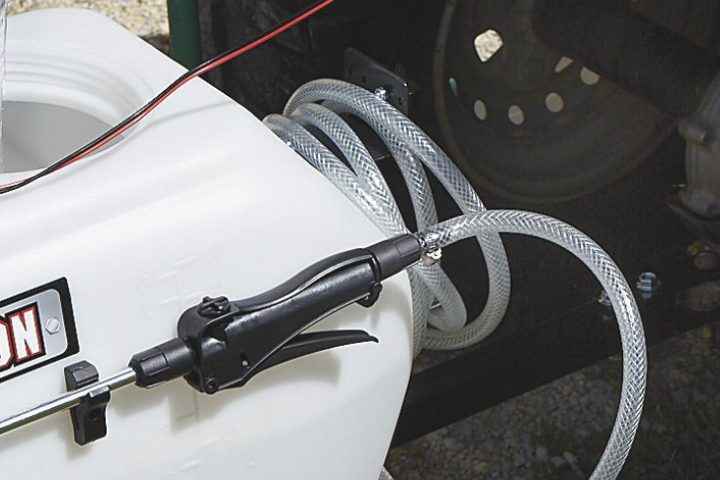

DURABLE CONSTRUCTION

The lightweight yet sturdy 3/8 INCH x 11 FOOT PVC HOSE is reinforced with BRAIDED SYNTHETIC CORD, ensuring durability and longevity

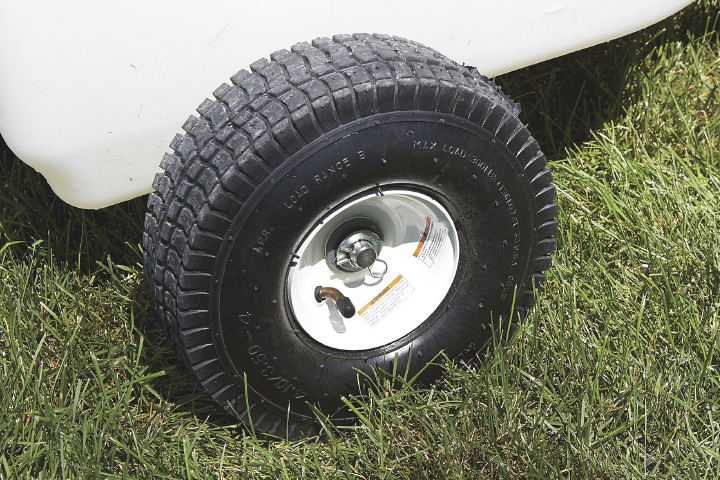

EASY MOBILITY

Equipped with 10 INCH PNEUMATIC WHEELS, this sprayer is effortlessly towed behind an ATV or GARDEN TRACTOR, navigating through varied terrains

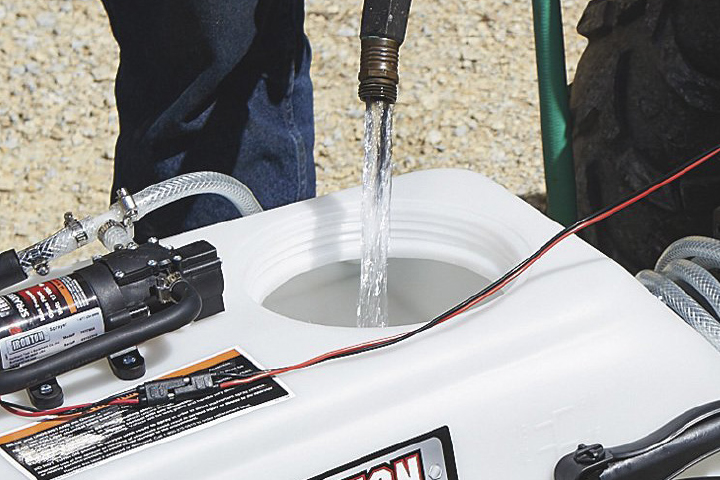

STREAMLINED MAINTENANCE

The easy-empty bottom drain and the WIDE TANK OPENING facilitate QUICK CLEANING and REFILLING, saving time and effort after each use

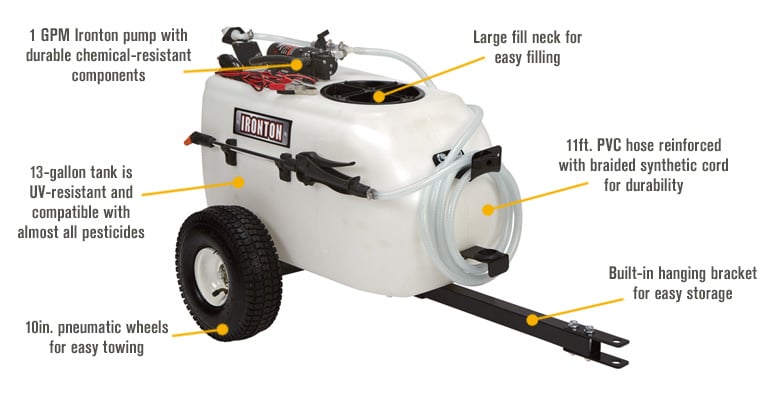

Features + Benefits

  • 1 GPM Ironton pump with durable chemical-resistant components
  • 13-gallon tank is UV resistant and compatible with virtually all pesticides
  • Gallon marks molded into tank make it easy to monitor fluid levels
  • Tank has a 7-1/2in. opening and an easy-empty bottom drain
  • Spray gun nozzle adjusts from stream to cone
  • Stream has 12ft. vertical and 20ft. horizontal maximum spray distance
  • 40in. effective broadcast width
  • Lightweight 3/8in. x 11ft. clear PVC hose reinforced with braided synthetic cord for durability
  • Includes remote switch with battery clamps
  • 10in. pneumatic wheels for easy towing

Key Specs

AttributeSpecification

item#

282790

Brand

Ironton

Manufacturer's Warranty

3 month limited warranty

Ship Weight

29.4 LB

Tank Size

13 Gal

Flow

1 GPM

Pressure

40 PSI

Spray Height

12 ft
AttributeSpecification

Spray Pattern

Cone, Stream

Spray Gun Type

Spot, Broadcast

Tow Behind Cart Included

Yes

Pump Type

Ironton

Hose Length

132 in

Product Weight

lb

Dimensions L x W x H (in.)

40.0 x 21.5 x 21.5 in

Reviews

Questions & Answers

250 Reviews This action will navigate to reviews.

Questions

1–10 of 42 Questions
Sort by:

  1. Can you use the hand held spot sprayer as your driviing?

    1. Yes you can and I do

      Helpful?

    2. Yes it can

      Helpful?

    3. Yes. The nozzle on back of tank can be turned on when you drive along, or you can spray with the hose & handle sprayer as you go. The hose is long enough to reach the seat of a lawn tractor or 4-wheeler.

      Helpful?

    4. This Ironton sprayer can be used while moving. Keep speeds to a minimum to avoid unsafe situations while spraying.

      Helpful?

  2. What type of battery is used for the pump?

    1. Any 12v volt auto or lawnmower battery will work.

      Helpful?

    2. I hook mine up to my garden tractor which is a standard 12 volt tractor battery.

      Helpful?

    3. The pump will come with a wiring harness to connect to the 12 volt battery of your vehicle.

      Helpful?

  3. What size is the axle?

    1. the axle is 5/8 inch

      Helpful?

    2. The axle is +/- 5/8"

      Helpful?

    3. The axle is 5/8" diameter.

      Helpful?

  4. What is tire size? bushing or ball bearings? does it have greasezerks?

    1. The tires are 10 inch. It has nylon bushings with grease zerks.

      Helpful?

    2. the tires are about 10' overall, they have grease zerks with bushings

      Helpful?

    3. The tire size on this sprayer is 4.10 x 3.50 x 4. It has nylon bushings and grease zerks.

      Helpful?

  5. Could you use this to spray wood sealer on a fence?

    1. Yes, there is a handheld wand that could used. Great consistent stream, so now worries about clogging or losing stream power when in use.

      Helpful?

    2. This sprayer is suitable for water based herbicides and pesticides, as well as non-flammable water based sealants or stains for outdoor wood surfaces.

      Helpful?

  6. How do you winterize this sprayer?

    Just bought the sprayer. Unless I'm blind the manual doesn't mention any special prep for freezing temps. Is it good enough to just run the pump dry for a few seconds or do you have to blow it out or pump antifreeze through it?

    1. I use rv antifreeze in tank.

      Helpful?

    2. On page 42 of the manual is the information for storage. When not in use, store the sprayer indoors. For long term or winter storage, prepare the sprayer by running RV antifreeze through the system. This will keep internal parts lubricated, protect against corrosion, and keep the unit from freezing.

      Helpful?

  7. Why does the manual only refer to pesticides and not herbicides? Is it OK to spray weed control herbicides with this?

    1. I use it for weed control products and it works just fine. After completion I run just water through to clean out the pump and tank so it is clean and ready for the next use.

      Helpful?

    2. This Ironton Sprayer is compatible with weed control herbicides.

      Helpful?

  8. Is it possible to change the nozzles?

    In particular, the broadcast nozzle for those applications that require greater than 1.18 gpm.

    1. just go slower if you need more product on your yard, no need to change nozzle. It is all threaded though so yes you could change, but not really necessary, just slow down some.

      Helpful?

    2. Northern Tool cannot recommend or advise on making modifications (including changing nozzle size/type) to this sprayer. Modifications will void the manufacturer's warranty.

      Helpful?

  9. Will sprayer work for fruit trees?

    I have some citrus trees in my yard some around 20 feet high. How high will this sprayer shoot? Thanks

    1. This sprayer is capable of spraying up to 12' vertically. Please see our item #282805 for a towable tree sprayer that has a 30' vertical spray height.

      Helpful?

    2. Pump is not powerful enough to spray more than 10-12'

      Helpful?

  10. Flow rates thru nozzles

    The info on the website says the flow rate is 1 gpm, but that is the max flow of the pump with no restriction or backpressure. Has anyone measured the actual flow out of each nozzle (on the wand and the broadcast nozzle)?

    1. No I have not measured flow.It will spray 6 gal in about 10-15 minutes.There is no way to adjust flow.Its either on or off.Hope this helps.

      Helpful?

    2. The actual flow rate is 1.18 gpm for the broadcast nozzle and 0.5-1.08 gpm for the wand nozzle.

      Helpful?
