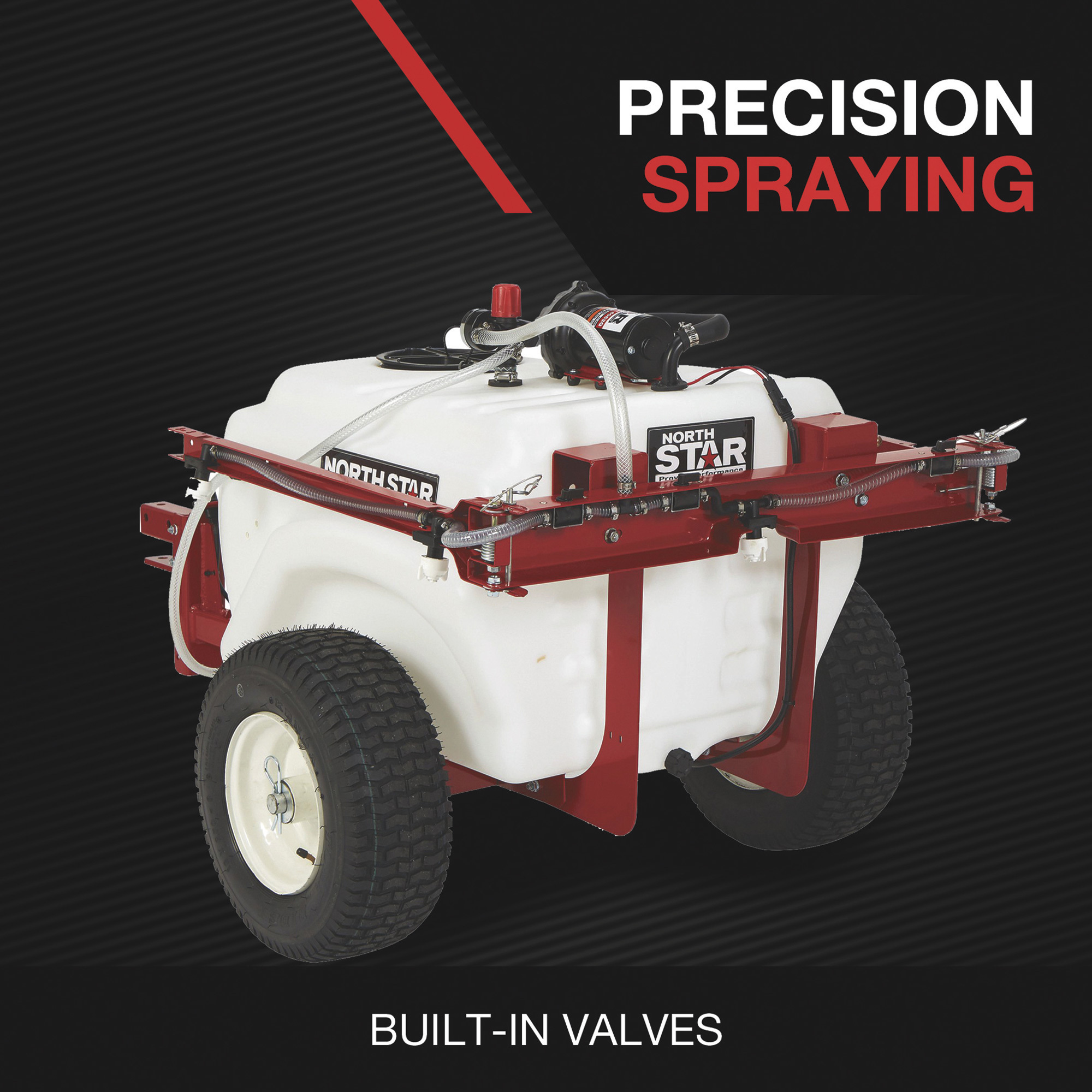

NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer, 41-Gallon, 4 GPM, 12V DC

Item# 282585
NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer, 41-Gallon, 4 GPM, 12V DC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer, 41-Gallon, 4 GPM, 12V DC

Click or Tap image to Zoom

$849.99

  • Shipping:

    Not available

  • In Store Only:

    Sold only in stores -
  • Broadcast and Spot Spraying Capability: Includes both a 5-nozzle broadcast boom and adjustable spray gun for large-area coverage or targeted spot treatment applications
  • 41-Gallon Tank Capacity: Large-capacity polyethylene tank reduces refill frequency for lawn, pasture, food plot and acreage spraying tasks
  • 12V, 4 GPM Demand-Style Pump: Delivers up to 60 PSI for consistent spraying performance and automatic on-demand operation
  • 100in. Broadcast Spray Width: Five broadcast nozzles provide up to 100in. of spray coverage for efficient treatment of large areas
  • Pressure Regulator with Gauge: Allows operators to adjust system pressure while monitoring performance for accurate application rates

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer is built for efficient chemical application across lawns, food plots, pastures and acreage. Equipped with a NorthStar demand-style diaphragm pump, it delivers up to 4 GPM and 60 PSI for dependable spraying performance. The 41-gallon polyethylene tank provides extended run time between refills, while the folding boom delivers up to 100in. of broadcast coverage for large-area spraying. For targeted applications, the adjustable spray gun quickly changes from a straight stream to a hollow cone pattern. A pressure regulator with built-in agitation capability, breakaway boom arms, remote on/off switch and wide-tread turf tires make this sprayer ideal for ATV, UTV and utility vehicle towing applications.

What's Included

    (1) NorthStar Tow-Behind Trailer Boom Broadcast and Spot Sprayer (1) Deluxe trigger spray gun (5) Nozzles (1) Boom (1) Hose

Downloads

Product Manual
Play Item Video

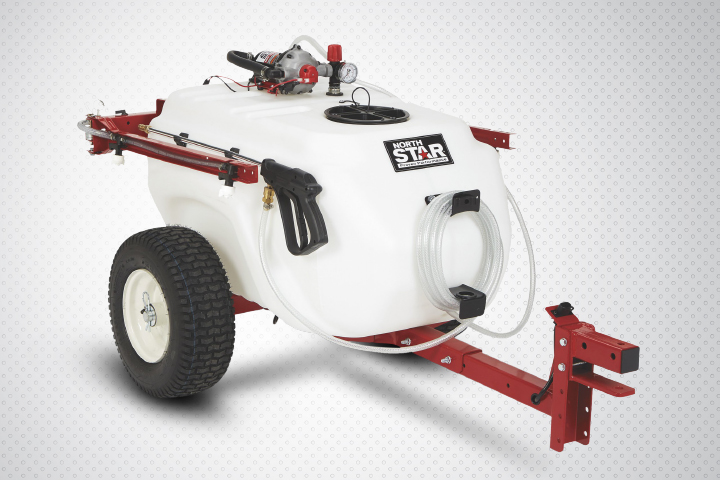

CONVENIENT STORAGE SOLUTIONS

Designed with HOSE WRAP and DUAL SPRAY GUN storage for organized storage, plus SPRING-LOADED BREAKAWAY BOOM ARMS for compact storage

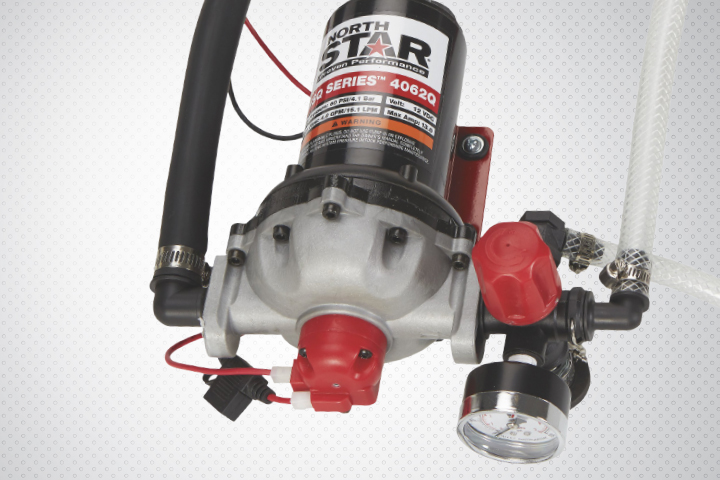

EFFICIENT POWER MANAGEMENT

The PUMP’S AUTOMATIC SHUTOFF FUNCTION conserves battery power when no flow is required, ensuring efficient operation

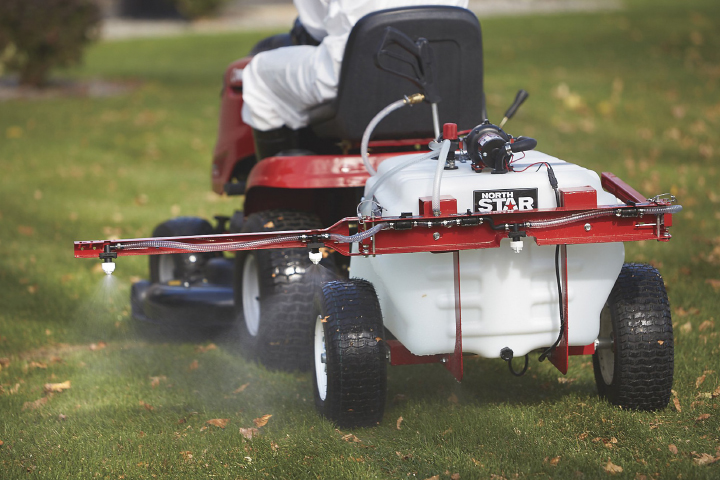

EASY FILLING AND MAINTENANCE

A large 7-1/2 INCH DIAMETER TANK LID for easy filling, with a BOTTOM-MOUNT TANK DRAIN and built-in sump for complete fluid draining

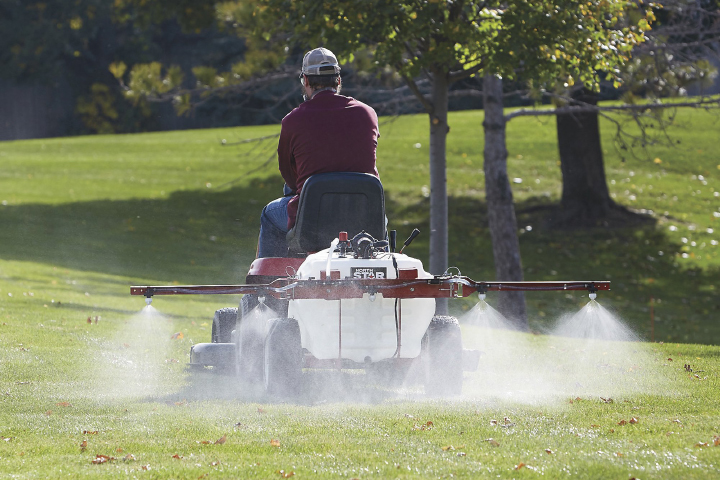

ROBUST TOWING CAPABILITY

Adjustable HEIGHT TOW BAR HITCH ACCOMMODATES a wide range of tow vehicles, enhancing usability and convenience

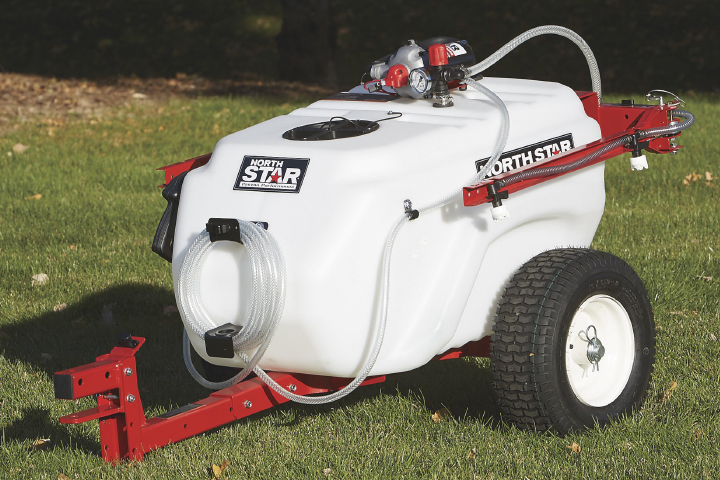

CHEMICAL MIXING EFFICIENCY

The REGULATOR BYPASS VALVE ensures CHEMICALS remain well-mixed, providing consistent spray quality

Features + Benefits

  • Broadcast and Spot Spraying Capability: Includes both a 5-nozzle broadcast boom and adjustable spray gun for large-area coverage or targeted spot treatment applications
  • 41-Gallon Tank Capacity: Large-capacity polyethylene tank reduces refill frequency for lawn, pasture, food plot and acreage spraying tasks
  • 12V, 4 GPM Demand-Style Pump: Delivers up to 60 PSI for consistent spraying performance and automatic on-demand operation
  • 100in. Broadcast Spray Width: Five broadcast nozzles provide up to 100in. of spray coverage for efficient treatment of large areas
  • Pressure Regulator with Gauge: Allows operators to adjust system pressure while monitoring performance for accurate application rates
  • Built-In Agitation Capability: Regulator bypass system continuously circulates tank contents to help keep flowable, wettable powder, emulsion and water-dispersible formulations mixed
  • Breakaway Boom Arms: Pivoting boom design folds inward for storage and automatically breaks away when struck to help reduce damage
  • Folding Boom Design: Boom arms fold for compact transport and storage between spraying jobs
  • Independent Boom Control Valves: Three ball valves allow operators to control boom sections and create custom spray patterns
  • Adjustable Stream-to-Cone Spray Gun: Twist-adjust nozzle changes from a straight stream to a hollow cone pattern for versatile spot spraying
  • 16ft. Spray Hose: Approximately 16ft. gun hose provides extended reach around obstacles, fence lines and hard-to-access areas
  • Remote On/Off Switch: Allows convenient pump control from the towing vehicle seat during operation
  • Wide-Tread Turf Tires: Large 16in. tubeless tires help minimize turf damage while providing stable towing performance
  • Tow-Behind Trailer Design: Easily connects to ATVs, UTVs and utility vehicles for efficient transport around properties and job sites
  • Integrated Hose Wrap Storage: Built-in hose storage keeps the spray hose organized during transport and storage
  • Built-In Gun Clips: Securely store the spray gun when not in use to help prevent damage and improve organization
  • Vented Fill Cap: Allows air to enter the tank during operation to maintain consistent fluid flow
  • Chemical-Resistant Construction: Features polypropylene, Viton, Santoprene, stainless steel, EPDM, nylon and PVC components for compatibility with many agricultural chemicals
  • 100-Lb. Dry Weight: Lightweight tow-behind design simplifies maneuverability and transport when empty
  • Included Accessories and Components: Includes 5-nozzle folding broadcast boom, adjustable spray gun, pressure regulator with gauge, remote switch, hose assembly, suction strainer, breakaway boom system and tow-behind trailer frame

Key Specs

AttributeSpecification

item#

282585

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

132.6 LB

Tank Size

41 Gal

Flow

4 GPM

Pressure

60 PSI

Spray Height

21 ft

Broadcast Width

8.3 ft
AttributeSpecification

Horizontal Spray Distance

32 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Spot, Broadcast

Tow Behind Cart Included

Yes

Pump Type

Northstar NSQ Series

Hose Length

192 in

Product Weight

lb

Dimensions L x W x H (in.)

60.0 x 38.0 x 34.0 in

Reviews

Questions & Answers

52 Reviews This action will navigate to reviews.

Questions

1–10 of 45 Questions
Sort by:

  1. Can you turn the boom nozzles to spray horizontally? For example to spray with one side of boom and spray wood line?

    1. The booms are fixed - they only rotate parallel to the ground

      Helpful?

    2. No .. you can isolate either side though :)

      Helpful?

    3. This sprayer has boom nozzles that cannot be turned or adjusted to spray horizontally or to the side (parallel to the ground's surface).

      Helpful?

  2. Can you use this behind a zero turn?

    1. Generally, yes. If your zero-turn has a hitch with pin attached, then it can pull this sprayer.  I have a John D 535M zero turn, with bagging system and tow hitch pin. I LOVE this sprayer. I can do sharp turns with no problem.  The power switch has enough cord length to reach up to the seat.

      Helpful?

    2. This tow-behind sprayer has a pin hitch and can be pulled with a number of slow moving vehicles, including a zero-turn mower.

      Helpful?

  3. Spray Boom

    These booms fold forward for storage. While in use do they have any movement to the rear to prevent damage in the event it contacts a fence post of something similar?

    1. Yes, They are spring loaded and can bend backwards to avoid damage if you are traveling forward.

      Helpful?

    2. This sprayer has spring-loaded breakaway boom arms that will deflect when struck preventing damage.

      Helpful?

  4. How do I order the pressure regulator valve for my tow behind sprayer

    1 answer

    1. The regulator, part #791443, can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  5. Are nozzles Ultra Low Drift (Air Induction) spray tips? If not what type are they and can they handle fertilizer, weed killer and other agricultural spray products?

    1 answer

    1. The nozzles are not air induction spray tips. The nozzle design incorporates a pre-orifice to produce larger droplets for less drift. This sprayer and the included nozzles are rated for spraying agricultural chemicals.

      Helpful?

  6. If you are running the boom sprayers and you need to switch to use the wand sprayer, do you turn the on/off switch off, and then operate the spray wand, or is it operated in some other manner?

    1 answer

    1. To discontinue use of the boom spray, close the broadcast/boom valves. To operate the spray gun you will need to squeeze the gun trigger.

      Helpful?

  7. Where can I purchase a replacement 2 way plug Red and Black wire that gets mounted on the sprayer trailer on the front tongue? The male portion on mine broke off so the plug assembly needs to be replaced. Mine has 2 small screws/bolts that bolts it on.

    1 answer

    1. The plug on the front of the trailer tongue is attached to the pump power cord. The replacement part #798029, is available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.

      Helpful?

  8. Where can I purchase the filters for the spray nozzles?

    1 answer

    1. The nozzles do not have replacement filters available.

      Helpful?

  9. I'm getting ready to purchase the 41 gal. Tow-Behind Trailer Boom Broadcast and Spot Sprayer, but will probably replace the 16” tubeless wheel with solid Flat Free Tires (max load 50 lbs/tire). What Axle Hole Diameter do I need?

    1 answer

    1. The axle diameter is 1-inch for this tow-behind sprayer.

      Helpful?

  10. Can this unit be used for a soft wash application?

    1 answer

    1. This sprayer is not suited for soft wash applications.

      Helpful?
