NorthStar Pressure Washer Kit with Honda GX200 Engine, 3300 PSI, 2.5 GPM, CAT 4DNX Pump

Item# 157119
NorthStar Pressure Washer Kit with Honda GX200 Engine, 3300 PSI, 2.5 GPM, CAT 4DNX Pump

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Pressure Washer Kit with Honda GX200 Engine, 3300 PSI, 2.5 GPM, CAT 4DNX Pump

Click or Tap image to Zoom

$949.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Included mounting plate allows for stable, convenient mounting to trailers, work trucks, existing pressure washer carts and more
  • Honda GX engine provides quiet, reliable performance
  • CAT direct drive triplex pump with forged brass manifold and ceramic plungers offers outstanding durability
  • Easy Start provides smoother, easier recoil pulling

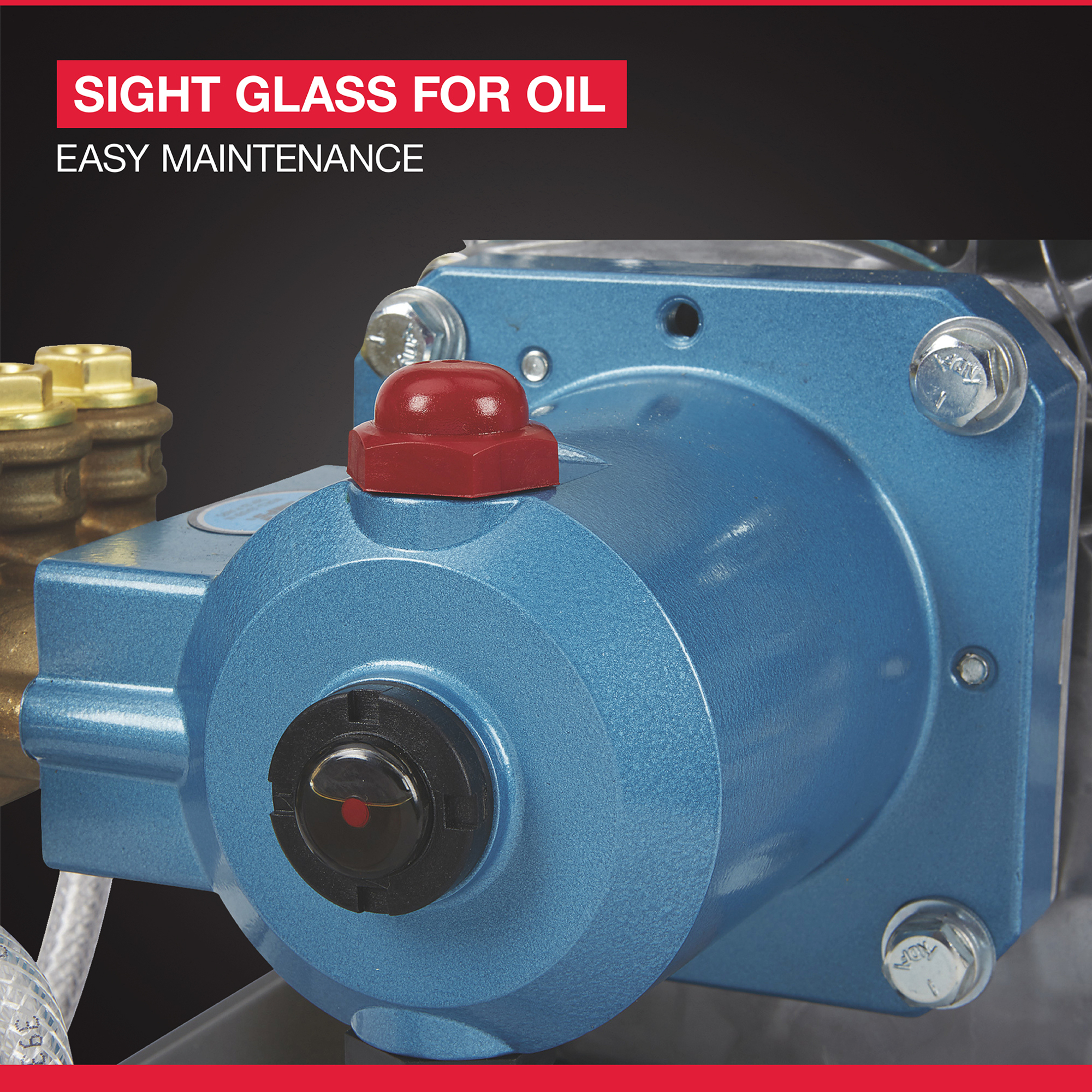

  • Sight glass allows quick, convenient pump oil checks

See full description

Complete Your Solution

  • NorthStar Pressure Washer Kit with Honda GX200 Engine, 3300 PSI, 2.5 GPM, CAT 4DNX Pump
  • NorthStar Nonmarking Pressure Washer Hose, 4000 PSI, 50ft. x 3/8in.
  • NorthStar Pressure Washer High-Performance Truck Wash Concentrate, 1-Gallon, Model# NSTW1
  • Cat Pumps Pressure Washer Pump Oil, 21 Oz.
Price for all four:

$1071.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar Pressure Washer Kit features top-grade components for superior cleaning at home or jobsites. The included mounting plate allows for stable, convenient mounting to trailers, work trucks, existing pressure washer carts and more. It features a Honda GX engine for quiet, reliable performance. The CAT direct drive triplex pump with forged brass manifold and ceramic plungers offers outstanding durability.

NorthStar pressure washers undergo thousands of hours of rigorous testing to ensure peak performance, plus include an industry-leading warranty to give you extra peace of mind.

What's Included

    (1) Pressure washer kit with engine

Downloads

Product Manual

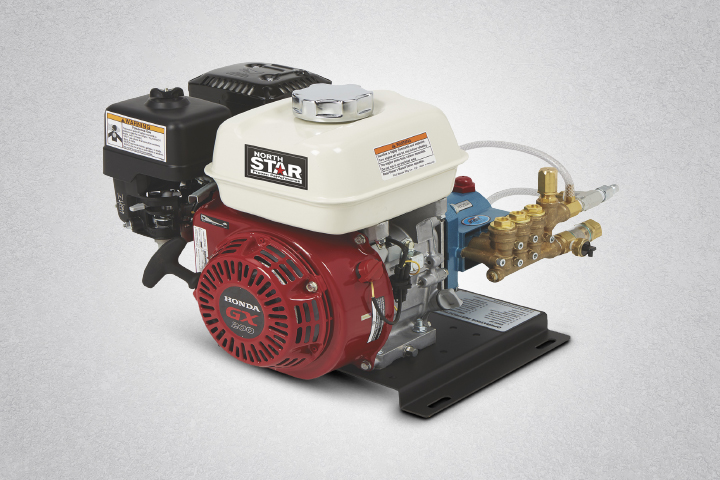

MOUNT ANYWHERE FLEXIBILITY

This kit’s VERSATILE mounting options enable stable, easy integration with a variety of vehicles and carts, providing a MOBILE CLEANING SOLUTION for any environment

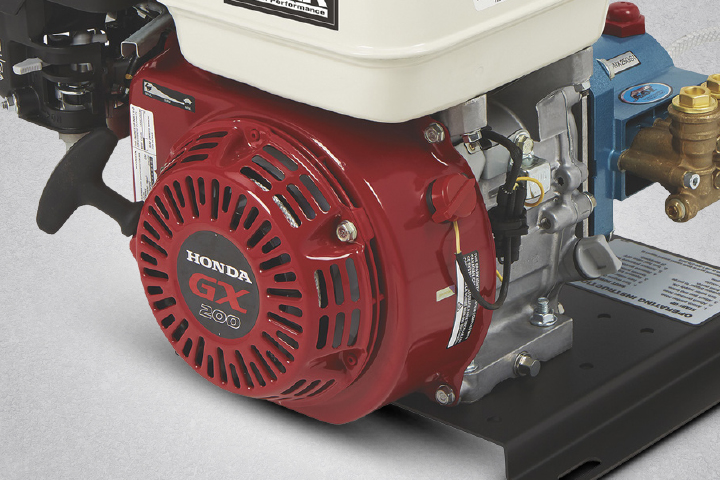

QUIET YET POWERFUL CLEANING

The HONDA GX200 ENGINE delivers reliable power with MINIMAL NOISE, making it ideal for RIGOROUS CLEANING tasks without disturbing the peace

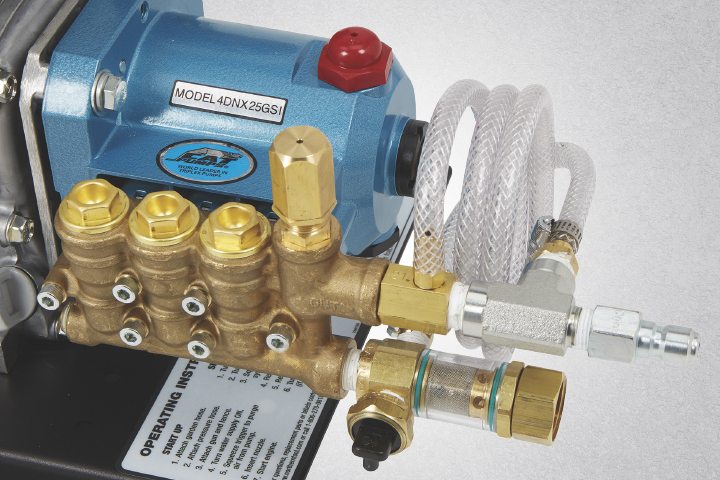

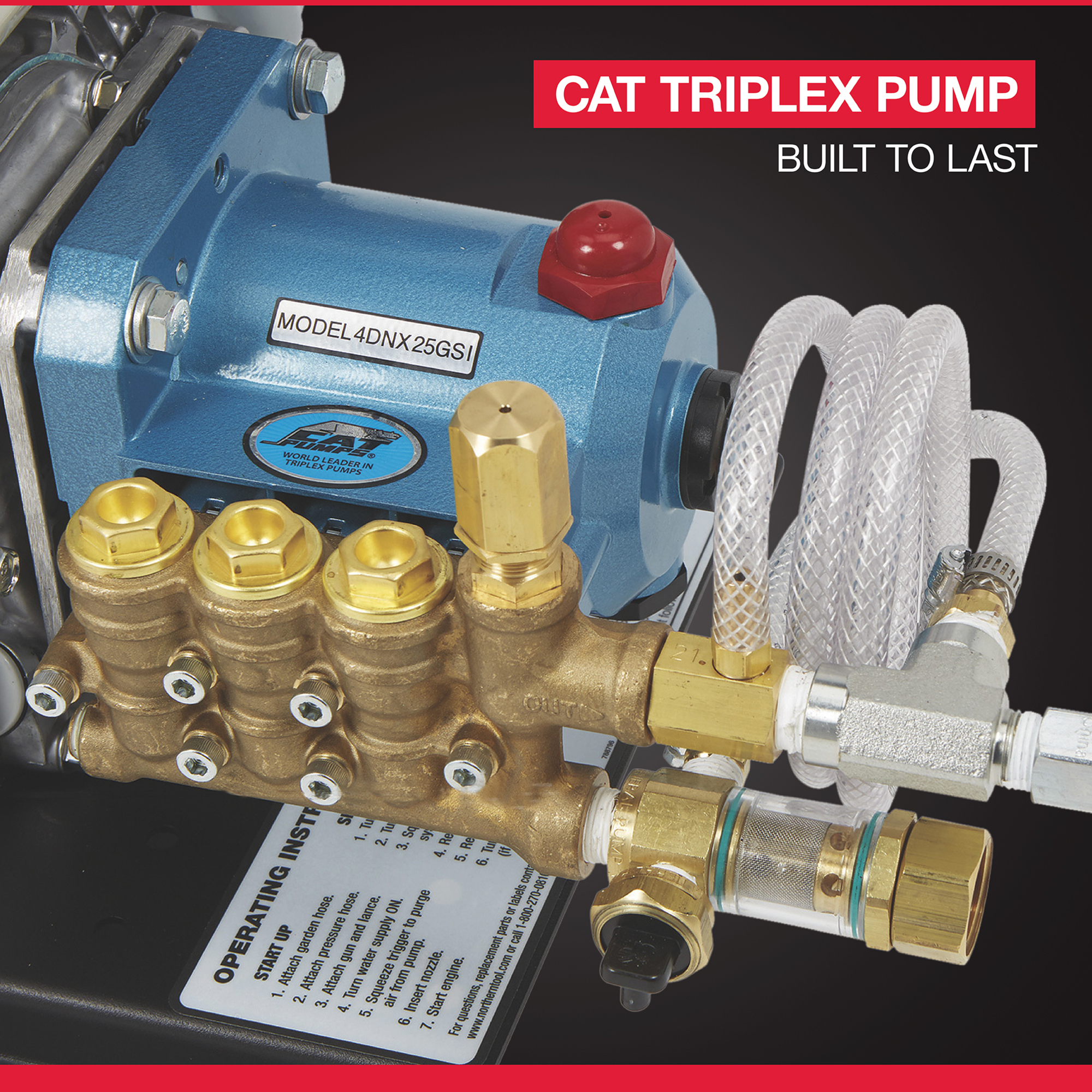

BUILT TO LAST

With a CAT TRIPLEX PUMP that’s built for endurance, featuring high-quality components like a FORGED BRASS MANIFOLD and ceramic plungers, this pressure washer withstands the toughest conditions

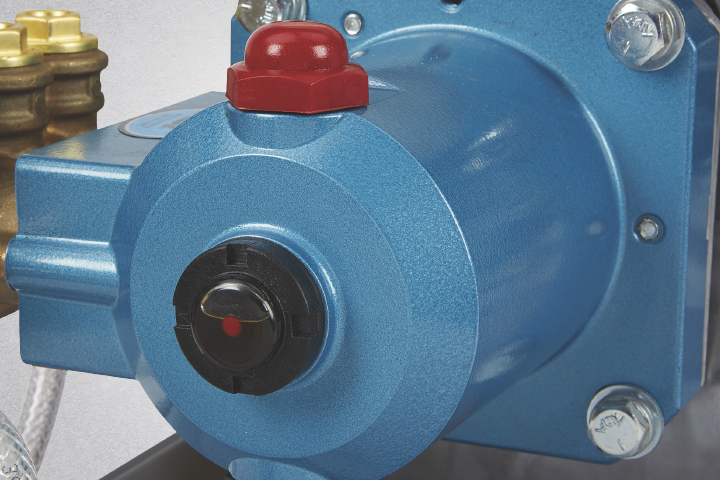

EASE OF MAINTENANCE AND OPERATION

Features such as EASY START and a CLEAR SIGHT GLASS for oil checks make this pressure washer straightforward to operate and maintain, ensuring PEAK PERFORMANCE

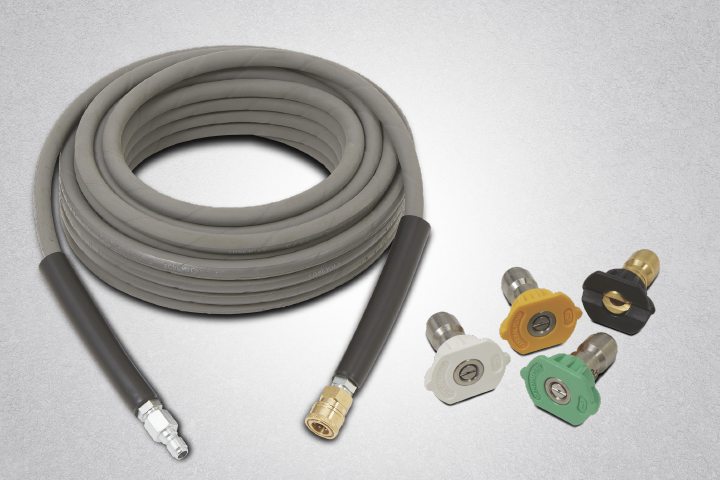

READY FOR ANY CLEANING CHALLENGE

Equipped with all necessary accessories, including various NOZZLES and a high-pressure HOSE, this kit is ready to tackle a wide range of cleaning tasks, from delicate surfaces to stubborn grime

Features + Benefits

  • Included mounting plate allows for stable, convenient mounting to trailers, work trucks, existing pressure washer carts and more
  • Honda GX engine provides quiet, reliable performance
  • CAT direct drive triplex pump with forged brass manifold and ceramic plungers offers outstanding durability
  • Easy Start provides smoother, easier recoil pulling
  • Sight glass allows quick, convenient pump oil checks

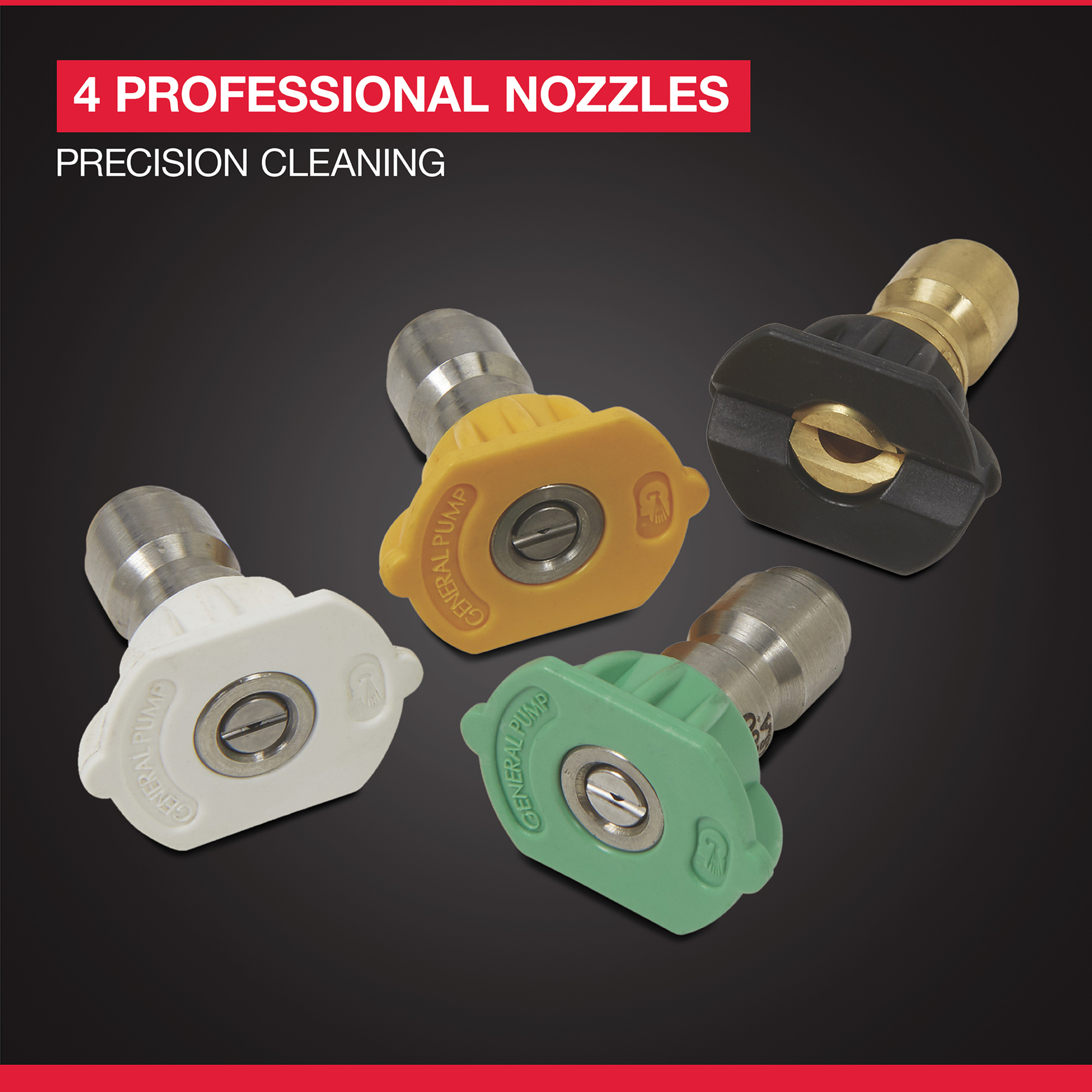

  • Includes 50ft. gray nonmarking high-pressure hose, 3ft. lance, downstream detergent injector, 4 quick-couple professional nozzles (15°, 25°, 40° and detergent) and 12-ga. Grade 50 steel mounting platform
  • 4-year consumer limited warranty; 2-year commercial limited warranty; 3-year limited warranty on Honda GX engine

Key Specs

AttributeSpecification

item#

157119

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

79.0 LB

Pressure

3,300 PSI

Flow

2.5 GPM

Engine Brand

Honda

Engine Model

GX200

Engine Displacement

196 cc

Fuel Type

Gasoline

Pump

CAT 4dnx

Drive Style

Direct

Number of Tips Included

4

Adjustable Pressure

Yes

Gross Torque

9.1 ft-lbs.

Start Type

Recoil
AttributeSpecification

Engine Oil Included

No

Engine Oil Type

SAE 30

Fuel Capacity

0.83 Gal

Max. Inlet Water Temp

140 °F

Orifice Size

3

Chemical Injector

Yes

Hose Length

50 ft

Coupler Size

3/8 in

Nozzle Type

Quick-connect

Quick Connect Nozzle

Yes

Pump Oil Included

Yes

Pump Oil Type

SAE 30 Nondetergent

Low Oil Shutdown

Yes

Thermal Protector

Yes

Product Weight

70.0000 lb

Dimensions L x W x H (in.)

20.25 x 16.5 x 15.0 in

Reviews

Questions & Answers

21 Reviews This action will navigate to reviews.

Questions

1–10 of 17 Questions
Sort by:

  1. can you bypass water with this pump

    1. All pressure washers have a bypass. The 4DNX has a built-in bypass. If you want the pump to bypass water back to a tank, this is not the right pump. Look for a PW with a 66DX pump on it.

      Helpful?

    2. The pressure washer has an internal bypass to the manifold, when you are not pulling the trigger on the gun.

      Helpful?

  2. Is this unit 50 state legal? Specifically, California certified.

    1 answer

    1. This pressure washer kit is not CARB compliant so it is restricted for sale in California.

      Helpful?

  3. Is it necessary to use a water pump to give pressure to the extraction of water from a tank with this product?

    1 answer

    1. Never use a reservoir tank as a water source. Drawing water out of a tank may cause pump
      cavitation and damage the pump. This pressure washer is designed for a pressurized water source such as a city water faucet. The water source pressure must not exceed 60 PSI.

      Helpful?

  4. Can this shoot 30/40 feet ?

    1 answer

    1. This pressure washer kit has not been tested for a spray height.

      Helpful?

  5. What would I need for this to work with a water tank for mobile detailing?

    1 answer

    1. Never use a reservoir tank as a water source. Drawing water out of a tank may cause pump cavitation and damage the pump. This pressure washer is designed for a pressurized water source such as a city water faucet. The incoming water pressure should not exceed 60 PSI.

      Helpful?

  6. how do you replace soap dispensor onwasher

    1 answer

    1. This is equipped with a downstream chemical injector. If this kit is going on an existing pressure washer cart, you would remove the engine, pump and remaining components to replace with this kit.

      Helpful?

  7. at the bottom right it states the motor comes with hose and wand. Is this correct. If so, I will purchase one today.

    1 answer

    1. This pressure washer kit does include a 50' hose and sprayer wand.

      Helpful?

  8. How do I start the engine

    1 answer

    1. This unit has a recoil (pull) start.

      Helpful?

  9. What’s the mixing ratio for the downstream injector?

    1 answer

    1. The chemical solution will automatically be mixed with the water at a ratio of 15 parts water to 1-part chemical solution.

      Helpful?

  10. What are the dimensions of the base?

    1 answer

    1. This will need to be mounted on a surface that is a minimum of 11" L x 12.5" W. The base measures 8" L x 11.5" W.

      Helpful?
