NorthStar Portable Gas-Powered Air Compressor, Honda 163cc GX160 OHV Engine, 20-Gallon Horizontal Tank, 13.7 CFM @ 90 PSI

Item# 459392
Top Seller
NorthStar Portable Gas-Powered Air Compressor, Honda 163cc GX160 OHV Engine, 20-Gallon Horizontal Tank, 13.7 CFM @ 90 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Portable Gas-Powered Air Compressor, Honda 163cc GX160 OHV Engine, 20-Gallon Horizontal Tank, 13.7 CFM @ 90 PSI

Click or Tap image to Zoom

$1599.99

    • Shipping:

      Free shipping (lower 48 states) - Available now

      Heavy/large item. Lift gate service available.

    • Store Pickup:

      Out of stock at Fredericksburg VA

    • Honda GX160 OHV engine with low oil shutdown
    • Full cast iron pump for long service life
    • V-style cylinder design for superior cooling
    • Pump head made of FC35 Grade cast iron
    • Floating-type Swedish steel valves deliver much longer valve life

    • Prop 65 Warning: See Details

    See full description

    Complete Your Solution

    • NorthStar Portable Gas-Powered Air Compressor, Honda 163cc GX160 OHV Engine, 20-Gallon Horizontal Tank, 13.7 CFM @ 90 PSI
    • NorthStar Air Compressor Start-Up Kit, Fits Item#s 459212, 459222, 459392, 459232, 25653, 25654
    • Klutch Auto-Rewind Air Hose Reel, 3/8in. x 50ft. Rubber Hose, 300 PSI, Wall/Ceiling/Floor Mount
    • Klutch Rubber Air Hose, 3/8in. x 50ft., 300 PSI
    Price for all four:

    $1832.96

    Frequently Bought Together

    • Description

    • Key Specs

    • Reviews

    • Q & A

    • Accessories

    • Warranty

    • Compare

    Product Summary

    The NorthStar 20-Gallon Horizontal Gas-Powered Portable Air Compressor is built for heavy-duty applications and long life. Belt-driven full cast iron single-stage pump features V-type cylinder design for superior cooling, Low Vibration Technology (LVT) for smooth operation and floating-type Swedish steel valves for long valve life. Crankshaft has bearings on both ends for excellent support. Powered by a Honda GX160 OHV gasoline engine for reliable performance.

    What's Included

      (1) NorthStar Portable Gas-Powered Air Compressor with Honda 163cc GX160 OHV Engine

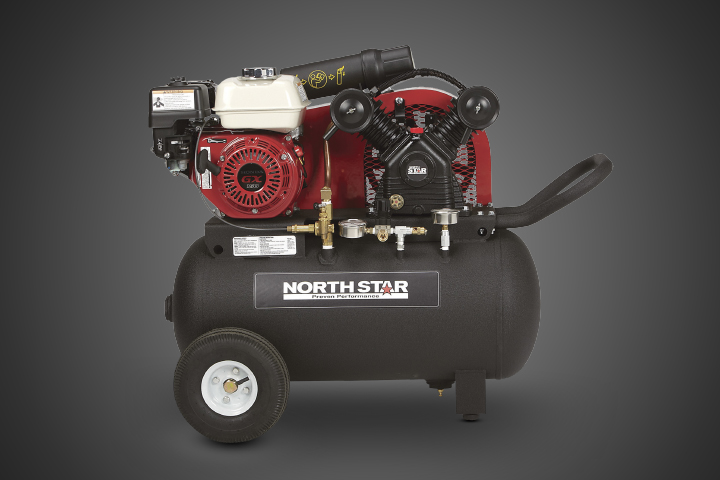

    TECHNOLOGICAL EXCELLENCE

    LOW VIBRATION TECHNOLOGY(LVT) and superior swedish steel valves define smooth and efficient operation. These advancements contribute to the compressor’s REMARKABLE DURABILITY and performance

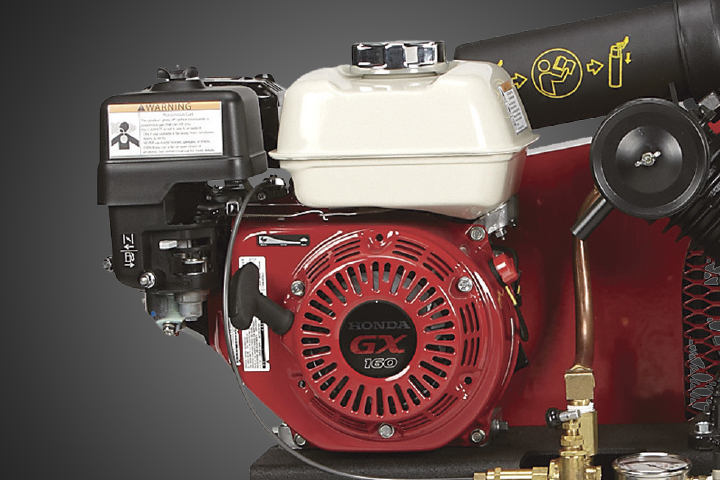

    POWERFUL ENGINE

    Experience unparalleled reliability with the HONDA GX160 OHV ENGINE, designed for efficient and LONG-LASTING PERFORMANCE long-lasting performance

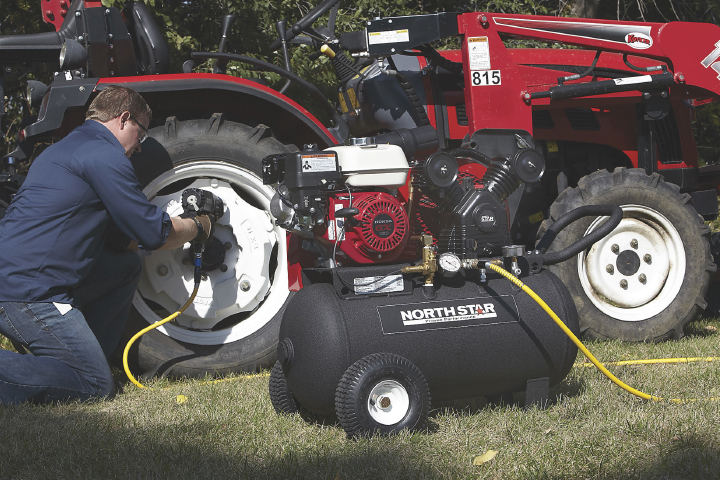

    USER-FRIENDLY FEATURES

    With a sight glass for EASY OIL LEVEL CHECKS and an EASY-START LEVER, this compressor is as convenient as it is powerful. Its design ensures ease of maintenance and operation, setting a new standard for PORTABLE AIR COMPRESSORS

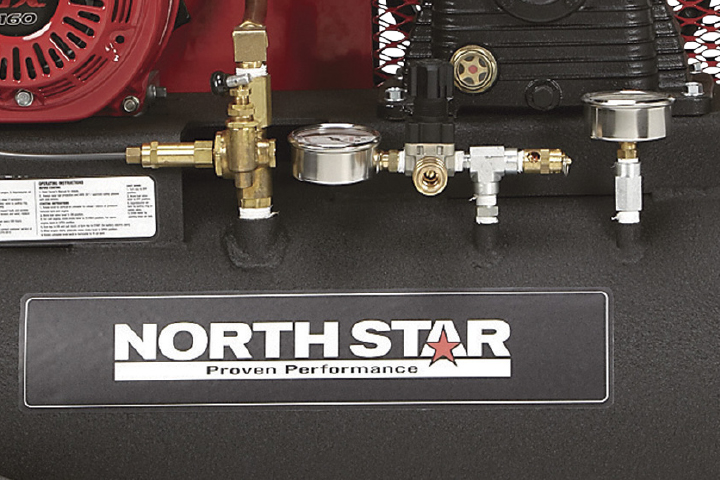

    SUPERIOR COOLING AND OPERATION

    Designed to run COOLER and LONGER, the compressor’s innovative features include a SLOWER RPM and OVERSIZED FLYWHEEL These contribute to its efficient operation and longevity, even under heavy use

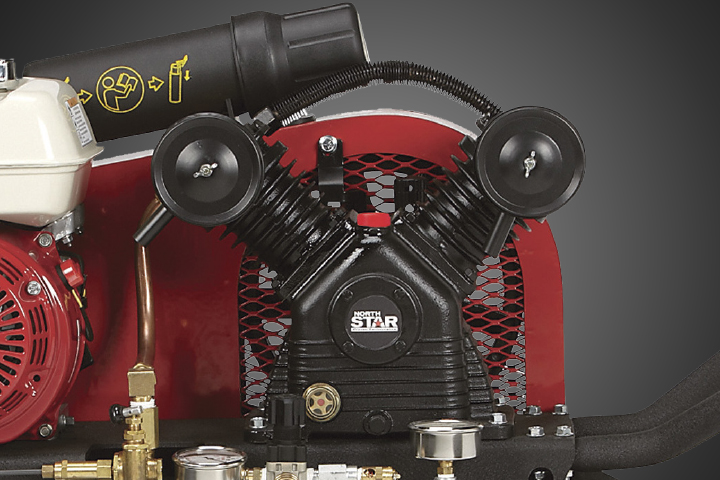

    DURABILITY REDEFINED

    The compressor’s FULL CAST IRON PUMP and crankcase offer unmatched service life, while the V-STYLE CYLINDER maximizes cooling. Engineered for demanding environments, it promises endurance and stability

    Features + Benefits

    • Honda GX160 OHV engine with low oil shutdown
    • Full cast iron pump for long service life
    • V-style cylinder design for superior cooling
    • Pump head made of FC35 Grade cast iron
    • Floating-type Swedish steel valves deliver much longer valve life
    • Operates at slower RPM to run cooler and last longer
    • Low Vibration Technology (LVT) features a dynamically balanced pump for smooth operation and long life
    • 1-piece cast iron crankcase has bearings on both ends of crankshaft for superior crankshaft support, not overhung crankshaft design
    • 100% duty cycle
    • Delivers 13.7 CFM @ 90 PSI
    • 130 max. PSI
    • Oversized flywheel for cooler operation
    • Heavy cast iron flywheel provides extra momentum
    • Step-type piston rings ensure piston ring overlap for better compression
    • Sight glass for quick viewing of oil level
    • Replaceable crank journals and wrist pin journal/needle bearings
    • 2-piece connecting rods can be rebuilt for superior serviceability
    • High-pressure piston wrist pins have needle bearings
    • Easy start lever on unloader valve isolates pump from tank pressure, so engine won't have to start under load
    • Durable steel belt guard

    Key Specs

    AttributeSpecification

    item#

    		459392

    Brand

    		NorthStar

    Manufacturer's Warranty

    		4 year limited warranty

    Ship Weight

    		217.0 LB

    Horsepower

    		4.8 HP

    Air Tank Size

    		20 Gal

    Engine Brand

    		Honda

    CFM at 90 PSI

    		13.7

    Max. PSI

    		130

    Stage

    		1

    Air Outlets (qty.)

    		1

    Duty Cycle

    		100 %

    Fuel Capacity

    		0.825 Gal

    Motor RPM

    		3,600
    AttributeSpecification

    Engine Displacement

    		163 cc

    Engine Start Type

    		Recoil

    Pump Material

    		Cast Iron

    Air Outlet Size

    		1/4 in. NPT

    CFM at 40 PSI

    		14.6

    Oil Required

    		Yes

    Low Oil Shutdown

    		Yes

    After Cooler Included

    		No

    Tank Fill Time

    		0.9 min

    Drain Type

    		Manual

    Tank Orientation

    		Horizontal

    Product Weight

    		196.0000 lb

    Dimensions L x W x H (in.)

    		40.0 x 21.0 x 33.0 in
