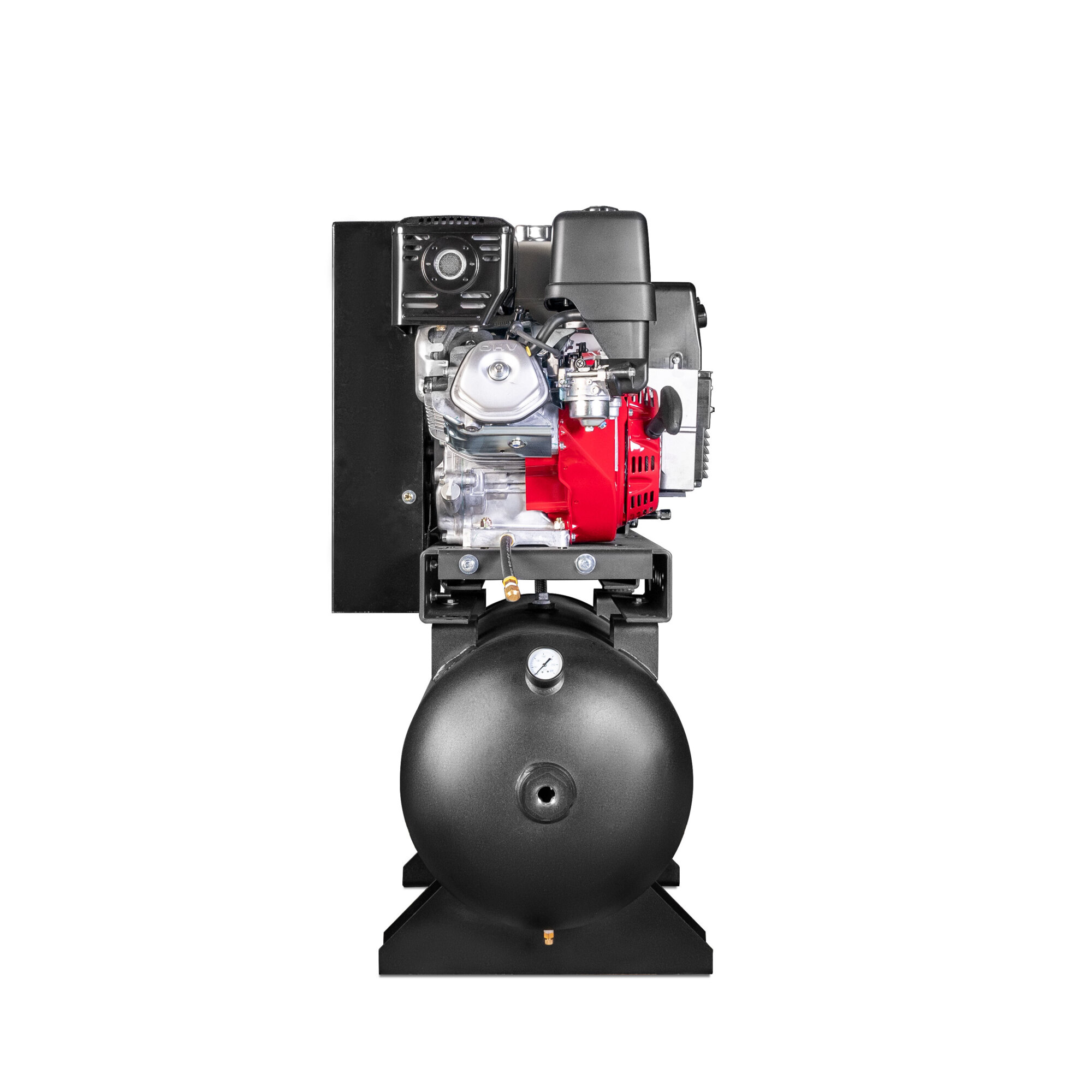

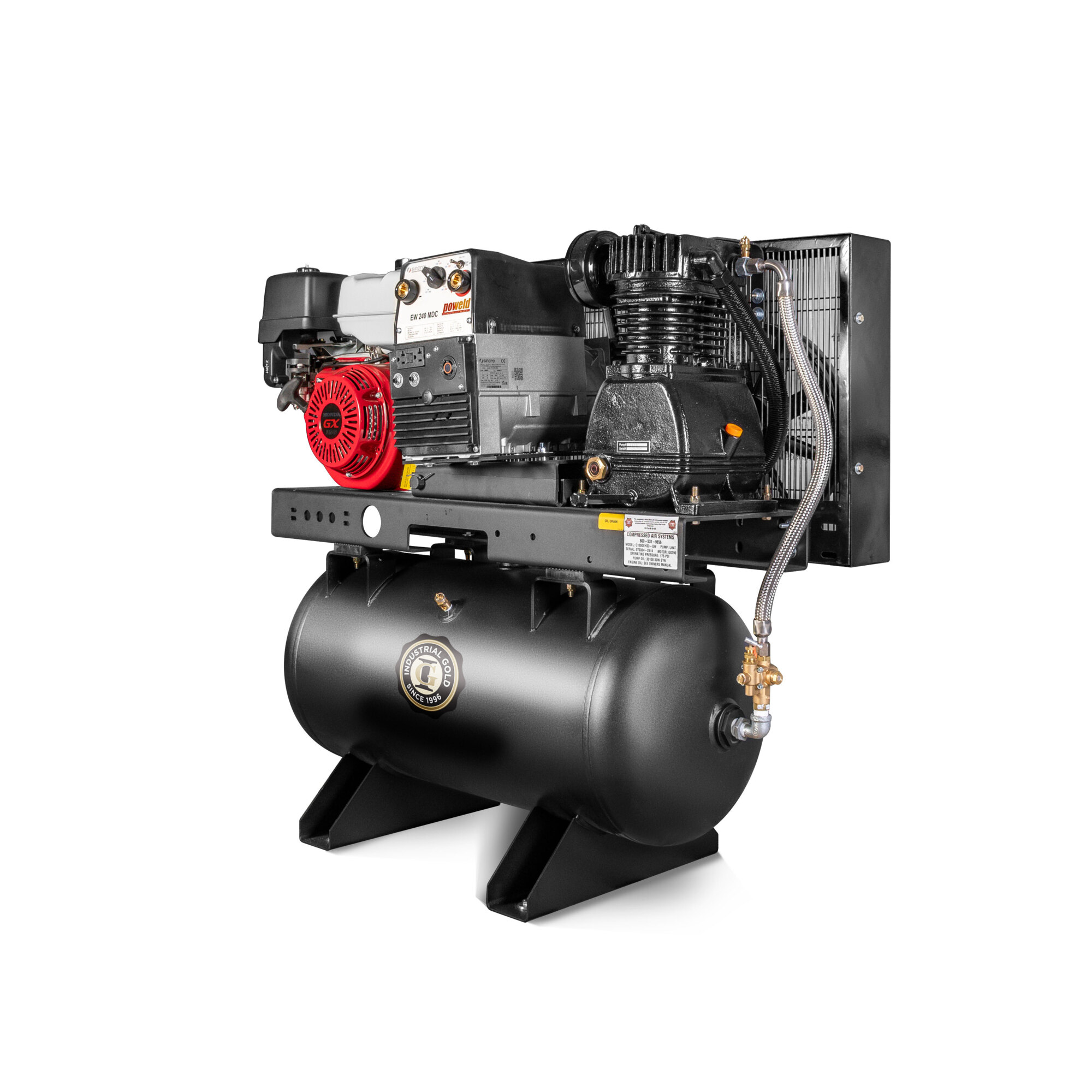

Industrial Gold Gas-Powered Compressor/Generator/Welder, 13 HP Honda GX390 Engine, 30-Gallon Horizontal Tank, Model# CI13GEX33-GW

Item# 114730
"Industrial Gold Gas-Powered Compressor/Generator/Welder, 13 HP Honda GX390 Engine, 30-Gallon Horizontal Tank, Model# CI13GEX33-GW"
Industrial Gold Gas-Powered Compressor/Generator/Welder, 13 HP Honda GX390 Engine, 30-Gallon Horizontal Tank, Model# CI13GEX33-GW

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Industrial Gold Gas-Powered Compressor/Generator/Welder, 13 HP Honda GX390 Engine, 30-Gallon Horizontal Tank, Model# CI13GEX33-GW

Click or Tap image to Zoom

$4275.00

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 240 Amp Welder, 5000 Watt Generator
  • Heavy-duty two-stage solid cast iron pump
  • Industrial-duty engine
  • Needle bearings and inserts on rods
  • Access to compressor valves without compressor head removal

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Heavy-Duty Pressure-Lubricated Cast Iron Pumps Run Smoother Quieter. Works Longer Harder. Industrial Gold classic CA1 and CA2 pumps just got even better. Now available with pressure lubrication for enhanced durability and performance.

What's Included

    (1) Air Compressor

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • 240 Amp Welder, 5000 Watt Generator
  • Heavy-duty two-stage solid cast iron pump
  • Industrial-duty engine
  • Needle bearings and inserts on rods
  • Access to compressor valves without compressor head removal
  • Alternator on drive engine
  • ASME/CRN certified air receiver
  • Bearings on both ends of the crank shaft
  • Critical controls protected by compressor base plate
  • Drive engine on left side for safety
  • Fully enclosed belt guard
  • Full saddle mounting feet instead of pegged mounting feet
  • Heavy-duty air filter
  • Pilot valve continuous operation
  • Stainless steel flexible air lines
  • Swedish steel valves
  • Torrington needle bearings
  • 2-groove B width drive pulley
  • 110/220 volt generator outlets
  • 41 amps @ 120 volt, 20 amps@240 volt

Key Specs

AttributeSpecification

item#

114730

Brand

Industrial Gold

Manufacturer's Warranty

1 year limited warranty

Ship Weight

450.0 LB

Horsepower

13 HP

Air Tank Size

30 Gal

Engine Brand

Honda

CFM at 90 PSI

19.2

Max. PSI

175

Stage

2

Air Outlets (qty.)

1

Amps

240

Duty Cycle

70 %

Fuel Capacity

6.4 Gal

Working Pressure

175 PSI

Engine Displacement

390 cc

Engine Start Type

Electric and Recoil
AttributeSpecification

Pump Life

15,000 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

20

CFM at Max. PSI

16

Oil Required

Yes

Lubrication System

Splash

Pressure Gauge

Yes

Electronic Drain Valve

No

After Cooler Included

No

Air Dryer

None

Drain Type

Manual

Tank Orientation

Horizontal

Engine Model

Honda

Product Weight

450.0000 lb

Dimensions L x W x H (in.)

70.0 x 26.0 x 45.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Where are the receptacles for the generator ?

    1 answer

    1. The receptacles for the generator are located on the side of the unit.

      Helpful?

  2. Does the welder have "notches" in the amperage control or is it variable? Meaning can you set the welder anywhere in between the marked numbers or are there only "X" amount of settings you can weld at?

    1 answer

    1. There are 7 settings that be can be used for welding. There are no variables in between each of the settings.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
