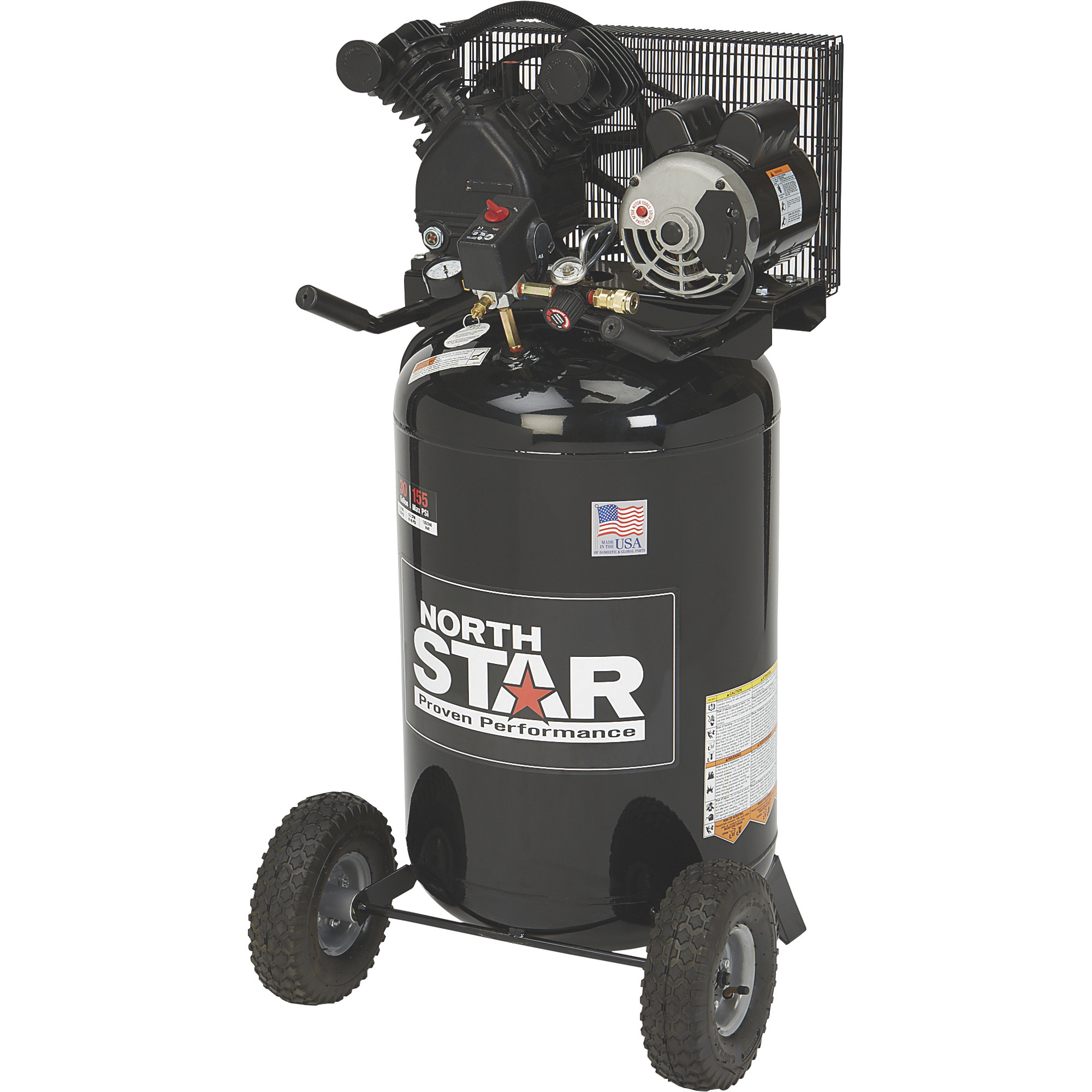

NorthStar Portable Electric Air Compressor, 1.6 HP, 30-Gallon Vertical, 5.3 CFM

Item# 75859
Clearance
NorthStar Portable Electric Air Compressor, 1.6 HP, 30-Gallon Vertical, 5.3 CFM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Portable Electric Air Compressor, 1.6 HP, 30-Gallon Vertical, 5.3 CFM

Click or Tap image to Zoom

  • Heavy-duty 1.6 HP, 15 Amp induction motor for maximum performance and efficiency
  • Durable cast iron V-twin pump provides good heat dissipation and no transfer of heat between cylinders
  • Belt drive oil-lubricated pump runs quietly and delivers long pump life
  • 30-gallon vertical tank is ASME certified
  • 10in. pneumatic wheels for easy portability

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar 30-Gallon Portable Electric Air Compressor is powered by a heavy-duty 1.6 HP induction motor for maximum performance and efficiency. Cast iron oil-lubricated V-twin pump provides good heat dissipation and no transfer of heat between cylinders for long service life. Versatile dual-voltage motor is wired for standard 120V outlets but can be converted to 240V applications. 30-gallon vertical tank is ASME certified. Equipped with 10in. pneumatic wheels for easy portability. Made in the U.S.A.

What's Included

    (1) 30-gallon portable air compressor (2) 10in. pneumatic wheels

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Heavy-duty 1.6 HP, 15 Amp induction motor for maximum performance and efficiency
  • Durable cast iron V-twin pump provides good heat dissipation and no transfer of heat between cylinders
  • Belt drive oil-lubricated pump runs quietly and delivers long pump life
  • 30-gallon vertical tank is ASME certified
  • 10in. pneumatic wheels for easy portability
  • Dual-voltage motor is wired for standard 120V outlets but can be converted to 240V applications
  • Convenient controls put gauges, regulator and quick connect at your fingertips
  • 1/4in. quick connect for easy tool changes
  • Quiet 77dB operation
  • 155 max. PSI for optimum tool performance
  • Durable stainless steel reed valves
  • Oil level sight glass
  • Automotive-style ball bearings
  • 10in. cast iron balanced flywheel
  • 1-piece cast iron crankcase
  • Thermally stable cast iron cylinder body
  • Aluminum head and machined cast iron valve plate

Key Specs

AttributeSpecification

item#

75859

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

152.8 LB

Horsepower

1.6 HP

Air Tank Size

30 Gal

Volts

120/240

CFM at 90 PSI

5.3

Max. PSI

155

Air Outlets (qty.)

1

Amps

15

Duty Cycle

75 %

Motor RPM

3,450
AttributeSpecification

Working Pressure

155 PSI

Pump Life

1,500 hr

Pump Material

Cast Iron

Pump Drive

Belt

Air Outlet Size

1/4 in. NPT

CFM at 40 PSI

6.2

Noise Level

76 dB

Oil Required

Yes

Tank Fill Time

8.2 min

Tank Orientation

Vertical

Product Weight

171.0000 lb

Dimensions L x W x H (in.)

26.0 x 24.5 x 52.0 in

Reviews

Questions & Answers

20 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. I see it draws 15 amps when wired at 110 volts. How many amps does it draw when wired at 230 volts?

    1. 120 = 15amps.
      240 = 7.5amp.

      Helpful?

    2. This NorthStar air compressor is rated at 15 amps for 120 volts and 7.5 amps for 240 volts.

      Helpful?

  2. what is the psi...And is it adjustable ?

    1 answer

    1. The maximum pressure of this air compressor is 155 PSI. The regulator knob controls the air pressure coming from the air tank. To adjust the regulator, turn the knob clockwise to increase regulated pressure and counter-clockwise to decrease regulated pressure.

      Helpful?

  3. What is the physical dimension of this compressor? Specifically the height and width of the cage around the belt?

    1 answer

    1. The overall dimensions of the compressor are 26" long x 24.5" wide x 52" high. The outer belt guard measures 19.62" long x 18" high. The inner belt guard measures 20.3" long x 11.9" high.

      Helpful?

  4. Does this compressor come with a standard 120 volt power cord?

    1 answer

    1. This air compressor is equipped with a power cord to plug into standard 120V outlets.

      Helpful?

  5. Is made in USA?

    1 answer

    1. This compressor is manufactured in the United States.

      Helpful?

  6. does this model have the dual motor induction motor for easier cold starts?

    1 answer

    1. This has a heavy-duty induction motor for maximum performance and efficiency.

      Helpful?

  7. Are spare pistons, rings and reed valves available?

    1 answer

    1. Parts for this product are not available directly through Northern Tool + Equipment. Parts for this may be available through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com. To obtain the part numbers you need, please first contact our Parts Department at 1-800-657-0516.

      Helpful?

  8. How much oil does it take? Based on the little round glass.

    1 answer

    1. The pump crankcase can hold approximately 13 ounces. The oil level should be in the middle of the sight glass.

      Helpful?

  9. Hi will this operate an inpact gun to take of lug nuts and other tools used on cars?

    1 answer

    1. This is suitable for any air tool that is less than 5.3 cubic feet per minute of air consumption. This is enough to handle lug nut removal.

      Helpful?

  10. I have seen some reviews on YouTube that says their unit came with a 2hp motor now, I see on this one 1.6hp. Why is this? And, the reviews I saw all show non-flat solid tires, now I see air tires which is it? And, is this unit made in the US?

    1 answer

    1. This 30-gallon portable air compressor has a 1.6 HP motor and pneumatic tires. This is manufactured in the United States. Item 25653 is a 20-gallon portable air compressor with a 2 HP motor and flat-free tires.

      Helpful?
