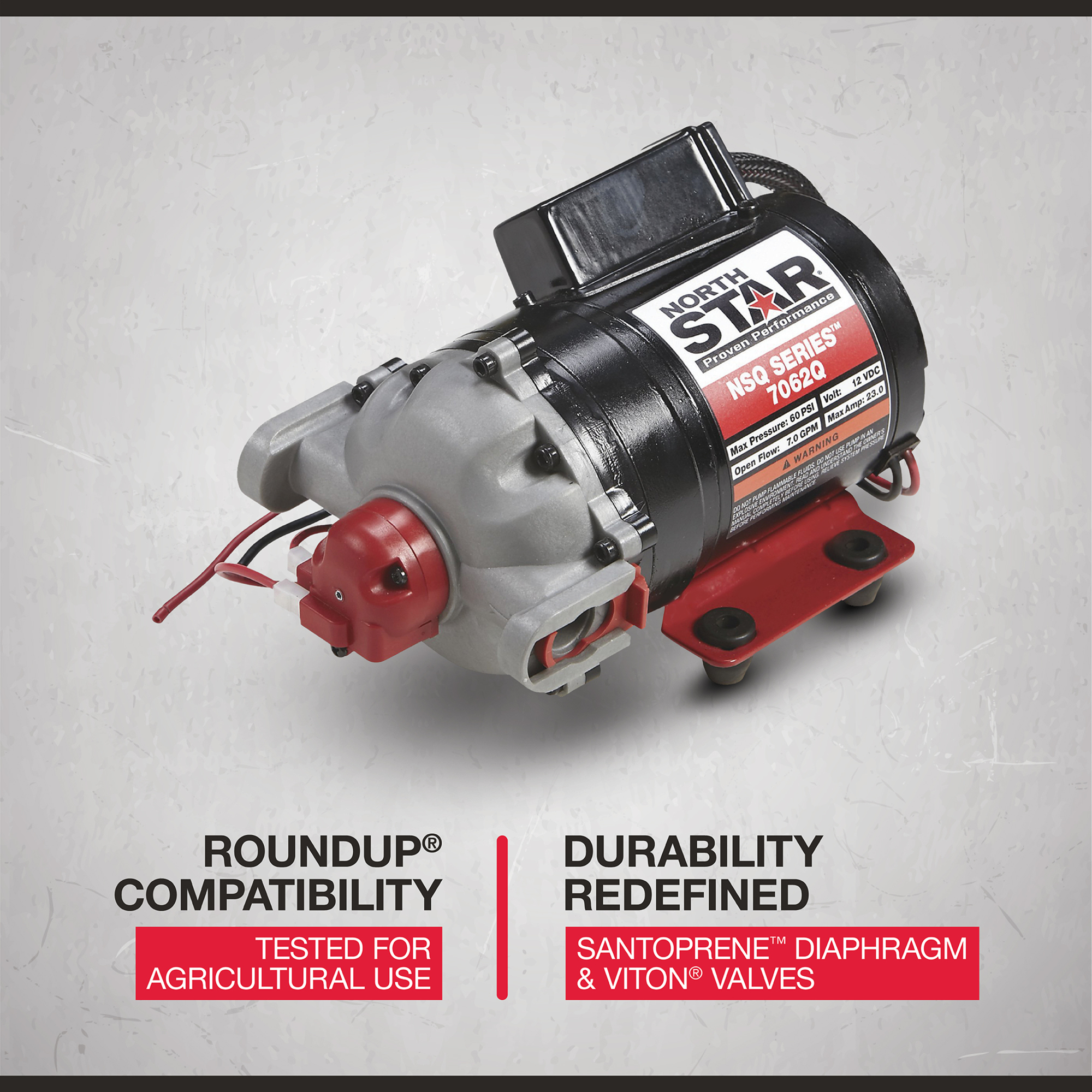

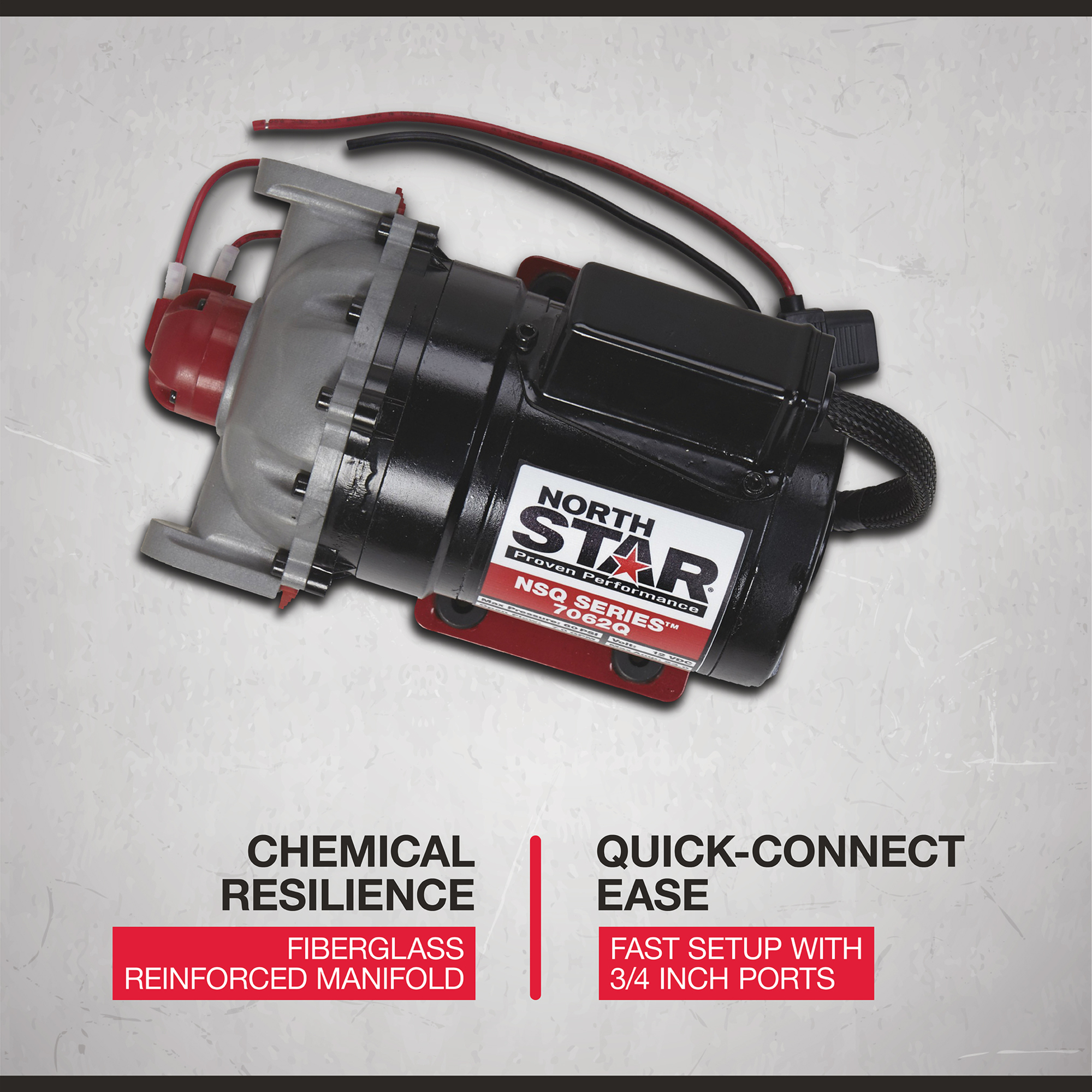

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 7.0 GPM, Turns Off @ 60 PSI

Item# 2687062
NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 7.0 GPM, Turns Off @ 60 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar NSQ Series 12V On-Demand Sprayer Diaphragm Pump with Quick-Connect Ports, 7.0 GPM, Turns Off @ 60 PSI

Click or Tap image to Zoom

$249.99

  • Shipping:

    Not available

  • In Store Only:

    Not Available
  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Santoprene™ diaphragm and Viton® valves for reliability, longer life and better priming
  • Innovative smooth valve design for faster priming and longer life

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This high-end NorthStar® NSQ Series® 12V On-Demand Sprayer Diaphragm Pump upgrades your sprayer with innovative components and engineering for superior spot or broadcast spraying performance and quick-connect convenience. 100% continuous duty rating with no cool down period required.

What's Included

    (1) Sprayer Diaphragm Pump (1) 3/4in. hose barb fitting (1) 3/4in. hose barb elbow fitting (1) 1/2in. male NPT fitting

Downloads

Product Manual
Play Item Video

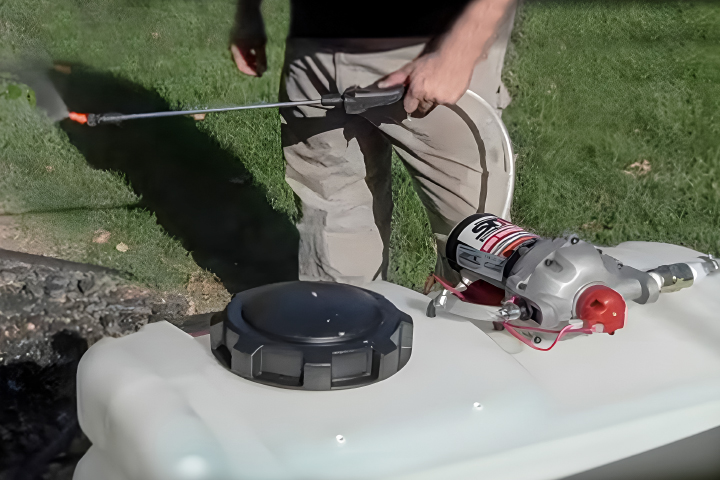

UNINTERRUPTED EXCELLENCE

Experience NON-STOP OPERATION with NORTHSTAR’S HIGH-DUTY PUMP, designed for consistent, POWERFUL SPRAYING without the need for a cooldown

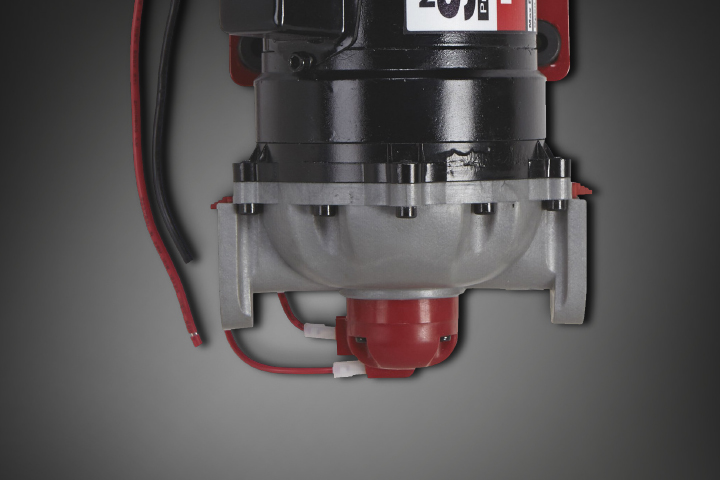

BUILT TO LAST

Crafted with PREMIUM SANTOPRENE™ and VITON® MATERIALS, our pump stands the test of time and harsh chemicals, PROMISING RELIABILITY and PRIME PERFORMANCE

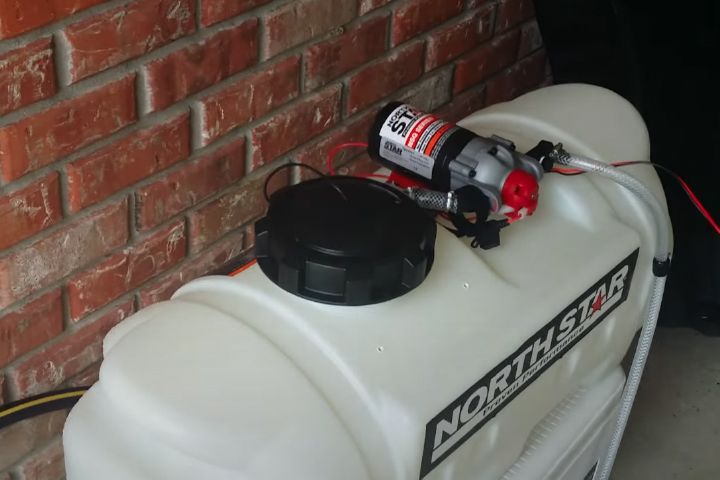

CONNECT WITH EASE

Simplify your setup with QUICK-CONNECT PORTS and VERSATILE FITTINGS, making installation and LIQUID MANAGEMENT SEAMLESS and EFFICIENT

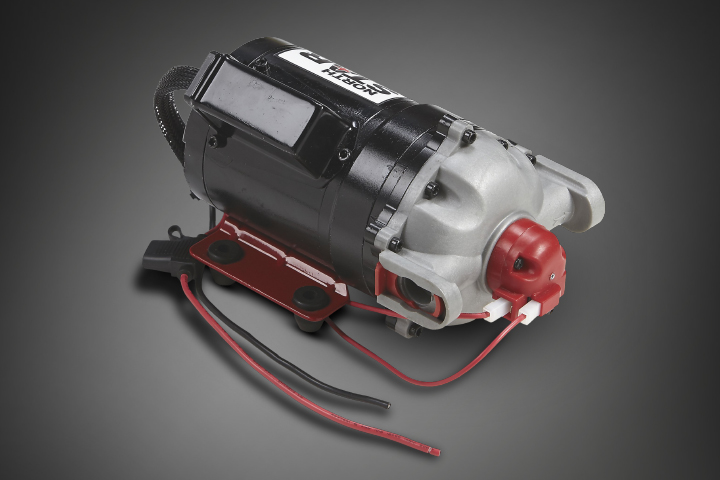

BATTERY CONSERVATION

This PUMP SMARTLY CONSERVES ENERGY by turning off when not in operation, thanks to its INNOVATIVE PRESSURE SWITCH, ensuring your battery lasts longer

Features + Benefits

  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Santoprene™ diaphragm and Viton® valves for reliability, longer life and better priming
  • Innovative smooth valve design for faster priming and longer life
  • Patented DXS-3® valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Fiberglass reinforced polypropylene pump manifold for superior durability and resistance to chemicals
  • Compatible with Roundup® agricultural brand herbicides
  • All components in fluid path have been tested and approved for Roundup use
  • 3/4in. quick-connect ports for easy changes
  • Self-priming up to 12 feet above liquid level
  • Includes 3/4in. hose barbs and 1/2in. male NPT fitting
  • 12 Volts
  • Standard mounting pattern

Key Specs

AttributeSpecification

item#

2687062

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

10.5 LB

Max. PSI

60

Max. Flow Rate

7 GPM

Volts

12
AttributeSpecification

Amps

23

Inlet Port

3/4

Outlet Port

3/4

Self-Priming

Yes

Product Weight

lb

Dimensions L x W x H (in.)

11.25 x 6.75 x 6.25 in

Reviews

Questions & Answers

6 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Is this ok to use with potable water? Like an RV or houseboat.

    1 answer

    1. This pump is not for use with potable water. Please see our item #157101, #157103, and #157104 for on-demand pumps that can be used with potable water.

      Helpful?

  2. Is this pump safe to use with sodium hypochlorite?

    1 answer

    1. This pump could be damaged and would void warranty if used to spray sodium hypochlorite (bleach). We do offer bleach pumps, items 157145, 154147, 157153 and 157155.

      Helpful?

  3. What length of hose can be used on this pump. We normal have 300'. Will this pump handle that and to what gpm and psi.

    1 answer

    1. This can be used with that length. There would be a large drop-off in pressure if used with 300' of hose.

      Helpful?

  4. Small lawn irrigation system

    I have year round spring feeding a 550g storage tank, and I'm looking for a 12v DC pump to drive a sprinkler system for lawn/garden irrigation using this tank as a source. The pump would be drawing the water from this tank (which will be roughly 4' below the pump).

    Given our location and location of the yard, a DC pump seems to make the most sense. I'm assuming it would be running for ~1 hour twice a day. Would this pump fit the bill for this use case?

    1 answer

    1. This is designed as a sprayer pump, it is not recommended for irrigation applications. If the hoses extend beyond 25' long, it could burn up the motor. At this time, Northern Tool does not have a 12V pump for this application.

      Helpful?

  5. Is this approved to use with liquid fertilizer?

    1 answer

    1. This pump is made up of Polypropylene, Viton, Stainless Steel and Santoprene. We recommend contacting the manufacturer of the liquid fertilizer to ensure it is compatible with all the materials in the system.

      Helpful?

  6. Can I buy a speed control for this north star pump nsq 12 v

    1 answer

    1. Yes, we offer a NorthStar Sprayer Regulator to control pressure while spraying. It is item 2681032. Please view the item below.

      Helpful?

  7. Is this pump compatible with diesel fuel plus agricultural chemicals?

    1 answer

    1. The NorthStar sprayer diaphragm pumps are not compatible with any petroleum products. Pumping petroleum products will damage the pump.

      Helpful?

  8. Can this pump be used for liquid deicer?

    1 answer

    1. This pump can be used for liquid deicer as long as it has not been used to spray pesticides.

      Helpful?

  9. What is the approx GPM @ 25 and 30 psi?

    1 answer

    1. The NorthStar Diaphragm Pump will provide 5.7 GPM @ 40 PSI. A rate at different pressures throughout the curve is not available.

      Helpful?

  10. What is the GPM @ 40 PSI? @ 60 PSI?

    1 answer

    1. This NorthStar NSQ Series 12V On-Demand Diaphragm Pump with Quick-Connect Ports will have approximately 5.7 GPM @ 40 PSI and approximately 4.5 GPM @ 60 PSI.

      Helpful?
