NorthStar NSQ Series 12V On-Demand High Pressure Sprayer Diaphragm Pump with Quick-Connect Ports, 1.1 GPM, 100 PSI

Item# 26811102
"NorthStar NSQ Series 12V On-Demand High Pressure Sprayer Diaphragm Pump with Quick-Connect Ports, 1.1 GPM, 100 PSI"
NorthStar NSQ Series 12V On-Demand High Pressure Sprayer Diaphragm Pump with Quick-Connect Ports, 1.1 GPM, 100 PSI

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar NSQ Series 12V On-Demand High Pressure Sprayer Diaphragm Pump with Quick-Connect Ports, 1.1 GPM, 100 PSI

Click or Tap image to Zoom

$124.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Call Store for Availability
  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power
  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Santoprene™ diaphragm for reliability, longer life and better priming
  • Valves are made with chemical-resistant Viton® for faster priming, better performance and longer life

See full description

Complete Your Solution

  • NorthStar NSQ Series 12V On-Demand High Pressure Sprayer Diaphragm Pump with Quick-Connect Ports, 1.1 GPM, 100 PSI
  • Valley Industries Sprayer Wand - 30in., 3 GPM, 150 PSI, Model# SG-4507F
Price for all two:

$137.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar® NSQ Series® 12V on-demand high pressure sprayer diaphragm pump helps you spray farther and higher than standard sprayer pumps. Upgrade your sprayer with innovative components and engineering for superior spot or broadcast spraying performance and quick-connect convenience. 100% continuous duty rating with no cool down period required.

What's Included

    (1) Sprayer Diaphragm Pump (2) 3/8in. hose barb fittings

Downloads

Product Manual

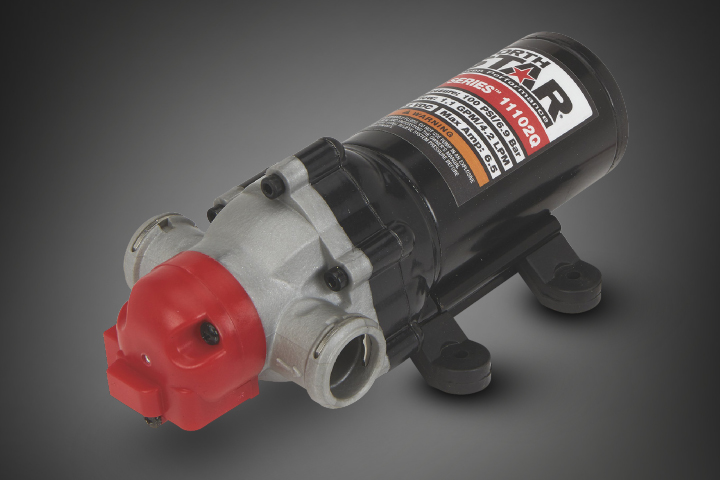

SMART OPERATION

Designed to conserve your battery for the LONG HAUL, this pump knows when to take a break, thanks to its INTELLIGENT AUTO-SHUTOFF FEATURE

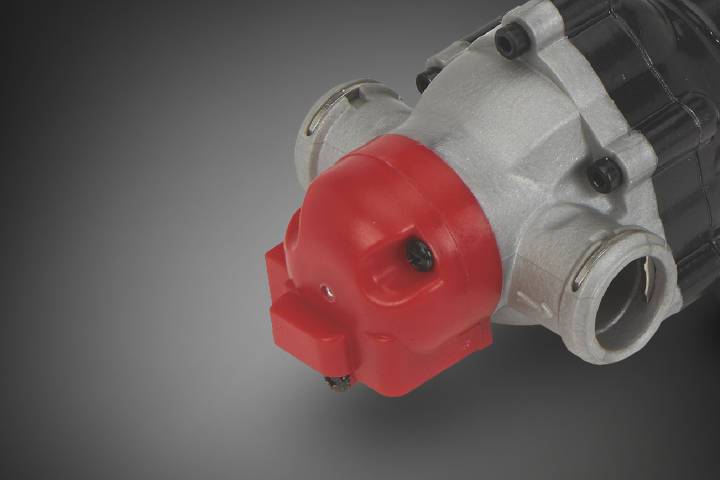

HERBICIDE COMPATIBLE

Fear no formula. This pump is engineered to work seamlessly with ROUNDUP® HERBICIDES, ensuring your spraying tasks are EFFECTIVE and SAFE

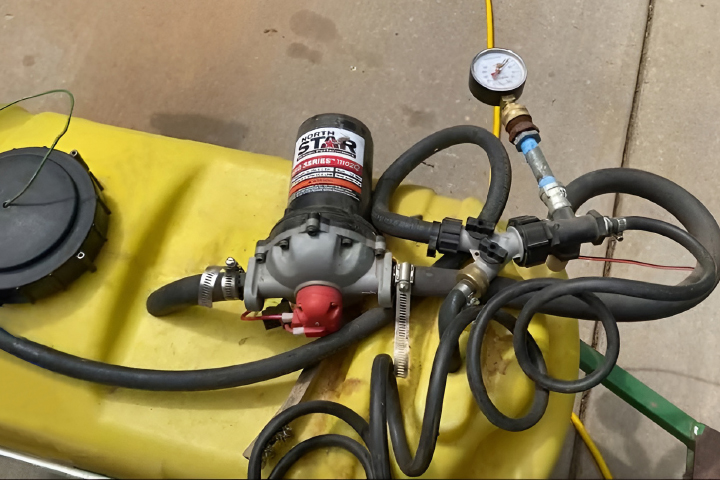

BUILT FOR THE LONG RUN

With its SANTOPRENE™ DIAPHRAGM and VITON® VALVES, this pump promises not just SUPERIOR PERFORMANCE but a longer lifespan, even in the face of harsh chemicals

Features + Benefits

  • 100% continuous duty rating with no cool down period required
  • Automatically turns off when no flow is required to conserve battery power

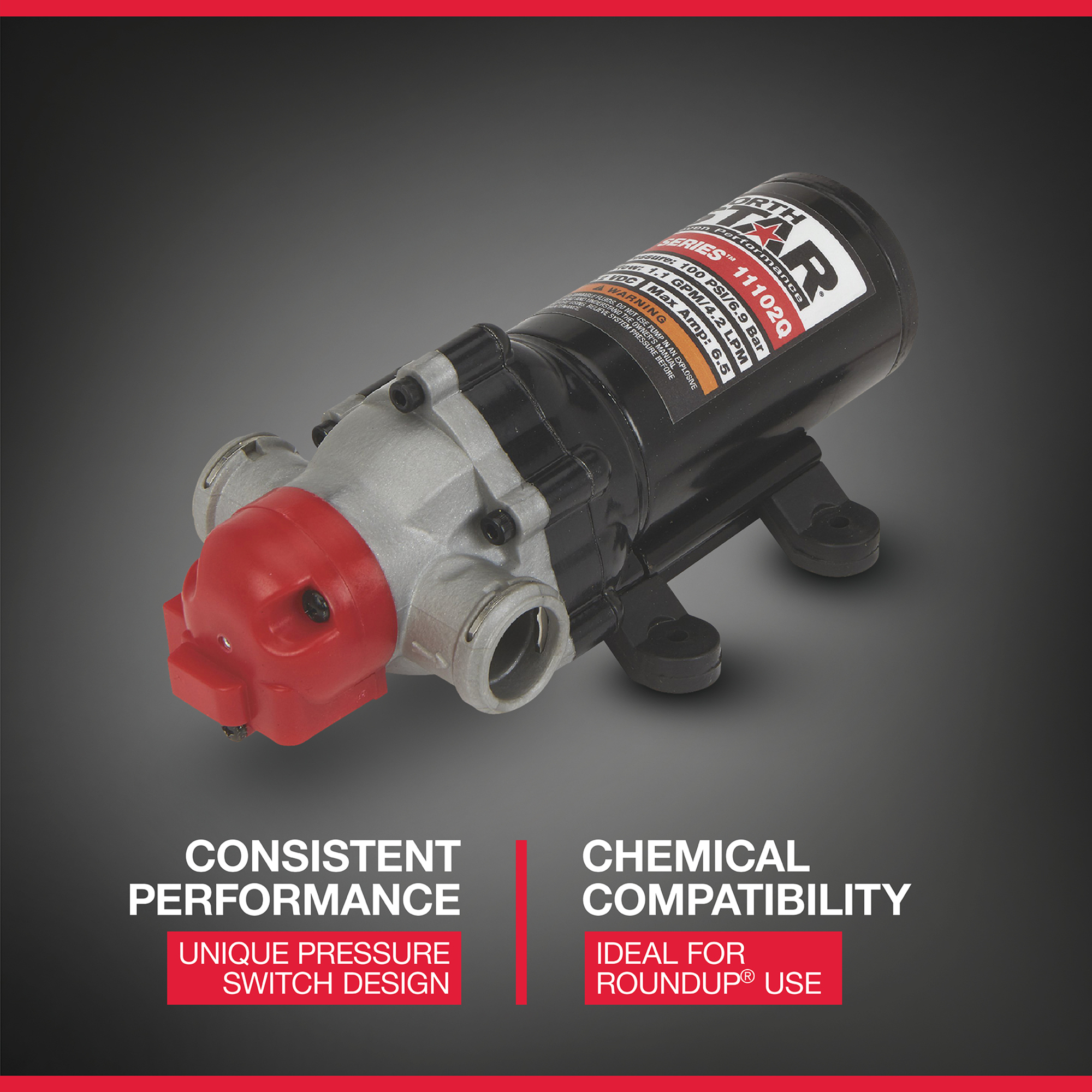

  • Unique pressure switch design slowly cycles the pump for reduced switch and motor wear
  • Santoprene™ diaphragm for reliability, longer life and better priming
  • Valves are made with chemical-resistant Viton® for faster priming, better performance and longer life
  • Innovative smooth valve design for faster priming and longer life

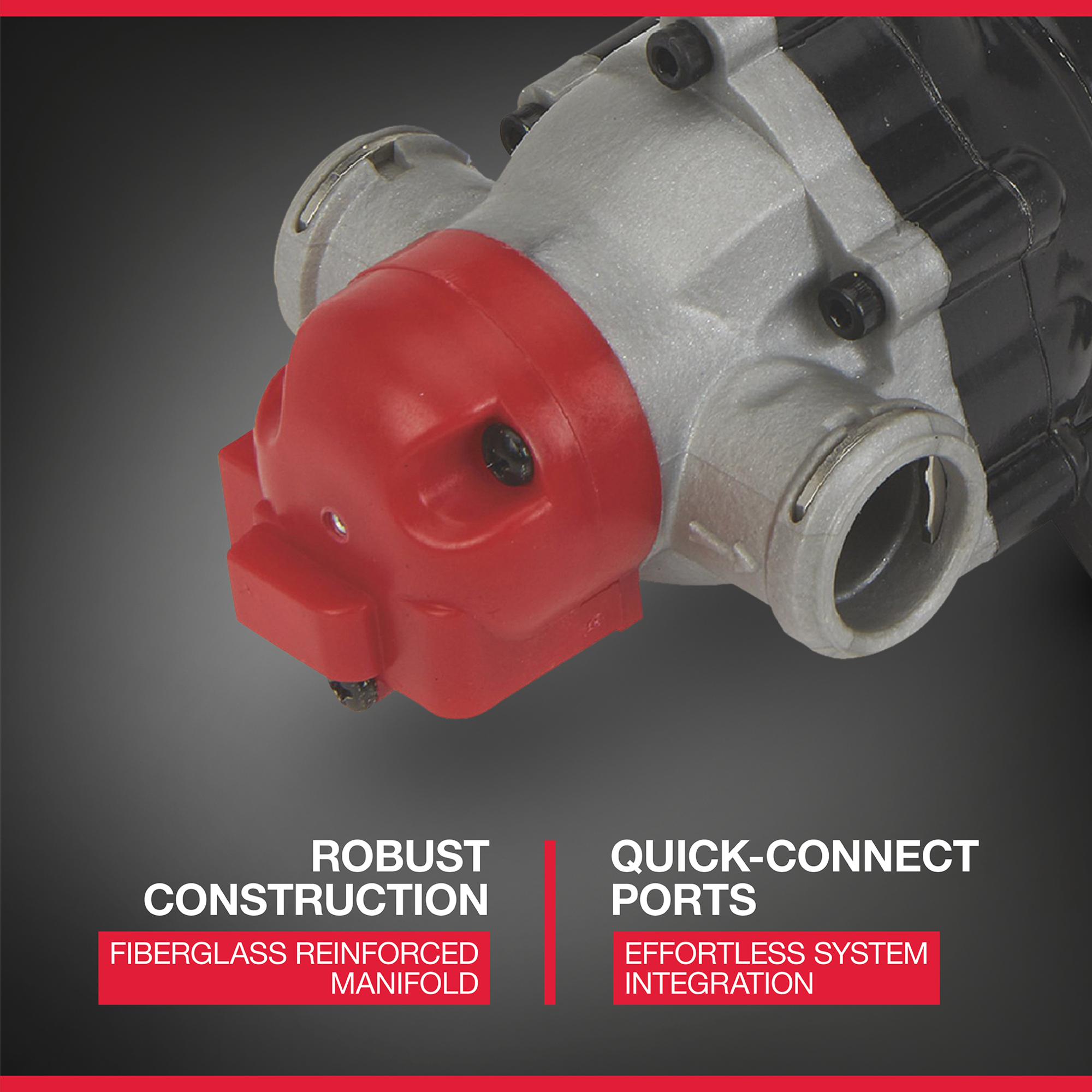

  • Fiberglass reinforced polypropylene pump manifold for superior durability and resistance to chemicals
  • Compatible with Roundup® agricultural brand herbicides
  • 2 quick-connect 3/4in. ports for fast and easy connections and excellent flow through the ports
  • Self-priming up to 8 feet above liquid level
  • Fits all NorthStar sprayers and most other brands (includes two 3/8in. hose barbs)
  • 12 Volt DC/6.5 Amps max. standard battery operation
  • Standard mounting pattern

Key Specs

AttributeSpecification

item#

26811102

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

3.25 LB

Max. PSI

100

Max. Flow Rate

1.1 GPM

Max. Temperature

140 °F
AttributeSpecification

Volts

12

Amps

6.5

Inlet Port

3/4

Outlet Port

3/4

Self-Priming

Yes

Product Weight

5.0000 lb

Dimensions L x W x H (in.)

7.9 x 3.5 x 3.19 in

Reviews

Questions & Answers

9 Reviews This action will navigate to reviews.

Questions

1–10 of 15 Questions
Sort by:

  1. Can this pump still be used to pull water from just a nomilized container tht holds water to powerwash with no problems

    1 answer

    1. This pump can pull water from a tank, but it only produces up to 100 PSI so it would not be the best option for a pressure washer.

      Helpful?

  2. Is this the pump I can buy to replace the pump in my tow behind sprayer Northstar 282780D?

    1 answer

    1. The appropriate replacement pump for the sprayer model 282780D is item 2682272.

      Helpful?

  3. What is the prrefered power source, a stand alone 12 VOLT battery or the battery in the ATV?

    1 answer

    1. This pump is designed to be connected to the battery of the utility vehicle the sprayer is mounted on. It can be used with a stand alone battery, but the run time will be affected. Using a 12V battery with a higher amp hour (Ah) rating is recommended for longer spray times.

      Helpful?

  4. This will be the third time I've had to replace these pumps. Why do they only last a year???

    1 answer

    1. It is important to clean the pump and decontaminate after use. Drain and flush the pump system before storage to lengthen the life of the pump.

      Helpful?

  5. Can this be used with diesel fuel?

    1 answer

    1. This pump should be not be used with any petroleum based product which includes diesel, gasoline, kerosene and oil.

      Helpful?

  6. Whats the warranty on this pump

    1 answer

    1. This pump comes with a 2 year consumer warranty and a 90 day commercial warranty.

      Helpful?

  7. Can this handle Caustic Soda solution/ Sodium Hydroxide?

    1 answer

    1. This cannot be used with Caustic Soda solutions.

      Helpful?

  8. can this be used to pump isopropyl alcohol? also, can i use a filter inline?

    1 answer

    1. This sprayer pump is not recommended for spraying isopropyl alcohol. An inline filter can be added to this sprayer as long as it does not affect the pressure of the pump.

      Helpful?

  9. Chemical use

    1. Can this pump use vinegar?
    2.Can this pump use Compare and Save Weed Killer

    1 answer

    1. This pump can be used with vinegar and Compare and Save weed killer.

      Helpful?

  10. Does it hurt to run this or any other Northstar 12 V pump vertically as opposed to horizontally?

    1 answer

    1. If mounting the pump vertically, the pump head should be in the down position so that in the unlikely event of a leak the fluid will not enter the motor.

      Helpful?
