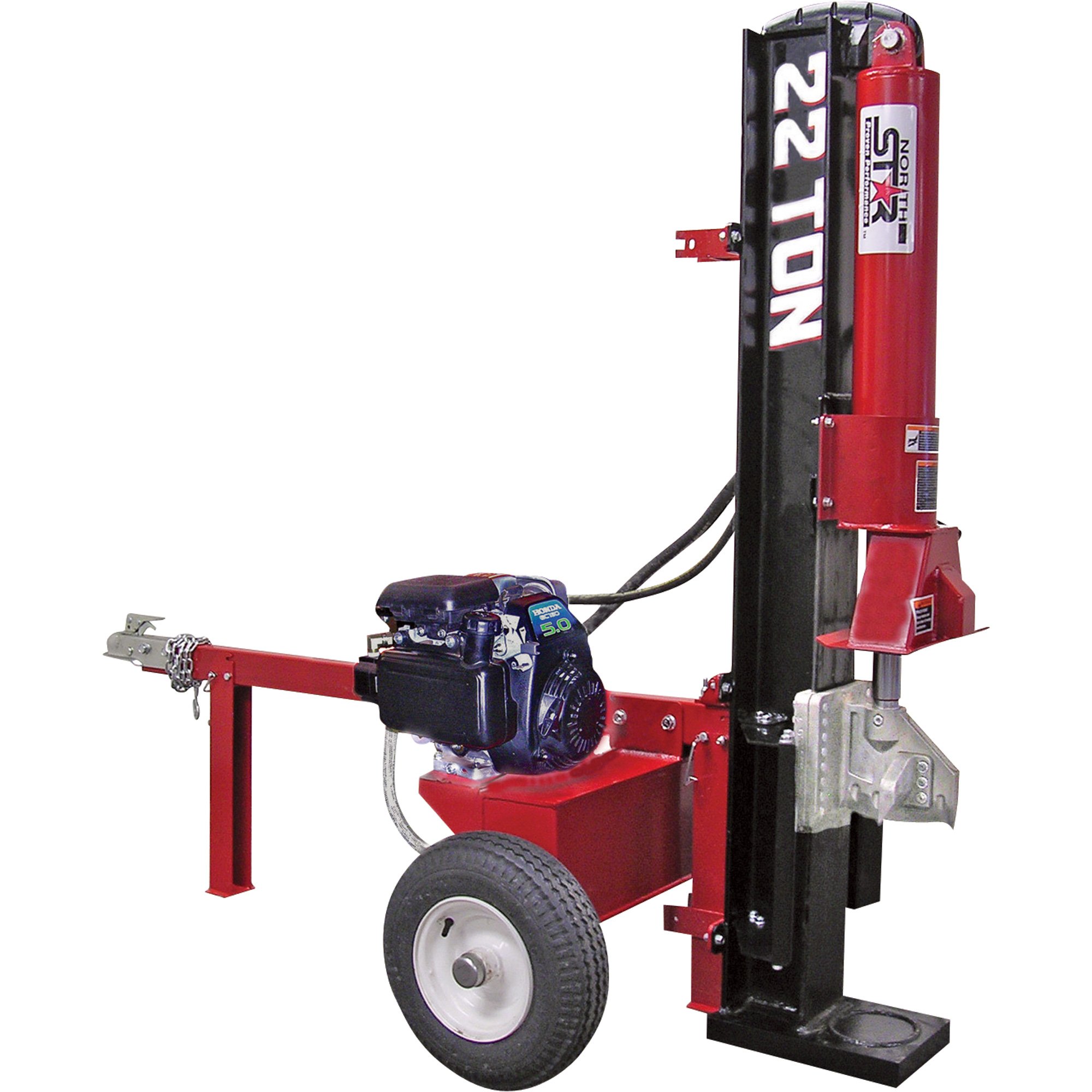

NorthStar Horizontal/Vertical Log Splitter — 22-Ton, 160cc Honda GC160 Engine

Item# 1108
NorthStar Horizontal/Vertical Log Splitter — 22-Ton, 160cc Honda GC160 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Horizontal/Vertical Log Splitter — 22-Ton, 160cc Honda GC160 Engine

Click or Tap image to Zoom

  • 2-stage pump allows the log splitter to achieve the same pressures as a single stage pump, while using less horsepower
  •  Auto-return wedge
  • Patented log stripper clears log from retracting wedge
  • Industrial-grade full beam construction
  • Coupler for 2in. ball

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar® Horizontal/Vertical Log Splitter is powered by a quality Honda GC engine. The 4in. x 24in. cylinder splits logs up to 25in.L in either in a vertical or horizontal position. Features a 2-stage Concentric pump, which decreases cycle time by delivering high flow/low pressure when there is no resistance and low flow/high pressure when cutting through a log to reduce travel time and increase productivity. Uses a horizontal-shaft engine, engineered for a long life. Add the exclusive NorthStar 4-way wedge wings (Item# 1143, sold separately) to quarter logs in one split instead of three.

What's Included

  • (1) Log splitter

Downloads

Product Manual

Features + Benefits

  • 2-stage pump allows the log splitter to achieve the same pressures as a single stage pump, while using less horsepower
  •  Auto-return wedge
  • Patented log stripper clears log from retracting wedge
  • Industrial-grade full beam construction
  • Coupler for 2in. ball
  • High speed tires for towing
  • 8 gallons hydraulic oil not included
  • Log cradle centers the log on the wedge and prevents it from rolling off
  • Included engine guard protects engine from split logs

Key Specs

AttributeSpecification

item#

1108

Brand

NorthStar

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

550.0 LB
AttributeSpecification

Product Type

Electric

Engine Displacement

160 cc

Tire Size

4.80 x 8

Dimensions L x W x H (in.)

89 x 43 x 41 in

Reviews

Questions & Answers

Questions

1–10 of 19 Questions
Sort by:

  1. Auto return

    Auto return is equipped?

    1. Yes there is an auto return on the log splitter.

      Helpful?

    2. Yes - it does have auto return.

      Helpful?

    3. Once the control valve is actuated in the return direction, the wedge is designed to keep returning by itself completely and then stop automatically.

      Helpful?

    4. Yes this machine has auto return on the hydraulic cylinder.

      Helpful?

  2. When log splitter is shipped to your house how much assembly is requried?

    Like how many parts do i have to put togehter before i can use it?

    1. It took a couple of hours to put together and you need a helper for one of the steps because of the weight of the splitter. Otherwise, the directions were easy to follow and it went together very well.

      Helpful?

    2. You need to assemble the frame/trailer section which is basically a big T. The axle unit is also the hydraulic tank. You also need to attach the wheels.

      Once that is assemble then you bolt the ram unit to it and also the motor. The hydraulic ram with rail is heavy. I used a come-along to raise it in a verticle position and then rolled the trailer part up to it and bolted it on.

      The instructions are pretty good. It took me about 4 hours to put the whole thing together.

      Helpful?

    3. This NorthStar log splitter is packaged twice but on the same crate and wrapped. The first box is placed on top of the metal crate containing the engine and pump assembly. The second is the metal crate containing the main sub-frame and cylinder.

      Helpful?

  3. Is this a horizontal or vertical shaft engine?

    1. Horizontal

      Helpful?

    2. The Honda engine on this log splitter is horizontal.

      Helpful?

  4. Are the hoses shielded by anything? (Steel coil, etc.)

    1. No but I have not seen the need for shielding in my work.

      Helpful?

    2. The hydraulic hoses do not have any type shielding by steel coils.

      Helpful?

  5. does the hydraulic system have a filter

    1. Not on this machine.

      Helpful?

    2. The unit does not have an inline filter. It does come with a strainer on the suction line inside of the hydraulic tank.

      Helpful?

  6. I get that it will split wood but does it have to be seasoned? Will it split trees that I just felled?

    1. It will split green or seasoned. Stay away from sweet gum. it's had to split green or seasoned

      Helpful?

    2. The NorthStar 22 Ton Log Splitter does have the power to split wood that is not seasoned.

      Helpful?

  7. Does this 22 ton splitter have the low oil shut down feature?

    1. Per Honda Owners Manual which came with the splitter, yes there is a Oil Alert system which will shut down the engine.

      Helpful?

    2. The 22 Ton NorthStar log splitter does include a low oil shut down feature.

      Helpful?

  8. Engine

    Does this engine have the same auto idle feature as the 30 ton? Also, I signed up online for a NS credit card. I noticed the deferred interest option. Is this or do you have like a 6 month same as cash purchase option on the log splitters like Tractor Supply? Thanks, Chris

    1. No it does not idle down but you can run this engine at 2/3 power and it is quite and will still bust most every thing you can pick up.

      Helpful?

    2. No, This NorthStar 22 ton log splitter is not equipped with the auto-idle feature, however it is offered with our 30 and 37 ton log splitters.

      Please see my product recommendations listed below...

      We do offer a 6 month no interest with minimum monthly payments for purchases over $199 with our NorthernTool PowerCard. Please see the link below for details:
      http://www.northerntool.com/credit/

      Helpful?

  9. What is the PRACTICAL advantage of the 30-ton splitter vs the 22-ton splitter???

    1. The 30-ton splitter will negotiate severely knotted sections better, but if all you are dealing with is highly figured wood, you may not notice a difference when using the 22-ton; I haven't.

      Helpful?

    2. The practical advantage is that you will be able to split larger diameter harder wood with a 30 ton splitter without stalling the hydraulics than you would be able to with a 22 ton. The 30 ton splitter is able apply 16,000 lbs. more force to a log. If you regularly split woods like oak or ironwood I would definitely recommend going to a 30 ton splitter.

      Helpful?

  10. NorthStar 20 ton Log splitter Model 1170

    I have the above log splitter and was wonder if the NorthStar Wedge wings for 4way cutting would fit my log splitter or do you have slip on that would fit.?

    1 answer

    1. This log splitter, item #1108, doesn't have the same splitting wedge as your model, item #1170. The wedge wings are not compatible with your #1170 splitter. Northern Tool doesn't carry wedge wings or a 4 way slip-on wedge that's compatible with the 1170 model.

      Helpful?
