NorthStar Horizontal Log Splitter — 32-Ton, 270cc Honda GX270 Engine

Item# 11954
NorthStar Horizontal Log Splitter — 32-Ton, 270cc Honda GX270 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Horizontal Log Splitter — 32-Ton, 270cc Honda GX270 Engine

Click or Tap image to Zoom

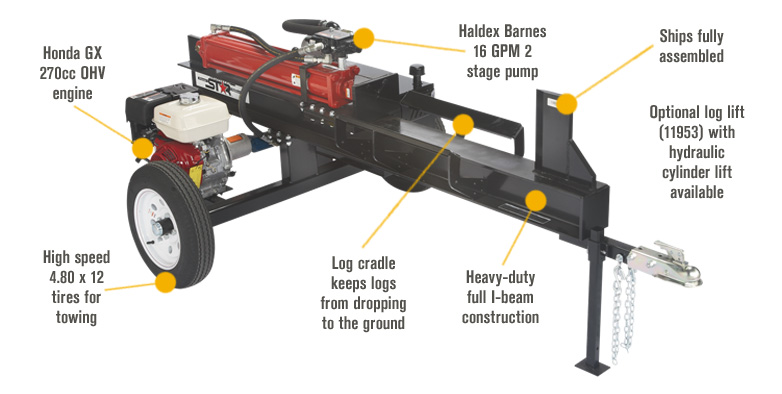

  • High strength I-beam backbone
  • Log cradle keeps logs from rolling off splitter
  • High-speed tires, safety chains and 2in. ball coupler for towing
  • 2-stage pump decreases cycle time by moving the wedge quickly while traveling towards a log and switches to low gear for extra torque when splitting a log
  • 2-stage pump achieves the same pressures as a single stage pump with less horsepower

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

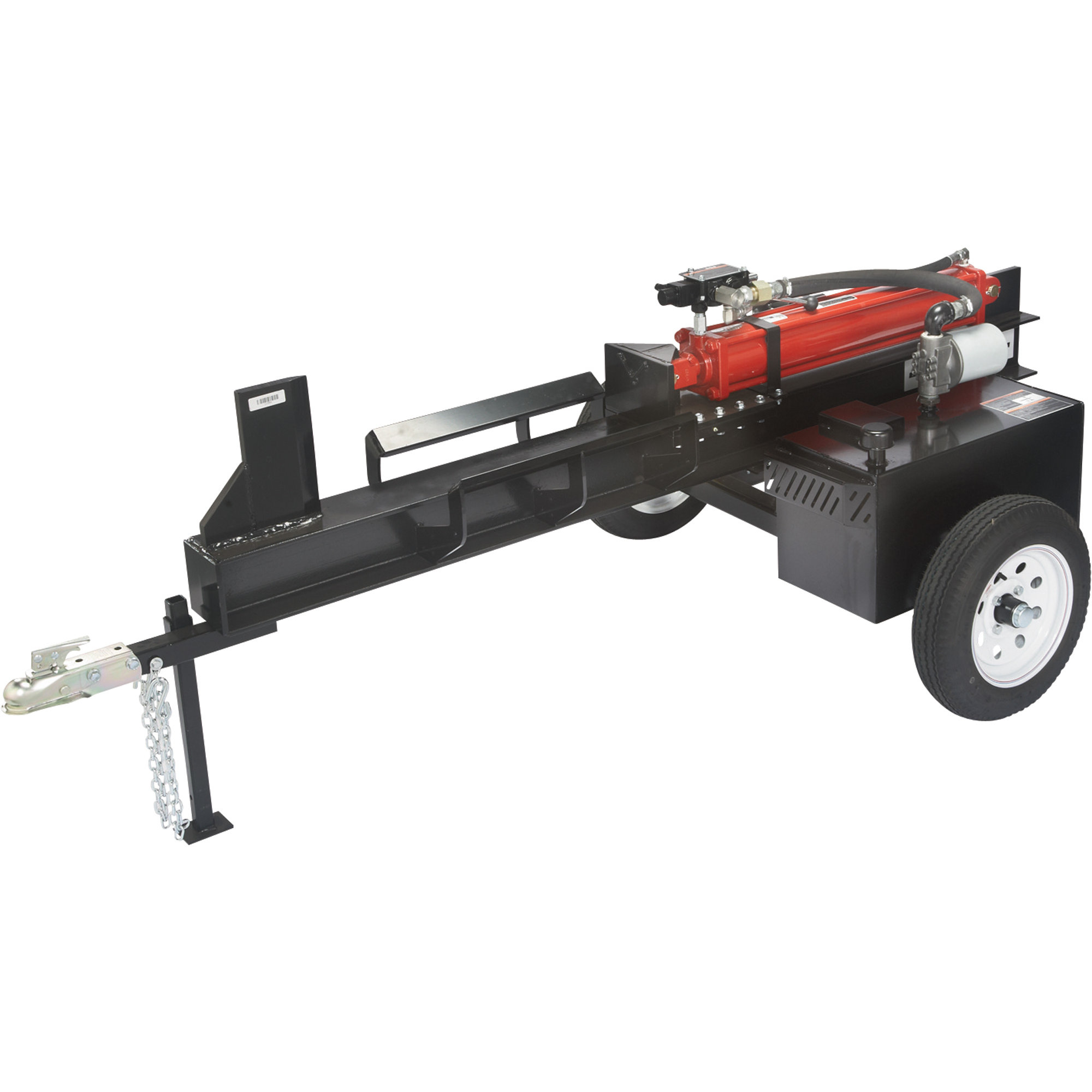

A quality Honda GX270 engine powers this 32-ton NorthStar® Horizontal Log Splitter. Capable of splitting logs up to 31in. long. Ships fully assembled with hydraulic oil. Shown with optional log lift kit. Features a 2-stage Concentric pump, which decreases cycle time by moving the wedge quickly while traveling towards a log, switching to low gear for extra torque when splitting a log. Uses a powerful horizontal-shaft engine, engineered for a long life.

What's Included

  • (1) Log splitter

Downloads

Product Manual

Features + Benefits

  • High strength I-beam backbone
  • Log cradle keeps logs from rolling off splitter
  • High-speed tires, safety chains and 2in. ball coupler for towing
  • 2-stage pump decreases cycle time by moving the wedge quickly while traveling towards a log and switches to low gear for extra torque when splitting a log
  • 2-stage pump achieves the same pressures as a single stage pump with less horsepower
  • Suction strainer filters oil before it enters the hydraulic pump, protects hydraulic components and grants longer life
  • Hydraulic valve with detent feature returns wedge automatically
  • Horizontal-shaft engines can expect a lifetime five times longer than the lifetime of a vertical shaft engine
  • 12in. tall x 1in. thick steel wedge
  • Return line filter prolongs life of hydraulic components by filtering oils
  • 5in. x 30in. hydraulic cylinder

Key Specs

AttributeSpecification

item#

11954

Brand

NorthStar

Manufacturer's Warranty

24 months parts / 24 months labor

Ship Weight

785.0 LB
AttributeSpecification

Product Type

Electric

Engine Displacement

270 cc

Tire Size

4.80 x 12

Dimensions L x W x H (in.)

105 x 60 x 37 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 14 Questions
Sort by:

  1. Does this make kindling??

    I am a novice to the wood cutting hobby. Really need to be able to make my own kindling along with splitting logs. Thanks.

    1. yes they all do but you don't need monster splitter ,20 ton is plenty and faster cycle time and Northern has with racks to catch wood on both sides of splitter .

      Helpful?

    2. A log splitter produces too much force for making wood into kindling. The log splitter can be used to cut a section of log into multiple smaller pieces but not small enough for kindling. Kindling is usually obtained with an axe or a hatchet.

      Helpful?

  2. Does this engine have the auto idle/throttle feature.

    1. No, It does have a throttle control. I run my splitter about 1/2 to 3/4.

      Helpful?

    2. No, this NorthStar log splitter is not equipped with the auto-idle feature.

      However, here are a few log splitters that have the auto idle feature in my product recommendations listed below...

      Helpful?

  3. can you get an electric start

    1. not sure why you would need a electric start. mine starts fine. two pulls max.

      Helpful?

    2. This NorthStar splitter is not available with electric start. We do have a 42 ton NorthStar unit, item #11960, which does come with electric start. This powerful splitter can split logs up to 30" long. See it below....

      Helpful?

  4. 32 ton northstar log splitter 13 HP honda electric

    Where can I buy a set of log cradles for this splitter?

    1 answer

    1. On the NorthStar Horizontal Log Splitter the log cradle is part of the i-beam and is not available separately at this time.

      Helpful?

  5. Does the optional loader come with its own control valve?

    1 answer

    1. The optional log lift(item #11953) for use with this splitter includes its own control valve. Click the link below to view the log lift.

      Helpful?

  6. Is there a 4-way wedge cutter for this splitter?

    1 answer

    1. Northern does not offer a 4 way wedge for this 32 ton splitter.

      Helpful?

  7. What is the diameter of the dust cap on the axle. I want to replace them with bearing buddys.

    1 answer

    1. Listed below is the bearing buddy that would fit the hub on this log splitter. The diameter is 1.98".

      Helpful?

  8. is the log lift asembled on the splitter when i pick it up?

    1 answer

    1. The NorthStar 32 ton Horizontal Log Splitter itself does come assembled. The log lift, if purchased separately, does not come assembled. Assembly requires a few dozen bolts and a few hoses be connected. It would would take 1 person about 30 minutes, and would be much faster with 2 or more.

      Helpful?

  9. Is there an adjustable (crank type) jack that will fit this splitter. Quite heavy with log loader.

    1 answer

    1. On this NorthStar Horizontal Log Splitter there is currently not an adjustable crank type jack that will fit this log splitter.

      Helpful?

  10. Which trailer jack would fit this?

    1 answer

    1. This log splitter includes the trailer jack. A replacement jack is available through our Parts department at NorthStar. Please call 1-800-270-0810 for price and availability. Their hours are 8am-5pm, Monday-Friday.
