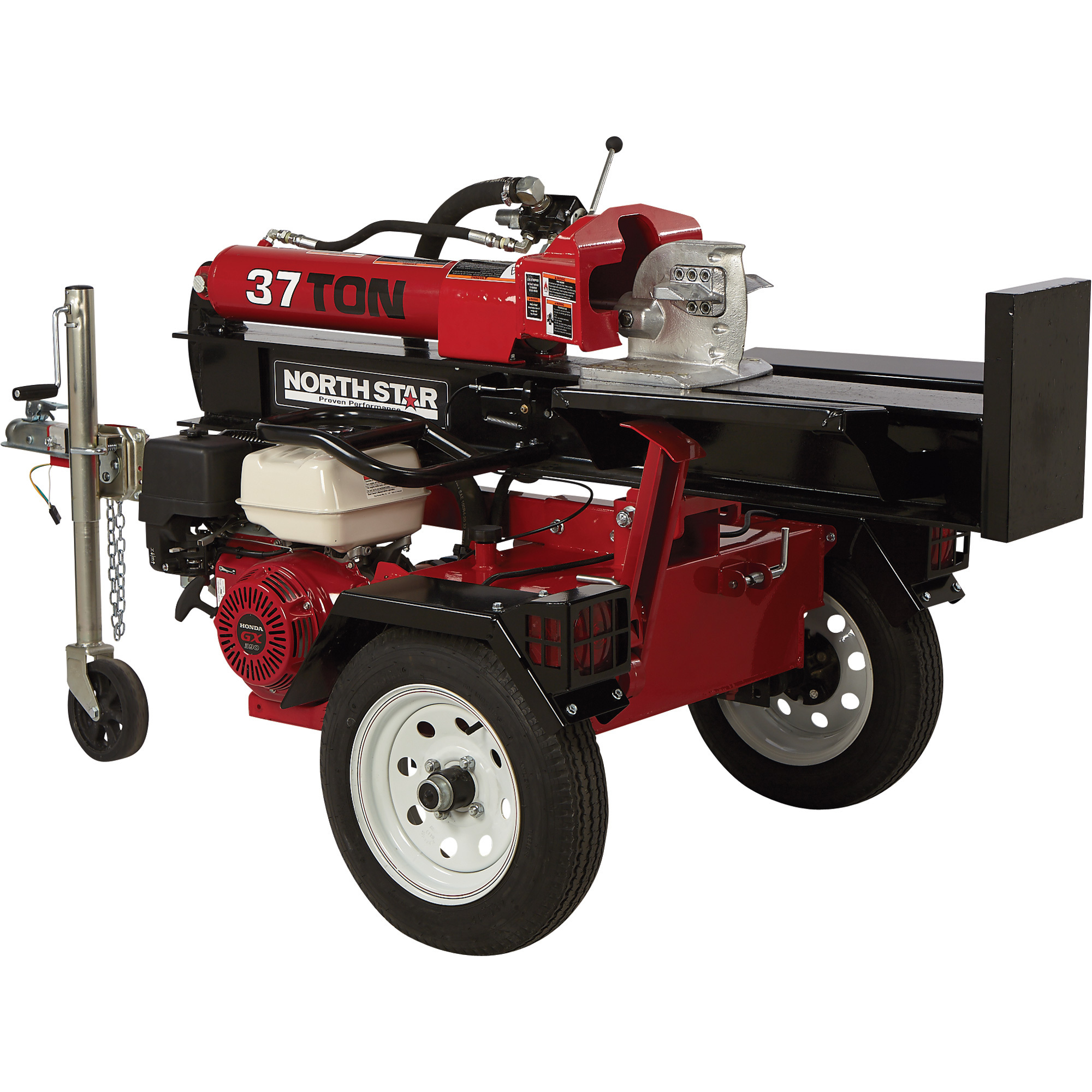

NorthStar Deluxe Horizontal/Vertical Log Splitter, 37-Ton Ram Force, 389cc Honda GX390 Engine

Item# 1118
"NorthStar Deluxe Horizontal/Vertical Log Splitter, 37-Ton Ram Force, 389cc Honda GX390 Engine"
NorthStar Deluxe Horizontal/Vertical Log Splitter, 37-Ton Ram Force, 389cc Honda GX390 Engine

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar Deluxe Horizontal/Vertical Log Splitter, 37-Ton Ram Force, 389cc Honda GX390 Engine

Click or Tap image to Zoom

$3849.99

  • Shipping:

    Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Honda commercial GX390 series engine with cast iron cylinder sleeve, low-oil shutdown and steel fuel tank
  • Horizontal/Vertical design to help split large logs
  • Auto-throttle control to save fuel, reduce noise and prolong engine life
  • Premium hydraulic filtration ensures long lasting hydraulic components
  • Patented log stripper clears logs from retracting wedge

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • NorthStar Deluxe Horizontal/Vertical Log Splitter, 37-Ton Ram Force, 389cc Honda GX390 Engine
  • Justrite Safety Gas Can, 5-Gallon, Model# 7250130
  • Ironton Wooden Handle Cant Hook, 48in.L
  • Honda Engines, HONDA MAINT. KIT, Pieces (qty.) 4 Model# HONDAKIT5
Price for all four:

$4097.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

NorthStar's best horizontal/vertical log splitter has a multi-patented design that gives you premium components and exclusive features that let you save time and energy. This log splitter has a Honda GX390 engine, a premium filtration system and a high-speed towing package. The backbone of this log splitter is an industrial-strength I-beam with heavy plate steel reinforcement. The patented wedge design, made with alloy steel, maintains consistent split and has a unique curve that reduces initial contact area for maximum penetrating force. The NorthStar Wedge Wings make each stroke more efficient. Auto-return wedge saves time and effort when splitting.

The premium hydraulic system is protected by a quad-filtering system that uses four different components to protect the hydraulic system from contaminants. Large hydraulic oil reservoir allows fluid to cool, reducing wear and allowing fluid to last longer. Slide-action self-leveling pivot makes it simple to switch between horizontal and vertical split. Designed to be easy to use in both orientations. Ultra-Tow Ultra-Pack high-speed hubs, torsion axle, 12in. high-speed tires and integrated trailer lights make it easy to get to the worksite. Some assembly required.

What's Included

    (1) Log splitter

Downloads

Product Manual

Features + Benefits

  • Honda commercial GX390 series engine with cast iron cylinder sleeve, low-oil shutdown and steel fuel tank
  • Horizontal/Vertical design to help split large logs
  • Auto-throttle control to save fuel, reduce noise and prolong engine life
  • Premium hydraulic filtration ensures long lasting hydraulic components
  • Patented log stripper clears logs from retracting wedge
  • Engine guard protects against falling logs and debris
  • Heavy-duty log tables prevent logs from rolling off when split
  • Ultra-Tow Ultra-Pack high-speed hubs and 12in. wheels with high-speed tires
  • Adjustable jack with oversized wheel and 2in. coupler
  • Torsion suspension axle and light kit for high-speed towing

Key Specs

AttributeSpecification

item#

1118

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

944.0 LB

Product Type

Gas

Ram Force

37 Tons

Max. Log Diameter

16 in

Max. Log Length

25 in

Continuous Force

34.3 Tons
AttributeSpecification

Engine Brand

Honda

Engine Model

GX390

Engine Displacement

390 cc

Cycle Time

14 sec.

Tire Size

12 in

Splitter Orientation

Horizontal

Wheels

Yes

Product Weight

lb

Dimensions L x W x H (in.)

92.5 x 45.0 x 48.0 in

Reviews

Questions & Answers

35 Reviews This action will navigate to reviews.

Questions

1–10 of 20 Questions
Sort by:

  1. Is hydro fluid included in this package?

    1. No, you will need about 15 gallons of fluid. I used three pails of 18L each.

      Helpful?

    2. No. The manual says the machine holds 11 gallons of hydraulic fluid. Mine took almost 15 gallons to fill it up including cycling fluid into the filter and actuator.

      Helpful?

    3. No

      Helpful?

    4. "NorthStar Deluxe Horizontal/Vertical Log Splitter - 37-Ton Ram Force does not include hydraulic fluid. See below for recommended fluid.

      Helpful?

  2. Log length and cycle time?

    What is the maximum log length that the unit can split, and what is the cycle time from fully retracted to split?

    1. The owners manual says the complete cycle time is 14 seconds. I have not timed mine but this sounds about right.

      Helpful?

    2. The owners manual says 16" diameter logs are the max. That's about as big as logs get in my part of the world, but I'm sure this machine would split a much bigger log.

      Helpful?

    3. I havent timed mine .... but i wouldnt want it any faster for safety reasons ... hope that helps

      Helpful?

    4. This log splitter accepts a max log length of 25". The length of time from when the cylinder/ram is fully retracted to when the log is split can vary from 7-10 seconds. This time will vary due to the length of the log and the hardness of the wood you're splitting.

      Helpful?

  3. Since this splitter has lighting, Will I be required to License it to pull on the road?

    1. Local laws will be different for each area.

      Helpful?

    2. that varies state to state ... check with your Local law enforcement and or tag office ......

      Helpful?

    3. This NorthStar Deluxe Horizontal/Vertical Log Splitter will include a certificate of origin and vin number for licensing. If towing on a public road, make sure to comply with all local, state, and federal towing requirements. Please check with your local DMV for requirements in your area. It is the sole responsibility of the purchaser to obtain licensing, trailer lights, safety chains or signage, as needed to comply.

      Helpful?

    4. This depends upon your state's regulations. Many states due to the width of the machine would not be required to have a license. However, please check your home DOT rules and regulations. If in doubt contact a vehicle inspector with your State Patrol.

      Helpful?

  4. Can an electric starter be fitted to the motor?

    1. No. However, the engine start quickly and does not require an excessive amount of force to pull the cord.

      Helpful?

    2. Not on this engine

      Helpful?

    3. Changes to the log splitter would not be recommended. Any alterations could void the warranty on the unit.

      Helpful?

  5. Is there anyway to put an hour meter on this?

    1. Yes, I successfully installed an hour meter on the engine and used the one identified as YueYueZou® Waterproof Tach Hour Meter Tachometer for 4 Stroke Gas Engine Motorcycle ATV Snowmobile Boat.

      Helpful?

    2. Yes, any commercially available small engine hour meter could be adapted to this machine.

      Helpful?

    3. An hour meter can be added to the NorthStar Deluxe Horizontal/Vertical Log Splitter. Please see the recommended meters below.

      Helpful?

  6. Need to change Hydraulic Oil?

    Bought my 37ton in the Fall and used it for about 15 minutes to make sure I assembled it correctly. It stayed in my outdoor shed over the winter months. Should I change the hydraulic fluid or am I ok for this new year where it will get some regular use?

    1. No, I don't believe it's necessary to change the fluid after only 15 minutes of use. If I recall correctly, the owners manual recommends fluid change after 100 hours of use.

      Helpful?

    2. Need to change every 100 hours of operation or each year oil in tank. I am going to drive mine to a quickie oil change place to dump all the oil, prior to refill.

      Helpful?

    3. The hydraulic fluid in this log splitter needs to be changed annually (one year after it was put in) or after 100 hours of use, whichever comes first.

      Helpful?

  7. 390cc what kind of horse power does it have?

    1. 13 HP

      Helpful?

    2. Roughly 13 HP.

      Helpful?

    3. The engine on this log splitter has an approximate horsepower rating of 13.

      Helpful?

  8. Tongue weight when towing

    I would like to pull the log splitter behind a fourwheeler, but it has a limited capability for supporting tongue weight. Do you have an estimate for the tongue weight?

    1. I don’t believe tongue weight will be an issue. It’s fairly easy to pick up with one hand by the hitch when moving it around.

      Helpful?

    2. The tongue weight is approximately 125 pounds.

      Helpful?

  9. TOWING SPEED

    What is the max recommended towing speed?

    1. 45 MPH

      Helpful?

    2. The tires have a recommended speed rating of 45 mph. Faster speeds may result in loss of control.

      Helpful?

  10. I know the max PSI is 3,500 but what are the pressurized hoses rated at?

    1. I don't know what the rating on the hoses is, but the hoses are high-quality, wire braided, multi layer hoses that are more than adequate for the intended application.

      Helpful?

    2. The high pressure hoses are rated at 3500 PSI working pressure.

      Helpful?
