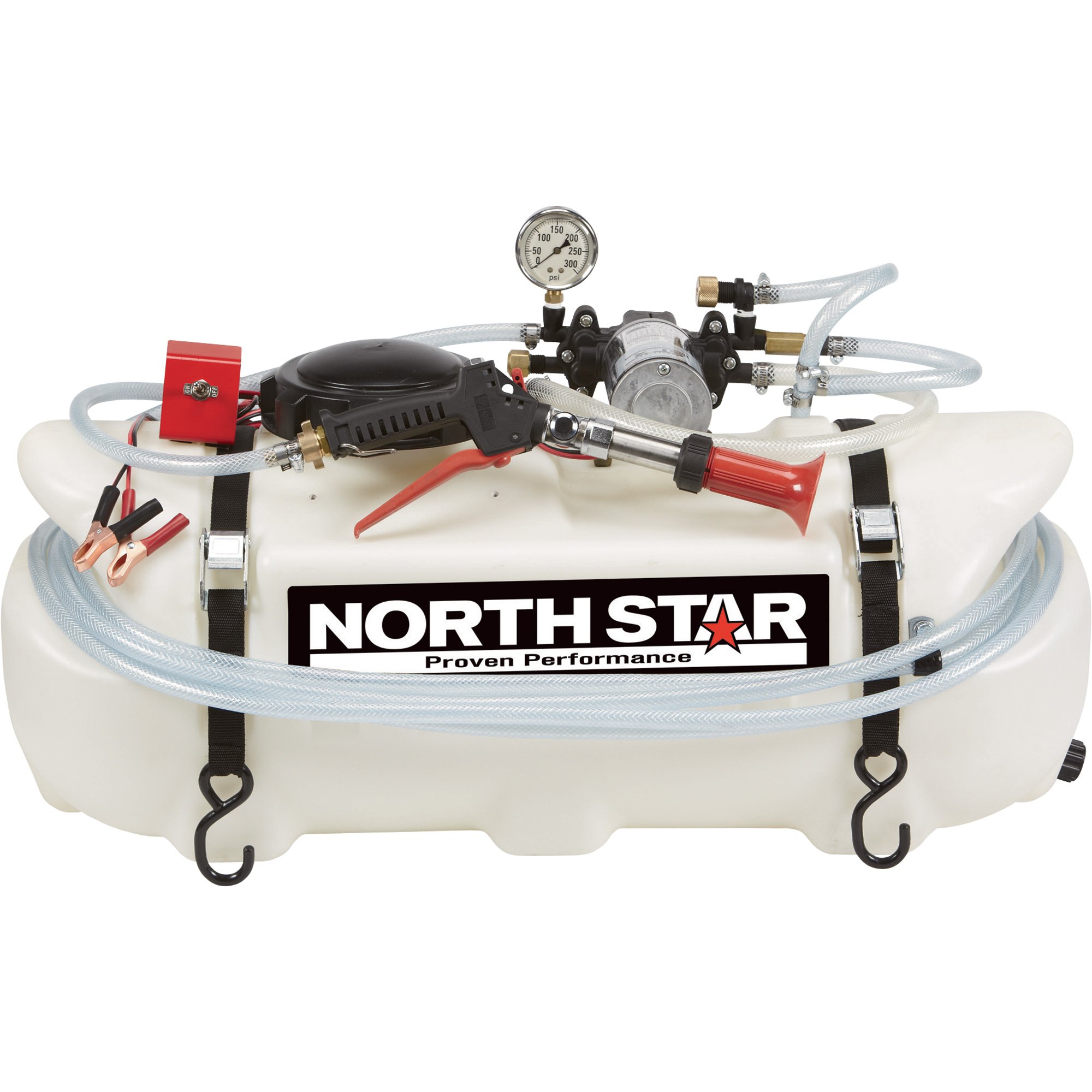

NorthStar High-Pressure ATV Tree Sprayer — 16 Gallon, 2 GPM, 12 Volt

Item# 268180
"NorthStar High-Pressure ATV Tree Sprayer - 16 Gallon, 2 GPM, 12 Volt"
NorthStar High-Pressure ATV Tree Sprayer — 16 Gallon, 2 GPM, 12 Volt

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar High-Pressure ATV Tree Sprayer — 16 Gallon, 2 GPM, 12 Volt

Click or Tap image to Zoom

  • 15ft. broadcast width when you order optional boom kit Item# 2730111 and adapter kit Item# 268181
  • Reinforced poly vinyl chloride hose makes monitoring the chemical flow simple
  • Agitation equipped
  • Approved for use with Roundup® agricultural herbicide
  •  Sprayer attaches to ATV with included tie-down straps

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

This NorthStar® Tree Sprayer's piston pump moves 2.0 GPM at open flow and 1.0 GPM at max. system pressure of 200 PSI. Built-in pressure regulator with internal bypass allows easy adjustment. Stainless steel components and Viton® seals are chemical ready; priming/recirculation line recirculates chemical. NorthStar's proprietary tank design features extra-thick walls that won't bulge or sag. It stands up to chemicals thanks to a special polymer known for its superior chemical resistance. Tank is UV-stabilized to prevent fading and other sun damage. Also includes 3/8in x 35ft. hose, 2 1/2in. liquid-filled 300 PSI gauge, Teflon®-coated pump body, remote switch assembly and tie-down straps. Order optional boom kit Item# 2730111 but requires adapter kit Item# 268181, sold separately.

What's Included

  • (1) 16-gallon tank
  • (1) Tree spray gun with adjustable nozzle
  • (1) 35ft. PVC hose
  • (1) Pumptec 114 series pump
  • (1) Remote switch
  • (1) Pressure gauge
  • (2) Tie-down straps

Downloads

Product Manual

Features + Benefits

  • 15ft. broadcast width when you order optional boom kit Item# 2730111 and adapter kit Item# 268181
  • Reinforced poly vinyl chloride hose makes monitoring the chemical flow simple
  • Agitation equipped
  • Approved for use with Roundup® agricultural herbicide
  •  Sprayer attaches to ATV with included tie-down straps
  • Adjustable Pressure

Key Specs

AttributeSpecification

item#

268180

Brand

NorthStar

Manufacturer's Warranty

2yr consumer/90 day commercial

Ship Weight

30.0 LB

Tank Size

16 Gal

Flow

2 GPM

Pressure

200 PSI
AttributeSpecification

Spray Height

30 ft

Spray Pattern

Cone, Stream, Fog

Spray Gun Type

Tree

Pump Type

Pumptec 114 Series

Hose Length

420 in

Dimensions L x W x H (in.)

32 x 15 x 15 1/2
