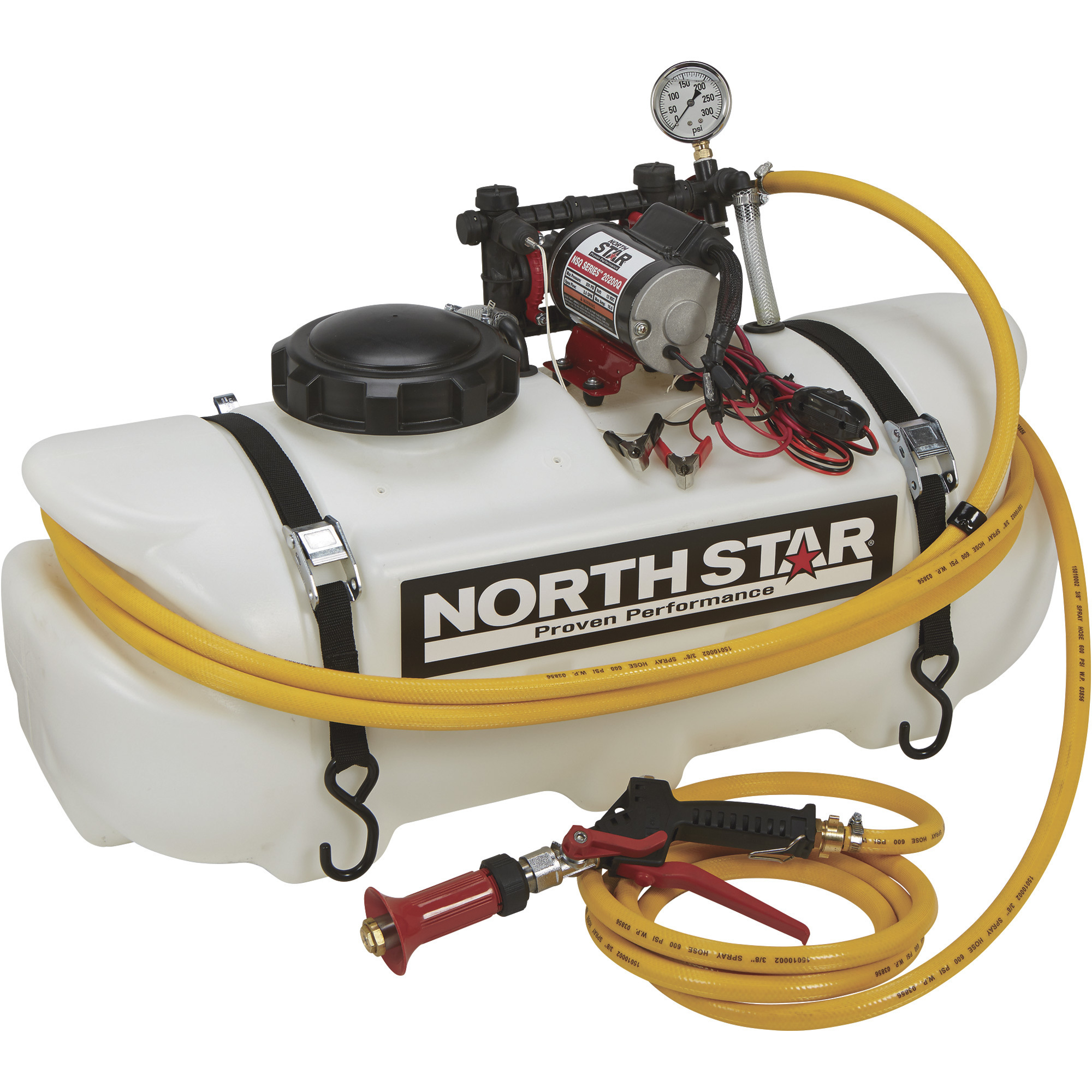

NorthStar High-Pressure ATV Spot Sprayer, 16-Gallon Capacity, 2 GPM, 12 Volt

Item# 282795
NorthStar High-Pressure ATV Spot Sprayer, 16-Gallon Capacity, 2 GPM, 12 Volt

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar High-Pressure ATV Spot Sprayer, 16-Gallon Capacity, 2 GPM, 12 Volt

Click or Tap image to Zoom

  • Delivers 2.0 GPM at open flow and has a maximum system pressure of 200 PSI
  • Equipped with a commercial-grade NorthStar NSQ Series® plunger pump for easy priming, exceptional durability, and superior resistance to harsh environments and corrosive chemicals
  • Durable tank is made with UV-stabilized material to prevent fading and other sun damage
  • Heavy-duty 35ft. high-pressure hose provides extended reach
  • Adjust the spray gun nozzle to three different spraying modes: stream, cone, and atomized mist, depending on the job

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This NorthStar® High-Pressure ATV Spot Sprayer delivers 2.0 GPM at open flow and has a maximum system pressure of 200 PSI. Equipped with a commercial-grade NorthStar NSQ Series® plunger pump, it provides easy priming, exceptional durability, and superior resistance to harsh environments and corrosive chemicals. Not only is the pump durable, NorthStar's tank braves the elements with UV-stabilized material to prevent fading and other sun damage. Adjust the spray gun nozzle to three different spraying modes: stream, cone, and atomized mist, depending on the job. Accurately control system pressure through NorthStar's sprayer regulator with liquid filled pressure gauge. To ensure even better chemical application, the regulator bypass valve agitates fluid to keep chemical evenly dispersed. Monitor fluid level with gallon marks molded right into the tank.

What's Included

    (1) Spot sprayer (1) Remote switch (1) Set of tie-down straps

Downloads

Product Manual
Play Item Video

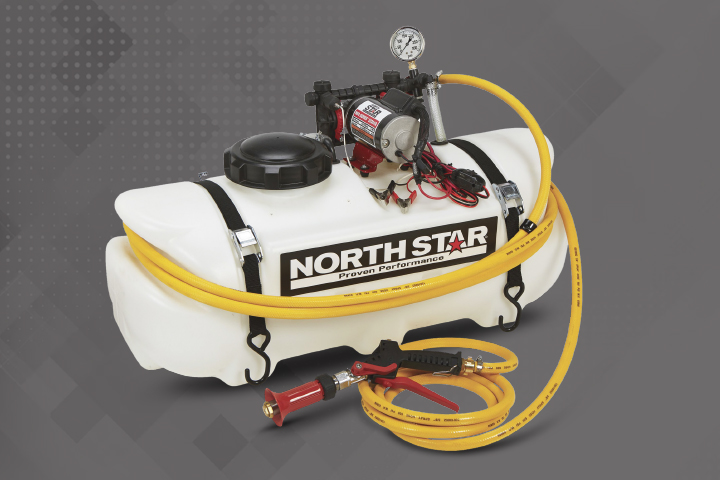

CHEMICAL COMPATIBILITY

Designed to work seamlessly with ROUNDUP® AGRICULTURAL HERBICIDES, making it a go-to choice for effective weed control

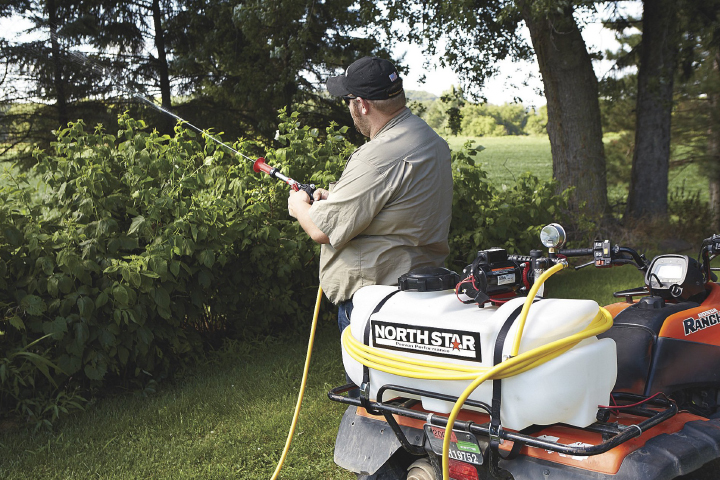

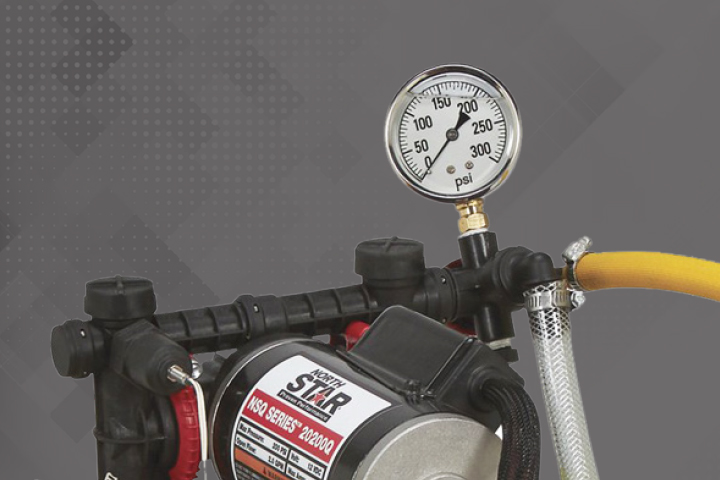

PRECISE PRESSURE CONTROL

Incorporates a liquid-filled pressure gauge for ACCURATE PRESSURE ADJUSTMENTS and A REGULATOR BYPASS VALVE for consistent chemical dispersion


EASY FLUID MONITORING

The tank features GALLON MARKERS molded directly into its structure for convenient MONITORING OF FLUID LEVELS

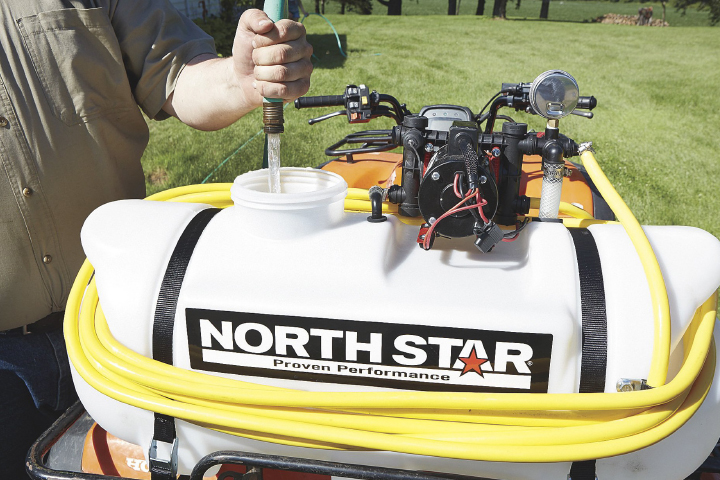

DURABLE CONSTRUCTION

Built to last, ensuring LONG-TERM USE and RELIABILITY even in the toughest outdoor conditions

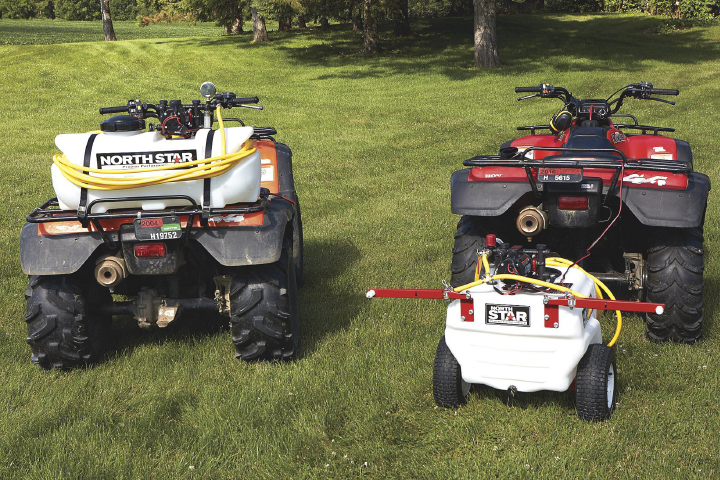

CONVENIENT ATTACHMENT

Easily secures to an ATV using the provided TIE-DOWN STRAPS, enhancing mobility and ease of application across varied terrains

Features + Benefits

  • Delivers 2.0 GPM at open flow and has a maximum system pressure of 200 PSI
  • Equipped with a commercial-grade NorthStar NSQ Series® plunger pump for easy priming, exceptional durability, and superior resistance to harsh environments and corrosive chemicals
  • Durable tank is made with UV-stabilized material to prevent fading and other sun damage
  • Heavy-duty 35ft. high-pressure hose provides extended reach
  • Adjust the spray gun nozzle to three different spraying modes: stream, cone, and atomized mist, depending on the job
  • Compatible with Roundup® agricultural brand herbicides
  • Accurately control system pressure through NorthStar's sprayer regulator with liquid filled pressure gauge
  • The regulator bypass valve agitates fluid to keep chemical evenly dispersed
  • Monitor fluid level with gallon marks molded right into the tank
  • Attaches to an ATV with included tie-down straps

Key Specs

AttributeSpecification

item#

282795

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

36.0 LB

Tank Size

16 Gal

Flow

2 GPM

Pressure

200 PSI

Spray Height

30 ft
AttributeSpecification

Spray Pattern

Cone, Stream, Mist

Spray Gun Type

Tree

Tow Behind Cart Included

No

Pump Type

Northstar NSQ Series

Hose Length

420 in

Product Weight

lb

Dimensions L x W x H (in.)

32.0 x 15.0 x 18.0 in

Reviews

Questions & Answers

47 Reviews This action will navigate to reviews.

Questions

1–10 of 41 Questions
Sort by:

  1. Can the sprayer reach the top of a 40 or 50ft high tree?

    1. I changed the sprayer to an 18" wand and got an extra 5' out of it - but that is maybe 40' with no wind.

      Helpful?

    2. I can get it to maybe 30 - 35'

      Helpful?

    3. The NorthStar High-Pressure ATV Tree Sprayer has a maximum spray height of 30 feet.

      Helpful?

  2. Can you use insecticides with this sprayer like Sevin?

    1. Yes - I use it for spraying for Spruce Bark Beetles.

      Helpful?

    2. This sprayer can be used for insecticides. The ingredients in Sevin are safe for this sprayer.

      Helpful?

  3. What amp battery should I use with this unit?

    1. I've used a 12v car battery and a 12v ATV battery. Have found no difference.

      Helpful?

    2. The pump on this unit draws 20 amps per hour. If you wanted to run this continuously for 60 minutes at the maximum PSI, and the battery is not being charged, you would need a 20 AH rated battery.

      Helpful?

  4. what is involved in the priming process????

    1. Unit primes it self in a few seconds. No manual process required.

      Helpful?

    2. This NorthStar High-Pressure ATV Tree Sprayer does not require any priming for the pump.

      Helpful?

  5. Does this sprayer support any available broadcast attachments?

    1. None that I am aware of. Hand held nozzle only, Not a pull-behind option available.

      Helpful?

    2. There is no broadcast sprayer available for this tree sprayer.

      Helpful?

  6. Hose spec.

    1 answer

    1. This sprayer has a 3/8" x 50' EDPM high pressure hose.

      Helpful?

  7. How far will it spray on atomization setting?

    1 answer

    1. The spray distance for the atomized mist has not been measured. It is similar to a fog.

      Helpful?

  8. What would the atomized missed be for ?

    1 answer

    1. The atomized mist is typically used to apply pesticides and other chemicals lightly. It can also be used for watering in delicate applications.

      Helpful?

  9. I have to replace the drain cap on the side of the tank. Can you help!

    1 answer

    1. The drain cap for this tank is our part #37680. It can be ordered online through our sister company Jacks Small Engines. Please visit www.jackssmallengines.com for pricing and availability.

      Helpful?

  10. Can I use it in back of pickup

    1 answer

    1. As long as the sprayer can be secured, it can be used in the back of a pickup at the user's discretion.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
