Ironton ATV Spot Sprayer, 8-Gallon Capacity, 1 GPM, 12 Volts

Item# 2682050
"Ironton ATV Spot Sprayer, 8-Gallon Capacity, 1 GPM, 12 Volts"
Ironton ATV Spot Sprayer, 8-Gallon Capacity, 1 GPM, 12 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton ATV Spot Sprayer, 8-Gallon Capacity, 1 GPM, 12 Volts

Click or Tap image to Zoom

$119.99

  • Shipping:

    Free shipping (lower 48 states) - Available now

  • Store Pickup:

    Not Available
  • 1 GPM Ironton pump with durable chemical-resistant Santoprene and Viton components
  • 8-gallon tank is UV resistant and compatible with virtually all pesticides
  • Gallon marks molded into tank make it easy to monitor fluid levels
  • In-line switch allows you to turn the sprayer on/off without leaving the driver's seat
  • Tank has a 3-1/2in. opening and an easy-empty bottom drain

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Add this versatile Ironton ATV Spot Sprayer to your ATV to spot spray weeds, fence lines and the tops of 12ft. trees. It's a feature-packed sprayer perfect for homeowners. It features a 1 GPM Ironton pump with durable chemical-resistant Santoprene and Viton components. The 8-gallon tank is UV resistant and compatible with virtually all pesticides. Gallon marks molded into tank make it easy to monitor fluid levels. Tank has a 3-1/2in. opening and an easy-empty bottom drain. Spray gun nozzle adjusts from stream to cone. Stream has 12ft. vertical and 20ft. horizontal maximum spray distance. Lightweight 3/8in. x 11ft. clear PVC hose reinforced with braided synthetic cord reinforcement for durability. Includes remote switch with battery clips.

What's Included

    (1) Spot sprayer

Downloads

Product Manual
Play Item Video

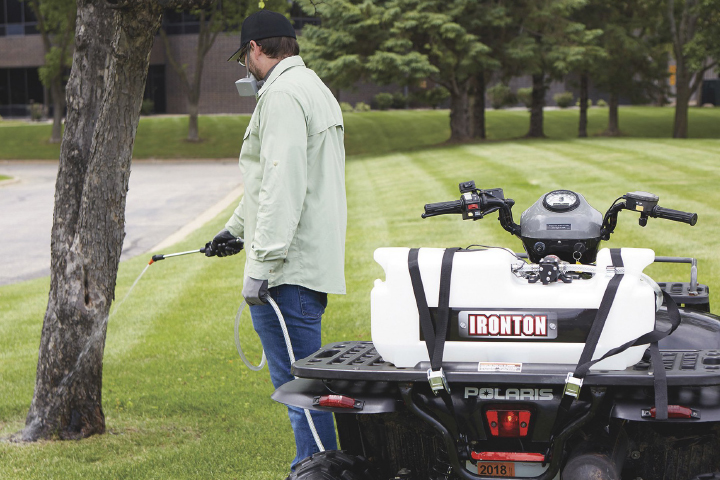

PRECISION SPRAYING CAPABILITY

Perfect for TREATING SPECIFIC AREAS without affecting nearby PLANTS or STRUCTURES

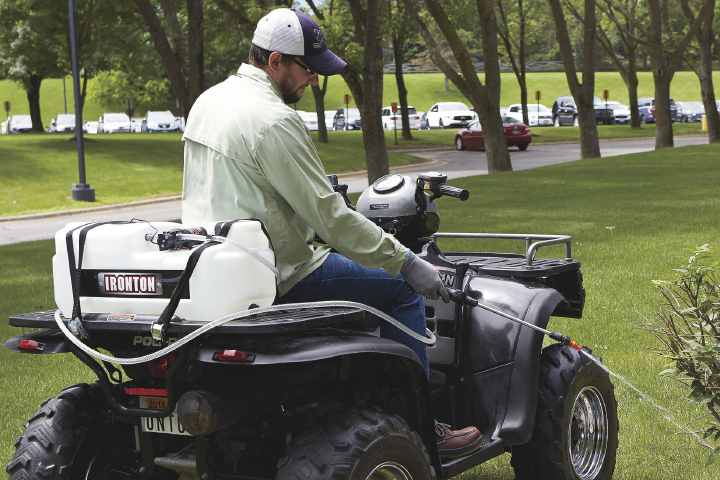

ROBUST AND RELIABLE

Built to last with components that RESIST CHEMICAL WEAR and ENVIRONMENTAL DAMAGE

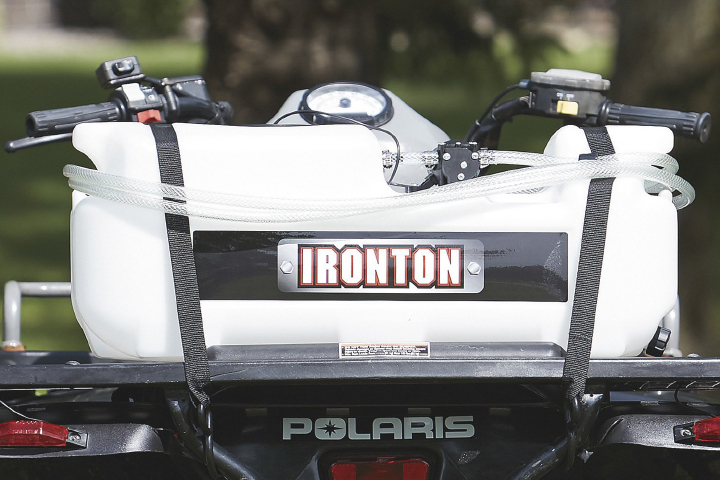

USER-FRIENDLY DESIGN

Easy to fill, empty and clean, with straightforward controls for HASSLE-FREE OPERATION

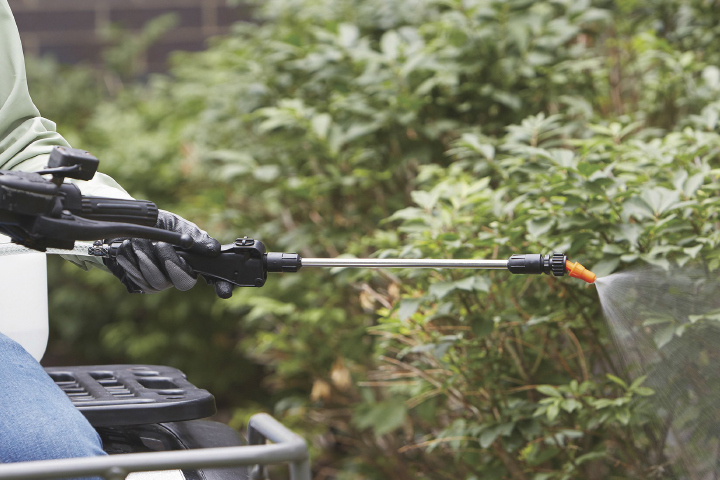

ADAPTABLE SPRAY GUN

Allows for EFFICIENT COVERAGE or focused application, depending on your task

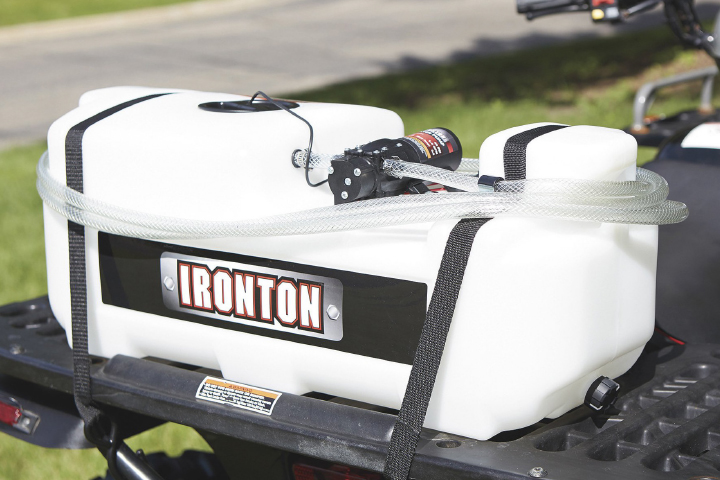

PORTABILITY AND EASE OF USE

Lightweight design with REMOTE SWITCH and BATTERY CLIPS for easy attachment to an ATV and operation

Features + Benefits

  • 1 GPM Ironton pump with durable chemical-resistant Santoprene and Viton components
  • 8-gallon tank is UV resistant and compatible with virtually all pesticides
  • Gallon marks molded into tank make it easy to monitor fluid levels
  • In-line switch allows you to turn the sprayer on/off without leaving the driver's seat
  • Tank has a 3-1/2in. opening and an easy-empty bottom drain
  • Spray gun nozzle adjusts from stream to cone
  • Stream has 12ft. vertical and 20ft. horizontal maximum spray distance
  • Lightweight 3/8in. x 12ft. clear PVC hose reinforced with braided synthetic cord for durability
  • Includes remote switch with battery clips

Key Specs

AttributeSpecification

item#

2682050

Brand

Ironton

Manufacturer's Warranty

3 months parts/3 months labor

Ship Weight

9.0 LB

Tank Size

8 Gal

Flow

1 GPM

Pressure

40 PSI

Spray Height

12 ft
AttributeSpecification

Horizontal Spray Distance

20 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Spot

Tow Behind Cart Included

No

Pump Type

Ironton

Hose Length

144 in

Product Weight

lb

Dimensions L x W x H (in.)

22.5 x 13.0 x 10.5 in

Reviews

Questions & Answers

319 Reviews This action will navigate to reviews.

Questions

1–10 of 46 Questions
Sort by:

  1. Can it be hooked up to my car or truck battery?

    1. Yes, or you can buy a separate lawnmower battery and recharge it when necessary.

      Helpful?

    2. Yes...any 12 volt DC source will work !!!

      Helpful?

    3. If it is 12 volts, yes. It comes with two alligator clips similar to jumper cables but samller.

      Helpful?

    4. This spot sprayer will run off any 12 volt battery.

      Helpful?

    5. Yes, it worked well off of my lawn tractor battery.

      Helpful?

    6. Yes

      Helpful?

  2. Any problems using this in a trailer pulled by a riding lawn mower?

    1. The only problem would be the length of the power cord, may have to be extended, to reach the battery on your towing unit !!!

      Helpful?

    2. no not at all

      Helpful?

    3. The sprayer comes with 8 feet electrical wire with clamps on the end .The on and off switch is about a foot back from where it hooks to the battery
      So you will have to measure where your tank will sit on the cart up to your battery .

      Helpful?

    4. Secure it down, it should be OK.

      Helpful?

    5. This spot sprayer can be used in a pull-behind trailer as long as the sprayer's 8' long wire harness will reach the battery of the lawn mower.

      Helpful?

  3. How well does this sprayer do on an incline or a hill with only a little liquid in the tank?

    I am concerned the liquid will slosh to one side and no spray will be pulled up by the pump. I'm not talking about a major hillside, just a decent slope where my fruit trees are.

    1. As long as you have plenty of spray in the tank you are OK no problem but as in gets lower and the pick up is on the high side you will have problems. Keep the pickup side, right side, on the low side will help !!!

      Helpful?

    2. The pickup tube is located pretty much dead center of the tank. On an angle, it will start to suck air with only a small amount left, but really by that point you should be thinking of refilling it anyway.

      Helpful?

    3. It will work until the pump pickup tube becomes uncovered, so the question really is how far down will it pump. I put a piece of 2 X 4 under one end of the tank for this problem and the tank pumps almost completely dry.

      Helpful?

    4. The pump will continue to pick up liquid from the tank as long as the pick-up tube is in the liquid. Spraying on an incline may require adding liquid more frequently.

      Helpful?

  4. does the pump turn off after it reaches 40 psi?

    1. yes if you are spraying

      Helpful?

    2. Yes, it is a demand pump. When you release the spray handle after spraying. the pump runs until it once again reaches operating pressure, then shuts off, then turns on again when you re-commence spraying.

      Helpful?

    3. Yes it does, as long as there is liquid in the line. Great feature.

      Helpful?

    4. This spot sprayer includes a 40 PSI pump. It will turn off when it reaches 40 PSI.

      Helpful?

  5. Can you use a stand alone 12 volt battery, i.e. a deep cycle marine battery with this unit? They say you can't do that with a northern sprayer.

    1. I am doing just that. I bought an inexpensive yard tractor battery to use with this and mounted all of it on a carrier that attaches to the rear of my tractor. After spraying for about 2 hours, I attached a trickle charger to the battery. I charged for less than 6 minutes before the battery was full again. For my purposes, this setup is ideal.

      Helpful?

    2. I used a new 12v mower battery that I charged overnight using auto trickle charger (~13.2v). Put 6-gallons in sprayer & loaded sprayer & battery in wheel barrow for 600ft gravel driveway @ vacation cabin to kill weeds. Took about 20 minutes to spray & worked excellent. When sprayer empty, I immediately removed & saw 12.7v, but charged with 2 auto trickle chargers while I mixed & loaded sprayer that took 10 minutes. Battery was back above 13v. Repeated this and battery never went below about 12.6v for the 3-hour duration of cycles. Way cool and did not have to run my ATV the 3 hours.

      Helpful?

    3. This Ironton ATV Spot Sprayer is only recommended to be used with a battery that is being maintained by a steady charge.

      Helpful?

  6. WITH THE LENGHT OF THE HOSE & THE LENGHT OF THE SPRAY PATTERN WHAT IS THE MAXIMUM DISTANCE THIS UNIT WOULD SPRAY HORIZONTALLY ?

    1. Easily 20 ft.

      Helpful?

    2. The hose is 12 feet in length. The stream spray pattern has a maximum horizontal spray distance of 20 feet.

      Helpful?

  7. Is the screw mounting pattern on the pump such that you could could replace it with other Northstar pumps?

    1. It is not recommended to replace the original pump with a different pump. Making modifications to this unit would void the warranty. If the Ironton pump needs to be replaced, the replacement is our part #790659. It can be ordered online through our sister company Jack's Small Engines. Please visit www.jackssmallengines.com for pricing and availability.

      Helpful?

    2. Due to the design of this sprayer, this is the only pump that can be used on this sprayer. The replacement pump would need to be ordered through our parts department at 1.800.221.0516.

      Helpful?

  8. Are there alternate nozzle tips available for this product, specifically a fan/flat spray pattern nozzle?

    1. See the North Star web site, the were very helpful when I wanted to extend the width of my fold up boom sprayer coverage.
      http://www.northerntool.com/shop/tools/product_200514390_200514390

      Helpful?

    2. This ATV spot sprayer includes a nozzle that adjusts from stream to cone/round pattern. The nozzle doesn't spray in a flat pattern. Nozzles with different/flat spray patterns are not available for the sprayer.

      Helpful?

  9. Can you attach a spray boom to this?

    I have some areas that are larger than I would like to use a spot sprayer for. Can you attach a boom to this item instead of using the sprayer.

    1. Buy the broadcast nozzle. Sprays about 12' with no booms to get tangled up

      Helpful?

    2. This sprayer is not designed to be used with a boom.

      Helpful?

  10. spot sprayer vs tree sprayer???

    I want an ATV mounted sprayer for my fruit trees, Will a "spot" sprayer work for that or do I have to go to the more expensive "tree" sprayer. Some Spot sprayer reviews sound like they are being used for trees.

    Thanks

    1. This Ironton ATV Spot Sprayer can be used as a tree sprayer, however the max height this unit can spray up to is 12'. Please see our item #2681852 for a tree sprayer that can reach 30' vertically.

      Helpful?

    2. This Ironton ATV Spot Sprayer can be used as a tree sprayer as well, the max height this unit can spray up to is 12 feet. For anything taller then 12 feet in height i would recommend using one of the Northstar tree sprayers, see below for different options.

      Helpful?

Warranty

Manufacturer's Warranty

3 months parts/3 months labor
