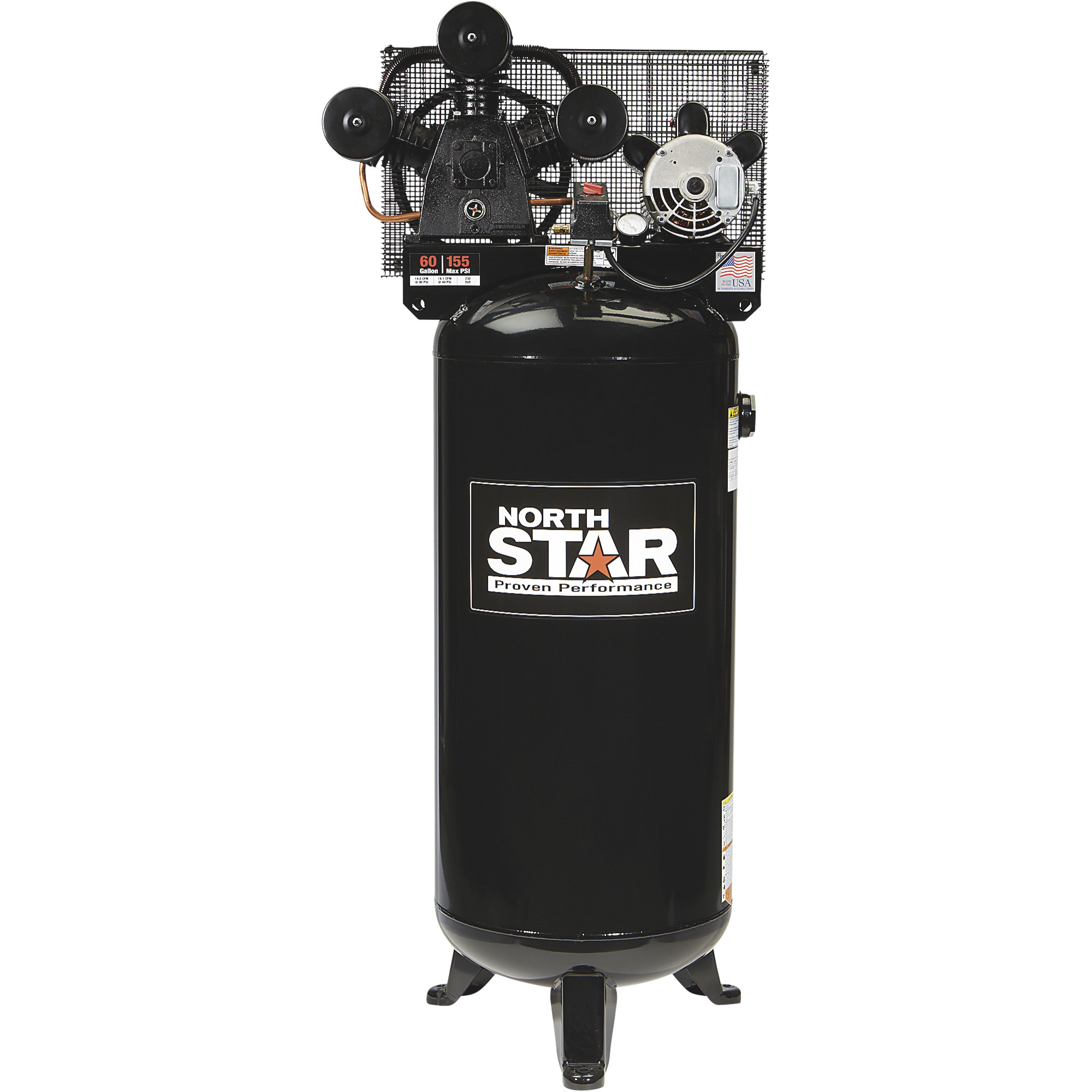

NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volts, 1 Phase, 60-Gallon Vertical Tank

Item# 75710
NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volts, 1 Phase, 60-Gallon Vertical Tank

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar High-Flow Electric Air Compressor, 4.7 HP, 230 Volts, 1 Phase, 60-Gallon Vertical Tank

Click or Tap image to Zoom

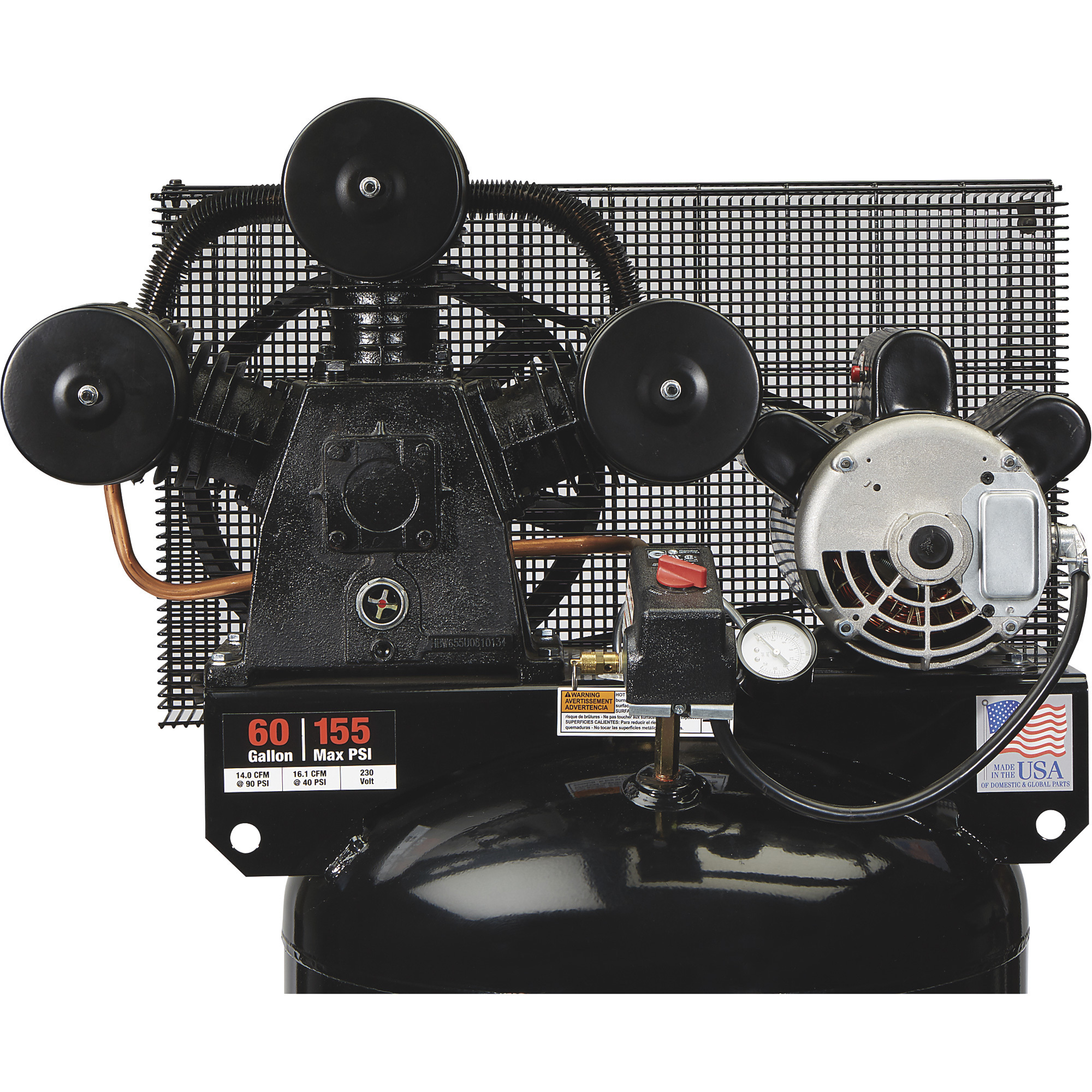

  • Durable cast iron oil-lubricated pump has 1-piece cast iron crankcase and full cast iron cylinder body
  • Durable Swedish stainless steel flex leaf valves deliver long service life
  • 3-cylinder design provides consistent cooling for long pump life
  • Heavy-duty 230V induction motor runs at 3,450 RPM for maximum performance and efficiency
  • 60-gallon ASME-certified vertical tank provides more air for longer run times on air tools such as ratchets, impact wrenches, spray guns, hammers and more

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The NorthStar 4.7 HP, 60-Gallon High-Flow Electric Air Compressor is built with a heavy-duty 230V induction motor for maximum performance and efficiency. 1-piece cast iron oil-lubricated pump with durable Swedish stainless steel flex leaf valves delivers long service life. Its 3-cylinder design provides consistent cooling for long pump life. Large 60-gallon ASME-certified air tank provides more air for longer run times on air tools. This compressor is made for the serious DIY user, professional or contractor, featuring heavy-duty components and a 155 PSI max. pressure for optimum air tool performance. This air compressor must be plugged into an outlet by itself; additional items sharing the outlet will impact the performance of this device.

What's Included

    (1) Air compressor

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Durable cast iron oil-lubricated pump has 1-piece cast iron crankcase and full cast iron cylinder body
  • Durable Swedish stainless steel flex leaf valves deliver long service life
  • 3-cylinder design provides consistent cooling for long pump life
  • Heavy-duty 230V induction motor runs at 3,450 RPM for maximum performance and efficiency
  • 60-gallon ASME-certified vertical tank provides more air for longer run times on air tools such as ratchets, impact wrenches, spray guns, hammers and more
  • Pump runs at 920 RPM
  • Oil sight gauge for easy visual oil checks
  • 12in. cast iron balanced flywheel
  • Large intake filter/silencers
  • 155 max. PSI air pressure for optimum tool performance
  • Large 3/4in. air outlet port
  • Shipped with synthetic oil for top performance and long life
  • Air compressor must be plugged into an outlet by itself; additional items sharing the outlet will impact the performance of this device

Key Specs

AttributeSpecification

item#

75710

Brand

NorthStar

Manufacturer's Warranty

4 year limited warranty

Ship Weight

292.0 LB

Air Tank Size

60 Gal

Volts

230

CFM at 90 PSI

14

Motor Phase

1

Stage

1

Horsepower

4.7 HP

Max. PSI

155

Air Outlets (qty.)

1

Amps

22

Duty Cycle

75 %
AttributeSpecification

Motor RPM

3,450

Working Pressure

155 PSI

Pump Life

15,000 hr

Pump Material

Cast Iron

Air Outlet Size

3/4 in. NPT

CFM at 40 PSI

16.1

Noise Level

80 dB

Oil Required

Yes

Low Oil Shutdown

No

Lubrication System

Other

Tank Fill Time

4.7 min

Drain Type

Ball Valve

Product Weight

287.0000 lb

Dimensions L x W x H (in.)

37.0 x 29.0 x 73.0 in

Reviews

Questions & Answers

43 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. Can it be transported laying down in the back of a pick up

    Originally posted on Please See New Item# 75710.

    1. No it has oil in the compressor

      Helpful?

    2. This compressor should be transported standing upright mounted to a pallet and strapped securely to prevent movement.

      Helpful?

  2. Does this compressor come with oil in it or do you need to buy oil immediately bofore using it?

    Originally posted on Please See New Item# 75710.

    1. It comes with oil installed in the pump

      Helpful?

    2. This Northstar Electric Air Compressor does come with oil in the pump. It is recommended before operation to check the sight glass to verify the pump has enough oil for ideal operation. The pump on this unit uses SAE30 non-detergent pump oil, and has a capacity of 23.7 ounces.

      Helpful?

  3. Does compressor come with oil and filters

    1 answer

    1. This air compressor is shipped with synthetic oil and filters. We do offer the start-up kit, item 84504, for maintenance.

      Helpful?

  4. What is the diameter of the tank? I want to make sure it fits the intended location. Thanks!

    1 answer

    1. The diameter of the tank is 20".

      Helpful?

  5. Is the 15,000 hour pump life correct?

    1 answer

    1. The pump life is determined by the bearing life rating of the pumps main bearings. This specific unit is rated at 15,000 hours. All other components of the pump are replaceable such as the pistons, connecting rods, piston rings, valves, etc.

      Helpful?

  6. Does this unit have a magnetic start?  It would be helpful if this was in the specs

    1 answer

    1. This compressor will have a start capacitor. This is listed in the product manual on page 30. The manual can be found on this item's specifications page below the Product Summary and What's Included sections.

      Helpful?

  7. Will this run off a 6000 watt generator with a 240v 30 amp outlet?

    1 answer

    1. This compressor will draw 22A on 230V electricity. In order to run this from a generator, it will require approximately 35,997 Watts at start-up and 5,060 running Watts.

      Helpful?

  8. Will this compressor run on a 30 amp breaker?

    1 answer

    1. The compressor would run on a 30 amp breaker.

      Helpful?

  9. What size bolt/floor anchors are needed to mount this to my concrete floor?

    1 answer

    1. This air compressor would use 3/8" lag screws to bolt to the concrete floor. They require a torque of 7-10 foot pounds (9.5-13.5Nm).

      Helpful?

  10. What country are the motor and pump manufactured

    1 answer

    1. This air compressor is manufactured to our specifications. The pump is manufactured in China and the motor is assembled in China with multiple sources for the parts.

      Helpful?
