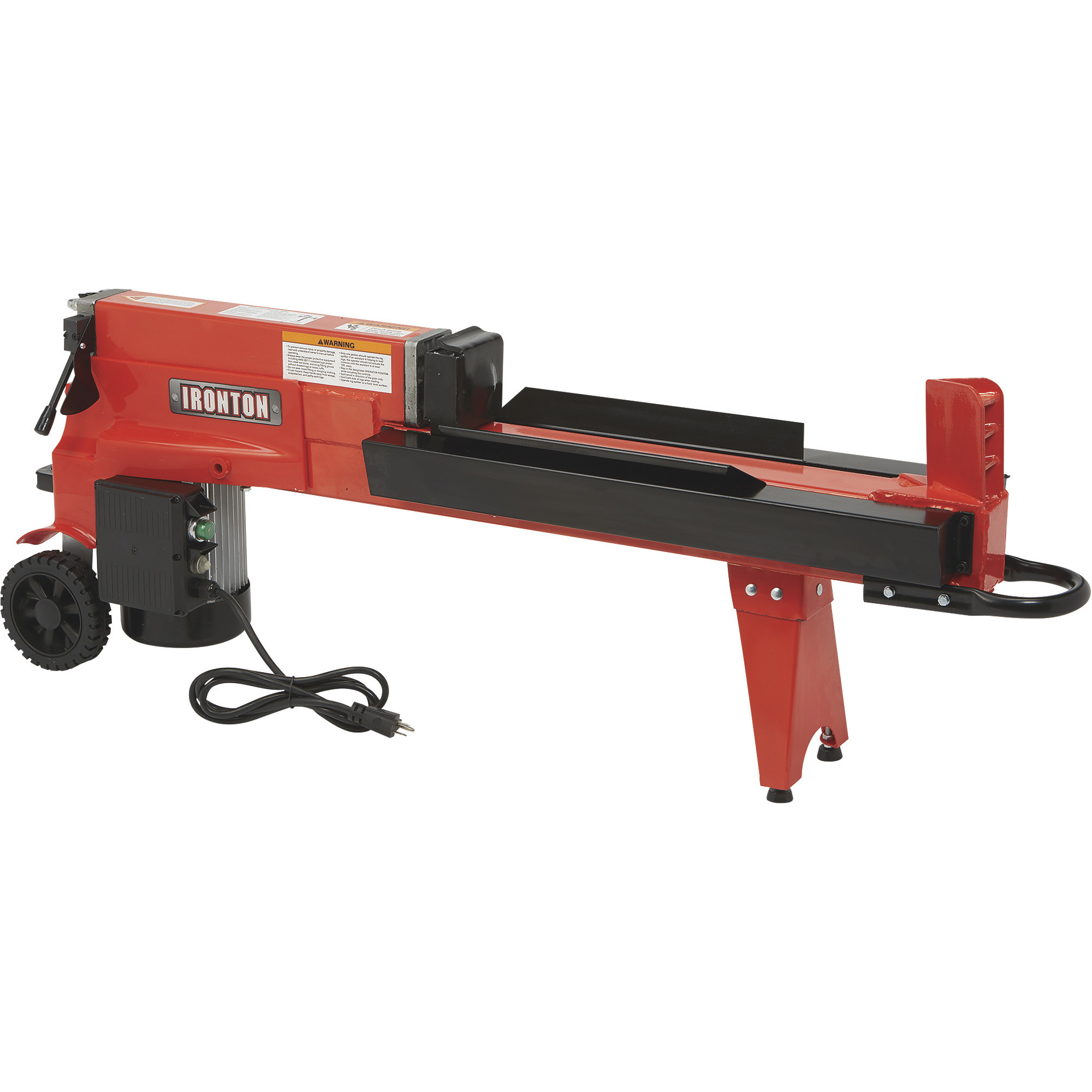

Ironton Horizontal Electric Log Splitter, 5-Ton Force, 20.5in.L x 10in. Dia. Max. Log Size

Item# 66717
Ironton Horizontal Electric Log Splitter, 5-Ton Force, 20.5in.L x 10in. Dia. Max. Log Size

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Ironton Horizontal Electric Log Splitter, 5-Ton Force, 20.5in.L x 10in. Dia. Max. Log Size

Click or Tap image to Zoom

$369.99

  • Shipping:

    Free shipping (lower 48 states) - Available now
    $19.99 Same Day

  • Store Pickup:

    1 in stock at Fredericksburg VA - Pickup in under 1 hr

  • 5-ton maximum splitting force powers through tough logs
  • Handles logs up to 20-1/2in.L x 10in. dia. for versatile use
  • 15 Amp, 120V, 1-3/4 HP electric motor delivers smooth, reliable performance
  • 14-sec. cylinder cycle time for efficient splitting
  • Built-in log cradle catches wood, reduces bending and cleanup

See full description

Complete Your Solution

  • Ironton Horizontal Electric Log Splitter, 5-Ton Force, 20.5in.L x 10in. Dia. Max. Log Size
  • Ironton Log Carrier with Stand, 41 1/2in.L, Nylon and Steel Construction
  • Husqvarna Forest Protective Chainsaw Chaps, Size 36-38, Model# 585488004
Price for all three:

$537.97

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Ironton Horizontal Electric Log Splitter delivers 5 tons of splitting force to handle logs up to 20-1/2in.L x 10in. dia. A powerful 15 Amp motor and fast 14-sec. cycle time make quick work of firewood, while the built-in cradle and wheels add convenience and mobility.

What's Included

    (1) Horizontal electric log splitter

Downloads

Product Manual
Play Item Video

Features + Benefits

  • 5-ton maximum splitting force powers through tough logs
  • Handles logs up to 20-1/2in.L x 10in. dia. for versatile use
  • 15 Amp, 120V, 1-3/4 HP electric motor delivers smooth, reliable performance
  • 14-sec. cylinder cycle time for efficient splitting
  • Built-in log cradle catches wood, reduces bending and cleanup
  • 5-3/4in. tires for easy portability and transport
  • Horizontal design offers simple, stable operation
  • Ideal for home, cabin or light-duty firewood prep tasks

Key Specs

AttributeSpecification

item#

66717

Brand

Ironton

Manufacturer's Warranty

3 month limited warranty

Ship Weight

123.3 LB

Product Type

Electric

Ram Force

5 Tons

Max. Log Diameter

10 in

Max. Log Length

20.5 in
AttributeSpecification

Continuous Force

5 Tons

Cycle Time

14 sec.

Tire Size

5.75 in

Splitter Orientation

Horizontal

Wheels

Yes

Product Weight

114.0000 lb

Dimensions L x W x H (in.)

51.8125 x 10.25 x 18.875 in

Reviews

Questions & Answers

60 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. Does this have a hydraulic drive?

    1. Yes

      Helpful?

    2. This log splitter will feature a hydraulic system powered by an electric motor.

      Helpful?

  2. How do you bleed air from Hydraulic system

    1 answer

    1. Loosen the bleed screw 3-4 rotations. An illustration of the bleed screw location can be found on page 8 of the Product Manual. The manual is located below the Product Summary on the web page.

      Helpful?

  3. Rebuild kit for this log splitter. For the hydraulic cylinder and pump.

    1 answer

    1. At this time, we do not offer a rebuild kit, but individual parts are available through our sister company, Jacks Small Engines. The parts diagram and list can be found on pages 15-16 of the Product Manual found below the Product Summary on the web page.

      Please reach out to our Sales team at 1.800.221.0516 for assistance with obtaining part numbers and instructions for ordering.

      Helpful?

  4. what kind of hydraulic fluid that you use with this machine

    1 answer

    1. The following hydraulic oils are recommended: Shell Tellus 22, Mobile DTE 11, ARAL Vitam GF 22 or BP Energol HLP-HM 22.

      Helpful?

  5. How does a person add hydulet fluid in it

    1 answer

    1. To replenish the hydraulic oil, unscrew the oil drain bolt and remove it. Next, turn the log splitter up on the motor side and refill with fresh hydraulic oil according to the 0.6 gallon capacity. Clean the surface of the dipstick on the oil drain bolt and put it back into the oil tank while keeping the log splitter vertical.
      Make sure the level of the oil is between the two grooves on the dipstick. Then, clean the oil drain bolt before rethreading. Make sure it is tightened to avoid leakage before returning the log splitter to a horizontal position.

      Helpful?

  6. Does it have automatic return or does the operator have to hold down the lever to get the splitter to ready itself for the next log?

    1 answer

    1. After both hands release the controls, the log pusher will return to its starting position.

      Helpful?

  7. What is the total length of splitter?

    1 answer

    1. The overall dimensions on the splitter will be 53.15" L x 17.72" W x 6.69" H.

      Helpful?

  8. does it split mesquite wood with ease ?

    1 answer

    1. This log splitter applies 5 tons of splitting force and can be used with Mesquite wood. It will handle logs up to 20.5" long x 10" in diameter.

      Helpful?

  9. Can a person get a stand for this splitter so he can stand and split

    1 answer

    1. Currently, we do not offer a stand for this log splitter.

      Helpful?

  10. How large diameter log will it split?

    1 answer

    1. This can split up to 10'' diameter logs.

      Helpful?
