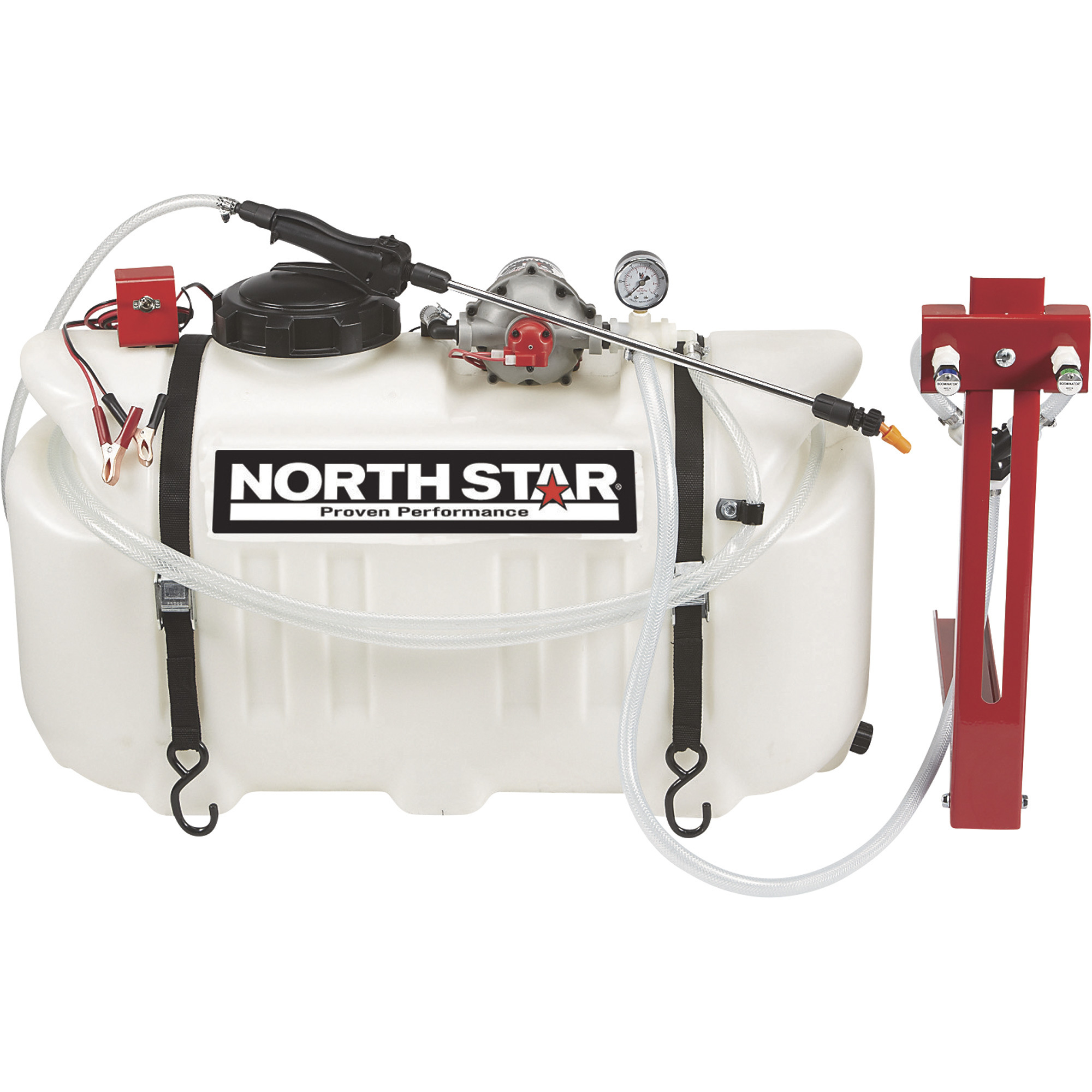

NorthStar ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volts

Item# 2287181
"NorthStar ATV Boomless Broadcast and Spot Sprayer - 26-Gallon Capacity, 5.5 GPM, 12 Volts"
NorthStar ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

NorthStar ATV Boomless Broadcast and Spot Sprayer, 26-Gallon Capacity, 5.5 GPM, 12 Volts

Click or Tap image to Zoom

  • 12V, 5.5 GPM open flow NorthStar NSQ Series on-demand pump provides faster priming and longer life; 60 PSI max.
  • 100% continuous duty rating
  • Honeywell MICRO SWITCH for enhanced durability and efficiency
  • Patented DXS-3 valves are made with chemical-resistant Viton for faster priming, better performance and longer life
  • Santoprene diaphragm has superior reliability and chemical resistance

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Powered by a high-performance, continuous-duty NorthStar NSQ series pump, the sturdily constructed NorthStar ATV Boomless Broadcast and Spot Sprayer breezes through big jobs and spot spraying, with a 40ft. spray pattern and a handheld spray gun. The high-performance NSQ series pump combines innovative components and engineering for superior spraying.

What's Included

    (1) Sprayer (1) Remote switch (1) Set of tie-down straps

Downloads

Product Manual

Features + Benefits

  • 12V, 5.5 GPM open flow NorthStar NSQ Series on-demand pump provides faster priming and longer life; 60 PSI max.
  • 100% continuous duty rating
  • Honeywell MICRO SWITCH for enhanced durability and efficiency
  • Patented DXS-3 valves are made with chemical-resistant Viton for faster priming, better performance and longer life
  • Santoprene diaphragm has superior reliability and chemical resistance
  • Unique pressure switch design slowly cycles the pump for reduced wear on the switch and motor
  • Quick-connect ports for easy changes
  • Large 26-gallon proprietary tank design features extra-thick walls made with a special polymer known for its superior chemical and UV resistance

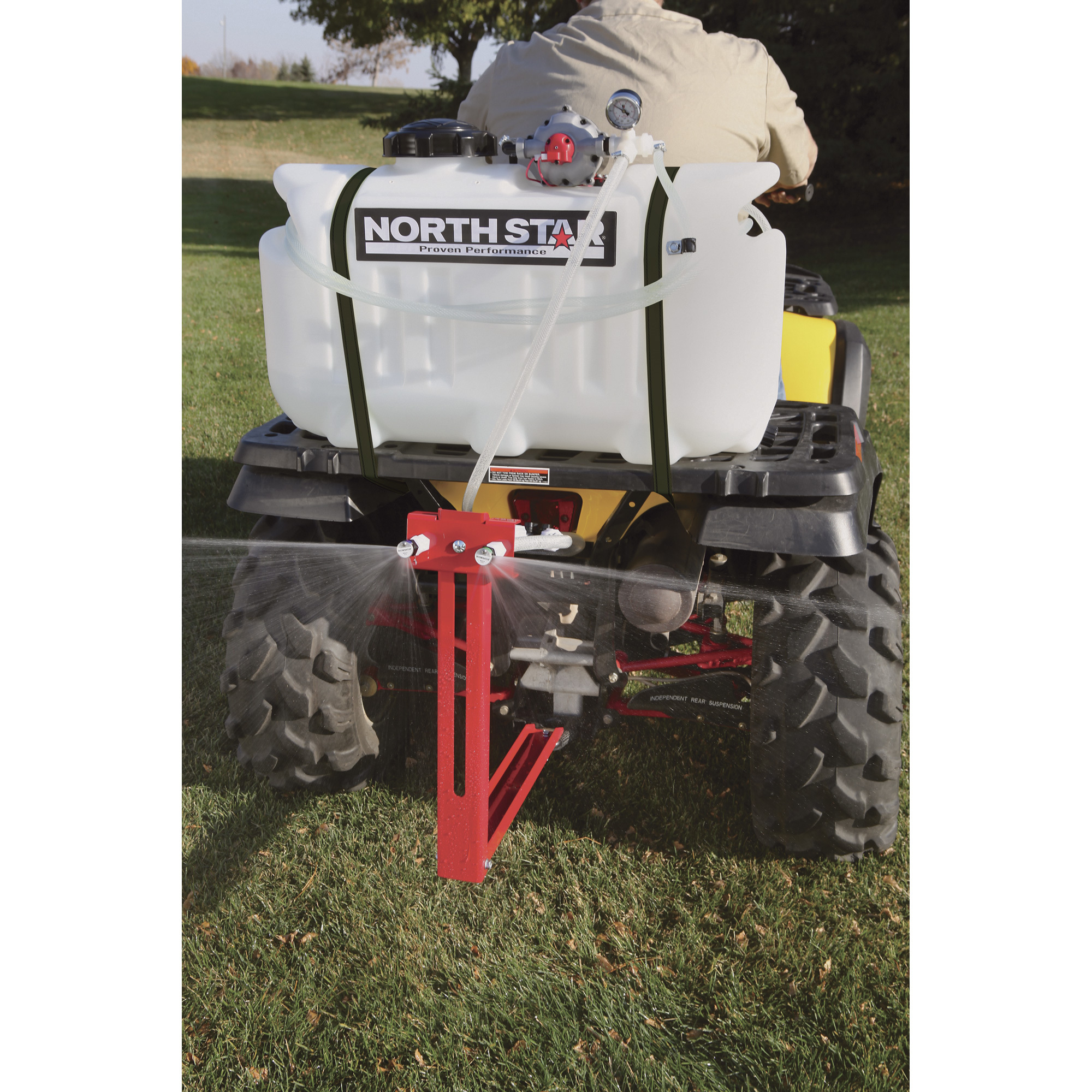

  • Broadcast nozzles spray a wide 40ft. pattern with no boom arms to break
  • Large droplet size for minimal drift
  • Left/right nozzle control for perimeter spraying
  • Compatible with Roundup agricultural brand herbicides

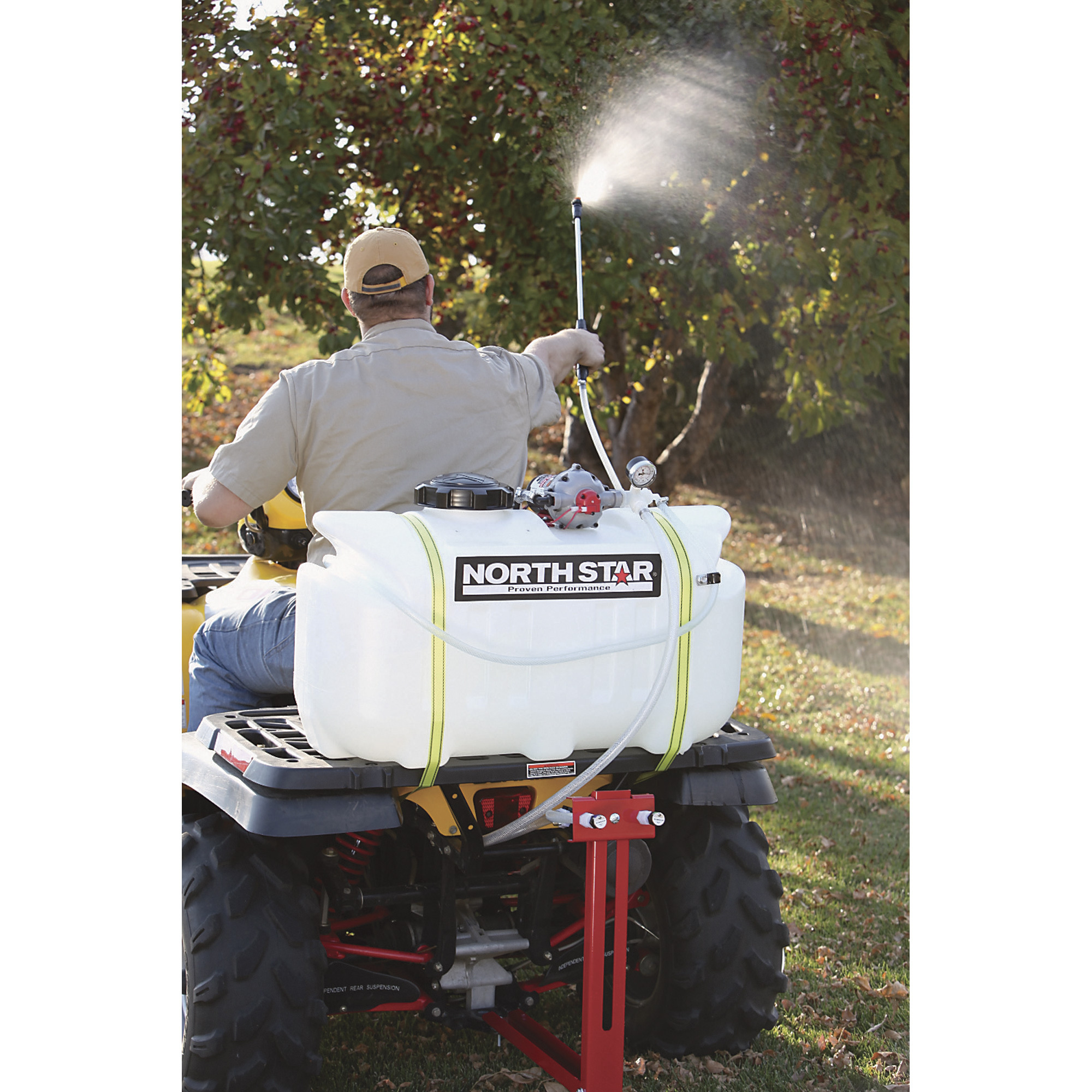

  • Spray gun nozzle adjusts from cone to stream; stream shoots up to 35ft. horizontally and 22ft. vertically
  • 15ft. reinforced poly vinyl chloride hose; clear hose makes monitoring flow easy
  • 6in. dia. tank lid for easy filling
  • Tank bottom drain for easy emptying
  • Includes remote switch with battery clips and tie-down straps

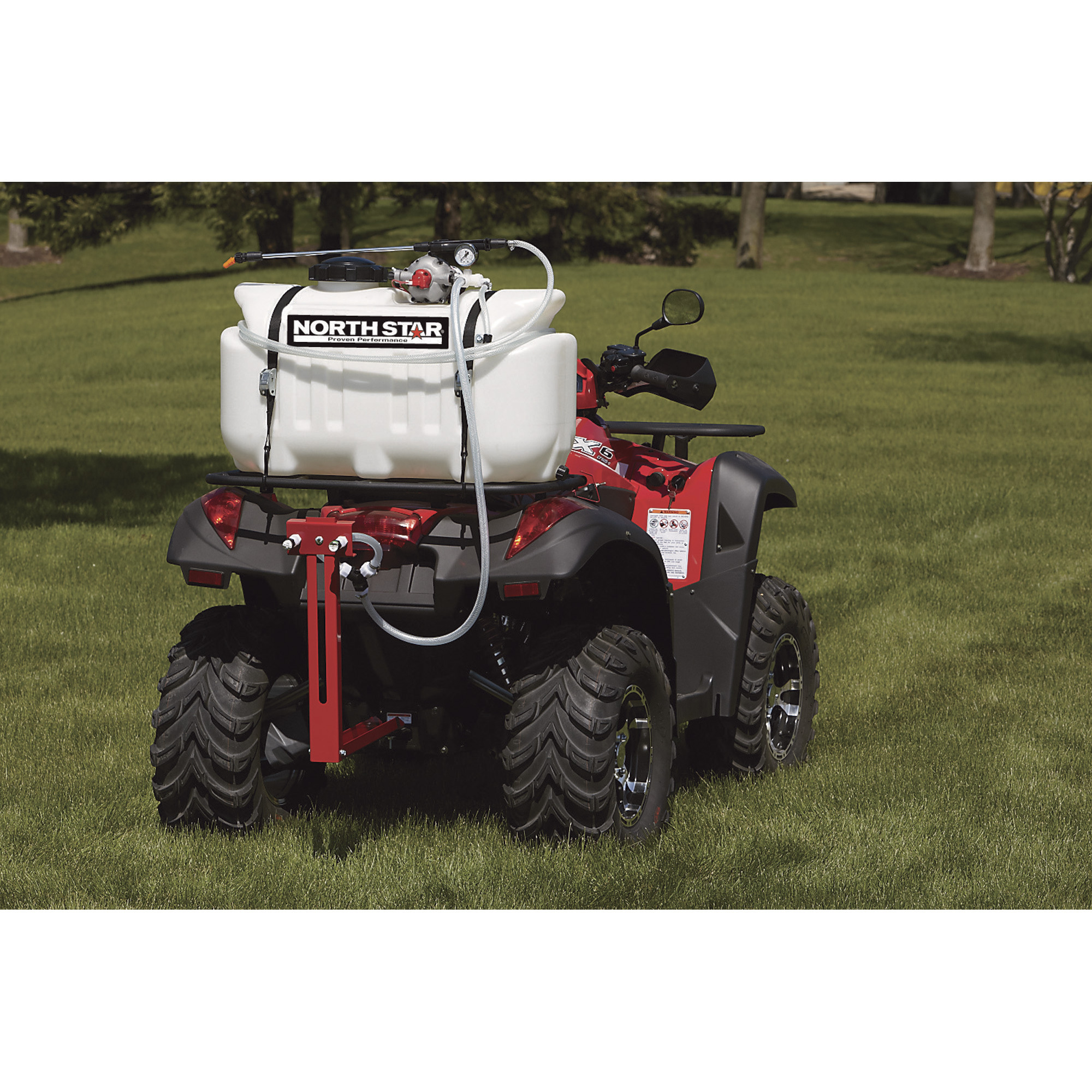

  • Boom attaches to ATV ball-mount hitch by bolt and nut

Key Specs

AttributeSpecification

item#

2287181

Brand

NorthStar

Manufacturer's Warranty

2 year limited warranty

Ship Weight

35.0 LB

Tank Size

26 Gal

Flow

5.5 GPM

Pressure

60 PSI

Spray Height

22 ft
AttributeSpecification

Broadcast Width

35 ft

Spray Pattern

Cone, Stream

Spray Gun Type

Spot

Pump Type

Northstar NSQ Series

Hose Length

180 in

Product Weight

lb

Dimensions L x W x H (in.)

33.0 x 13.5 x 28.0 in

Reviews

Questions & Answers

113 Reviews This action will navigate to reviews.

Questions

1–10 of 62 Questions
Sort by:

  1. At 5.5 GPM and a 26 gal tank, will the spray only last approx 5 mins at 100% duty cycle?

    1. Technically yes. If you have both booms wide open and are riding along using the hand sprayer the tank can empty quickly. I found that you can adjust the valves on the boom sprayers back to half the flow and still maintain a straight out spray. You will hear the motor cut back considerably. I fould I could get around 10 minutes at that rate and still be happy with the coverage. I just increased my mixture of chemical from 1 1/2 % to 2 %.

      Helpful?

    2. That's how it works.

      Helpful?

    3. Yes, when operated at the full 5.5 GPM output, it will last approximately 5 minutes.

      Helpful?

  2. Is the boom spray width adjustable?

    1. Somewhat, you have to adjust the angle of the nozzles. My husband originally placed mine level, which does make for a wide pattern but the spray is sparse. I tipped them downward to lessen the width of the pattern but to get a more concentrated spray.

      Helpful?

    2. yes.

      Helpful?

    3. This boomless broadcast and spot sprayer features adjustable pressure and left/right boom controls to adjust the spray width as needed.

      Helpful?

  3. Hose diameter?

    1. 3/8 ID

      Helpful?

    2. The hose on this sprayer is 3/8" diameter.

      Helpful?

  4. Tank Cleaner

    What tank cleaner do you recommend after applying one chemical and then needing to apply a different chemical?
    I.e. 1st spray Round up then need to use the sprayer in a different application such as 2 4 D or Trimec?

    1. RINSE OUT WITH FULL TANK OR 2 OF WATER

      Helpful?

    2. Flush the sprayer according to the chemical manufacturer’s recommendation. On page 31 of the owner’s manual there is also a general procedure for cleaning the tank. Any chemical will leave some residual in the tank liner or sprayer components, even after the sprayer has been properly cleaned.

      Helpful?

  5. Could this sprayer be used in the back of a side by side utility vehicle?

    1. Yes

      Helpful?

    2. This sprayer can be used in the back of a utility vehicle. It needs to be secured with the straps or by bolting it to the bed. There are four 5/16”-18 bottom mounting holes on the bottom of the tank.

      Helpful?

  6. 12 Volt cigarette lighter adapter available?

    Battery is hard to get to adapter to plug in would be easier?

    1. I have adapted mine to plug into the cigarette/auxiliary power connection on my artic cat. Just have to make sure the plug in has the proper fuse in it as the pump does draw some starting power.

      Helpful?

    2. A 12 volt cigarette lighter adapter is not available for the NorthStar Sprayer.

      Helpful?

  7. I would be using a gator or 3 wheeled bunker rake for the spraying, how difficult is it to attach the assembly to hold the spray attachemnt to either

    1. Would not be hard to mount the nozzles

      Helpful?

    2. It should not be difficult at all. There would need to be a flat place to sit the tank and bungee it down. The broadcast mounting kit would mount to the pin hitch on the gator or bunker rake. Then just run the wiring harness up to the battery.

      Helpful?

  8. What is the difference in a 5.5 GPM and a 2.2GPM?

    1. The flow rate and operating pressure of the supplied pumps.

      Helpful?

    2. The pump is pumping out 5.5 gallons per minute of liquid 60 PSI. It gives you more volume at a lower PSI than the 2.2 gallon per minute. The 2.2 gallon per minute pump has a little higher pressure, so you get more force but less volume.

      Helpful?

  9. Could this sprayer be placed in/on a tow behind garden trailer and be pulled behind a tractor or mower?

    1. absolutely you could

      Helpful?

    2. This broadcast and spot sprayer can be placed on a tow behind trailer. The sprayer comes with a 72" cable for hookup to the 12 volt battery of the tractor or mower.

      Helpful?

  10. how do you adjust the pressure on pump

    1. Ron , The pump is non adjustable. The gauge is for monitoring condition of the pump output.

      Helpful?

    2. The output pressure is not adjustable for the pump. The pressure is determined by the orifice size of the nozzles that are used.

      Helpful?
