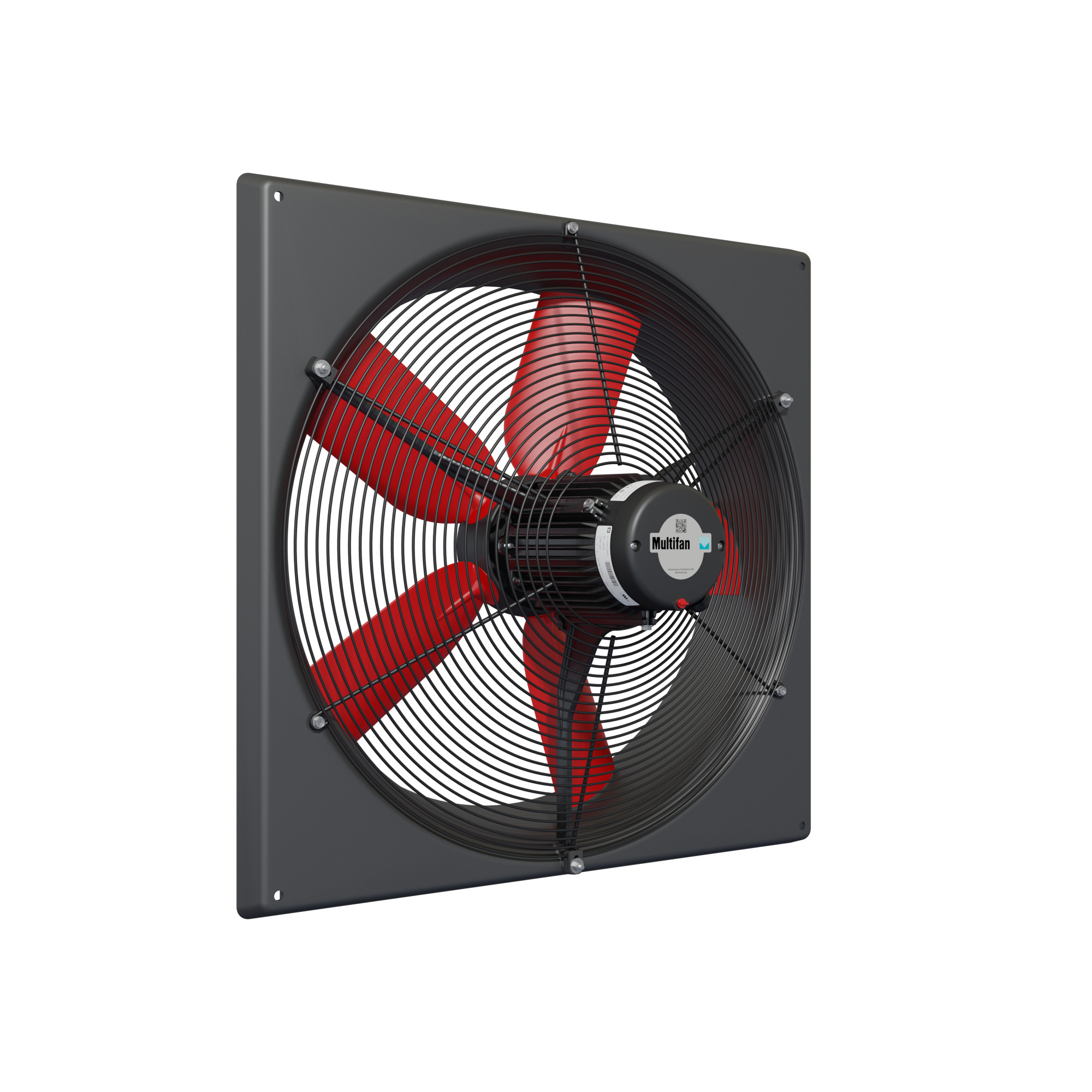

Multifan Panel Fan with Intake Guard, 24in., 7850 CFM, 1 1/2 HP, 120 Volt, Model# V6E63K-120V

Item# 43974
Multifan Panel Fan with Intake Guard, 24in., 7850 CFM, 1 1/2 HP, 120 Volt, Model# V6E63K-120V

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Multifan Panel Fan with Intake Guard, 24in., 7850 CFM, 1 1/2 HP, 120 Volt, Model# V6E63K-120V

Click or Tap image to Zoom

$819.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Severe duty, harsh environment fan
  • Fiberglass fan frame
  • Polypropylene impeller
  • Aluminum motor housing
  • UL-recognized

See full description

Complete Your Solution

  • Multifan Panel Fan with Intake Guard, 24in., 7850 CFM, 1 1/2 HP, 120 Volt, Model# V6E63K-120V
  • Vostermans Multifan Mechanical Thermostat, Single Pole, Double Throw, Model# TT15WDCAM1A
Price for all two:

$874.98

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Multifan Panel Fan exhibits exceptional performance in high moisture, corrosive and wet environments. The fan has an IP55 enclosure to be resistant to dust, dirt and water, so it is perfectly suited for marine or wet environments and wash down locations. The motor is totally enclosed in aluminum, and the internal components have been protected to Class-F, which means the fan offers excellent heat dissipation, allowing operation in hotter than normal environments. The lightweight polypropylene impeller reduces wear on the motor components to extend fan life cycle.

What's Included

    (1) Fan

Downloads

Product Manual
Additional Product Info

Features + Benefits

  • Severe duty, harsh environment fan
  • Fiberglass fan frame
  • Polypropylene impeller
  • Aluminum motor housing
  • UL-recognized
  • CSA certified
  • TEAO motor
  • Class-F insulated, suitable for ambient temperature to 140°F
  • Rated IP55 and UL507 for outdoor or wash down duty
  • Auto reset thermal protection
  • Sealed ball bearings with C-4 clearance
  • L-10 life

Key Specs

AttributeSpecification

item#

43974

Brand

Multifan

Manufacturer's Warranty

3 year limited warranty

Ship Weight

55.0 LB

Drive Type

Direct
AttributeSpecification

Fan Diameter

24 in

Air Delivery

7,850 cfm

Volts

120

Speeds (qty.)

1

Horsepower

1.5 HP
