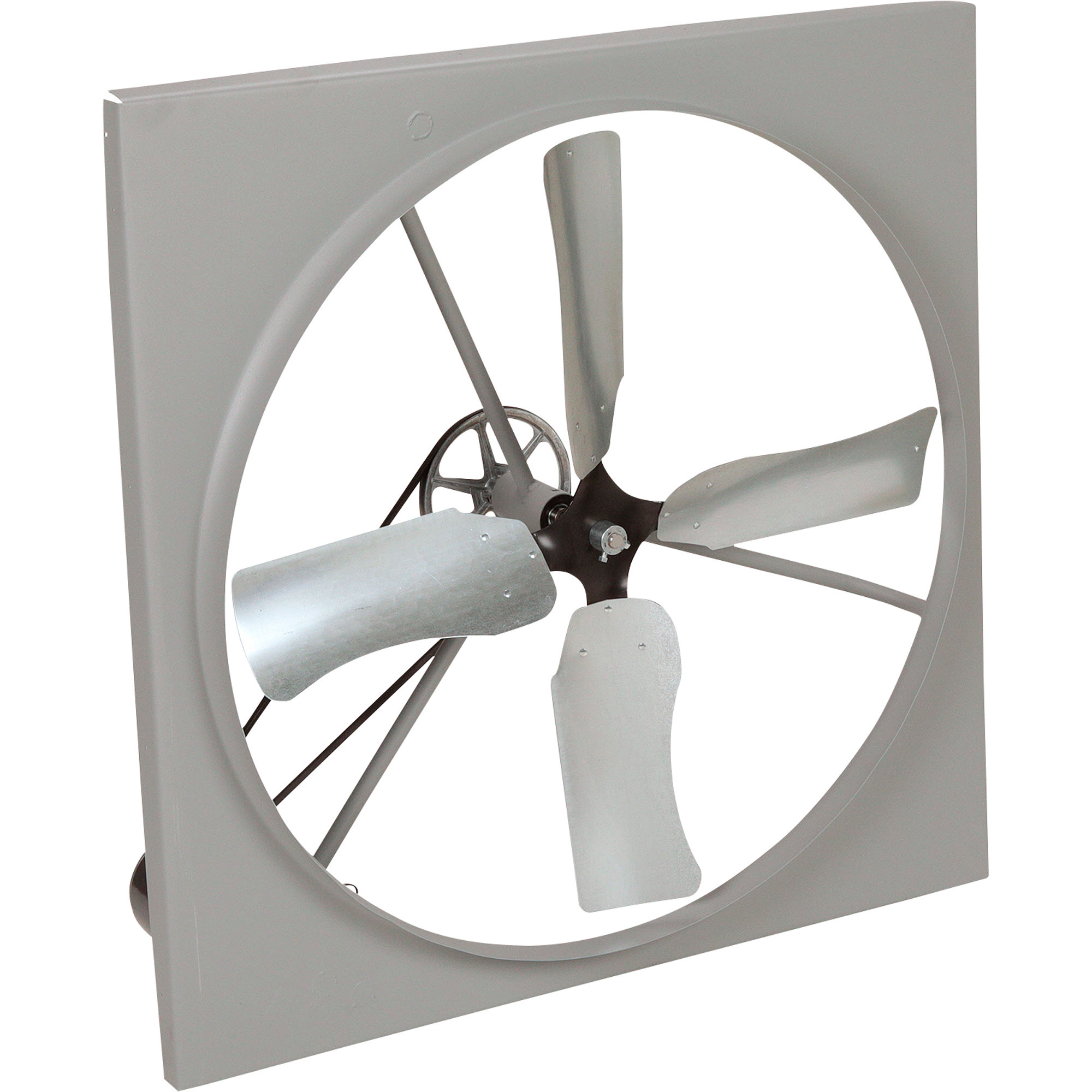

TPI Commercial Exhaust Fan - 42in. Dia., 17,500 CFM, Belt Drive, 3/4 HP, Model# CE-42B-3

Item# 255350
TPI Commercial Exhaust Fan - 42in. Dia., 17,500 CFM, Belt Drive, 3/4 HP, Model# CE-42B-3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Commercial Exhaust Fan - 42in. Dia., 17,500 CFM, Belt Drive, 3/4 HP, Model# CE-42B-3

Click or Tap image to Zoom

$1752.32

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • 17,500 CFM
  • 1,725 RPM
  • 3/4 HP
  • 3.3/1.5 Amps
  • 230/460V

See full description

Complete Your Solution

  • TPI Commercial Exhaust Fan - 42in. Dia., 17,500 CFM, Belt Drive, 3/4 HP, Model# CE-42B-3
  • TPI Exhaust Fan Shutters - 42in., Aluminum, Weather Stripping, Model# CES-42
Price for all two:

$2508.16

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Move big air with this large diameter TPI Commercial Exhaust Fan. Built for years of trouble-free service in all types of environments. Ball bearing, permanently lubricated, drip proof motor. Permanently lubricated bearings on blade drive shaft.

What's Included

    (1) Exhaust fan

Features + Benefits

  • 17,500 CFM
  • 1,725 RPM
  • 3/4 HP
  • 3.3/1.5 Amps
  • 230/460V
  • 3 Phase
  • Aluminum blade
  • Powder-coated venturi
  • Motor frame size 56
  • 5/8in. shaft
  • Dimensions: 48in. x 48in. x 3/4in. x 17in.
  • Optional exhaust shutters sold separately

Key Specs

AttributeSpecification

item#

255350

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

125.0 LB

Drive Type

Belt
AttributeSpecification

Fan Diameter

42 in

Air Delivery

17,500 cfm

Volts

240/460

Speeds (qty.)

1

Horsepower

0.75 HP

Reviews

Questions & Answers

Questions

1–2 of 2 Questions
Sort by:

  1. What is the amperage of this fan?

    1 answer

    1. The amperage is as follows.
      At 115 volts it is 11 amps.
      At 230 volts it is 3.3 amps.
      At 460 volts it is 1.5 amps.

      Helpful?

  2. what is the hp of the electric motor? At what rpm does it spin the blades?

    1 answer

    1. The TPI Commercial Exhaust Fan will have a 3/4 HP motor. The motor itself runs at 1725 RPM, and the pulley is approximately a 3:1ratio, so the blades will rotate at approximately 575 RPM.

      Helpful?
