TPI Commercial Exhaust Fan - 48in. Diameter, 21500 CFM, Belt Drive, Model# CE-48B

Item# 255352
"TPI Commercial Exhaust Fan - 48in. Diameter, 21500 CFM, Belt Drive, Model# CE-48B"
TPI Commercial Exhaust Fan - 48in. Diameter, 21500 CFM, Belt Drive, Model# CE-48B

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

TPI Commercial Exhaust Fan - 48in. Diameter, 21500 CFM, Belt Drive, Model# CE-48B

Click or Tap image to Zoom

$1680.64

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

  • Flared venturi steel frame moves large volumes of air at very low noise levels
  • Single-phase operation
  • Aluminum 4-paddle blade
  • Motor frame size 56
  • 5/8in. shaft

See full description

Complete Your Solution

  • TPI Commercial Exhaust Fan - 48in. Diameter, 21500 CFM, Belt Drive, Model# CE-48B
  • TPI Exhaust Shutters - 48in., Aluminum, Corrosion-Resistant, Compatible with Exhaust Fans, Model# CES-48
Price for all two:

$2550.40

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

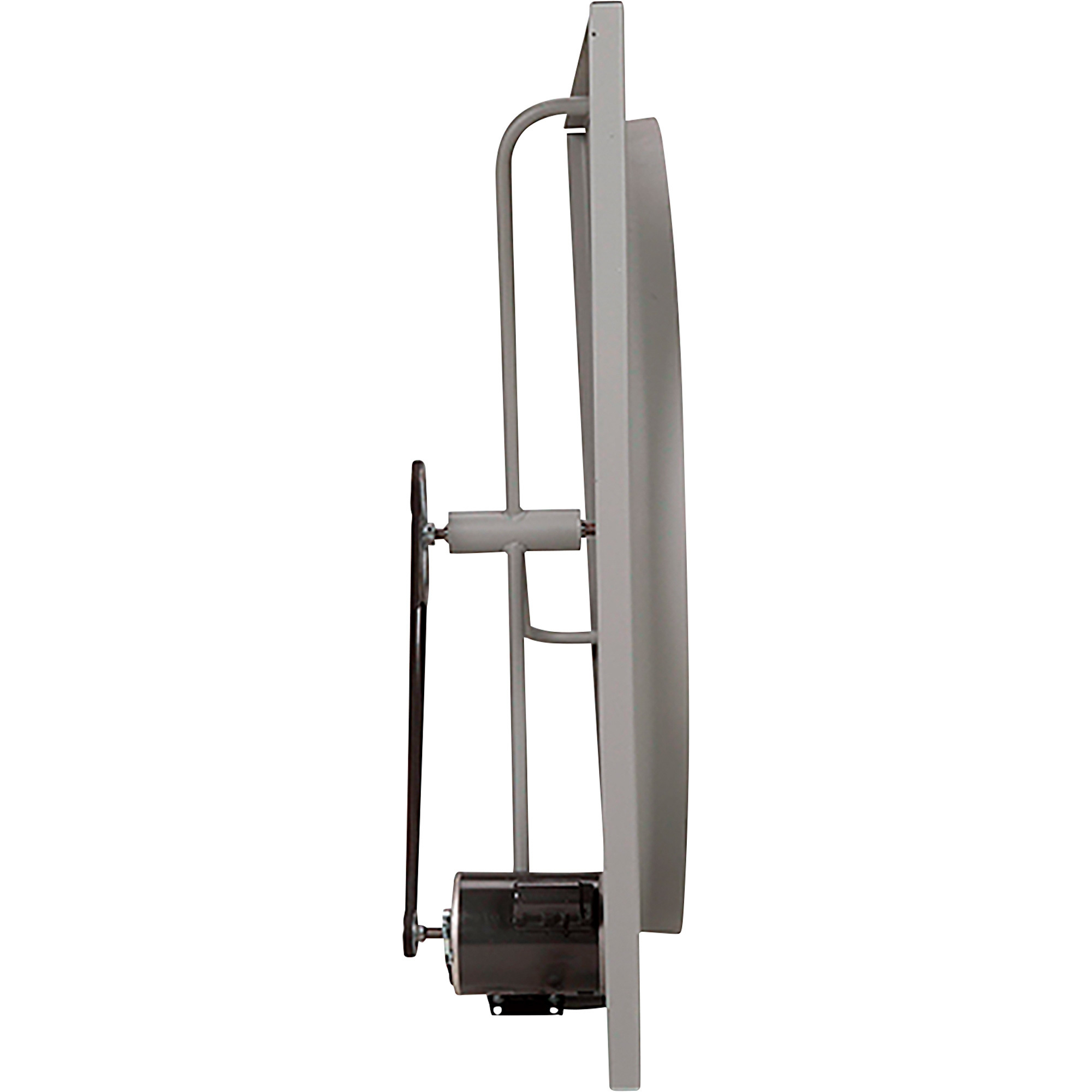

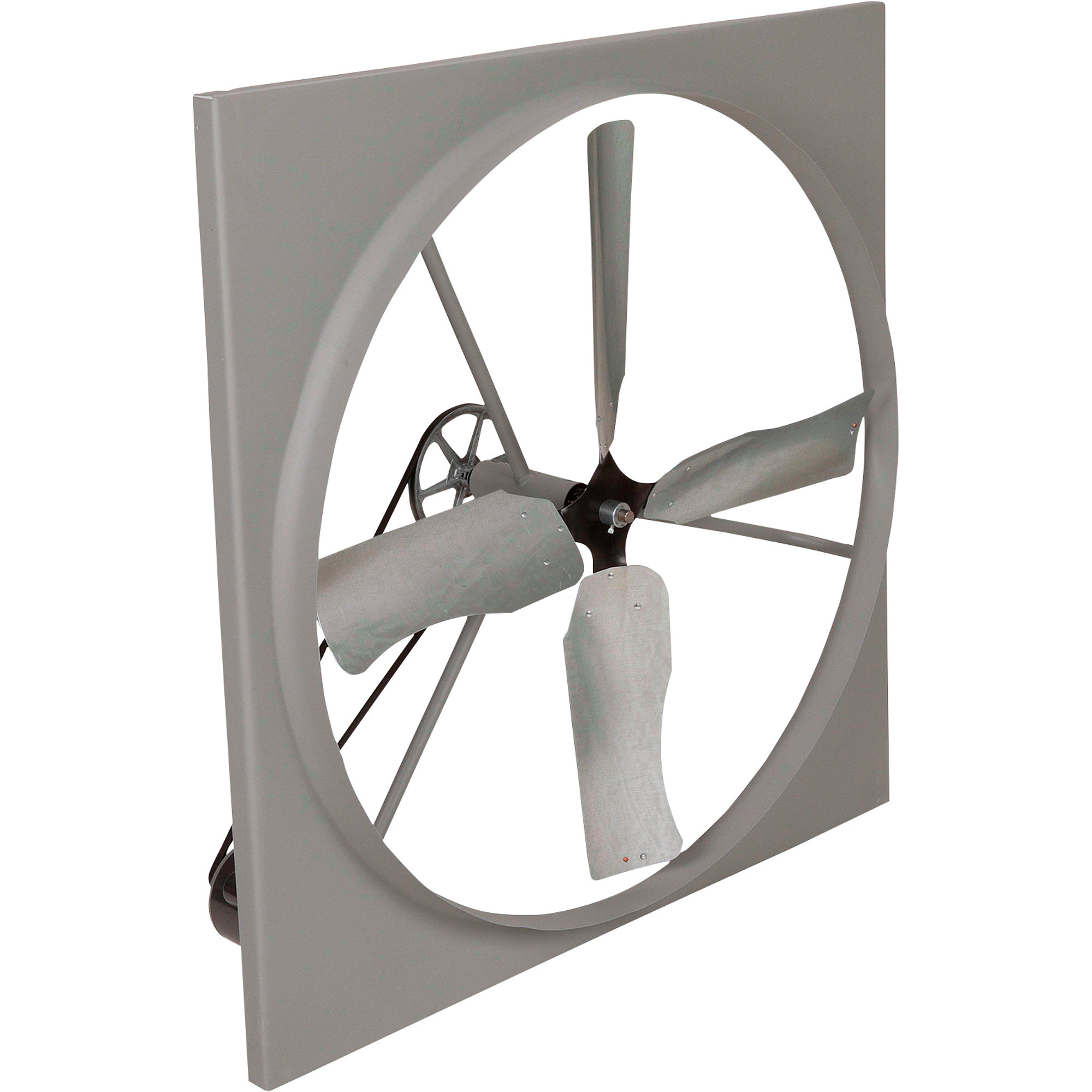

Move big air with this large diameter TPI Commercial Exhaust Fan. Built for years of trouble-free service in all types of environments. Ball bearing, permanently lubricated, drip proof motor. Permanently lubricated bearings on blade drive shaft. Requires hardwired electrical connection.

What's Included

    (1) Exhaust fan

Features + Benefits

  • Flared venturi steel frame moves large volumes of air at very low noise levels
  • Single-phase operation
  • Aluminum 4-paddle blade
  • Motor frame size 56
  • 5/8in. shaft
  • Dimensions: 54in. x 54in. x 3/4in. x 17in.
  • Optional exhaust shutters sold separately

Key Specs

AttributeSpecification

item#

255352

Brand

TPI

Manufacturer's Warranty

1 year limited warranty

Ship Weight

116.0 LB

Drive Type

Belt

Fan Diameter

48 in
AttributeSpecification

Air Delivery

23,500 cfm

Volts

115

Speeds (qty.)

1

Max. Fan Speed

1,725 rpm

Horsepower

1 HP

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–4 of 4 Questions
Sort by:

  1. Is it posible to get just a set of blades for this fan

    1 answer

    1. The replacement blades would be ordered through our parts department at 1.800.222.5381, option #3.

      Helpful?

  2. Are these fans safe for paint booth exhaust?

    1 answer

    1. The TPI Belt Drive Exhaust Fan would not be rated for paint booth exhaust applications.

      Helpful?

  3. 1725 is motor rpm. What is fan ( blade ) rpm ?

    1 answer

    1. The RPM's on this TPI Commercial Belt Drive Exhaust Fan are 1725 for both the motor and fan blade.

      Helpful?

  4. what is motor horsepower, volts, amps

    1 answer

    1. The commercial exhaust fan operates on 1 hp, at 115 volts and 20 amps. The other products that you referenced are the shutters only.

      Helpful?
