All the panels glow the same but the higher you set the control the longer it burns.

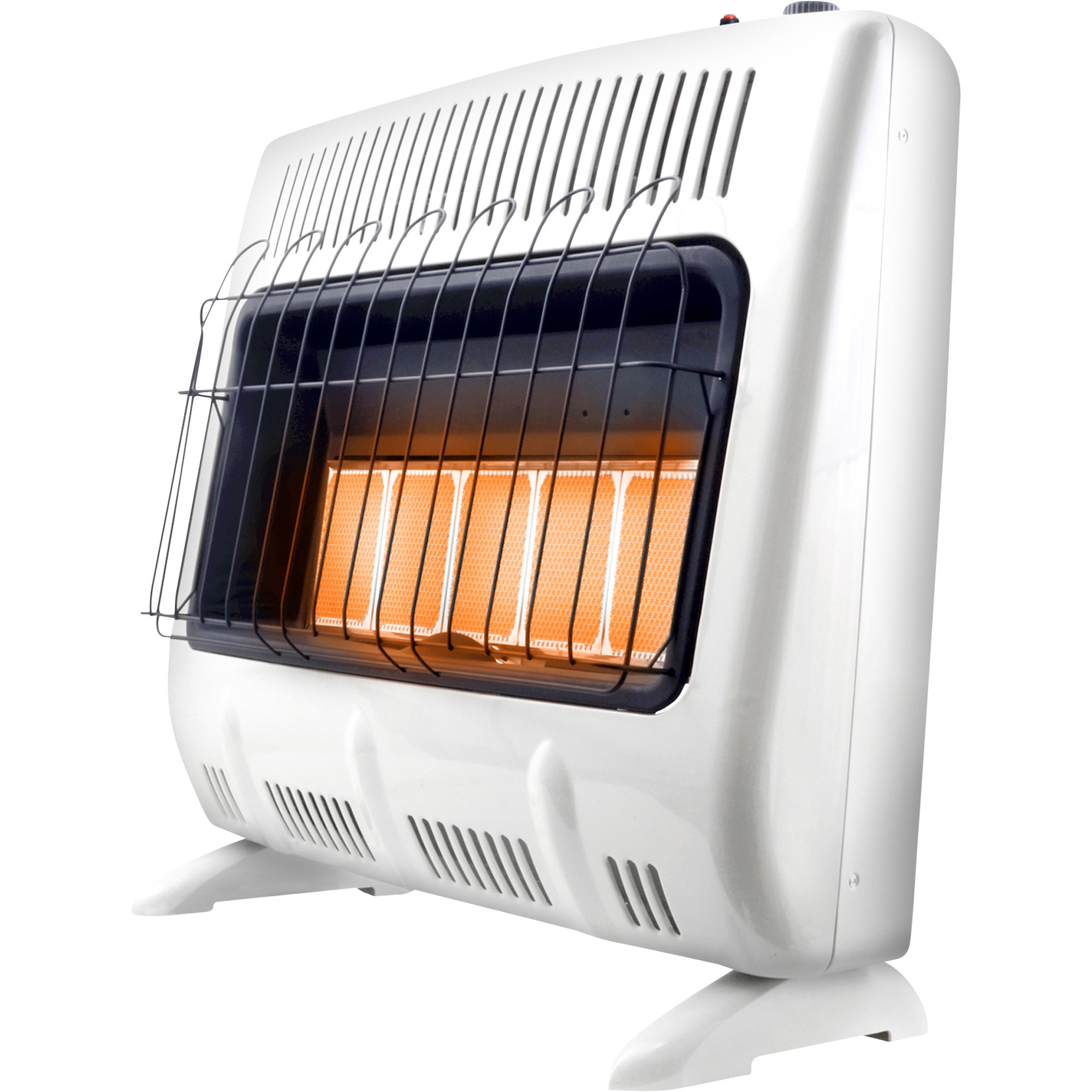

Mr. Heater Vent-Free Propane Radiant Wall Heater, 30,000 BTU, 5-Plaque, Model# MHVFRD30LPT
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Heats up to 1,000 sq. feet
- Delivers instant, sun-like warmth to people and objects in room
- Great for family rooms, workshops, basement and other hard-to-heat areas
- Easy installation with no venting or electricity required, making it ideal for power outages
- Clean-burning, cost-effective heat
See full description
What's Included
- (1) Mr. Heater Radiant Wall Heater -- 30,000 BTU, Model# MHVFRD30LPT
Downloads
Features + Benefits
- Heats up to 1,000 sq. feet
- Delivers instant, sun-like warmth to people and objects in room
- Great for family rooms, workshops, basement and other hard-to-heat areas
- Easy installation with no venting or electricity required, making it ideal for power outages
- Clean-burning, cost-effective heat
- Multi-output valve provides easy temperature regulation
- Convenient, easy-to-use piezo ignition
- Automatic low oxygen shutoff system for safety
- Includes brackets for wall mounting and legs for floor use
- Requires 10in. clearance from side and corner
- 4,500ft. high altitude restriction
-
Will all 5 panels turn on at once
So when the thermostat turns the unit on do all 5 panels come on at once for a set amount of time or can you set the control to only let a certain number of panels light like 1,2 or 3 etc, etc.
-
Helpful?
-
All 5 come on.
Helpful?
-
They all come on at once. No adjusting. It doesn't seem to use any more propane than the one I had without a themostat that you could control 1, 3, or 5 panels.
Helpful?
-
Yes when the unit is turned on they will all ignite!
Helpful?
-
This unit is designed to have all 5 panels on. There is not a setting to turn individual panels off.
Helpful?
-
-
does it come with the legs
-
It does come with plastic legs, but I decided to mount mine to a wall.
Helpful?
-
Comes complete with two plastic legs. Don't forget to install the fuel line elbow on the heater if you plan on setting the unit on the floor.
Helpful?
-
Yes, legs and screws included
Helpful?
-
The removable legs are included with this heater.
Helpful?
-
-
Exactly where is the propane inlet located on this heater?
-
There is a 3/8" female NPT connection under the heater. I used a 90 degree fitting to connect to the hose that goes to my propane tank.
Helpful?
-
On the back of the unit back left corner.
Helpful?
-
On the bottom of the unit, near the right side, inside where the foot would mount. 3/8" standard female pipe thread.
Recommend that at least 3 wraps of Teflon tape be on the connecting nipple, good and snug tightening. Do not over tighten.Helpful?
-
The propane inlet port is located on the bottom lower left as you view the back of this unit.
Helpful?
-
-
Does it have a regulator and hose or do I need that separately?
-
This heater does not include a regulator or hose. These must be purchased separately. Item number 25819 is a 2-stage regulator. The hose is not available from Northern Tool.
Helpful?
-
It does not come with a regulator, so you would need to get one youself.
Helpful?
-
You'll need to get them separately
Helpful?
-
Thank you for your inquiry. This unit does not come with a regulator, hose, or piping. The unit needs to be installed by a contractor or plumber.
Helpful?
-
-
IS THE UNIT THERMOSTATICALLY CONTROLLED TO GO ON & OFF AT A SELECTED TEMPERATURE ?
-
It doesn't have temperature. It has 1,2,3,4,5. You have to watch your themometer and adjust. You'll learn where it needs to be.
Helpful?
-
Yes. The lowest temp (1) is factory set at 65 degrees. it goes up about 10-15 degrees each setting after that.
Helpful?
-
This unit is thermostatically controlled to go on and off at 5 selected heat settings.
Helpful?
-
-
I want to heat a greenhouse, 180 sq. ft and 610 total heating area. Which type heater is best for this, the blue flame or radiant in the 30k btu ?
-
I would suggest the blue flame model.
Helpful?
-
The blue flame would be optimal for your application. keep in mind when deciding which size you would want, that the 30,000 BTU model is capable of heating upwards of 750 square feet.
Helpful?
-
A radiant type of heater will warm up objects in a room, whereas a blue flame heater will heat the air. For a greenhouse type of setting I would recommend going with the blue flame heater. I will list the 30,000 BTU blue flame heater below.
Helpful?
-
-
How long will this 30,000 btu heater run on a 250 lb tank?
-
Well that will depend on how high the setting is , the temperature outside, how well the home is insulated. There are a few factors needed to answer that correctly.
Helpful?
-
30 to 60 days depending on space and temp. I burn 1-2 gallons a day with 400sq ft heat, hot water, fridge and cooking. Four pounds to the gallon for propane so 62.5 gallons in a 250 lbs tank.
Helpful?
-
This heater will run for approximately 178 hours on a 250 lb. tank.
Helpful?
-
-
Enclosed Garage heat?
I need to heat my garage woodworking shop in winter. Can I heat the space with all windows and doors closed, safely?
Thanks
Mick-
Yes absolutely.
Helpful?
-
Yes
Helpful?
-
This radiant heater can be used in enclosed spaces like a home or garage without the need for venting or windows/doors being left open, etc.
Helpful?
-
-
mounting from the ceiling
Can this heater be mounted upside down, hang it from the ceiling,? so the controls are on the bottom.
-
It absolutely cannot be mounted upside down. The heater is designed to bring the heat up and away from the heater. If upside down, if it even will burn all the plaques completely, the heat will be drawn by a natural rise and create an unsafe condition to the components at the bottom where the gas in entering the burner.
Helpful?
-
This heater cannot be hung from a ceiling. It also cannot be mounted upside down. It must be wall mounted or it can be placed on the floor with the included legs.
Helpful?
-
-
how many gallons per hour does this burn? Is it hooked up to vapor line or liquid line?
-
It depends on the setting and ambient temperature.
Helpful?
-
This heater burns 1.389 pounds per hour, at this time the manufacturer does not list a burn rate for gallons per hour. It would be hooked up to a vapor line.
Helpful?
-
Accessories We Recommend
This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.
See All Propane Wall Heaters
See All Mr. Heater Propane Wall Heaters
Currently Viewing This Product
Item # 52561
Shipping: Sold Out
Specifications
Specifications
Mr. Heater Vent-Free Propane Radiant Wall Heater, 30,000 BTU, 5-Plaque, Model# MHVFRD30LPT
Bluegrass Living, Liquid LP Ventless Ice House Heater - 10000 BTU, Heat Output 10000 Btu/hour, Heating Capability 1500 ft², Fuel Type Propane, Model# ML100TBAHR
Ashley Hearth Direct Vent Heater — 25,000 BTU, Natural Gas, Model# DVAG30N
Ashley Hearth Direct Vent Wall Heater — 11,000 BTU, LP, 375 Sq. Ft. Heating Capacity, Model# DVAG11L
Heat Output
Same
30,000 Btu/hour
10,000 Btu/hour
25,000 Btu/hour
11,000 Btu/hour
Heating Capability
Same
1,000 ft²
1,500 ft²
825 ft²
375 ft²
Heat Type
Same
Radiant
Convection
Radiant
Radiant
Hardwired
Same
No
No
No
No
Vent-Free
Same
Yes
Yes
No
No
Assembled Width
Same
13.13 in
17 in
32.28 in
17.36 in
Assembled Height
Same
28.13 in
23 in
26.3 in
20 in
Assembled Depth
Same
31.13 in
8 in
8.74 in
6.61 in
Remote Included
Same
No
No
No
No
Gas Inlet
Same
3/8 in
-
4-1/2 in
4-1/2 in
Blower Included
Same
No
-
No
No
Thermostat Included
Same
Yes
No
No
No
Needs Direct Venting
Same
No
No
Yes
Yes
Product Weight
Same
lb
3.6000 lb
86.0000 lb
42.0000 lb
Dimensions L x W x H (in.)
Same
27.25 x 11.25 x 27.0 in
10.0 x 13.0 x 9.0 in
8.74 x 32.28 x 26.3 in
6.61 x 17.36 x 20.0 in
