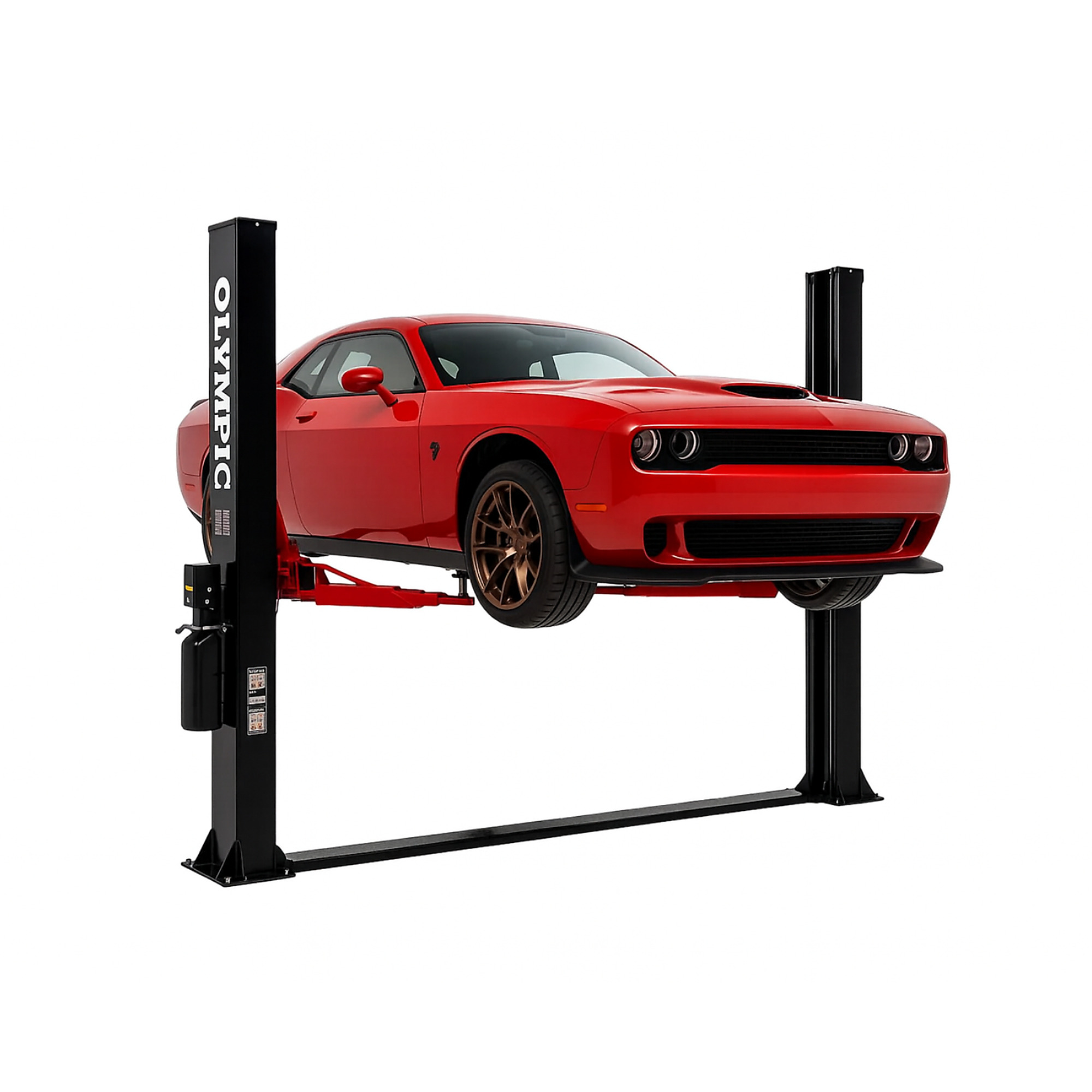

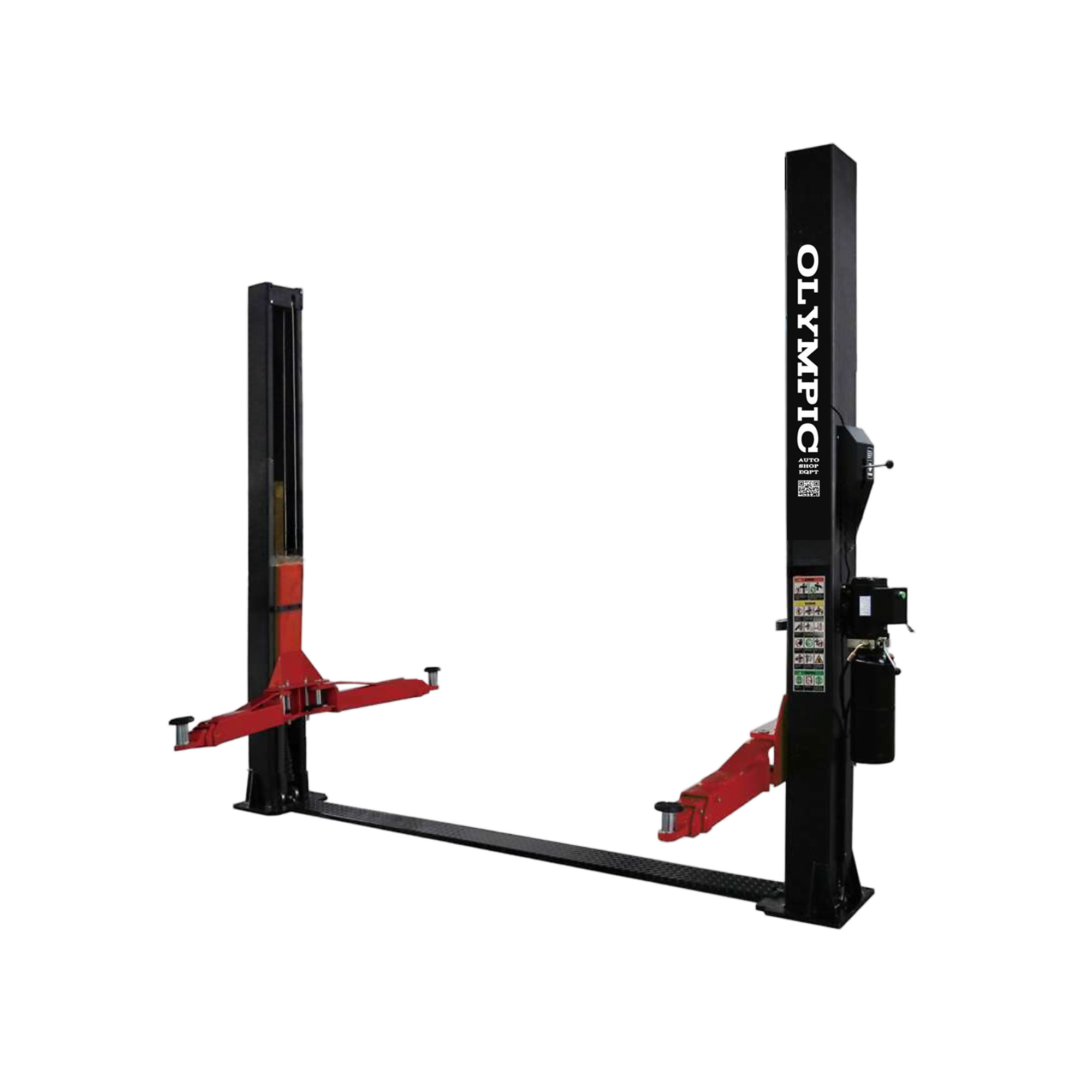

Model: Olympic 2PBP-8 / 8,000-lb Base Plate 2-Post Lift / 2-stage arms / Symmetric 2-stage foot pads / Dual point lock release / 10-year warranty / SHIPS FREE!

Item# 6952213
Model: Olympic 2PBP-8 / 8,000-lb Base Plate 2-Post Lift / 2-stage arms / Symmetric 2-stage foot pads / Dual point lock release / 10-year warranty / SHIPS FREE!

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Model: Olympic 2PBP-8 / 8,000-lb Base Plate 2-Post Lift / 2-stage arms / Symmetric 2-stage foot pads / Dual point lock release / 10-year warranty / SHIPS FREE!

Click or Tap image to Zoom

$2599.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • Olympic 10-Year Warranty
  • Free Shipping Nationwide
  • Dual-point safety lock release
  • Symmetric extension arms
  • Fits under 9?2" ceiling

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

2-Post lift: 2PBP-8 – 8,000 lb base-plate lift built for strength and reliability. Ideal for home or small shop use with dual-point safety locks and a compact 9ft.2in. ceiling fit.

What's Included

    (1) 110V 2.2KW 60Hz 1Ph power unit (1) Mounting hardware included (4) 3.5" Truck adapters

Features + Benefits

  • Olympic 10-Year Warranty
  • Free Shipping Nationwide
  • Dual-point safety lock release
  • Symmetric extension arms
  • Fits under 9?2" ceiling
  • Deluxe pin-on carriage
  • Large-diameter dual hydraulic cylinders
  • Synchronized hydraulic system
  • Automatic stop at maximum height
  • Durable powder-coated finish
  • Door anti-crush rubber protection
  • Independent load leveling system
  • High-strength steel construction
  • CE certified
  • Mounting hardware included
  • Includes (4) 3.5" truck adapters
  • 110V 2.2KW 60Hz 1Ph power unit included
  • Optional 220V available
  • Certified & tested at 150% of rated capacity
  • Technically advanced configuration

Key Specs

AttributeSpecification

item#

6952213

Brand

Olympic Equipment

Manufacturer's Warranty

10 year limited warranty

Ship Weight

1200.0 LB

Capacity

8,000 lb

Max. Rise

71 ft

Horsepower

3 HP
AttributeSpecification

Motor Phase

Single-phase

Volts

110

Time of Full Rise

50 sec.

Drive-Thru Clearance

100.39 in

Material

Steel

Product Weight

1100.0000 lb

Dimensions L x W x H (in.)

17.0 x 130.0 x 110.2 in

Reviews

Questions & Answers

Questions

  1. How thick does the concrete floor need to be to mount this lift?

    1 answer

    1. The concrete floor should be at least 4 to 6 inches thick with a 3,000 PSI pressure rating.

      Helpful?

Warranty

Manufacturer's Warranty

10 year limited warranty

Compare with Most Popular in Two-Post Lifts

See All Two-Post Lifts

See All Olympic Equipment Two-Post Lifts

Specifications

Specifications
Model: Olympic 2PBP-8 / 8,000-lb Base Plate 2-Post Lift / 2-stage arms / Symmetric 2-stage foot pads / Dual point lock release / 10-year warranty / SHIPS FREE!
Tuxedo 2-Post Single-Piece Clear Floor Electric/Hydraulic Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KSCX
Tuxedo 2-Post Electric/Hydraulic Clear Floor Vehicle Lift, 9,000-Lb. Capacity, Model# TP9KAC-TUX
iDEAL 2-Post ALI Certified Clear Floor Electric/Hydraulic Vehicle Lift, 12,000-Lb. Capacity, Model# TP12KSC-DX
Capacity
Same

8,000 lb

9,000 lb

9,000 lb

12,000 lb

Max. Rise
Same

71 ft

6 ft

6 ft

6.25 ft

Horsepower
Same

3 HP

2 HP

2 HP

1 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

110

220

220

220

Time of Full Rise
Same

50 sec.

-

-

-

Drive-Thru Clearance
Same

100.39 in

-

-

-

Material
Same

Steel

-

-

-

Product Weight
Same

1100.0000 lb

2,250 lb

1,390 lb

2,295 lb

Dimensions L x W x H (in.)
Same

17.0 x 130.0 x 110.2 in

-

-

-

Locking Position (qty.)
Same

-

2

2

10
