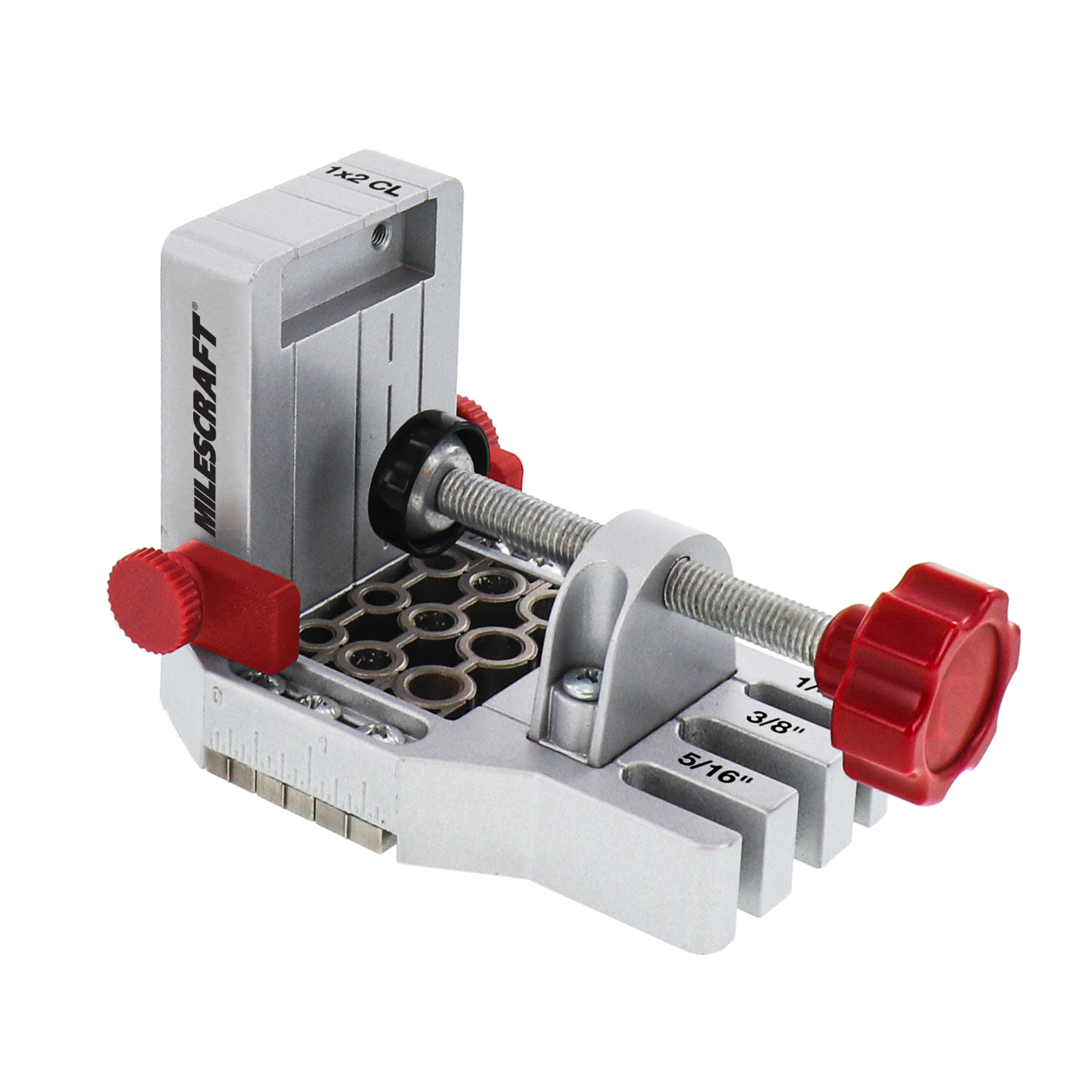

Milescraft JointMaster Self-Clamping Aluminum Doweling Jig — Edge, Corner, Surface Joints, Includes Centering Spacers, Model# 13340003

Item# 7027652
1 Pieces
Milescraft JointMaster Self-Clamping Aluminum Doweling Jig — Edge, Corner, Surface Joints, Includes Centering Spacers, Model# 13340003

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Milescraft JointMaster Self-Clamping Aluminum Doweling Jig — Edge, Corner, Surface Joints, Includes Centering Spacers, Model# 13340003

Click or Tap image to Zoom

$44.99

  • Shipping:

    Factory shipped

  • Store Pickup:

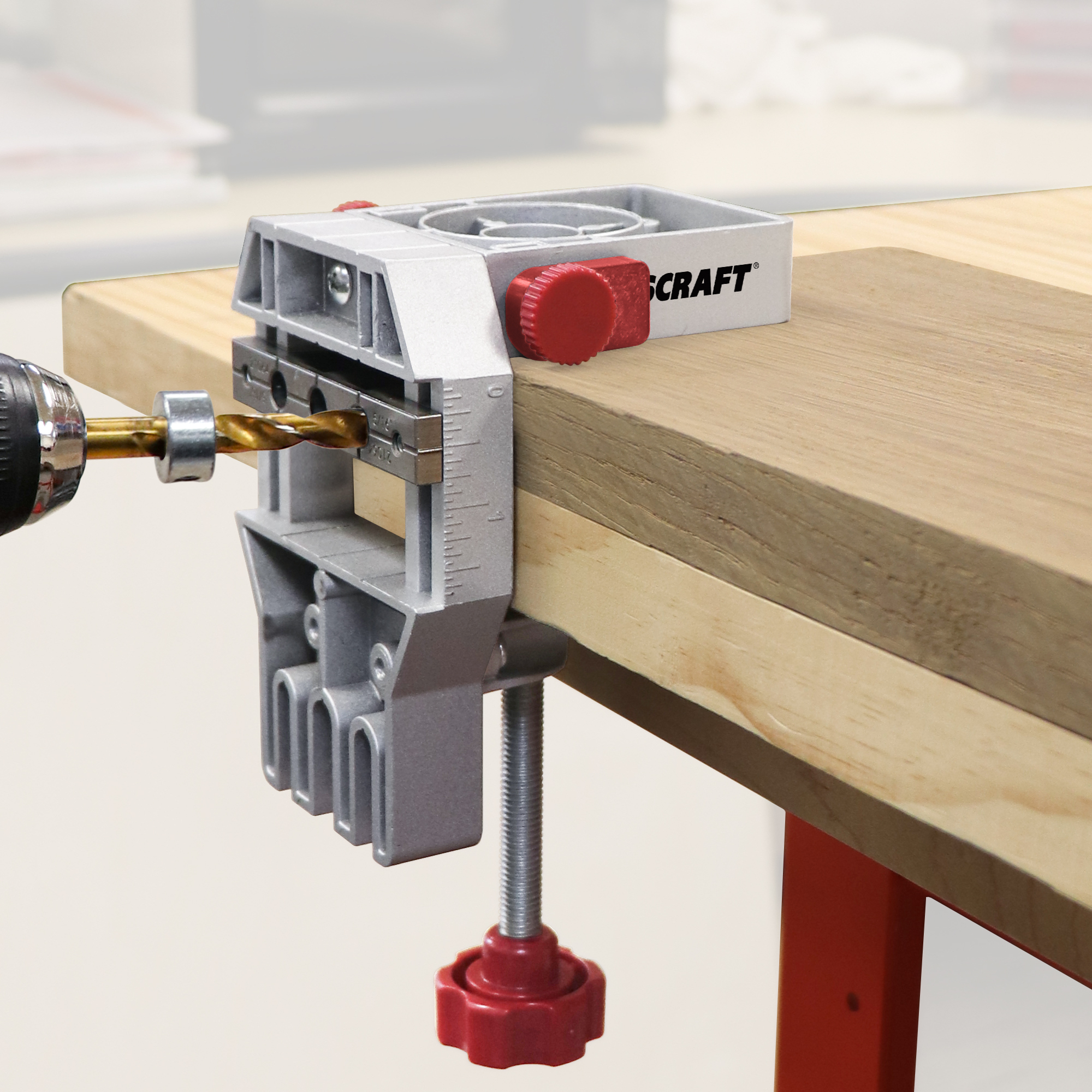

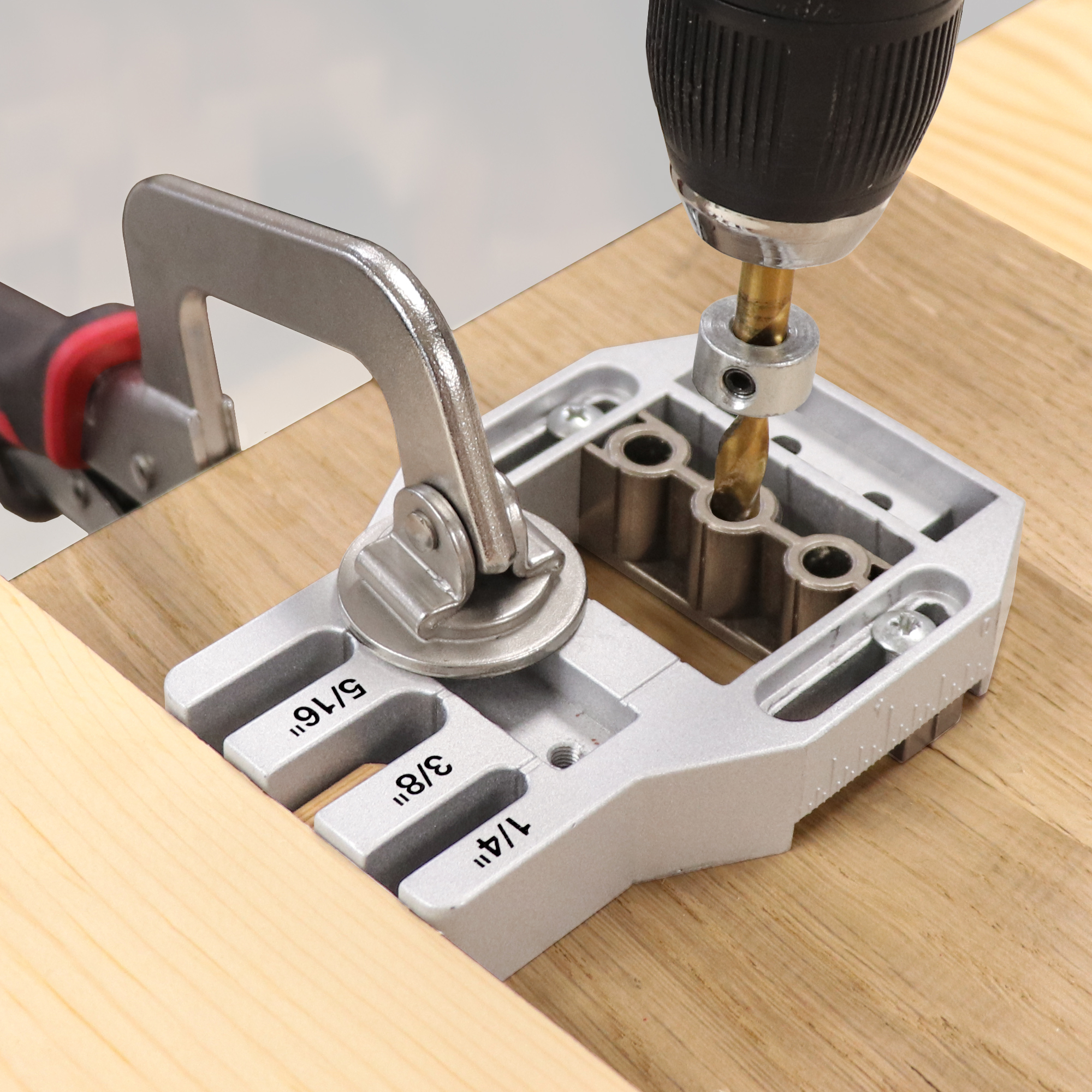

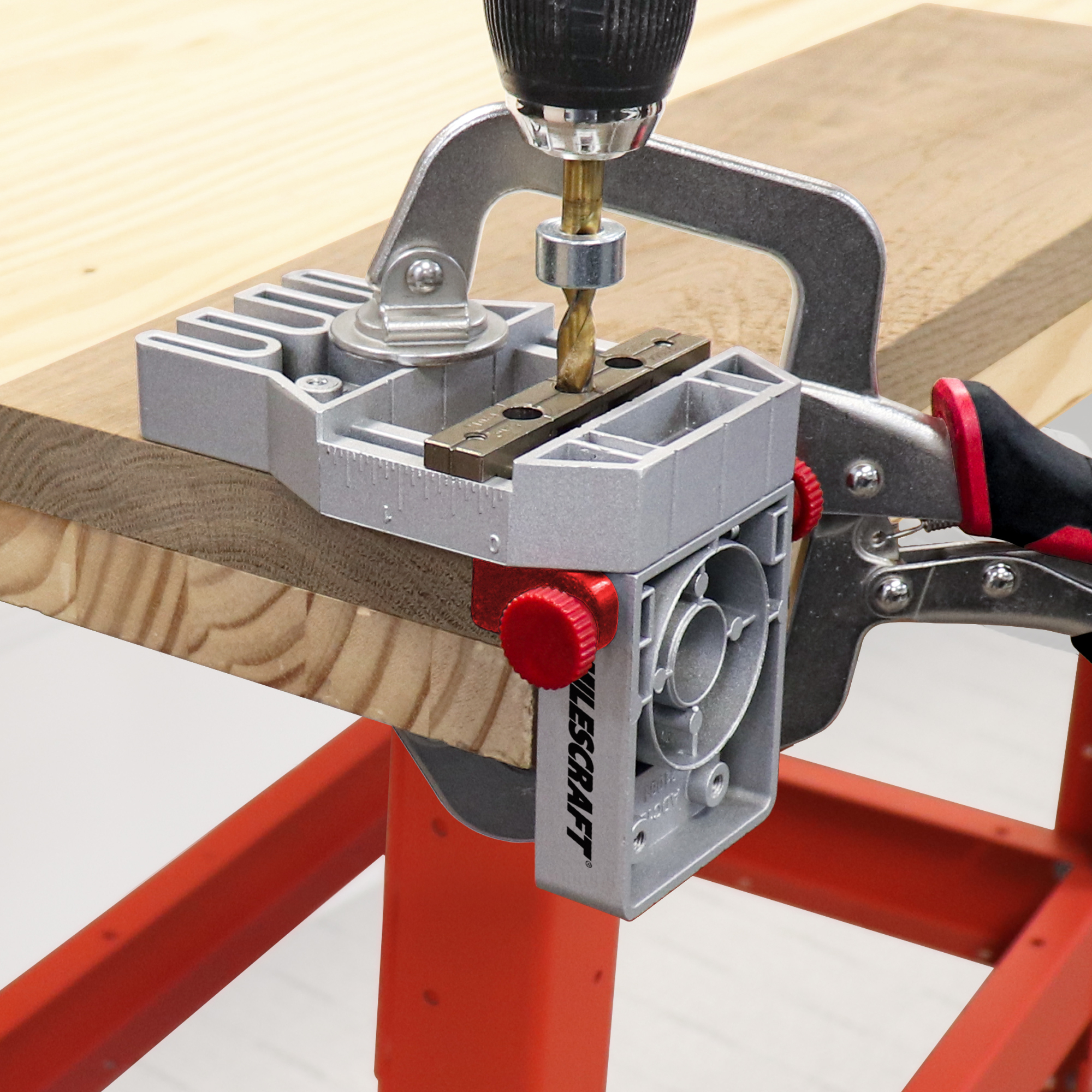

  • Creates all styles of dowel joints- edge, corner, and surface
  • For 1/4in, 5/16in, and 3/8in dowel pins
  • Durable all-aluminum construction wont flex or bend
  • Retractable edge stops automatically align boards to position dowel pins in same location
  • Hardened steel bushings provide long lasting, accurate dowel hole drilling

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The JointMaster comes with three drill blocks and is capable of creating joints using the most common dowel pin sizes- 1/4in., 5/16” and 3/8”. Each hardened steel drill block is adjustable to accept and align centered dowel holes on boards from 1/2” up to 3”. Built-in scales help to align and center your dowels. The convenient centering marks make sure your holes are where you want them.

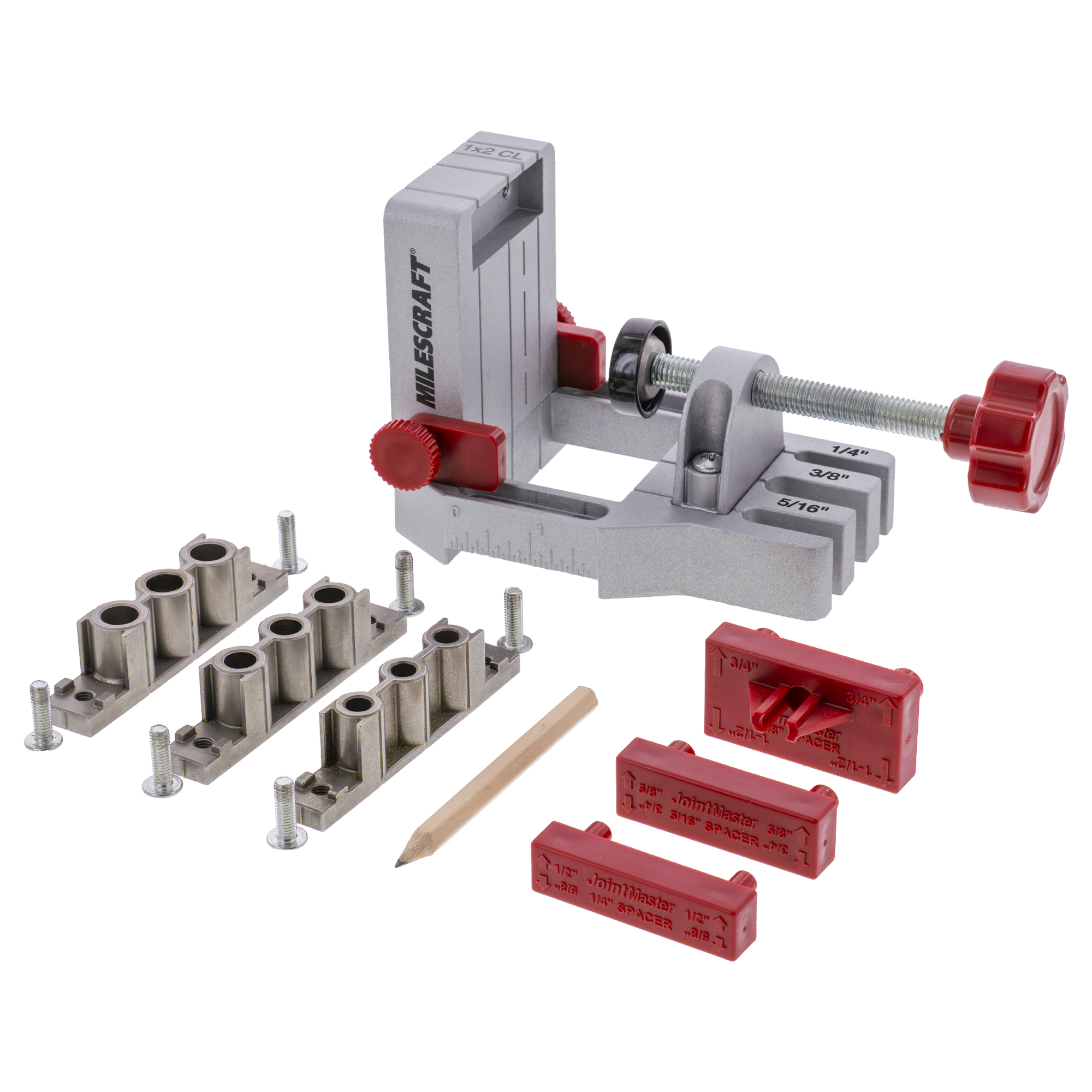

What's Included

    (1) JointMaster™ (Imperial) Main Body (1) Set of Drill Guide Bushing Block Sizes: 3/8?, 1/4?, 5/16?

Features + Benefits

  • Creates all styles of dowel joints- edge, corner, and surface
  • For 1/4in, 5/16in, and 3/8in dowel pins
  • Durable all-aluminum construction wont flex or bend
  • Retractable edge stops automatically align boards to position dowel pins in same location
  • Hardened steel bushings provide long lasting, accurate dowel hole drilling

Key Specs

AttributeSpecification

item#

7027652

Brand

Milescraft

Manufacturer's Warranty

5 year limited warranty

Ship Weight

1.7 LB

Pieces (qty.)

1
AttributeSpecification

Product Type

Other

Tilting Angle

90 °

Product Weight

1.7000 lb

Dimensions L x W x H (in.)

7.125 x 4.375 x 4.375 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

5 year limited warranty
