The compressor will produce 18.2 CFM at 80 PSI.
Discount Details
- The promo code 290262 must be entered on the Shopping Cart page.
- To qualify for this offer, your order subtotal must equal $250 or more. Excludes gift cards, free item offers, warranties, Advantage memberships, tax, & shipping.
- Promo code not valid on prior purchases or on Honda & Stihl products, and cannot be combined with other promotional offers.
- Valid online and in participating retail stores.
- Limited time offer. Subject to change without notice.

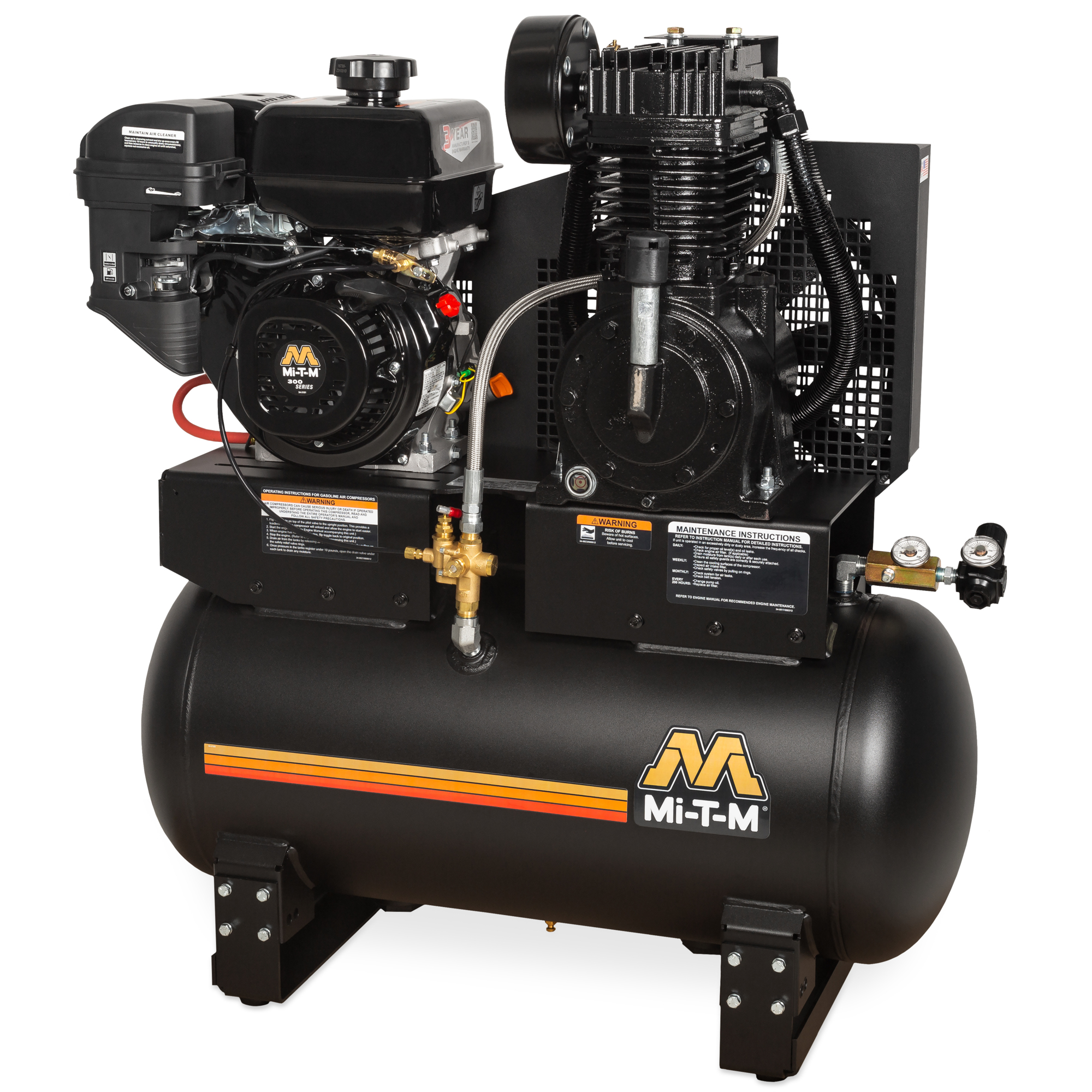

Mi-T-M Industrial Two-Stage Gasoline Belt Drive Air Compressor — 30 Gallon, Model# AM2-SM09-30M

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
- Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
- Components: Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI
- Equipped with 150-PSI maximum rated regulator.
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Air Compressor
Features + Benefits
- Compressor Pump: Cast iron compressor pump · Splash lubricated · Stainless-steel braided discharge hose · Large canister intake filter · Oil level sight indicator
- Frame: Powder coated ASME receiver tank · 3/16-inch base plate to reduce vibration · Powder coated two-piece belt guard · Removable base plate offers flexible installation
- Components: Regulator and two gauges for tank and outlet pressure · Manual drain valve for proper maintenance · 16-1/2-inch fly wheel · Quality pilot valve unloader · Start/stop control set at 145 to 175-PSI
- Equipped with 150-PSI maximum rated regulator.
Key Specs
| Attribute | Specification |
|---|---|
item# | 7040401 |
Brand | Mi-T-M |
Manufacturer's Warranty | 2 year limited warranty |
Ship Weight | 434.0 LB |
Horsepower | 9 HP |
Air Tank Size | 30 Gal |
Engine Brand | Mi-T-M |
Max. PSI | 175 |
Stage | 2 |
Air Outlets (qty.) | 1 |
Fuel Capacity | 1.4 Gal |
Engine Displacement | 300 cc |
Engine Start Type | Recoil |
Pump Material | Cast Iron |
Pump Drive | Belt |
| Attribute | Specification |
|---|---|
CFM at 40 PSI | 19.1 |
CFM at Max. PSI | 17.2 |
Oil Required | Yes |
Low Oil Shutdown | Yes |
Lubrication System | Splash |
Pressure Gauge | Yes |
After Cooler Included | No |
Tank Fill Time | 2.5 min |
Air Dryer | None |
Drain Type | Petcock |
Tank Orientation | Horizontal |
Engine Model | 300cc Mi-T-M OHV |
Product Weight | 364.0000 lb |
Dimensions L x W x H (in.) | 40.5 x 17.5 x 44.5 in |
Reviews
Questions & Answers
Questions
-
· 2 months ago
what’s the scfm at 80 psi?
1 answer-
ProductExpert11· 2 months ago
Helpful?
-
-
· 2 months ago
what’s the scfm
1 answer-
ProductExpert11· 2 months ago
The compressor will produce 17.2 CFM at 175 PSI.
Helpful?
-
-
· 7 months ago
can this be hard wired?
1 answer-
ProductExpert12· 7 months ago
This air compressor is powered by a gasoline engine.
Helpful?
-
-
· 9 months ago
What are dimensions
1 answer-
ProductExpert12· 9 months ago
The overall dimensions of this compressor are 40.5" long x 17.5" wide x 44.5" high.
Helpful?
-
Warranty
Manufacturer's Warranty
2 year limited warranty
