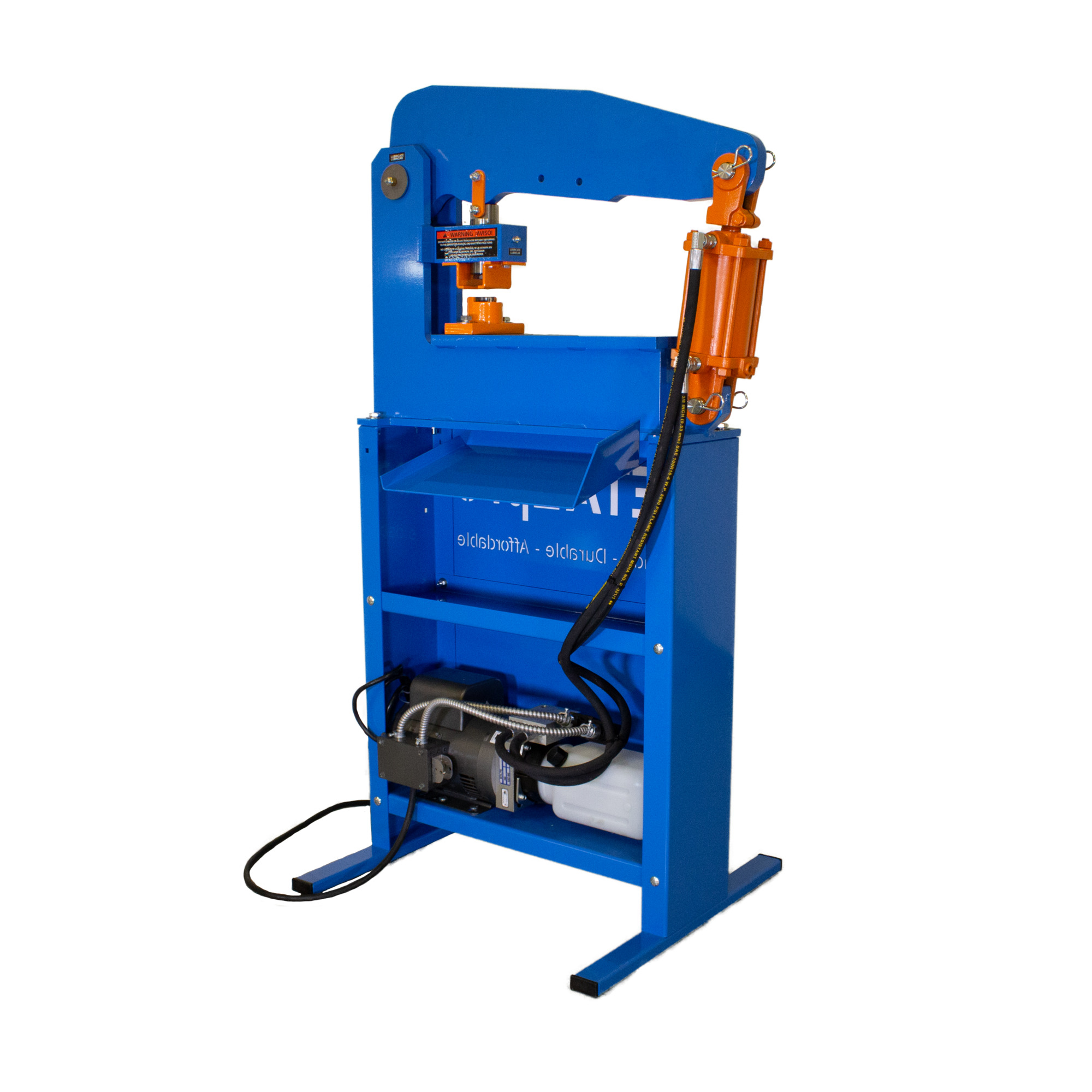

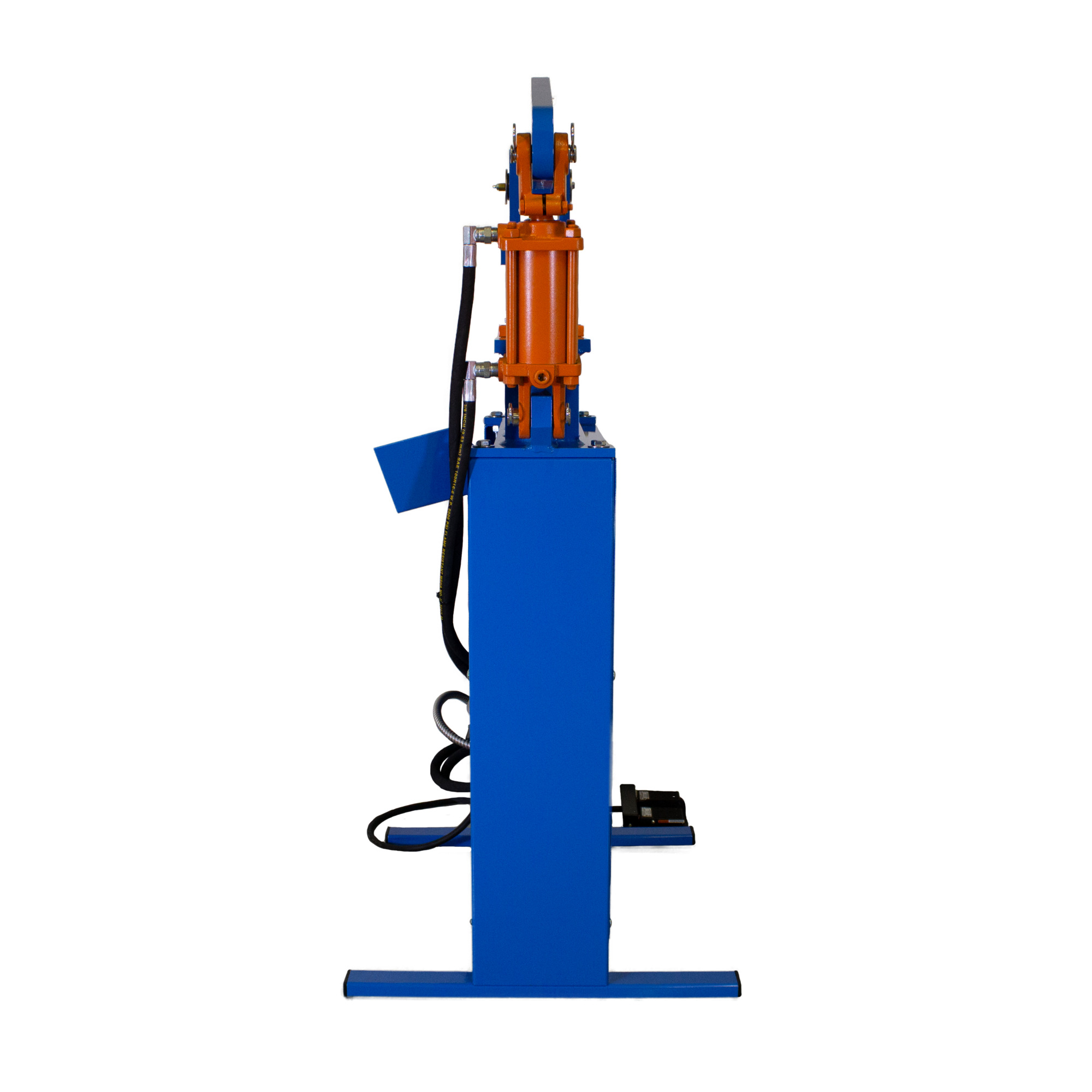

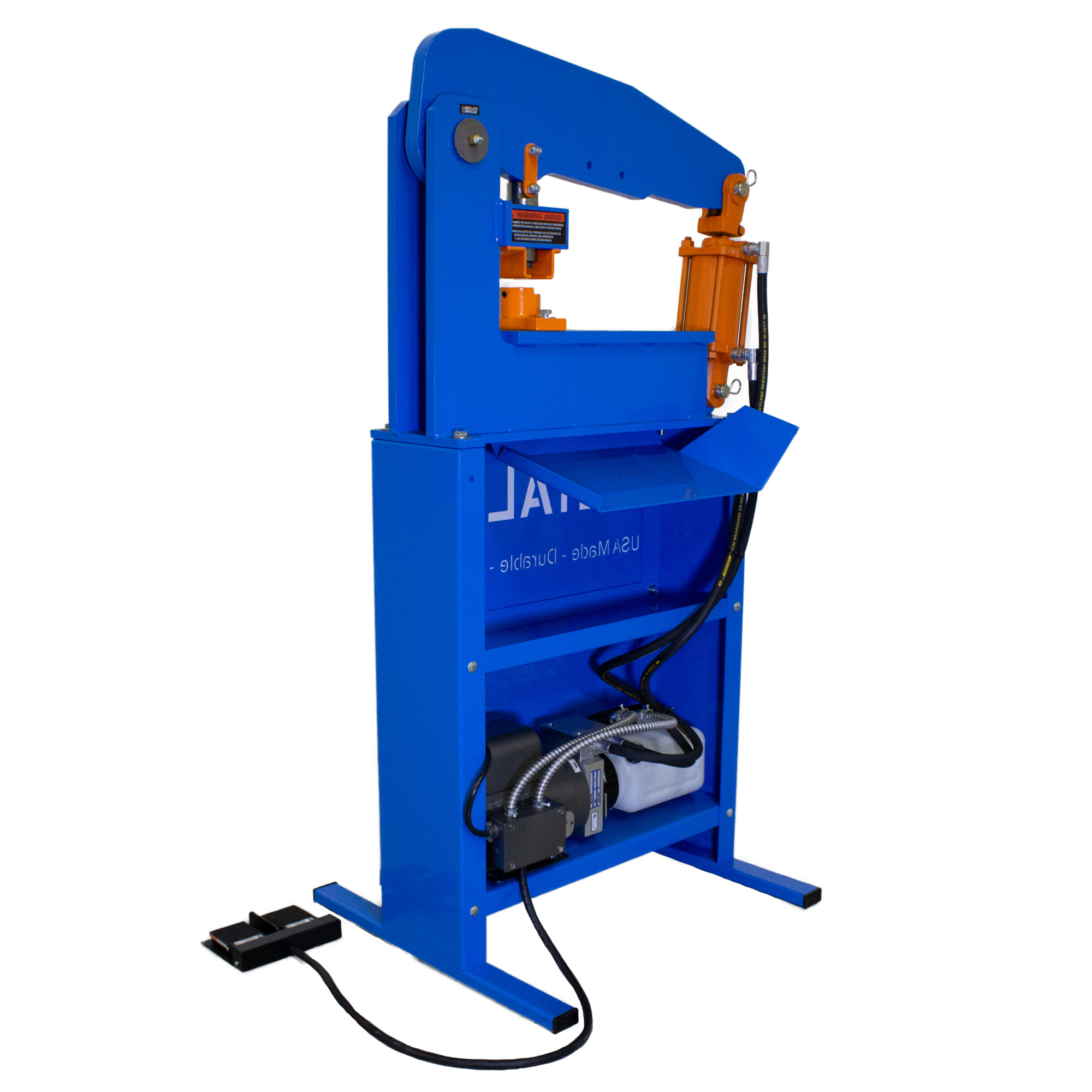

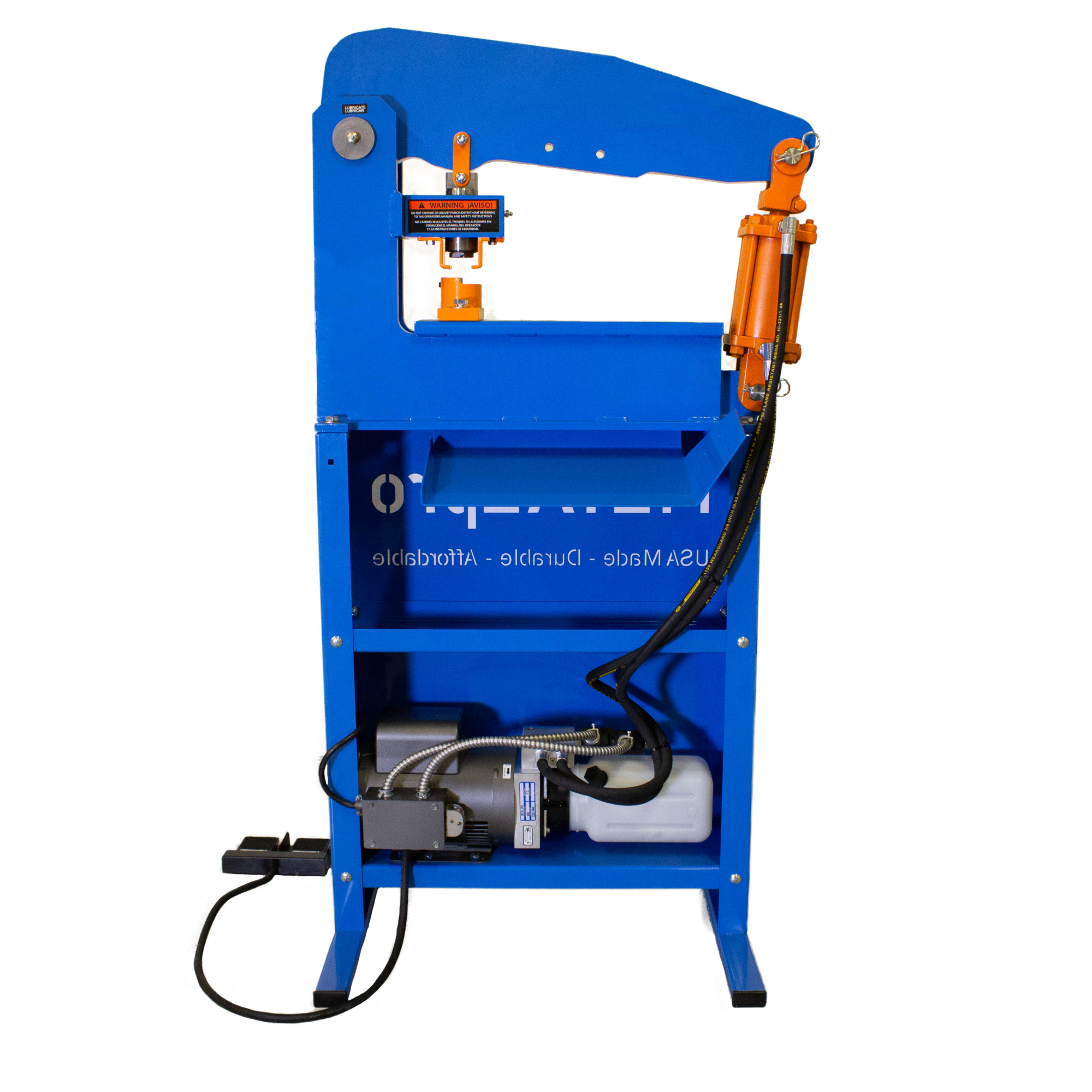

METALpro Ironworker, 40-Ton, Model# MP4000

Item# 971662
METALpro Ironworker, 40-Ton, Model# MP4000

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

METALpro Ironworker, 40-Ton, Model# MP4000

Click or Tap image to Zoom

$3206.25

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Country of Origin - USA
  • Capacity - 40 Tons
  • 3 Year Warranty
  • Flat Bar Shear Capacity - 1/4" x 6", 3/8" x 4" (shear sold separately)
  • Angle Iron Shear Capacity - 1/4" x 3" x 3" (shear sold separately)

See full description

Complete Your Solution

  • METALpro Ironworker, 40-Ton, Model# MP4000
  • METALpro Sheet Metal Brake, 8in., Model# MP4110
  • METALpro 8-Pc. Round Punch & Die Set, Model# MP4146
  • METALpro 1in. x 3/4in. Standard Square Notcher, Model# MP4130
Price for all four:

$4702.50

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The METALpro Ironworker MP4000 is a 40-ton ironworker, powered by a 110V, single phase standard wall outlet or generator. Its compact, sturdy design boasts 40 tons of pressure at the punch station and 20 tons of pressure at the central workstation. This allows the user to punch a 1in. round hole through 3/8in. mild steel (capable of larger holes through thinner mild steel). METALpro's footswitch design controls a hydraulic power system. This machine comes standard equipped with METALpro's punch station, ready to accept any size punch and die set or accessory to fit your needs. With an open central workstation this gives users the options to pick between any one of METALpro's 3in.-1 shears (6in., 8in., 12in.) or brakes (8in. or 12in.). METALpro stands behind their machines with a one-year limited manufacturing warranty.

What's Included

    (1) Ironworker

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Country of Origin - USA
  • Capacity - 40 Tons
  • 3 Year Warranty
  • Flat Bar Shear Capacity - 1/4" x 6", 3/8" x 4" (shear sold separately)
  • Angle Iron Shear Capacity - 1/4" x 3" x 3" (shear sold separately)
  • Square Shear Capacity - 5/8" (shear sold separately)
  • Rod Shear Capacity - 3/4"
  • Forming Capacity - Up to 1/2" Mild Steel (brake sold separately)
  • Forming Tonnage Capacity 20 Tons
  • Punching Capacity - Up to 1/2" Mild Steel
  • 110/120V Single Phase
  • 1.5 Horsepower
  • 2900 PSI Hydraulic Pressure
  • Throat Depth - 3-3/4"
  • Operating Weight - 475 lbs
  • Machine Dimensions - 24" x 30.5" x 58"
  • OSHA/ASNI B11-8 Approved

Key Specs

AttributeSpecification

item#

971662

Brand

Metal Pro

Manufacturer's Warranty

12 months parts/12months labor

Ship Weight

460.0 LB

Horsepower

0.75 HP

Volts

115

Phase

Single-phase

Hydraulic Pump Speed

1.5 GPM

Valve Pressure

2,900 PSI

Foot Switch Control

Yes

Throat Depth

3.75 in
AttributeSpecification

Punching Pressure

40 Tons

Reservoir Size

1.5 Gal

Flat Bar Shear Capacity

0.38 in

Square/Round Shear Capacity

0.75 in

Angle Shear Capacity

0.25 in

Coper Notcher Capacity

2 in

Amps

20

Portable

Yes

Product Weight

lb

Dimensions L x W x H (in.)

30.0 x 24.0 x 55.25 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 12 Questions
Sort by:

  1. Will this work on a regular 110v plug or does it require a 220v?

    1 answer

    1. The METALpro Ironworker will require a 110-volt setup.

      Helpful?

  2. Can I get 1.75 1.875 and 2 inch pipe notch dies also what thickness can it notch

    1 answer

    1. The pipe notch dies are not available in a 1.75" or 1.875". A 2" pipe notcher would be part number MSMP4156. You would also need the pipe notcher housing for the 2", part number MSMP4150. The thickness it can notch is schedule 40. You would contact the parts department at 1.800.657.0516 to order these parts.

      Helpful?

  3. How many strokes per min is the MP4000?

    1 answer

    1. This is rated for 6 strokes per minute.

      Helpful?

  4. Can I just buy the shear?

    1 answer

    1. The shear for this Metalpro Ironworker is not sold separately.

      Helpful?

  5. does this machine have stroke control?

    1 answer

    1. This machine would not have stroke control.

      Helpful?

  6. which accessories does this ironworker come with

    which accessories does this ironworker come with

    1 answer

    1. The METALpro Ironworker comes with the 3 and 1 Shearer and is Punch ready.
      See my recommendations below for optional accessories.

      Helpful?

  7. Can you cut threaded rod with this machine?

    1 answer

    1. This Metalpro Ironworker is not designed to shear threaded rod. Damage will occur to the threads on the rod when this press is used.

      Helpful?

  8. is this machine capable of bending 4"x 1/2" steel flat stock to a 90°, if not do you have one that is capable.

    1 answer

    1. At this time Northern Tool does not carry a brake that will bend 1/2" x 4" flat stock.

      Helpful?

  9. Wondering if this machine can be used to shear and punch sheet metal?. Also what is maximum width of shear throat?

    1 answer

    1. This Metal Pro Ironworker is recommended for Mild Steel, Copper, Brass, Aluminum, Cold Drawn Steel, and 302/303 Stainless Steel. The throat depth is 3 ¾.
      Punches 1 inch diameter round hole in 3/8 in. mild steel only.
      Shearing capacity only in mild steel: flat bar 3/8 inches x 4 inches or 1/4 inches x 6 inch round rod – 3/4 inch angle – 1/4 inches x 3 inches x 3 inch.

      Helpful?

  10. 1/4" flat stock mild steel

    Will this punch 1/2" holes in 1/4" flat mild steel?

    1 answer

    1. This unit can punch holes from 1/4in. to 1in. in steel up to 1/2in. thick.

      Helpful?
