METALpro 8-Pc. Round Punch & Die Set, Model# MP4146

Item# 971690
METALpro 8-Pc. Round Punch & Die Set, Model# MP4146

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

METALpro 8-Pc. Round Punch & Die Set, Model# MP4146

Click or Tap image to Zoom

$355.00

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Sizes Included - 9/32", 11/32", 13/32", 15/32", 17/32", 21/32", 25/32", 29/32"
  • 1/32in. punch clearance suitable for most applications
  • Hardended tool steel for long life
  • Retaining rings included

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Compare

Product Summary

This METALpro 8-Pc. Round Punch Die Set will help you get the most from your METALpro ironworker. This bolt clearance package will punch holes with 1/32in. clearance for eight common bolt sizes: 1/4in., 5/16in., 3/8in., 7/16in., 1/2in., 5/8in., 3/4in., and 7/8in. Suitable for most applications.

What's Included

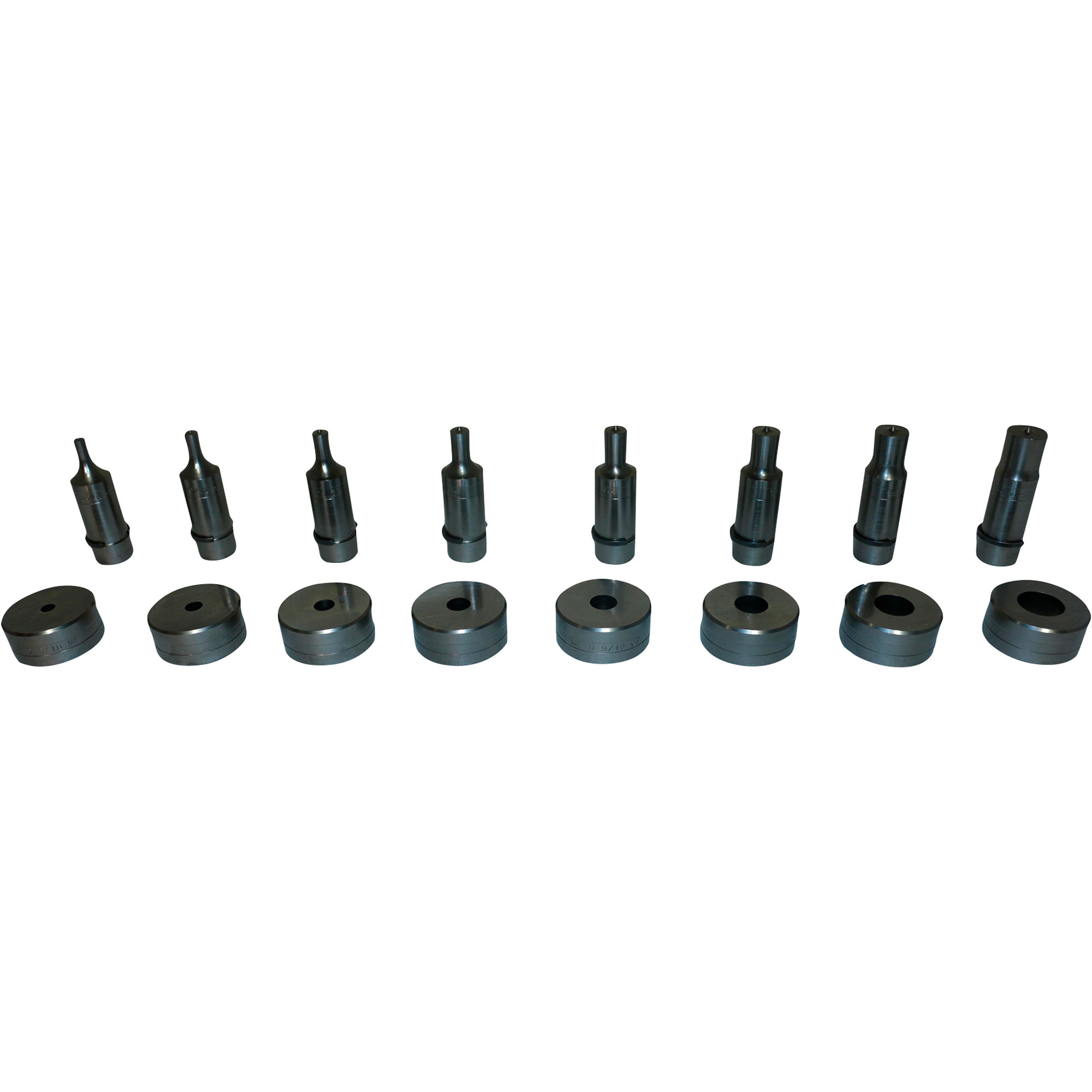

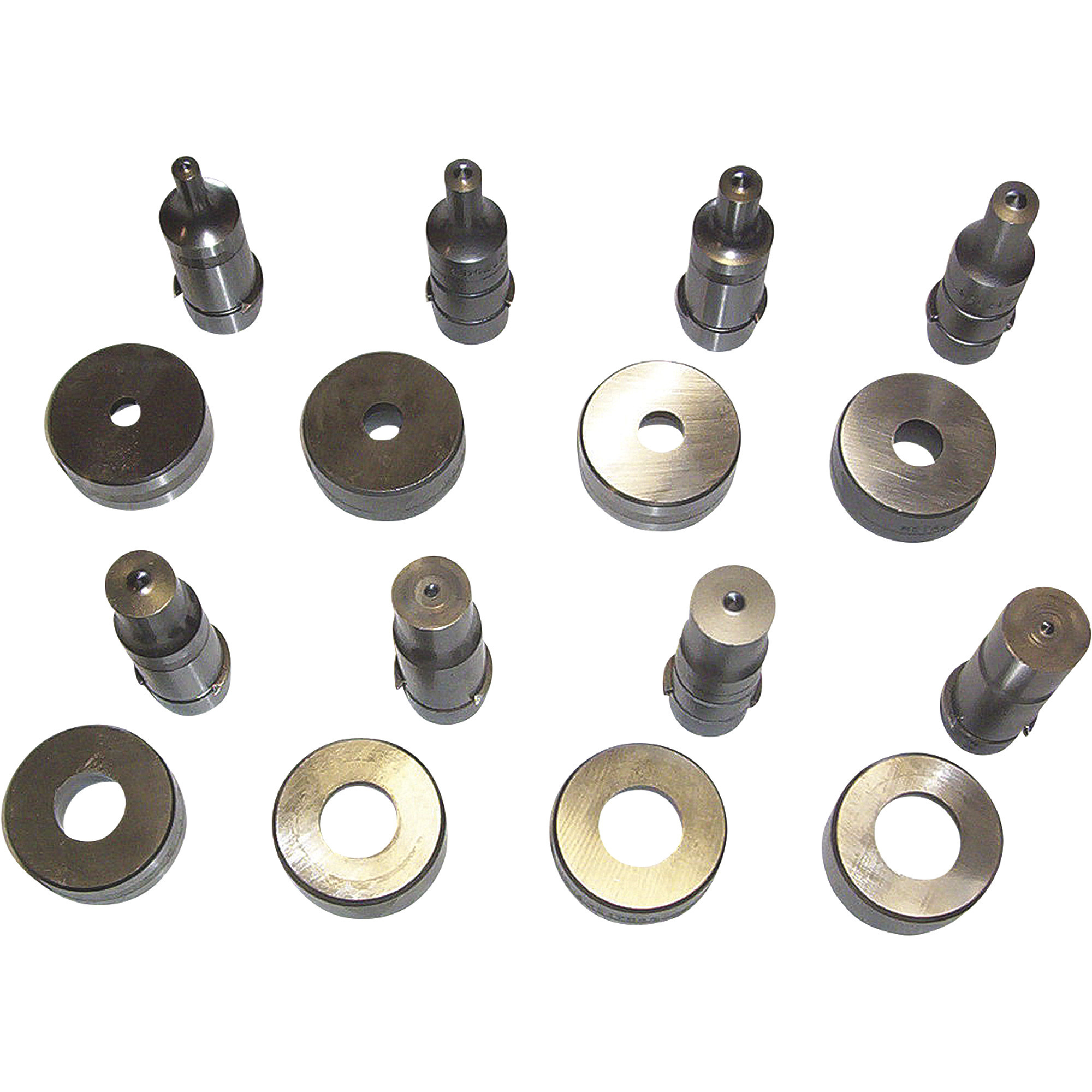

    (1) 9/32in. round punch (1) 11/32in. round punch (1) 13/32in. round punch (1) 15/32in. round punch (1) 17/32in. round punch (1) 21/32in. round punch (1) 25/32in. round punch (1) 29/32in. round punch (1) 5/16in. round die (1) 3/8in. round die (1) 7/16in. round die (1) 1/2in. round die (1) 9/16in. round die (1) 11/16in. round die (1) 13/16in. round die (1) 15/16in. round die (8) Snap rings

Features + Benefits

  • Sizes Included - 9/32", 11/32", 13/32", 15/32", 17/32", 21/32", 25/32", 29/32"
  • 1/32in. punch clearance suitable for most applications
  • Hardended tool steel for long life
  • Retaining rings included

Key Specs

AttributeSpecification

item#

971690

Brand

Metal Pro

Ship Weight

16.0 LB

Product Type

Punching Holes
AttributeSpecification

Material

Steel

Product Weight

1.5000 lb

Dimensions L x W x H (in.)

3.375 x 2.0 x 2.0 in

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. do you hit the head of the punch with a big hammer to punch thru the metal? how will it do with blue steel sheets? as in 0.030 thousandths shim material.

    1 answer

    1. This punch and die set is designed to specifically attach to the Metalpro Ironworker machines. They are not for manual use. They would not work on the thin shim material.

      Helpful?

  2. can these be used with an ordinary shop press?

    1 answer

    1. This punch and die set is designed for use with the Metal Pro Ironworker MP 4000, Item 971662, and the Metal Pro Ironworker 4500, Item 971640 shown below. They are not designed for use with other presses.

      Helpful?

  3. What is the diameter of the collett?

    1 answer

    1. The METALpro 8-Pc. Round Punch & Die Set would require a 1" collet for the 1" shaft on the punches and would be 2" on the dies. This set is proprietary and designed for use only with the METALpro Ironworker.

      Helpful?

  4. What is the diameter of the shanks on these punches?

    1 answer

    1. 1 inch smooth.

      Helpful?

  5. Will these punches fit the Torin 35 ton punch Model # Trck 070.

    1 answer

    1. The set is designed to be used with the 40 or 50 ton Ironworker only.

      Helpful?
