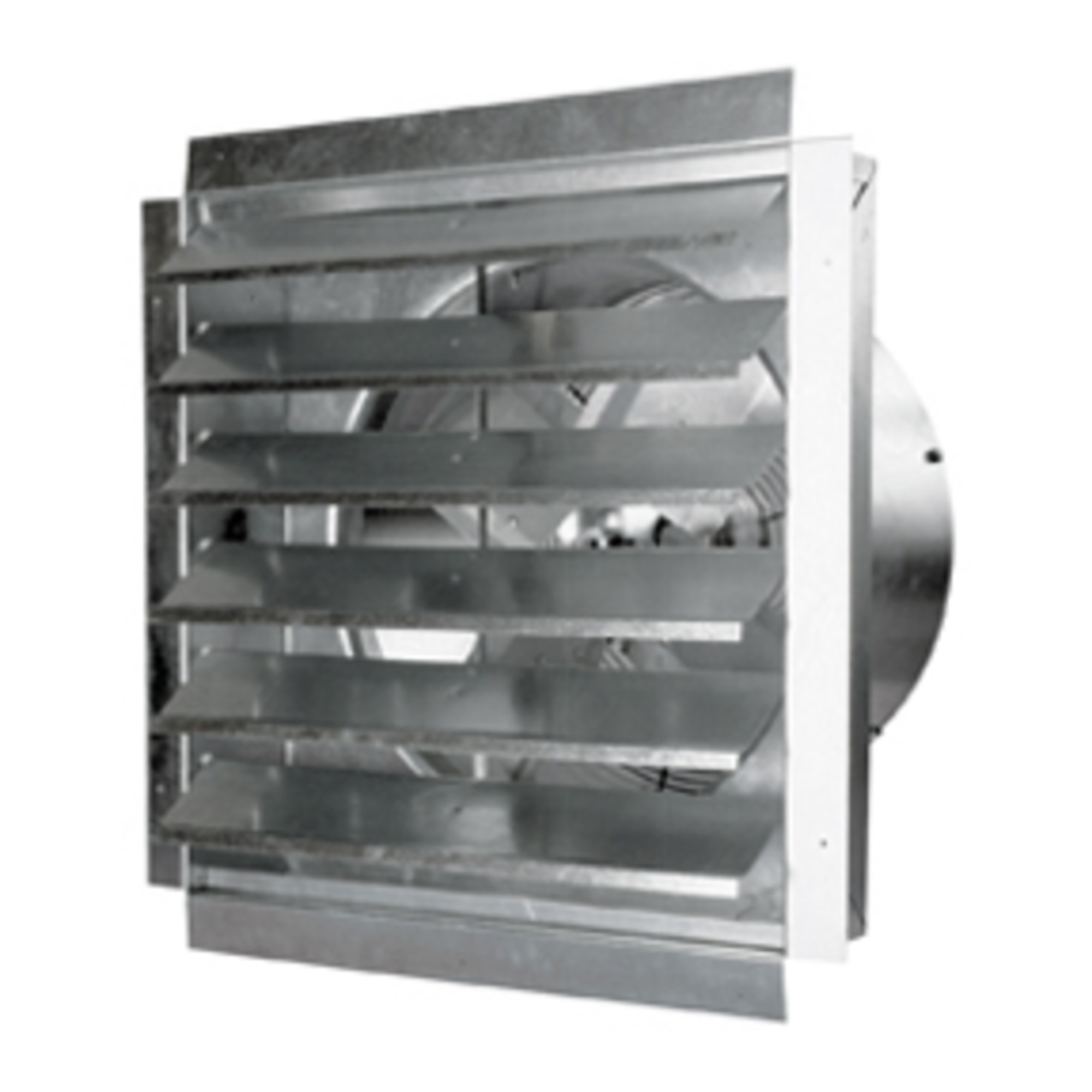

MaxxAir Ventamatic Exhaust Fan with Shutter, 18in., 3,000 CFM, 115 Volts, Model# IF18UPS

Item# 517232
1 of 193 reviewers received a sample product or took part in a promotion
MaxxAir Ventamatic Exhaust Fan with Shutter, 18in., 3,000 CFM, 115 Volts, Model# IF18UPS

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

MaxxAir Ventamatic Exhaust Fan with Shutter, 18in., 3,000 CFM, 115 Volts, Model# IF18UPS

Click or Tap image to Zoom

$219.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Rough end opening: 20 3/4in. x 20 3/4in.
  • Moves up to 3,000 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation
  • Automatic shutter prevents drafts from entering through the external opening

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Maxx Air 18in. Exhaust Fan can be used in a garage, barn, greenhouse, warehouse, and a variety of other agricultural and industrial locations to quickly remove unwanted odors, dust and humidity, and refresh stale or warm air in your space. This ventilation fan is constructed of a sturdy 20 gauge steel housing with aluminum louvered shutter, a safety grille and a totally enclosed, thermally protected motor. Arrives fully assembled, just mount to your desired building wall and wire into your electrical system to complete installation.

What's Included

    (1) Exaust Fan with Integrated Shutter

Downloads

Product Manual Product Manual2
Play Item Video

Features + Benefits

  • Rough end opening: 20 3/4in. x 20 3/4in.
  • Moves up to 3,000 CFM
  • Rust-resistant galvanized steel housing with removable interior grille
  • Pre-drilled holes on flange and rolled flange edges for safe and easy installation
  • Automatic shutter prevents drafts from entering through the external opening
  • OSHA compliant grille and totally enclosed, energy efficient PSC motor
  • Requires wiring to your building's electrical system and 10 sq. ft. of NFA intake ventilation
  • Not intended to exhaust hazardous fumes or chemicals
  • 1-year limited warranty

Key Specs

AttributeSpecification

item#

517232

Brand

Maxx Air

Manufacturer's Warranty

1 year limited warranty

Ship Weight

36.2 LB

Drive Type

Direct

Fan Diameter

18 in

Air Delivery

3,000 cfm

Volts

115
AttributeSpecification

Amps

5.34

Hardwired

Yes

Speeds (qty.)

1

Primary Color

Silver

Secondary Color

Silver

Assembly Required

No

Product Weight

34.0000 lb

Dimensions L x W x H (in.)

13.1 x 24.1 x 24.1 in

Reviews

Questions & Answers

193 Reviews This action will navigate to reviews.

Questions

1–10 of 18 Questions
Sort by:

  1. installation

    Can this be mounted vertically say, in a ceiling rather than horizontally in a wall? I just dont want the louvers open all the time if i mount it this way.

    1. I think you would probably have a problem with rain getting in since the louvers aren't water tight. Maybe you could use something like a saucer sled as a rain cap but then you are redesigning the whole fan. They make fans designed to mount on the roof already.

      Helpful?

    2. This unit was not designed to be mounted horizontally in a ceiling. When this fan is mounted vertically in a wall, the airflow created by the fan provides pressure adequate to make the louvers open. If mounted horizontally (in a ceiling), the force of gravity would cause increased resistance on the louvers forcing them to stay shut.

      Helpful?

  2. Can this fan be reversed?

    Hi, I need something like this, but needs to be able to go forward and reverse!
    18" max dia.

    1. No.

      Helpful?

    2. This fan can not be reversed.

      Helpful?

  3. Can I attach vent duct to this fan?

    I want to run the intake for the fan through a small amount of ducting so I can vent a laser cutter as well as the rest of the workshop with this fan. Is there a way to attach metal vent ducting?

    1. no.

      Helpful?

    2. The MaxxAir exhaust fan does not allow for any ducting to be attached as this would stress out the motor.

      Helpful?

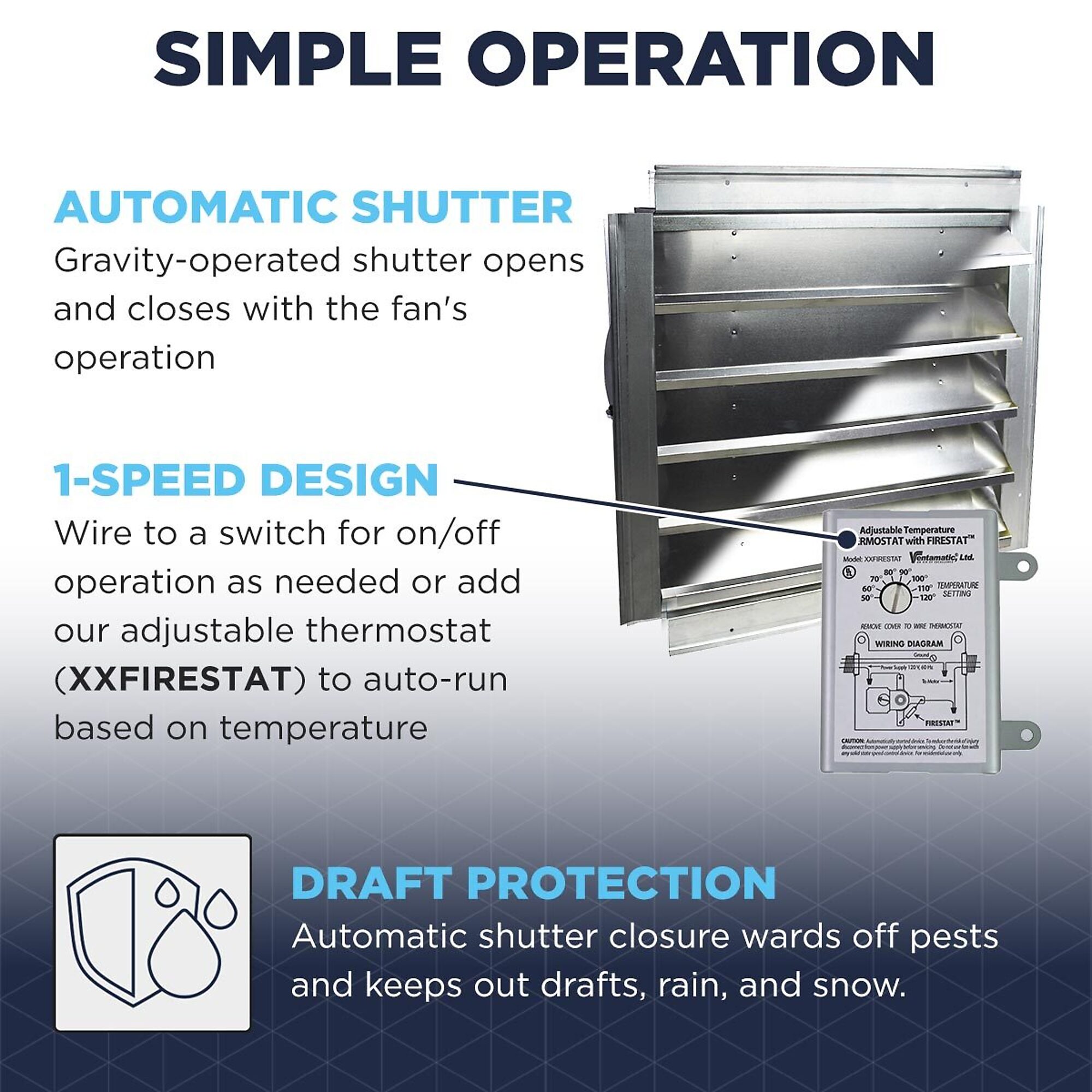

  4. how do the shutters open with this fan?

    1. the shutters are spring loaded and open upon switch activation

      Helpful?

    2. The shutters will open from the airflow when the fan turns on.

      Helpful?

  5. What is the rated horse power of the motor?

    1 answer

    1. The fan would have a 5/16 horsepower motor.

      Helpful?

  6. How many cubic feet can 1 serve?

    1 answer

    1. At 3000 CFM, this exhaust fan would cover approximately 300 square feet. The cubic feet would be determined by dividing the height of the ceiling into the square footage.

      Helpful?

  7. Is this fan water resistant. As to use in a low Moisture area

    1 answer

    1. It is not considered water resistant. This exhaust fan can be used in a low moisture area.

      Helpful?

  8. Can this item be mounted in a garage ceiling or does it have to be mounted to a wall? Does this item push air thru the shutters or draw air thru the shutters?

    1 answer

    1. This wall exhaust fan needs to mounted to a wall. The air being drawn in is what pushes the shutters open.

      Helpful?

  9. How safe would it be to install in an area with a large propane tank and generator?

    1 answer

    1. If the fan would be exhausting any flammable fumes, it would would not be safe to mount it in the vicinity of the propane tank.

      Helpful?

  10. Would this fan be ok to be used around paint?

    1 answer

    1. This fan would not be safe to use around paint. You would want an explosion proof exhaust fan, such as item #14771.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty

Extend Your Warranty Coverage with a Northern Protection Plan (NPP)

Replacement Plan — 1 Year

A Northern Protection Plan is available after adding the product to your shopping cart.
