The overall length of the cylinder when retracted is 46.25" and extended it would be 82.25".

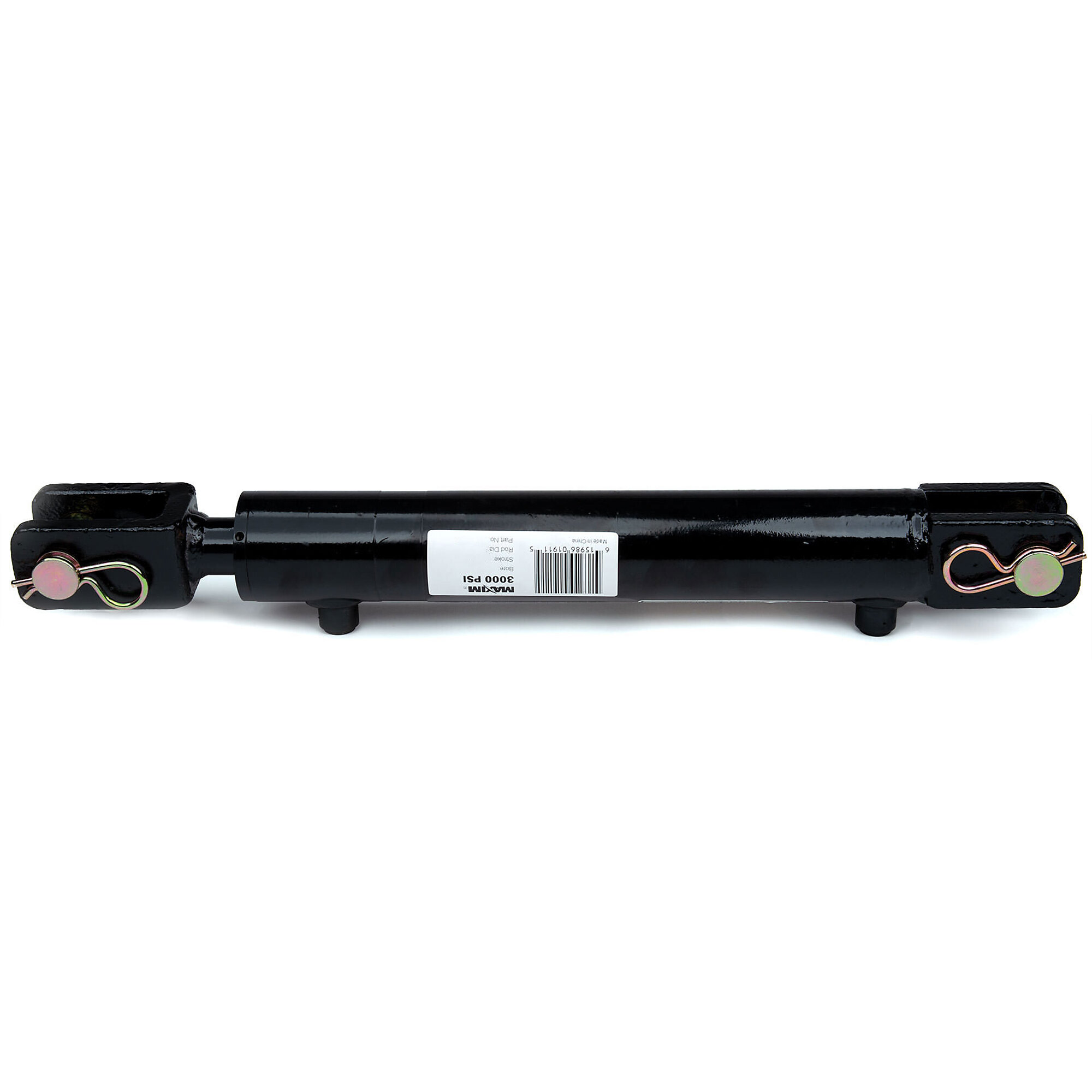

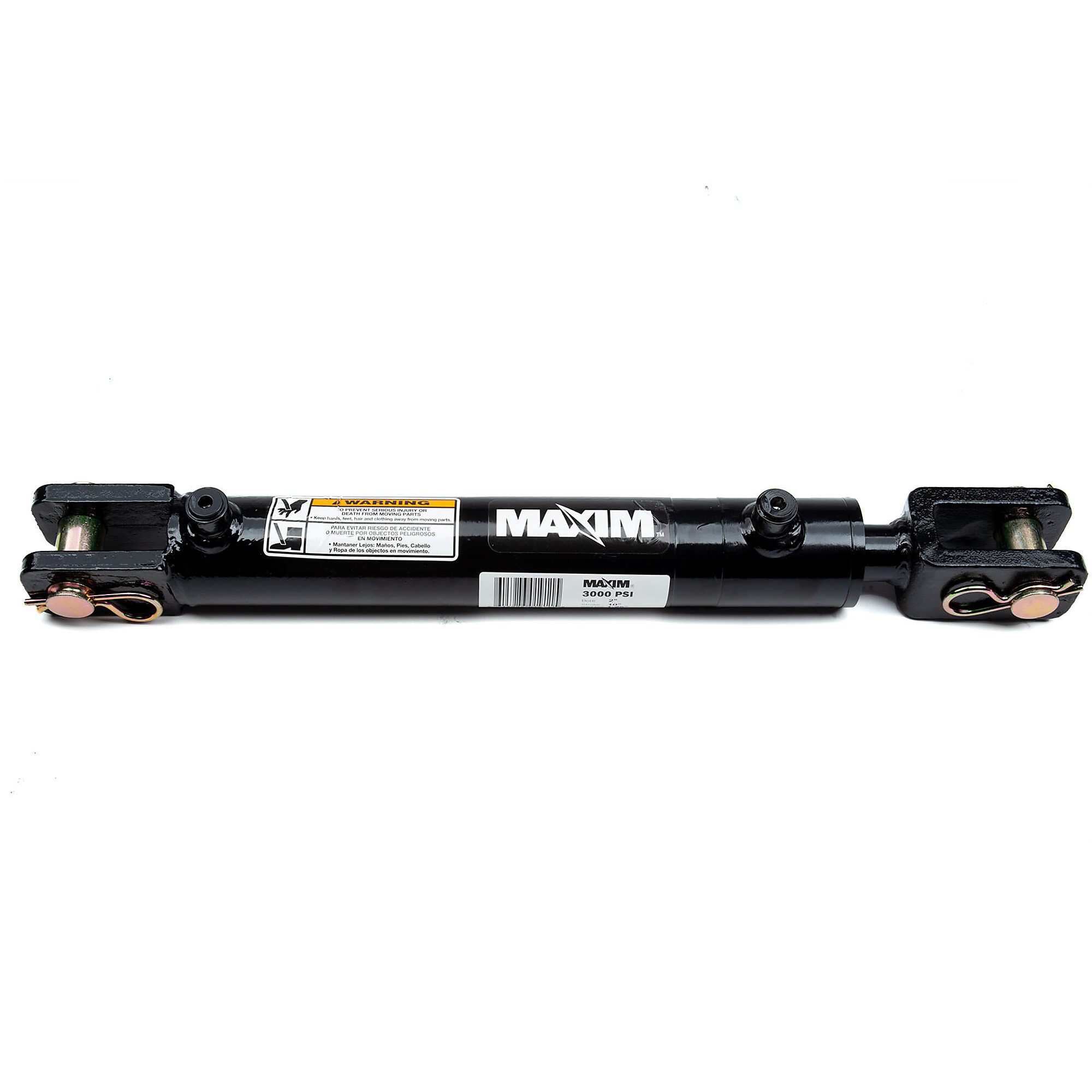

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2.5 in, Stroke Length 36 in, Model# 288425
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$269.99
- Ductile iron ASTM A536 65-45-12 for excellent life
- Grade 8, high tensile zinc-plagted piston lock nut

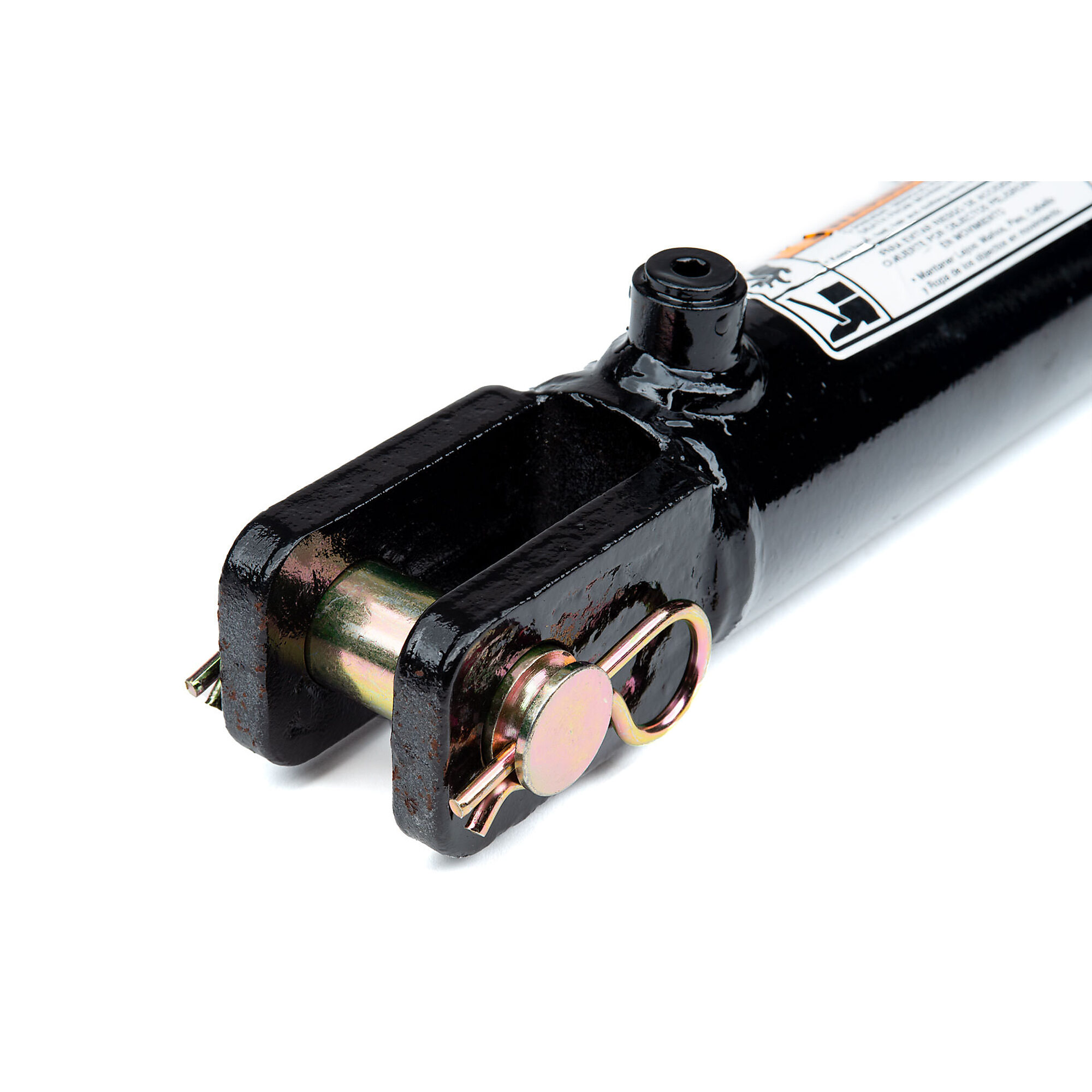

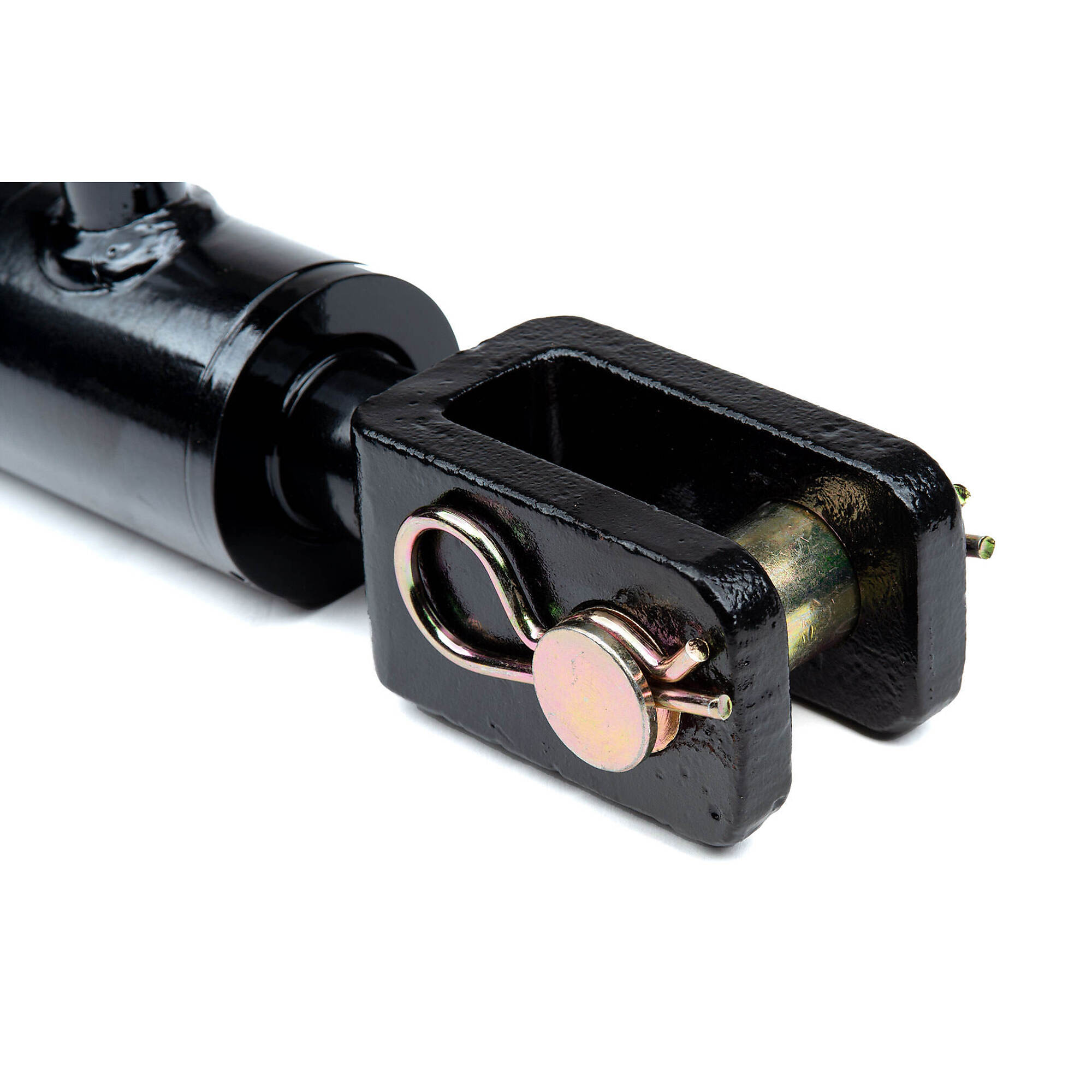

- Steel-cast female clevis end mounts
- Polypak rod seal with B lip design
Prop 65 Warning: See Details
See full description
See All Welded Clevis Cylinders
See All Maxim Welded Clevis Cylinders
Currently Viewing This Product
Specifications
Specifications
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2.5 in, Stroke Length 36 in, Model# 288425
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 24 in, Model# 288462
Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 8 in, Model# 287032
WEN CC-4008 Clevis Hydraulic Cylinder with 4-inch Bore and 8-inch Stroke
Max. PSI
Same
3,000
3,000
3,000
4,500
Bore Diameter
Same
2.5 in
4 in
3 in
4 in
Stroke Length
Same
36 in
24 in
8 in
8 in
Retracted Length
Same
46.25 in
34.25 in
18.25 in
18.25 in
Extended Length
Same
82.25 in
58.25 in
26.25 in
26.25 in
Pin Diameter
Same
1 in
1 in
1 in
-
Product Weight
Same
46.2100 lb
65.3900 lb
28.7900 lb
40.3000 lb
Dimensions L x W x H (in.)
Same
82.25 x 2.5 x 2.5 in
58.25 x 4.0 x 4.0 in
26.25 x 3.0 x 3.0 in
20.3 x 5.31 x 4.5 in
Port Size
Same
-
-
-
0.75 in
