The cylinder would have SAE 8 ports.

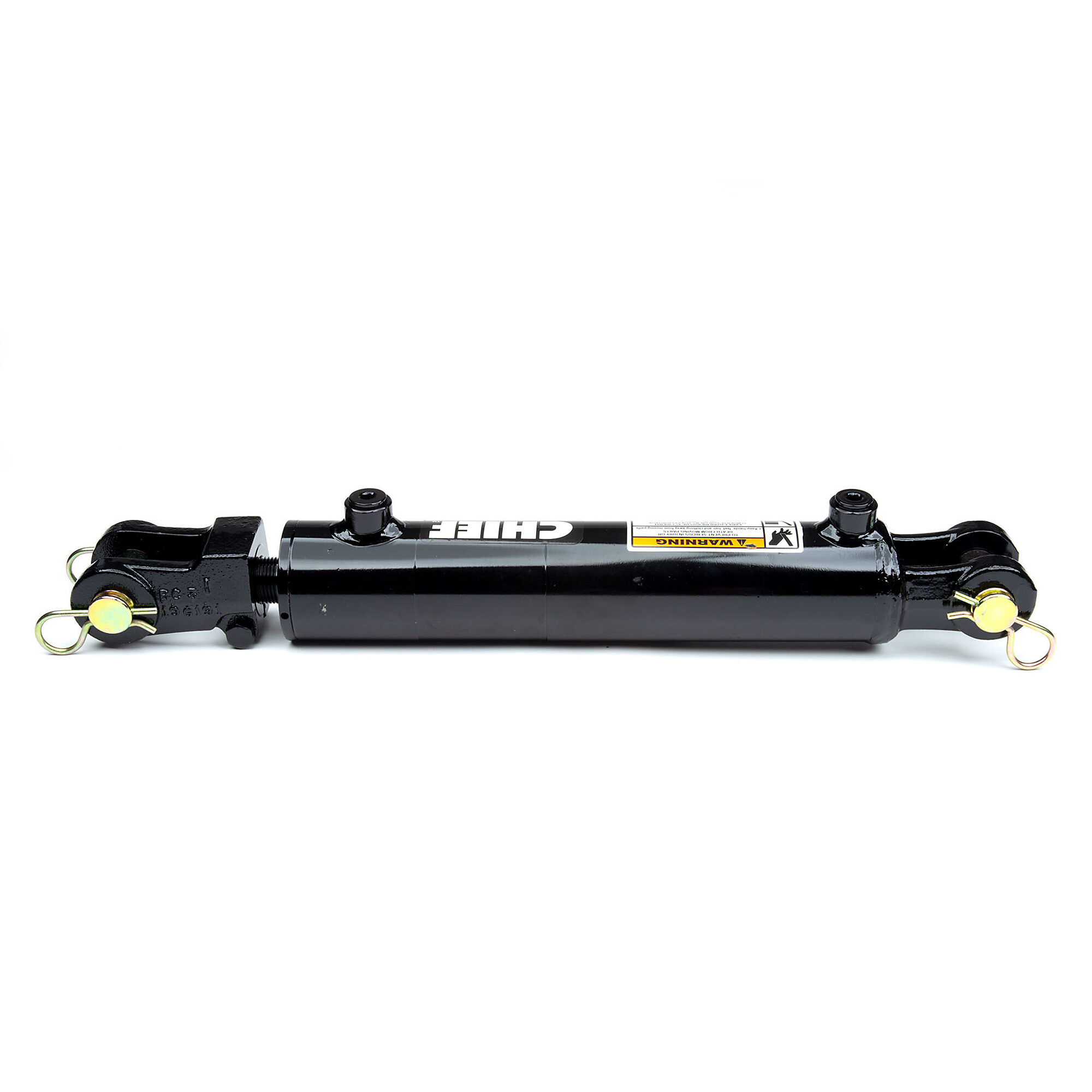

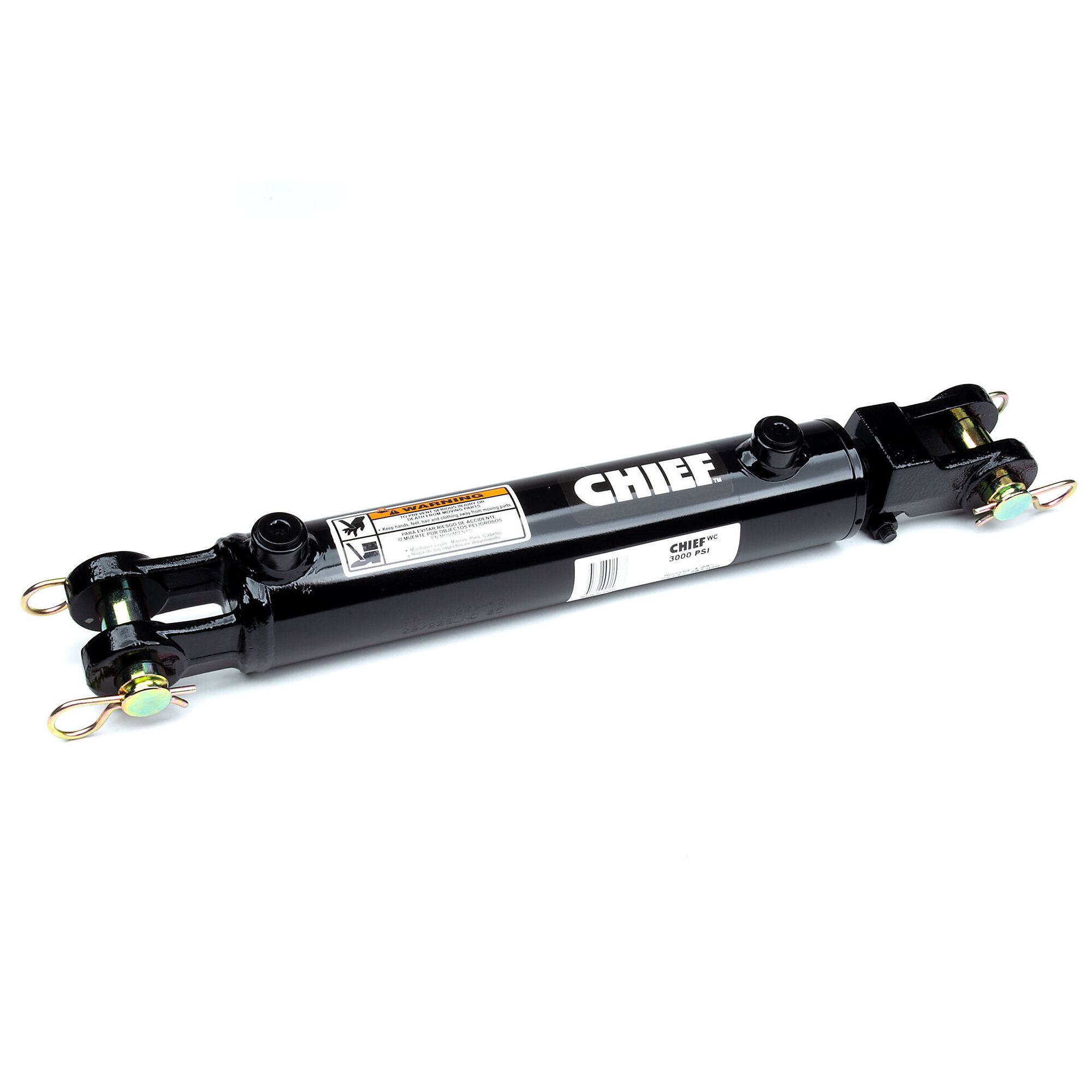

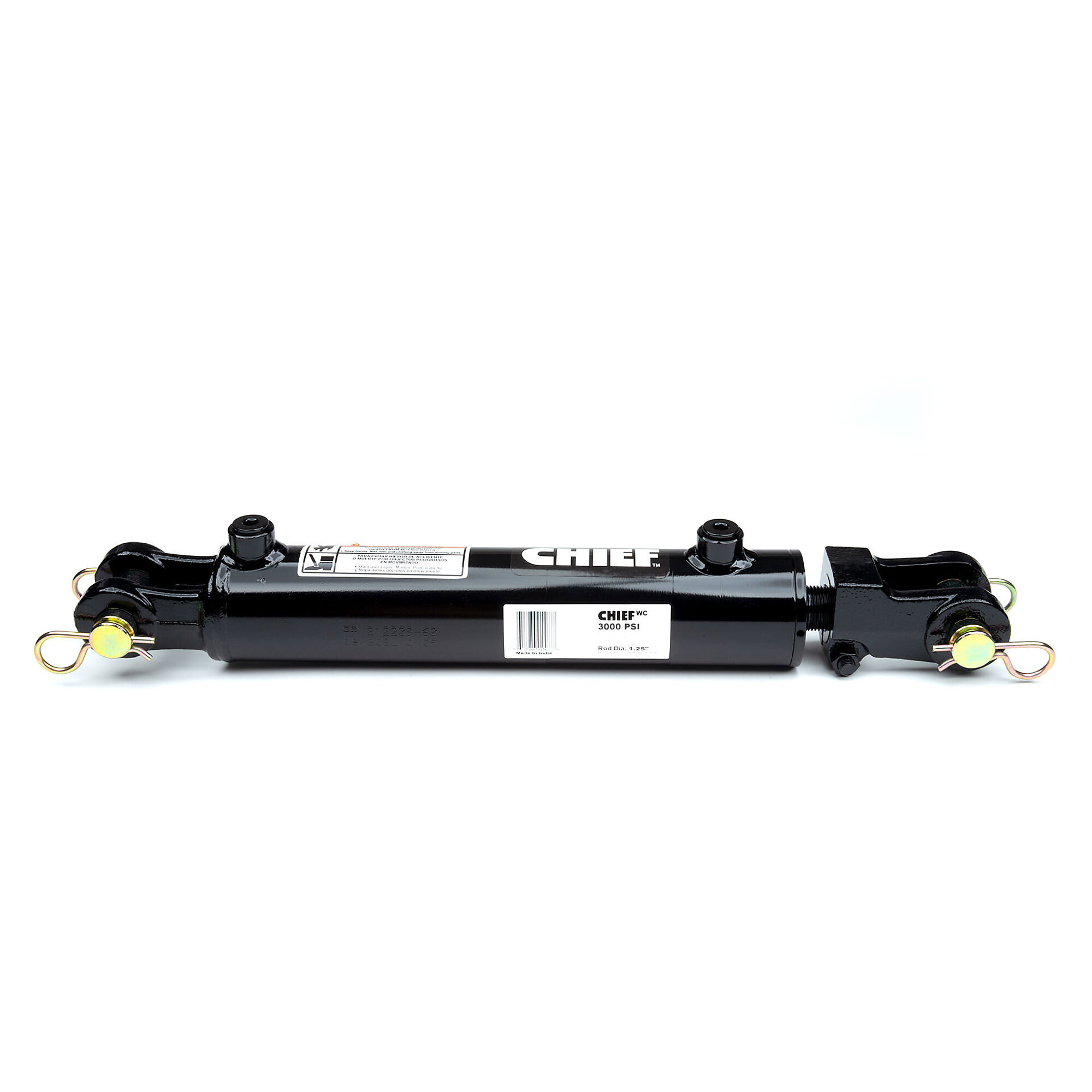

Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 8 in, Model# 287032
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$149.99
- Precision honed steel materials
- Hallite 755 piston seal for prolonged wear resistance
- Hard chrome plated rod

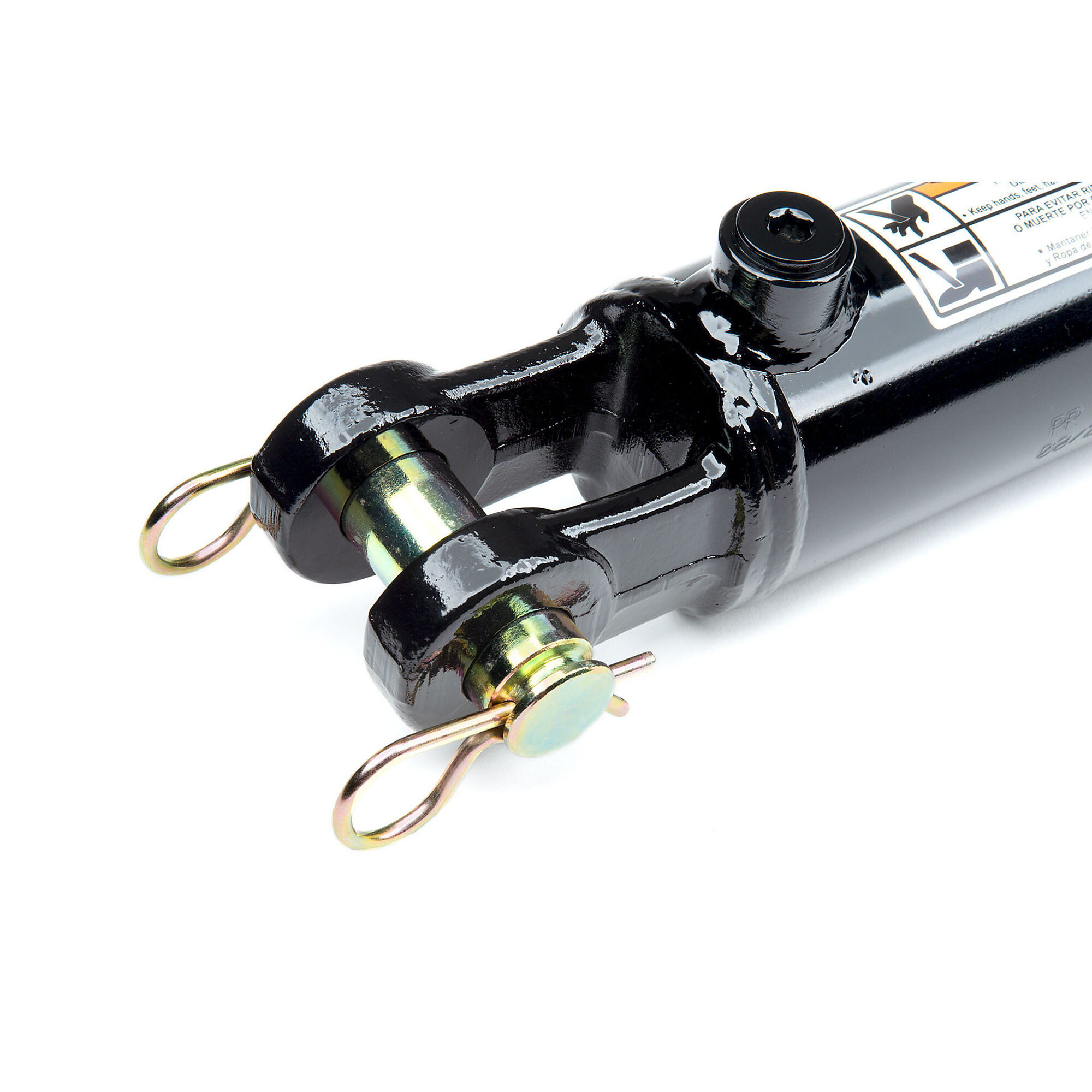

- Ductile iron female clevis end mounts with pins and clips included
Prop 65 Warning: See Details
See full description
See All Welded Clevis Cylinders
See All Chief Welded Clevis Cylinders
Currently Viewing This Product
Specifications
Specifications
Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 8 in, Model# 287032
WEN CC-4008 Clevis Hydraulic Cylinder with 4-inch Bore and 8-inch Stroke
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2.5 in, Stroke Length 8 in, Model# 288416
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 36 in, Model# 288464
Max. PSI
Same
3,000
4,500
3,000
3,000
Bore Diameter
Same
3 in
4 in
2.5 in
4 in
Stroke Length
Same
8 in
8 in
8 in
36 in
Retracted Length
Same
18.25 in
18.25 in
18.25 in
46.25 in
Extended Length
Same
26.25 in
26.25 in
26.25 in
82.25 in
Pin Diameter
Same
1 in
-
1 in
1 in
Product Weight
Same
28.7900 lb
40.3000 lb
23.2800 lb
90.0000 lb
Dimensions L x W x H (in.)
Same
26.25 x 3.0 x 3.0 in
20.3 x 5.31 x 4.5 in
26.25 x 2.5 x 2.5 in
82.25 x 4.0 x 4.0 in
Port Size
Same
-
0.75 in
-
-
