This welded cylinder would have a rod diameter of 1.5".

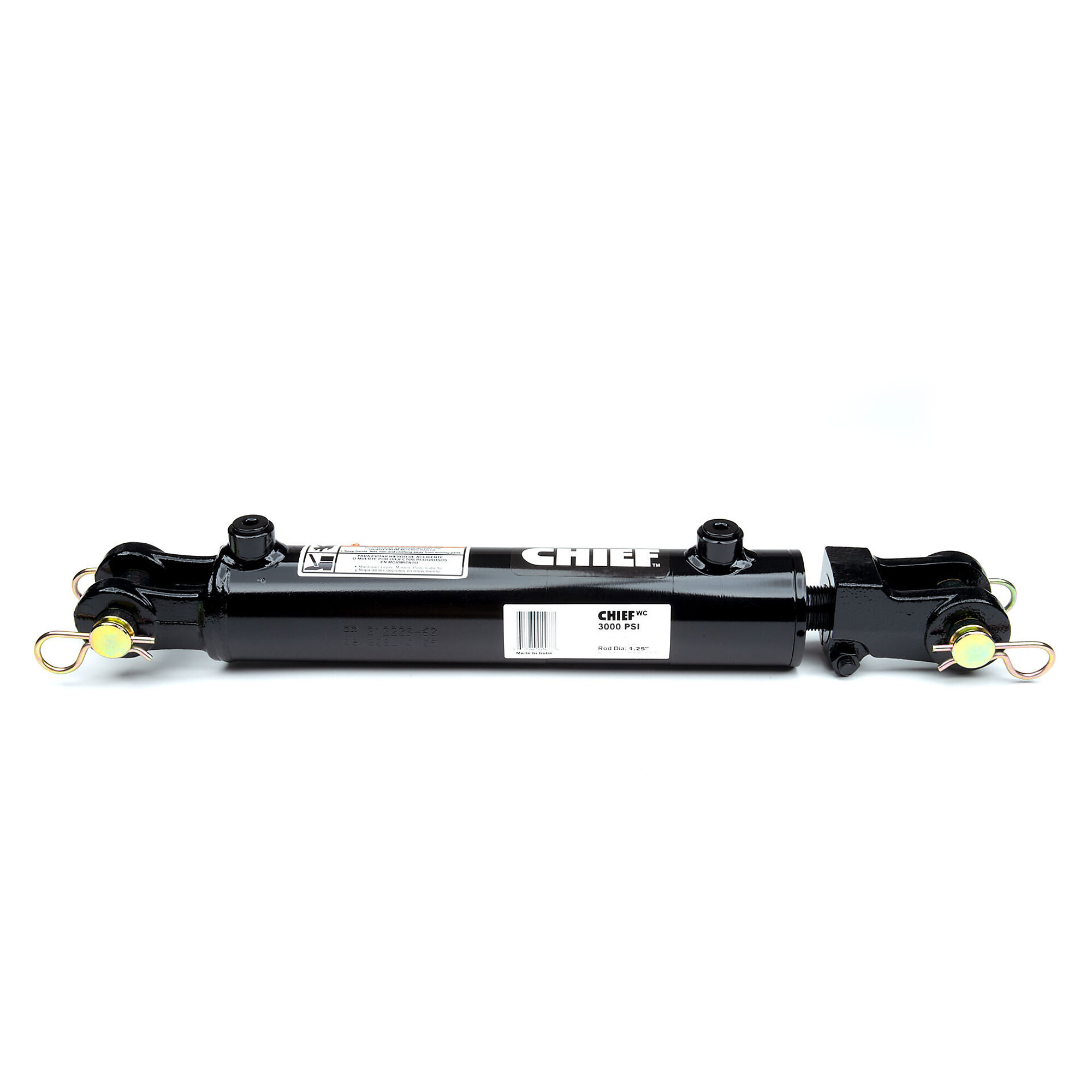

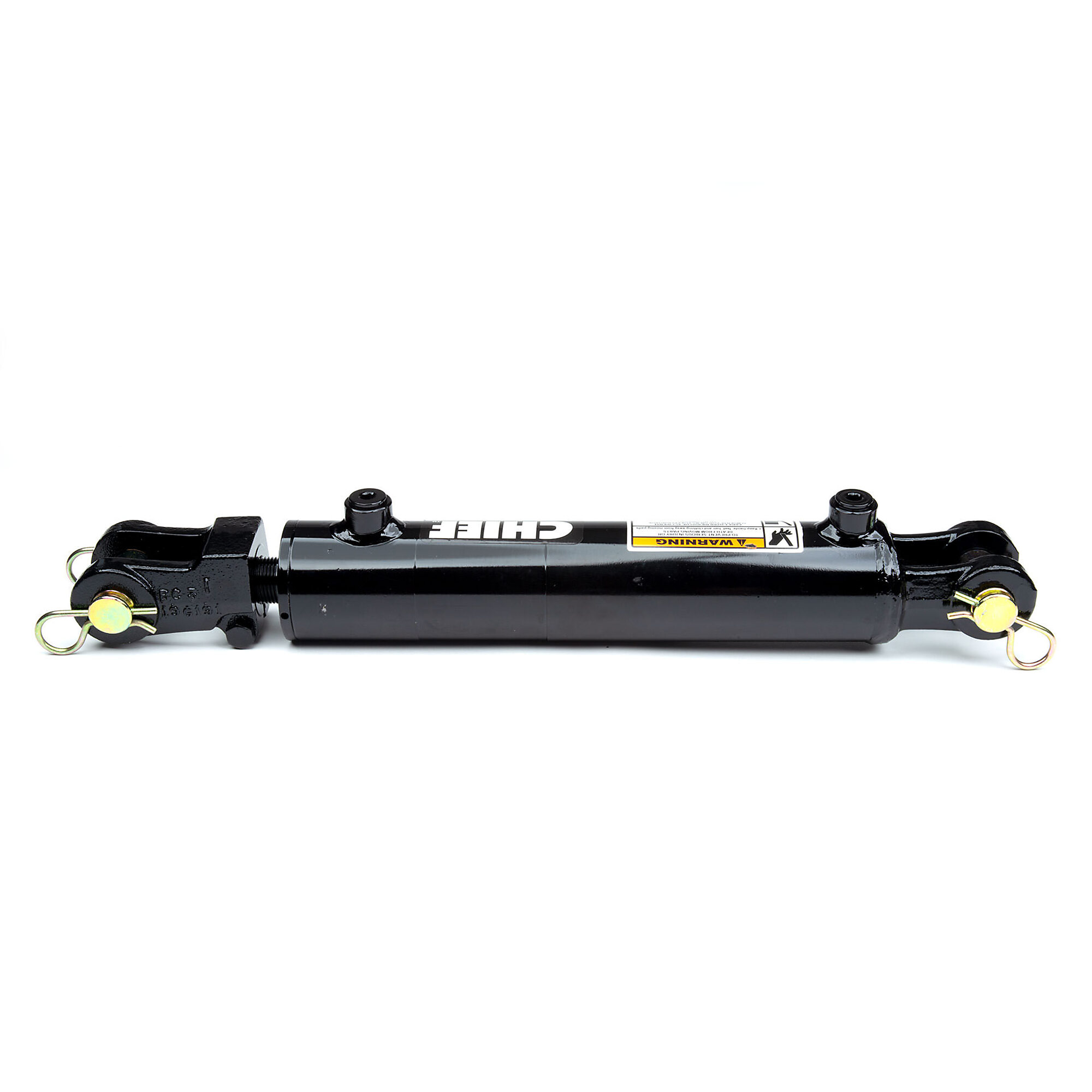

Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 18 in, Model# 287037
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
$184.99
- Ductile iron ASTM A536 65-45-12 for excellent life
- Grade 8, high tensile zinc-plagted piston lock nut

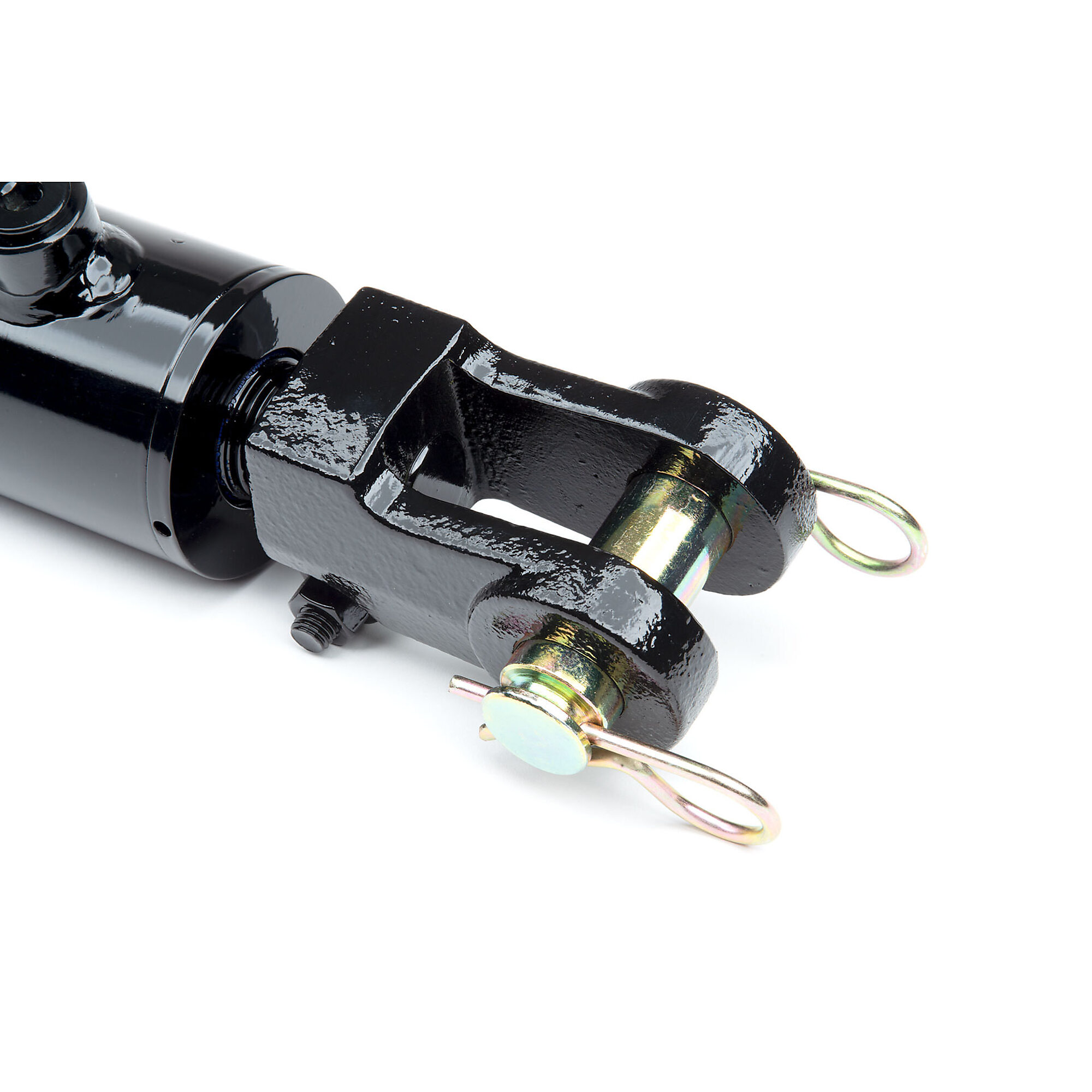

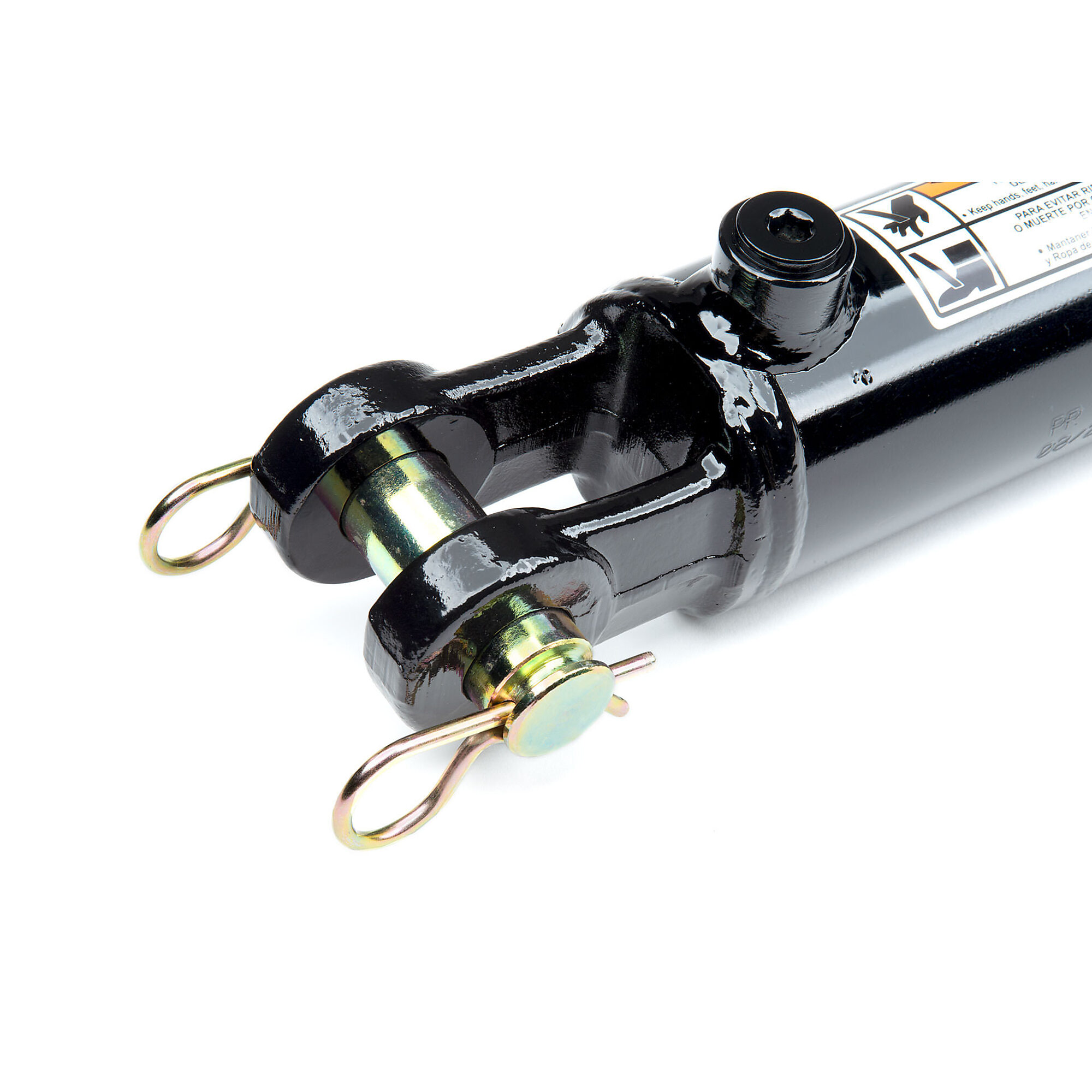

- Steel-cast female clevis end mounts
- Polypak rod seal with B lip design
Prop 65 Warning: See Details
See full description
See All Welded Clevis Cylinders
See All Chief Welded Clevis Cylinders
Currently Viewing This Product
Specifications
Specifications
Chief, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 18 in, Model# 287037
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 12 in, Model# 288431
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 3 in, Stroke Length 8 in, Model# 288429
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 4 in, Stroke Length 36 in, Model# 288464
Max. PSI
Same
3,000
3,000
3,000
3,000
Bore Diameter
Same
3 in
3 in
3 in
4 in
Stroke Length
Same
18 in
12 in
8 in
36 in
Retracted Length
Same
28.25 in
22.25 in
18.25 in
46.25 in
Extended Length
Same
46.25 in
34.25 in
26.25 in
82.25 in
Pin Diameter
Same
1 in
1 in
1 in
1 in
Product Weight
Same
38.3800 lb
29.9000 lb
28.7900 lb
90.0000 lb
Dimensions L x W x H (in.)
Same
46.25 x 3.0 x 3.0 in
34.25 x 3.0 x 3.0 in
26.25 x 3.0 x 3.0 in
82.25 x 4.0 x 4.0 in
