Master Mfg, UTV SPRAYER - 60 OTG, Tank Size 60 Gal, Flow 2.2 GPM, Pressure 70 PSI, Model# UTO-I1-060D-MM

Item# 73128
Master Mfg, UTV SPRAYER - 60 OTG, Tank Size 60 Gal, Flow 2.2 GPM, Pressure 70 PSI, Model# UTO-I1-060D-MM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Master Mfg, UTV SPRAYER - 60 OTG, Tank Size 60 Gal, Flow 2.2 GPM, Pressure 70 PSI, Model# UTO-I1-060D-MM

Click or Tap image to Zoom

$599.99

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only

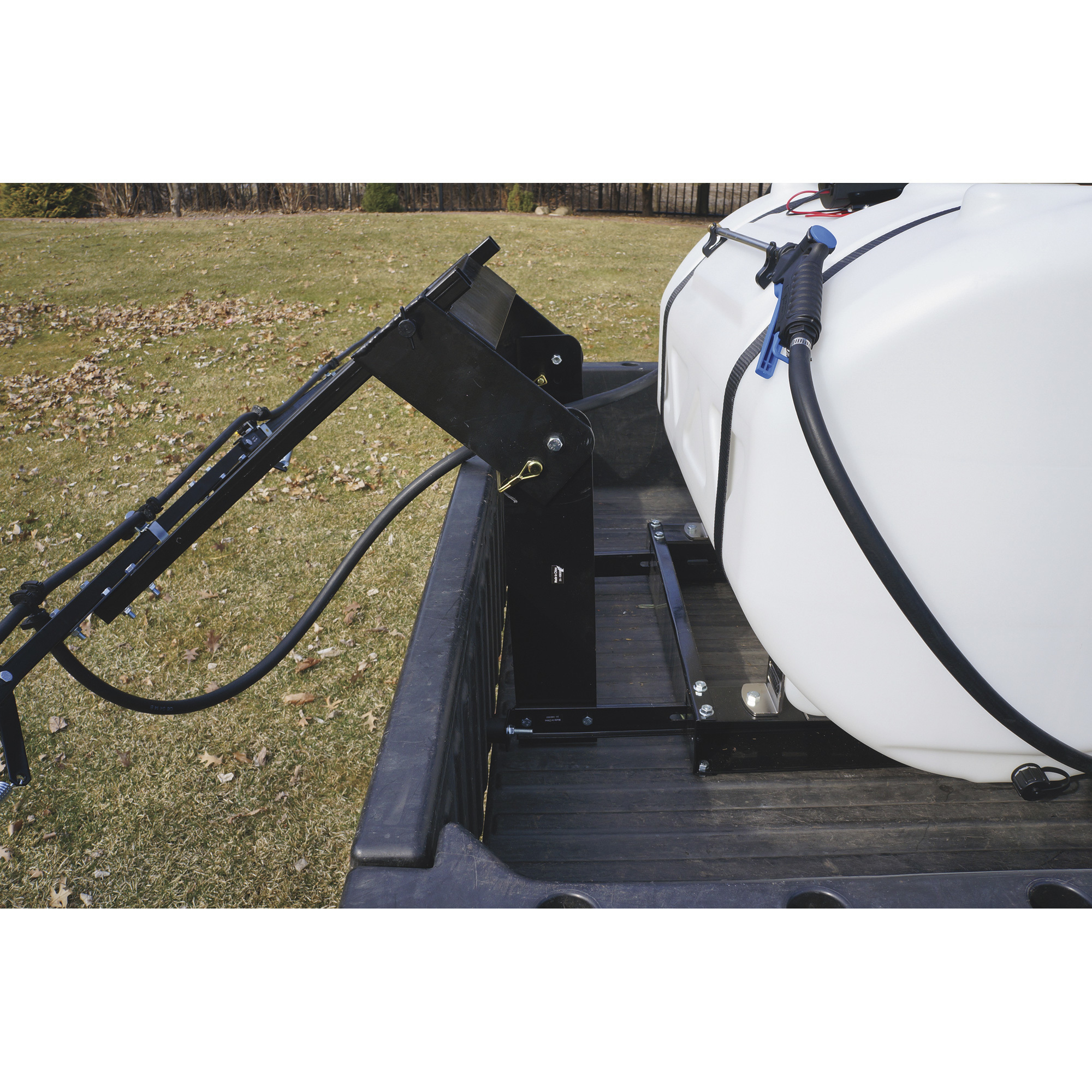

  • Heavy-duty, 3-section folding boom with 12ft. wide spray pattern allows for easy compact storage and prevents damage if boom hits trees or other isolated obstacles

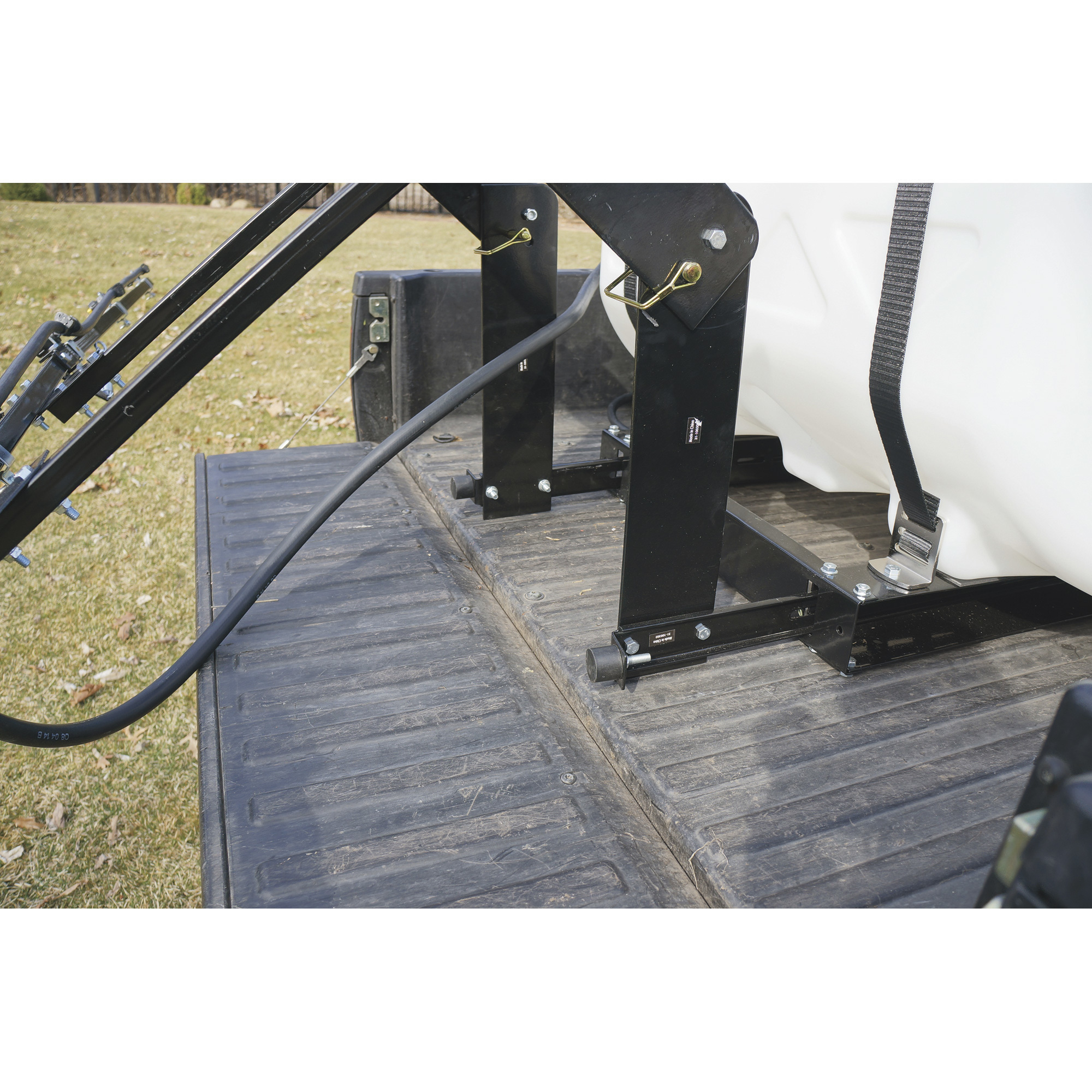

  • Easily adjustable boom bracket height never blocks access to your tailgate
  • Everflo 2.2 GPM on-demand pump delivers excellent spray pressure throughout the application
  • Robust pressure regulator and shut-off valve allows for quick pressure adjustments on the fly, while offering the ability to shut off flow to the boom

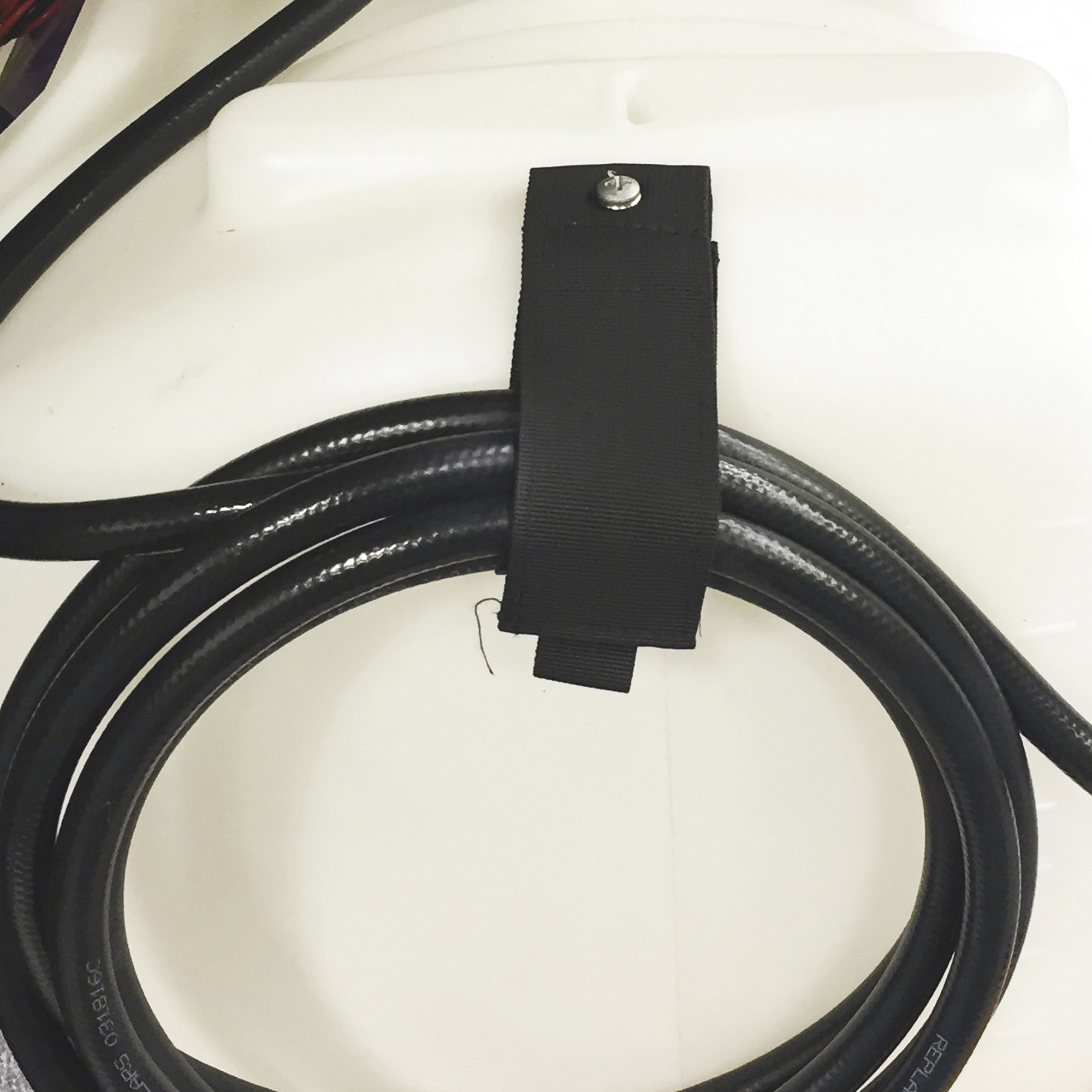

  • Includes hose strap to hold extra hose, minimizing the mess and preventing the hose from dragging throughout application

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This 60-gal. capacity Master MFG Over-the-Tailgate Spot and Broadcast Sprayer helps you cover more ground with a heavy-duty, 7-nozzle boom that can spray up to 12ft., while being foldable to prevent damage from trees and other obstacles when spraying. The boom mount can be easily adjusted up or down and even tilted for easy access to the tailgate. Adjustable rubber stoppers on the sprayer frame provide a nice, snug fit to minimize sprayer movement in the UTV bed. Also includes an adjustable deluxe pistol grip spray gun that can reach distances up to 25ft. vertically and 30ft. horizontally. Comes complete with 15ft.L rubber hose, 5in. fill lid with tether, molded-in drain cap, and 12V connection cables.

What's Included

    (1) 60-gal. tank (1) Flex frame skid (1) Boom mount (1) Spray gun (1) 15ft. hose (1) 2.2 GPM pump (1) Wire harness

Features + Benefits

  • Heavy-duty, 3-section folding boom with 12ft. wide spray pattern allows for easy compact storage and prevents damage if boom hits trees or other isolated obstacles
  • Easily adjustable boom bracket height never blocks access to your tailgate
  • Everflo 2.2 GPM on-demand pump delivers excellent spray pressure throughout the application
  • Robust pressure regulator and shut-off valve allows for quick pressure adjustments on the fly, while offering the ability to shut off flow to the boom
  • Includes hose strap to hold extra hose, minimizing the mess and preventing the hose from dragging throughout application
  • Durable, deluxe 18in. pistol grip spray gun sprays up to 25ft. vertically and 30ft. horizontally
  • Spray pattern adjusts from mist to steady stream
  • 60-gallon durable polyethylene tank material is compatible with a wide range of chemicals including herbicides, insecticides and pesticides
  • Molded sump offers easier tank emptying
  • Mounted rubber stoppers on sprayer frame minimize sprayer movement in the UTV bed

Key Specs

AttributeSpecification

item#

73128

Brand

Master Mfg

Manufacturer's Warranty

1 year limited warranty

Ship Weight

71.0 LB

Tank Size

60 Gal

Flow

2.2 GPM

Pressure

70 PSI

Spray Height

25 ft

Tank Material

Polyethylene
AttributeSpecification

Spray Pattern

Cone To Stream

Spray Gun Type

Adjustable Tip Wand

Nozzles (qty.)

7

Wand Length

18 in

Tow Behind Cart Included

No

Pump Type

Everflo

Hose Length

180 in

Product Weight

lb

Dimensions L x W x H (in.)

27.0 x 42.0 x 30.0 in

Reviews

Questions & Answers

12 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. Is the length from side to side as shown in the pictures? Or from tailgate to cab?

    1 answer

    1. The length of the sprayer will be 42 inches from side to side. The width from front to back will be 27".

      Helpful?

  2. Is there a agitator built into the tank or it components?  That is can you pump into the tank to mix up the chemicals

    1 answer

    1. The sprayer does not have a built in agitator. The liquid that does not get used when spraying will flow back into the tank through the pump that sort of acts as an agitator to keep the fluid mixed.

      Helpful?

  3. Could this boom be used with a pickup tailgate?

    1 answer

    1. This sprayer can be used in the bed of a pickup; however, there is no guarantee that it folds over the tailgate. It is designed for mounting in a UTV bed. The sprayer can be strapped down to the pickup truck for use.

      Helpful?

  4. What is the average acreage per tank?

    1 answer

    1. This 60 gallon deluxe UTV broadcast sprayer is designed to handle up to almost 7 acres* of coverage in one sitting, making it ideal for spraying large estates, pastures or fields with a UTV (side-by-side).

      *Acreage coverage is based on running spraying application at 30 PSI while maintaining speed at 6 MPH.

      Helpful?

  5. What is the Width and depth measurements of the tank

    1 answer

    1. The tank measures 18" W at the bottom and 24" W at the top. The length of the tank is 36". The height overall height of the tank is 24.5".

      Helpful?

  6. Does this sprayer come as in the picture? With frame to fit in UTV?

    1 answer

    1. The sprayer would come as pictured.

      Helpful?

  7. Are the spray arms capable of spraying while folded up?  We have rows of tomato plants and would like to spray from the ground up to about 6 feet.  If not is there another product you recommend?  Thank you

    1 answer

    1. The boom arms will spray when left folded up.

      Helpful?

  8. This product comes with a 2.2 GPM Everflo pump. Is there a way to install a larger Everflo pump such as a 4 GPM Everflo pump on this unit? Do the brackets and screw holes match up so I don’t have to drill new holes in the tank? Thanks

    1 answer

    1. You could replace the Everflo 2.2 GPM pump with an Everflo 4 GPM pump. The mounting brackets and screw holes would match up. Northern Tool does not carry this pump.

      Helpful?

  9. Can you turn off nozzles to if you want to spray a smaller swath?

    1 answer

    1. The whole boom can be shut off for using the spot sprayer. The nozzles on the boom cannot be shut off individually.

      Helpful?

  10. power switch

    Is there a remote power switch for the obvious reason or will I need to install one?

    1 answer

    1. The 12-volt wire harness is included with this Master MFG Sprayer.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
