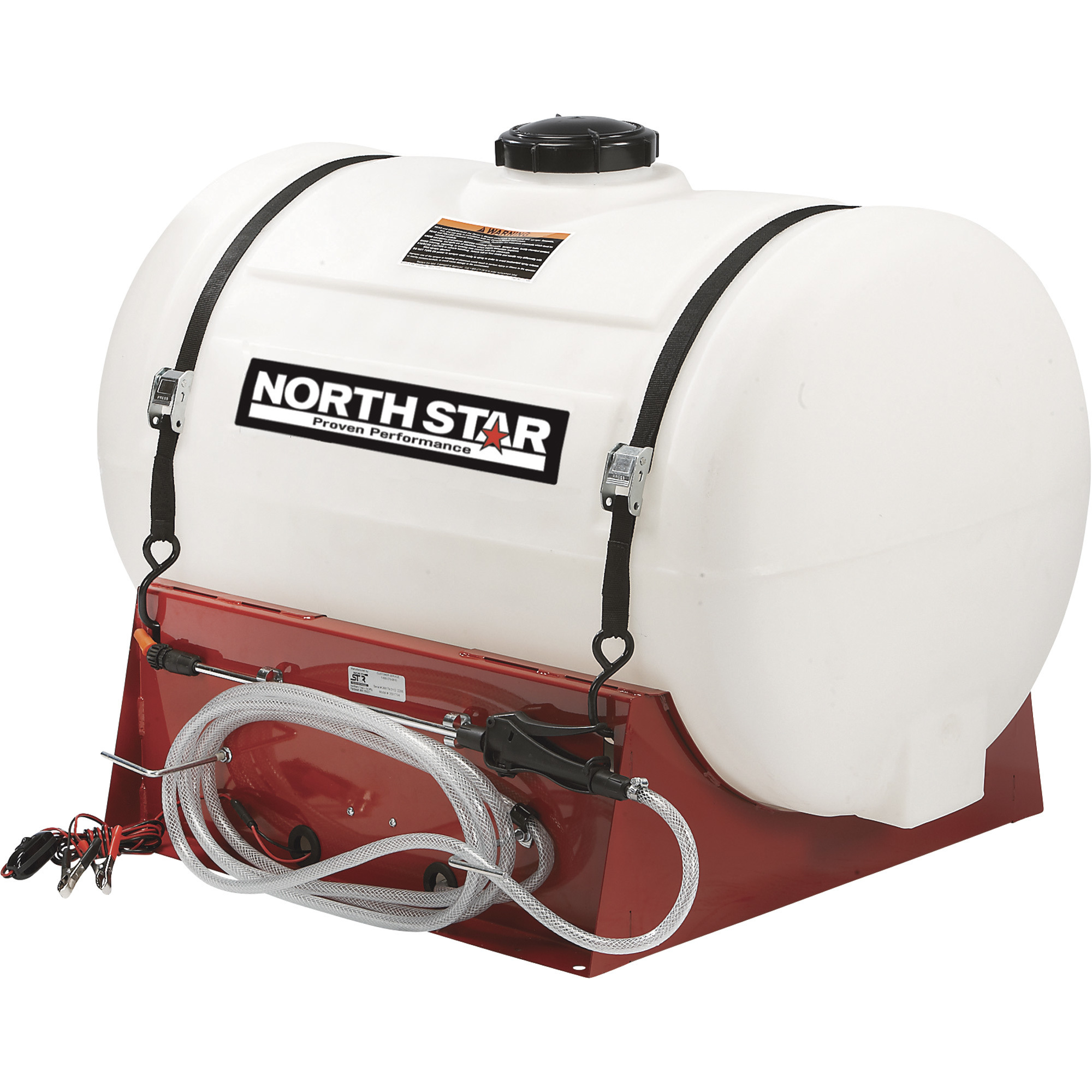

NorthStar UTV Spot Sprayer, 55-Gallon Capacity, 2.2 GPM, 12 Volts

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Available nowHeavy/large item. Lift gate service available.
Store Pickup:
- 12V, 2.2 GPM open flow NorthStar NSQ series on-demand pump provides faster priming and longer life; 70 PSI max.
- 19ft. vertical spray height
- Large 55-gallon poly UV-stabilized tank design features extra-thick walls made with a special polymer known for its superior chemical and UV resistance, plus gallon fill markers for easy level checks
- Compatible with Roundup agricultural brand herbicides
- Spray gun nozzle adjusts from cone to stream; stream shoots up to 30ft. horizontally and 19ft. vertically
See full description
Description
Key Specs
Reviews
Q & A
Accessories
Warranty
Compare
Product Summary
What's Included
- (1) Spot sprayer
Downloads

Best-in-Class, Industrial-Grade Pump
No Cool Downs Required
Finally, a sprayer built to work as hard as you do without losing its cool. The industrial-grade NSQ Series on-demand pump is an engineering marvel, boasting an impressive 100% duty cycle. That means while the competition is waiting for their overworked, under designed sprayer to cool down, the NSQ Series pump isn't even working up a sweat.
Lasts 5 Times Longer
Building the best sprayer starts with using the best pump. With patent-pending DXS-3™ valves featuring chemical-resistant Viton, exclusive NSQ Series pumps provide faster priming, better performance and best of all, last up to 5 times longer than other brands.
Precision Spot Spraying
Accurate, Economical Spot Spraying
Save money and materials by spot spraying only what you need - ideal for weeds, trees, fence lines and other isolated areas. Whatever the task, the NorthStar UTV Broadcast and Spot Sprayer delivers accurate, efficient performance.
Incredible Versatility
The spray gun nozzle adjusts from cone to stream, shoots up to 30 feet horizontally and is attached to a 15-ft. clear PVC hose that makes monitoring flow easy. Whatever the task, this UTV Spot Sprayer delivers.
Bigger, Stronger Tanks
3 Times Thicker Walls
When it comes to quality, we didn't cut any corners. Even our chemical tanks are built better and stronger, providing exceptional durability for years of trouble-free service. The heavy-duty, UV- and chemical-resistant polymer design prevents bulging and sagging. A large 6in. tank lid provides easy filling and the tank-bottom drain provides easy emptying.
Fewer Refills Means More Productivity
Stopping in the middle of a job to refill is time and money wasted. With the NorthStar UTV Spot Sprayer's 55 gallon tank, you can cover more ground with fewer interruptions, a great feature when working in remote locations.
Proven Quality
Over 1000 Hours of Testing
No one builds sprayers better. And no one tests sprayers more. Northern Tool + Equipment engineers put each NorthStar sprayer component through a series of extensive, real-world procedures in our Faribault, MN testing facility and in the field. Before you put your sprayer to the test for the first time, you can feel confident that we already have.
Setting the Standard for Over 20 Years
For over two decades, NorthStar has the standard for quality, performance and reliability. Professionals and do-it-yourselfers trust the superior quality of NorthStar to get the job done right the first time, every time.
The NorthStar Advantage
Industry-Leading Warranty
NorthStar sprayers are built to last. But to give you extra peace of mind, we stand behind our product with an industry-leading 2-year limited warranty.
Guaranteed Satisfaction
Shop in complete confidence, knowing Northern Tool + Equipment protects your investment and is ready to provide you with the assistance and helpful resources you need.
Superior Service and Support
Should you ever need service or support, help is a phone call or e-mail away. NorthStar's field-trained technical staff is ready to help. For convenience, our professional in-store service department performs all repairs on site. Replacement parts are stocked at our Northern Tool + Equipment warehouse and ready to ship the same day your order is received.
Features + Benefits

- 12V, 2.2 GPM open flow NorthStar NSQ series on-demand pump provides faster priming and longer life; 70 PSI max.
- 19ft. vertical spray height
- Large 55-gallon poly UV-stabilized tank design features extra-thick walls made with a special polymer known for its superior chemical and UV resistance, plus gallon fill markers for easy level checks
- Compatible with Roundup agricultural brand herbicides
- Spray gun nozzle adjusts from cone to stream; stream shoots up to 30ft. horizontally and 19ft. vertically
- 3/8in. x 19ft. clear PVC hose makes monitoring chemical flow simple
- 5in. dia. lid for easy fills
- Easy-empty tank-bottom drain
- Rugged steel powder-coat frame
- Includes remote switch with battery clamps
- Fits most UTVs
- Tank is 39in.L x 30in.W x 40in.H
Key Specs
| Attribute | Specification |
|---|---|
item# | 2681791 |
Brand | NorthStar |
Manufacturer's Warranty | 2 year limited warranty |
Ship Weight | 97.6 LB |
Tank Size | 55 Gal |
Flow | 2.2 GPM |
Pressure | 70 PSI |
| Attribute | Specification |
|---|---|
Spray Height | 19 ft |
Spray Pattern | Cone To Stream |
Tow Behind Cart Included | No |
Pump Type | Northstar NSQ Series |
Hose Length | 228 in |
Product Weight | lb |
Dimensions L x W x H (in.) | 39.0 x 30.0 x 40.0 in |
Reviews
Questions & Answers
Questions
-
· 9 years ago
Are there gallon markers on side of tank?
So I can mix up products less then 55 gallons.
-
CV86· 8 years ago
Helpful?
-
NorthStarExperts· 9 years ago
This tank does have a fill markers on the end of the tank. It is molded into the plastic.
Helpful?
-
-
· a month ago
Need boom shut off valve ,also hand spray tip(2)
1 answer-
NorthstarExpert12· 20 days ago
This sprayer is not equipped with a boom, but the ball valve is part #782025. The spray tips are included with the spray gun, part #779769. These can be purchased through our sister company, Jacks Small Engines. Please visit www.JacksSmallEngines.com for pricing and availability.
Helpful?
-
-
· a year ago
Can we adjust the psi or buy a part to do that. We are wanting to use it with a mud mixer
1 answer-
NorthstarExpert12· a year ago
A sprayer regulator like item 2681032 can be used to precisely control the pressure for spraying.
Helpful?
-
-
· 3 years ago
Is there a low point drain plug so that the tank can be flushed?
1 answer-
NorthstarExpert13· 3 years ago
There is a tank drain. The suction strainer and filter bowl will need to be removed first to drain. Please see page 27 in the manual for drainage instructions.
Helpful?
-
-
· 4 years ago
Can diluted SH (Sodium Hypochlorite) be sprayed using this equipment?
1 answer-
NorthstarExpert12· 4 years ago
This sprayer will be damaged and warranty voided if used to apply sodium hypochlorite, even if diluted.
Helpful?
-
-
· 5 years ago
Where can I get the water filter replacement for the 55 gallon boom sprayer?
1 answer-
NorthstarExpert29· 5 years ago
The filter is our part #789676 and can be purchased with our Parts Department at 1.800.657.0516.
Helpful?
-
-
· 6 years ago
Pump run time
Will the pump run and recycle when the sprayer wand is not being used? Or does the pump only turn on/off when the spray wand lever is activated?
You could easily cycle the wand triggers hundreds of time a day. If the pump turns on and off with each squeeze that must be very hard on the pump.1 answer-
NorthstarExpert29· 6 years ago
The pump on this unit is an on-demand pump and will cycle off when no water flow is needed. The pressure switch is designed to slowly cycle the pump for reduced switch and motor wear.
Helpful?
-
-
· 6 years ago
Can the 5 nozzle boom be attached to this sprayer?
1 answer-
NorthstarExpert7· 6 years ago
A boom option is not available for this sprayer. Try the boomless sprayer kit, item 99903. Please view my recommendation below.
Helpful?
-
-
· 6 years ago
Boomless Broadcast Sprayer Kit
Will the NorthStar Single-Nozzle Boomless Broadcast Sprayer Kit work with this spot sprayer? Item Number 99903
1 answer-
productexpert6· 6 years ago
The Boomless Broadcast Sprayer Kit item #99903 will work with this Spot Spray, item 2681791.
Helpful?
-
-
· 6 years ago
Is there an upgraded spray gun available?
1 answer-
NorthstarExpert7· 6 years ago
The sprayer can be used with the following guns.item 25136 and 25138.
Helpful?
-
Warranty
Manufacturer's Warranty
2 year limited warranty
Extend Your Warranty Coverage with a Northern Protection Plan (NPP)
Replacement Plan — 1 Year
A Northern Protection Plan is available after adding the product to your shopping cart.
Compare with Most Popular in Skid + Utility Sprayers
See All Skid + Utility Sprayers
See All NorthStar Skid + Utility Sprayers
Currently Viewing This Product
$499.99Shipping:
Available nowHeavy/large item. Lift gate service available.
Store Pickup:
Item # 73128
$599.99Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Item # 73129
$449.99Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
- $3499.99
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Specifications
55 Gal
60 Gal
40 Gal
100 Gal
2.2 GPM
2.2 GPM
2.2 GPM
10 GPM
70 PSI
70 PSI
60 PSI
580 PSI
19 ft
25 ft
20 ft
45 ft
Cone To Stream
Cone To Stream
Fine Mist and Straight Stream
Adjustable
No
No
No
No
Northstar NSQ Series
Everflo
Everflo
Comet APS41 Diaphragm
228 in
180 in
180 in
2,400 in
lb
lb
lb
lb
39.0 x 30.0 x 40.0 in
27.0 x 42.0 x 30.0 in
27.0 x 42.0 x 24.0 in
60.5 x 48.0 x 21.25 in
-
Polyethylene
Polyethylene
Polyethylene
-
Adjustable Tip Wand
Adjustable Tip Wand
Professional-duty
-
7
7
0
-
18 in
30 in
-
-
-
-
Honda GX200
