Master Mfg Grass Guardian UTV Broadcast Sprayer, 40-Gal. Tank, 10ft. Swath, 2.2 GPM, 60 Max. PSI, Model# EUO-F1-040A-GG

Item# 6464471
"Master Mfg Grass Guardian UTV Broadcast Sprayer, 40-Gal. Tank, 10ft. Swath, 2.2 GPM, 60 Max. PSI, Model# EUO-F1-040A-GG"
Master Mfg Grass Guardian UTV Broadcast Sprayer, 40-Gal. Tank, 10ft. Swath, 2.2 GPM, 60 Max. PSI, Model# EUO-F1-040A-GG

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Master Mfg Grass Guardian UTV Broadcast Sprayer, 40-Gal. Tank, 10ft. Swath, 2.2 GPM, 60 Max. PSI, Model# EUO-F1-040A-GG

Click or Tap image to Zoom

$489.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed to handle up to 6 acres in one sitting
  • 40-gallon translucent tank with raised volume markings
  • Broadcast spray up to 10 feet with all-steel foldable boom
  • Spray boom includes three quick attach deflector nozzles
  • Spot spray up to 25 feet vertically and 30 feet horizontally

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Sprayer Features: Guard your lawn from those uncontrollable pests and weeds with the unshakable, Grass Guardian 40-Gallon UTV Broadcast and Spot Sprayer. Featuring a top-of-the-line Everflo 2.2 GPM 12V on-demand diaphragm pump, regulating system, gauge, and boom shut-off valve that controls water flow to spray boom. Includes 15ft. of hose to spray gun that gives more flexibility for those hard-to-reach areas. Compact tank footprint allows for easy installs into UTV bed with the included four ratchet straps. After application use, drain remaining water and chemical with the accessible molded in drain port. Comes standard with 12v wire harness that features on/off switch and alligator clamp connections. UV resistant tank. Approved for use with Round-Up® and other agricultural brand herbicides and insecticides. Backed by a one-year warranty on pump components. Can be used with UTVs and other means of transportation with some modifications. Spot Spraying: When it comes time to spot spray, un-holster your spray gun and reach up to 25ft. vertically and 30ft. horizontally from the comfort of your seat. As applications change, quickly adjust the nozzle from a steady stream to a wide mist. Spray gun features a trigger lock to reduce hand fatigue and an in-handle filter for increase durability. Broadcast Spraying: This UTV (Side-by-Side) sprayer features a three-nozzle broadcast spray boom that has a ten-foot spray swath. With a fold-able design, easily prevent damage from oncoming obstacles such as trees or easily store sprayer without taking up extra room. Comes standard with three deflector nozzles. Coverage: This UTV (Side-by-Side) sprayer is designed to handle up to 3 acres of coverage in one sitting. Making it ideal for large acreage spray applications with a UTV (Side-by-Side) vehicle.

What's Included

    (1) Sprayer

Features + Benefits

  • Designed to handle up to 6 acres in one sitting
  • 40-gallon translucent tank with raised volume markings
  • Broadcast spray up to 10 feet with all-steel foldable boom
  • Spray boom includes three quick attach deflector nozzles
  • Spot spray up to 25 feet vertically and 30 feet horizontally
  • Adjustable spray gun goes from steady stream to mist
  • Everflo 12V diaphragm pump that delivers up to 2.2 GPM at 70 PSI
  • Pressure regulating system that includes regulator, pressure gauge and boom shut-off valve
  • Hinged over gate boom mounts for quick disassembling or access to tailgate
  • 15 feet of rubber hose for extended spot spraying

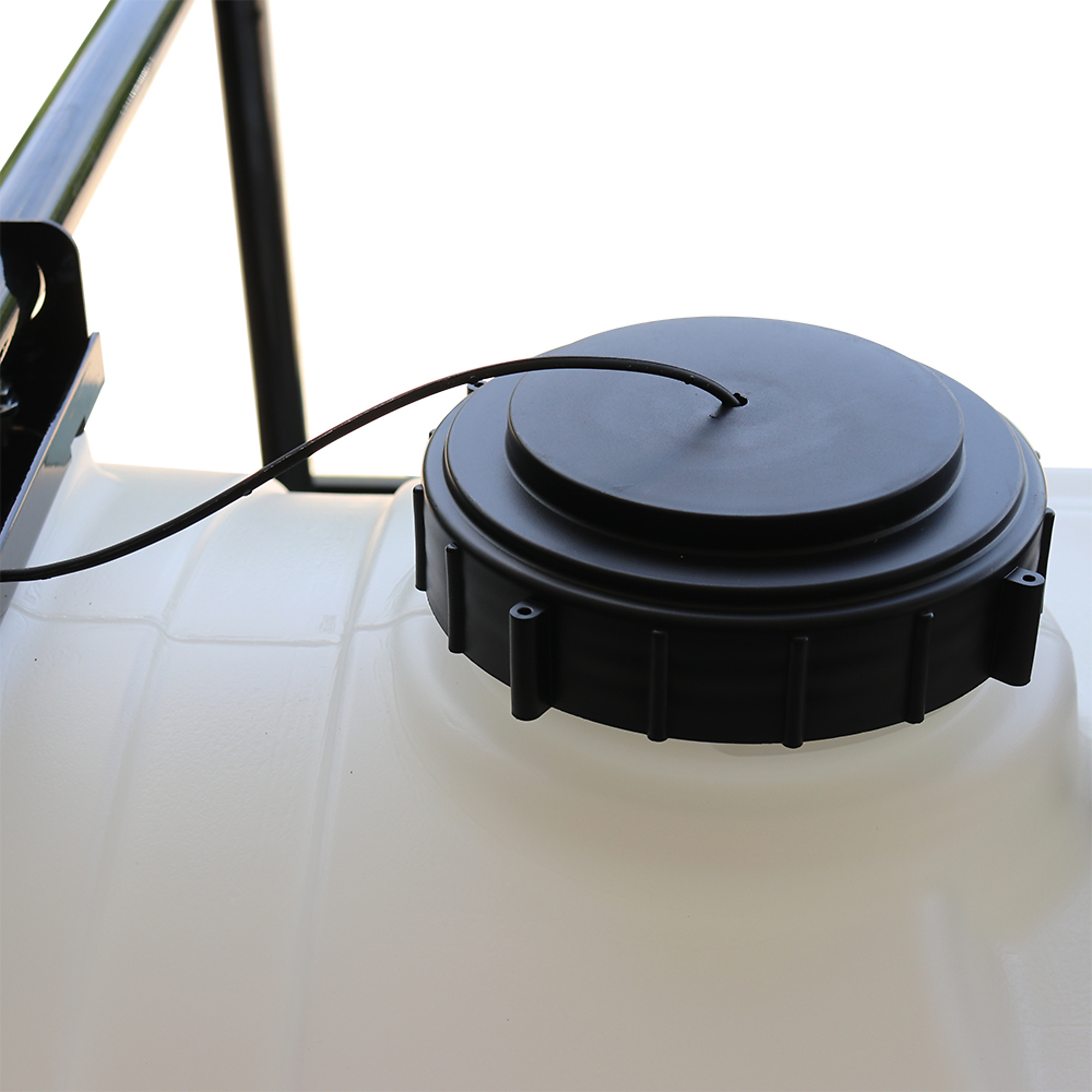

  • 6" tank lid with tether to keep fluids in

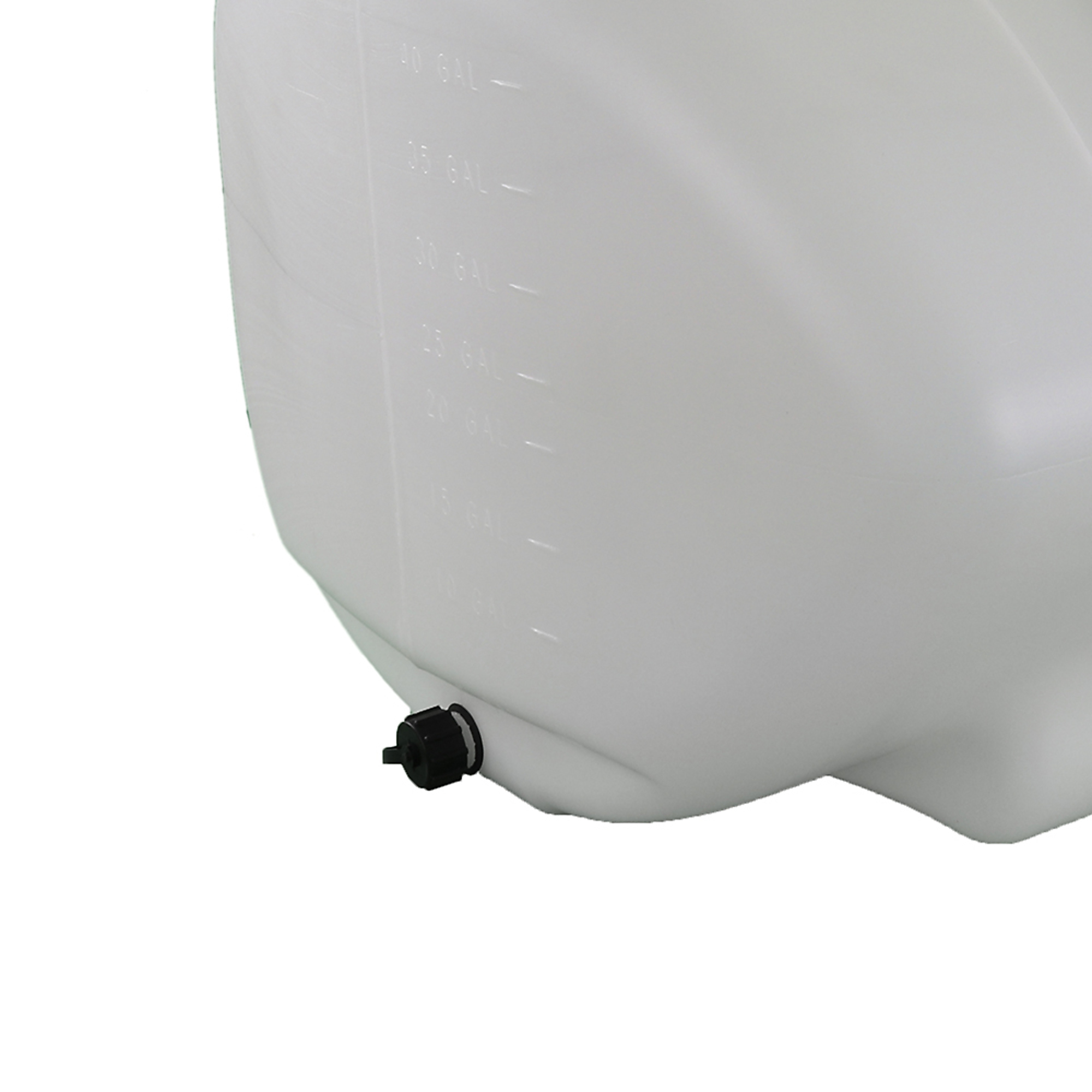

  • Molded-in drain port with tethered cap for complete draining
  • Includes 12-volt wire harness with power switch
  • Extra-thick tank walls for increased durability
  • Can be secured onto the back of a UTV and other vehicles
  • Comes with four ratchet straps for mounting to vehicle
  • Backed by a two-year warranty on manufacturer defects

Key Specs

AttributeSpecification

item#

6464471

Brand

Master Mfg

Manufacturer's Warranty

2 year limited warranty

Ship Weight

43.0 LB

Tank Size

40 Gal

Flow

2.2 GPM

Pressure

60 PSI

Broadcast Width

10 ft

Horizontal Spray Distance

30 ft
AttributeSpecification

Tank Material

Polyethylene

Spray Pattern

Steady Stream to Mist

Spray Gun Type

Adjustable Spray Gun

Nozzles (qty.)

3

Tow Behind Cart Included

No

Pump Type

12-Volt

Hose Length

180 in

Product Weight

43.0000 lb

Dimensions L x W x H (in.)

81.75 x 41.0 x 26.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

  1. WHATS THE TANK MEASURMENTS

    1 answer

    1. The dimensions for the tank are 36" L x 24" W x 18.5" H.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
