Master MFG 25-Gallon ATV Broadcast Sprayer, 2.2 GPM, 10ft. Swath, Model# SAO-51-025D-MM

Item# 6464527
Master MFG 25-Gallon ATV Broadcast Sprayer, 2.2 GPM, 10ft. Swath, Model# SAO-51-025D-MM

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Master MFG 25-Gallon ATV Broadcast Sprayer, 2.2 GPM, 10ft. Swath, Model# SAO-51-025D-MM

Click or Tap image to Zoom

$389.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Designed to handle up to 2 acre in one sitting
  • 25-gallon translucent tank with raised volume markings
  • Broadcast spray up to 10 feet with all-steel foldable boom
  • Spray boom includes six quick attach flat fan nozzles
  • Spot spray up to 25 feet vertically and 30 feet horizontally

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

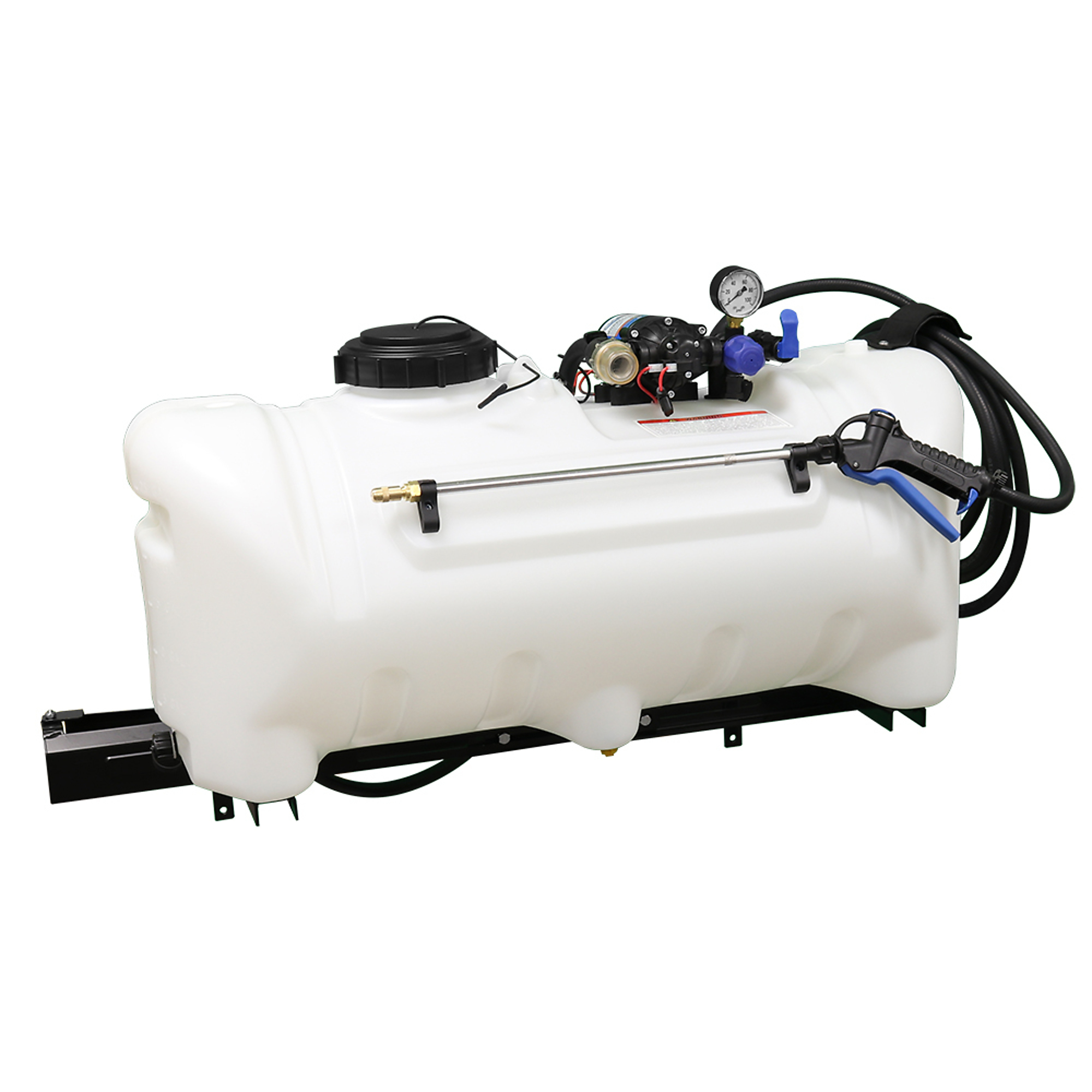

Sprayer Features: Cover more ground with this Master Manufacturing 25 Gallon ATV Broadcast and Spot Sprayer. Featuring a top-of-the-line pumping system that includes a robust Everflo 2.2GPM 12V on-demand diaphragm pump, pressure gauge, adjustable pressure regulator, and a shut-off valve that controls water flow to spray boom. Keep debris and chemical clumps from entering your pump with the easy to maintain quick attach inline strainer. Keep your 15ft. of hose from dragging and being damaged with the installed hook and loop hose strap. As terrain and spraying applications change, conveniently adjust spray boom height with the all-steel boom bracket uprights. Easily move the sprayer on/off a vehicle with quick grip handles built into the UV resistant tank. Includes 15ft. of hose to spray gun that gives more flexibility for those hard-to-reach areas. After application use, drain remaining water and chemical with the accessible molded in drain port. Comes standard with 12v wire harness that features on/off switch and alligator clamp connection. Comes standard with two ratchet straps to keep from falling off while driving. Approved for use with Round-Up® and other agricultural brand herbicides and insecticides. Backed by a two-year warranty on pump components. Can be used with ATVs (4-Wheeler), UTVs (Side-by-Side) and other means of transportation with some modifications. Spot Spraying: When it comes time to spot spray, un-holster your deluxe spray gun and reach up to 25ft. vertically and 30ft. horizontally from the comfort of your seat. As applications change, quickly adjust the heavy-duty brass nozzle from a steady stream to a wide mist. Deluxe spray gun features a trigger lock to reduce hand fatigue on longer jobs. Broadcast Spraying: This ATV sprayer features the premium, heavy duty SSBK-620 broadcast spray boom that has a ten-foot spray swath. Featuring quick attach, no-drip flat fan spray nozzles that prevent excessive chemical dripping after spraying. With fold-able wings, easily prevent damage from oncoming obstacles such as trees or fold wings in for more compact storage. Comes standard with six flat fan nozzles. Coverage: This ATV sprayer is designed to handle up to 2 acres* of coverage in one sitting. Making it perfect for small to medium lawns and food plots with an ATV (4-wheeler). *Acreage coverage is based on running spraying application at 30 PSI while maintaining speed at 6 MPH.

What's Included

    (1) Sprayer

Features + Benefits

  • Designed to handle up to 2 acre in one sitting
  • 25-gallon translucent tank with raised volume markings
  • Broadcast spray up to 10 feet with all-steel foldable boom
  • Spray boom includes six quick attach flat fan nozzles
  • Spot spray up to 25 feet vertically and 30 feet horizontally
  • Adjustable deluxe spray gun goes from steady stream to mist
  • Everflo 12V diaphragm pump that delivers up to 2.2 GPM at 70 PSI
  • Pressure regulating system that includes regulator, pressure gauge and boom shut-off valve

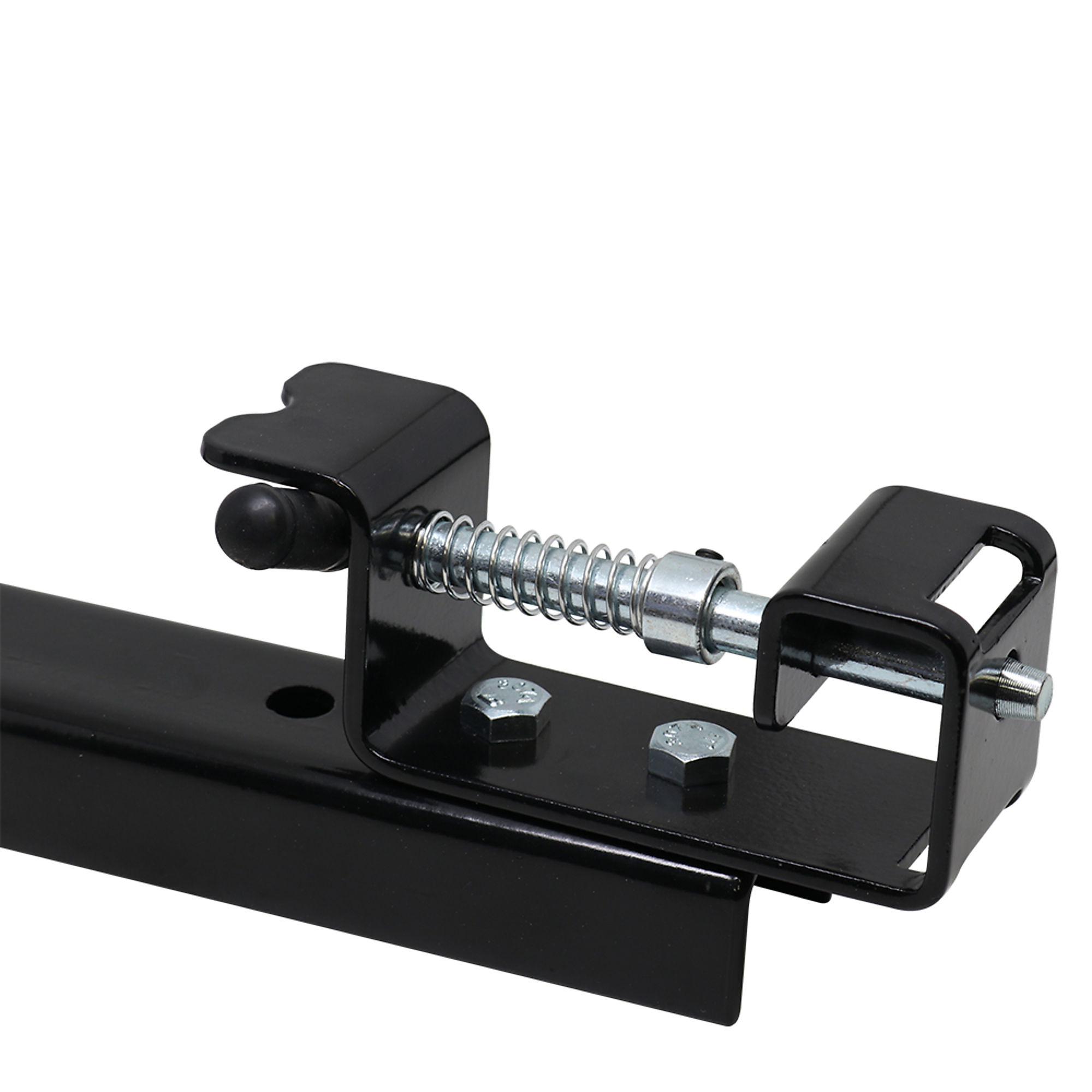

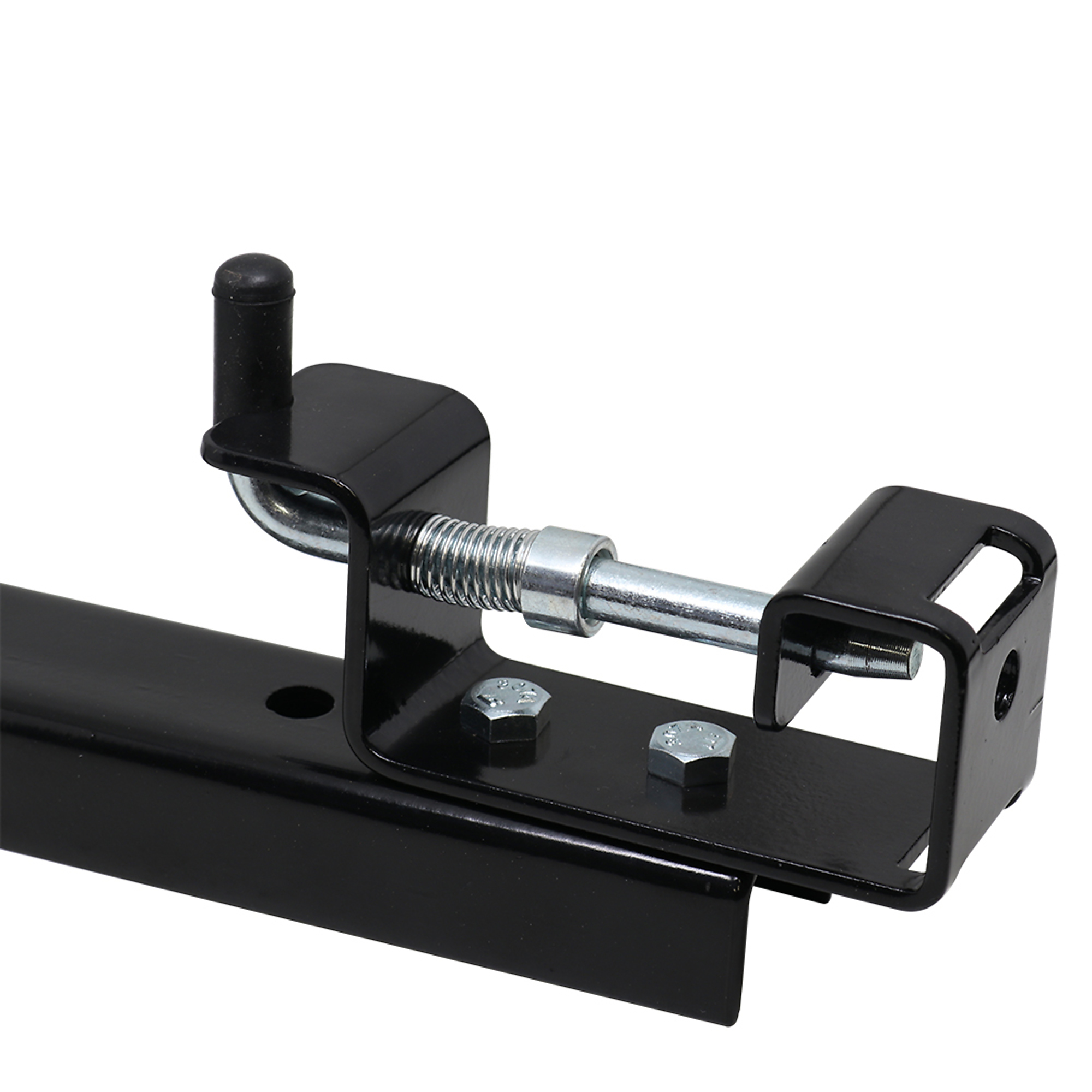

  • Spring-loaded all-steel bracket mounts to adjust boom to perfect height
  • 15 feet of rubber hose for extended spot spraying
  • Pre-installed hose strap to keep hose organized and off the ground
  • Inline strainer that keeps debris and chemical clumps out of tank
  • 6" tank lid with tether to keep fluids in

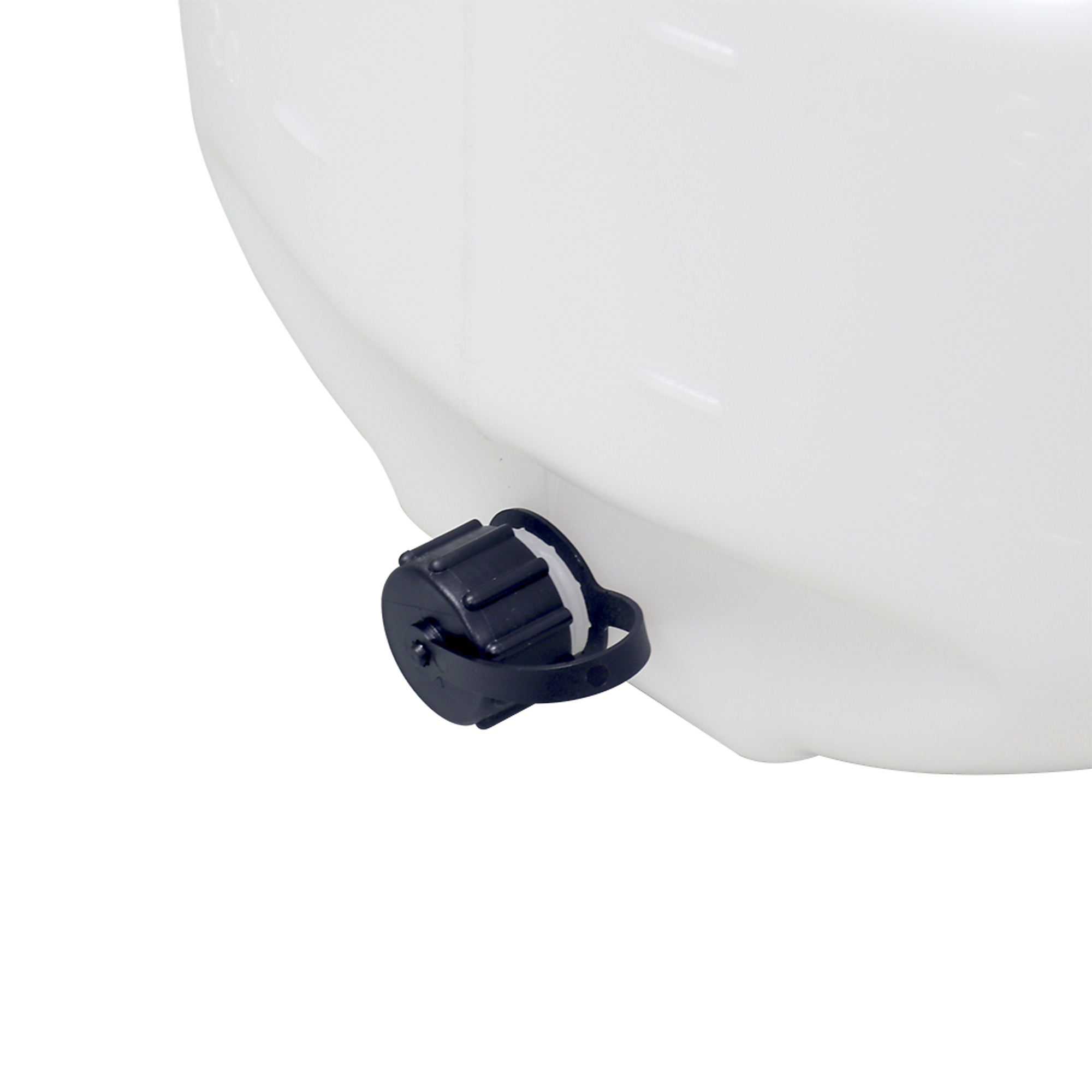

  • Molded-in drain port with tethered cap for complete draining
  • Includes 12-volt wire harness with power switch
  • Extra-thick tank walls for increased durability
  • Can be secured onto the back of an ATV, UTV and other vehicles
  • Comes with two ratchet straps for mounting to vehicle
  • Backed by a two-year warranty on manufacturer defects

Key Specs

AttributeSpecification

item#

6464527

Brand

Master Mfg

Manufacturer's Warranty

2 year limited warranty

Ship Weight

50.0 LB

Tank Size

25 Gal

Flow

2.2 GPM

Pressure

60 PSI

Broadcast Width

10 ft

Horizontal Spray Distance

30 ft
AttributeSpecification

Tank Material

Polyethylene

Spray Pattern

Steady Stream to Mist

Spray Gun Type

Deluxe Spray Gun

Nozzles (qty.)

6

Tow Behind Cart Included

No

Pump Type

12-Volt

Hose Length

180 in

Product Weight

50.0000 lb

Dimensions L x W x H (in.)

102.0 x 25.25 x 38.0 in

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–6 of 6 Questions
Sort by:

  1. Can it be mounted in the front of a stand on mower?

    1 answer

    1. The sprayer is not designed for a front standing mower. It will depend if the dimensions will accommodate the size of the sprayer and if the mower will allow the weight capacity.

      Helpful?

  2. How to put it on a utv

    1 answer

    1. The sprayer is designed to be strapped down to the back of the UTV using the (2) ratchet straps included.

      Helpful?

  3. does this tank sprayer have an in tank agitator to keep chemicals suspended during the spraying?

    1 answer

    1. This sprayer has a bypass feature that allows what is not used to be flushed back into the tank but it does not have an agitator.

      Helpful?

  4. In the description it says the tank is 102 inches wide. Is this correct or is this a misprint?

    1 answer

    1. The dimension of 102 inches is the overall width of the unit including the boom. The dimensions for the tank are 35.5 inches L x 17 5/8 inches W x 16.25 inches H.

      Helpful?

  5. Does this require a connection to the vehicle battery?

    1 answer

    1. The Master Mfg 25-Gal ATV Broadcast Sprayer must be connected to a 12-volt battery to power the pump.

      Helpful?

  6. Can you use just one section at a time or select specific nozzles?

    1 answer

    1. You could not use just one section at a time or select specific nozzles to use with this sprayer.

      Helpful?

Warranty

Manufacturer's Warranty

2 year limited warranty
