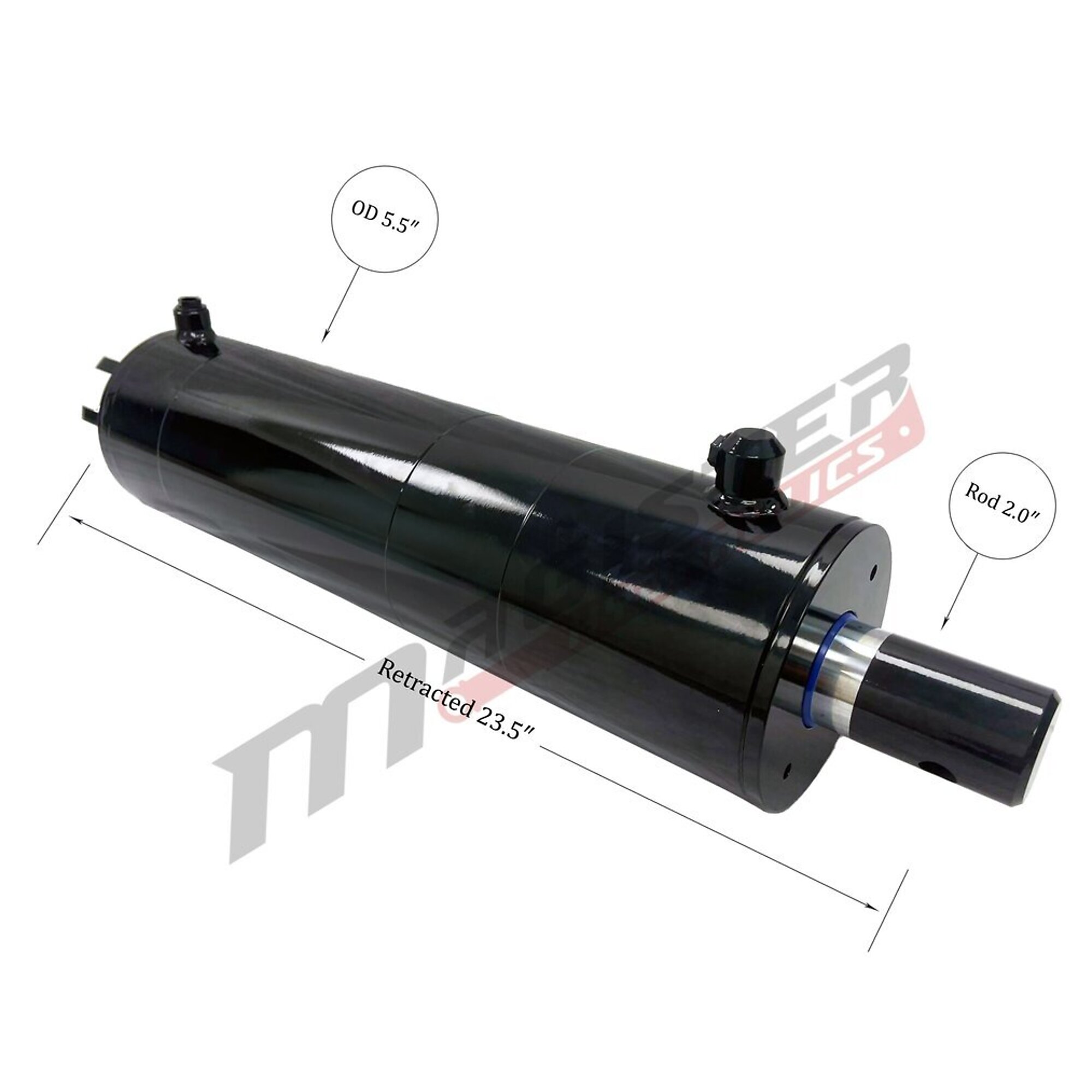

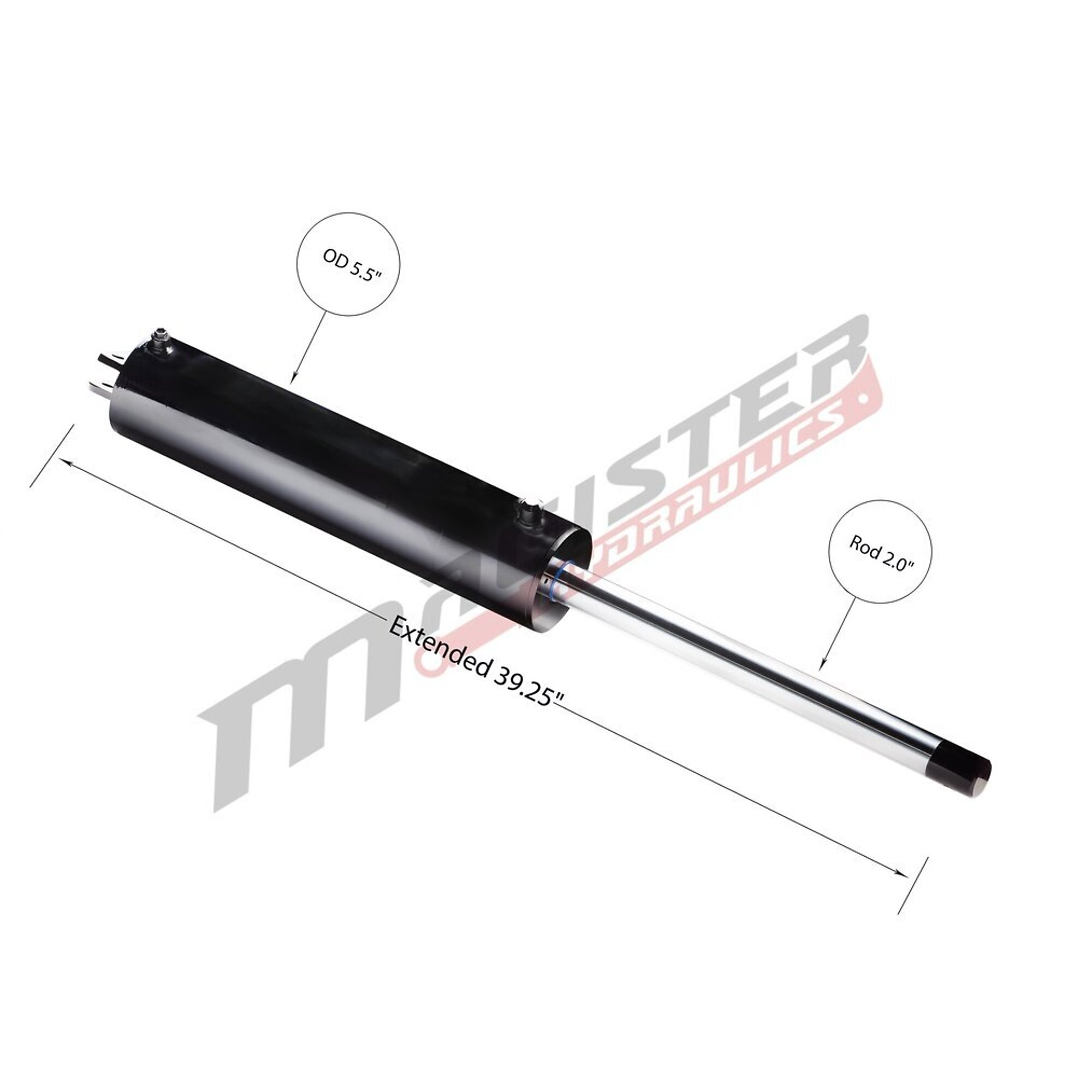

Magister 5" bore x 15.75" stroke Dump Hoist Hydraulic Cylinder HTC 5x15.75
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Made in Europe, American Standards

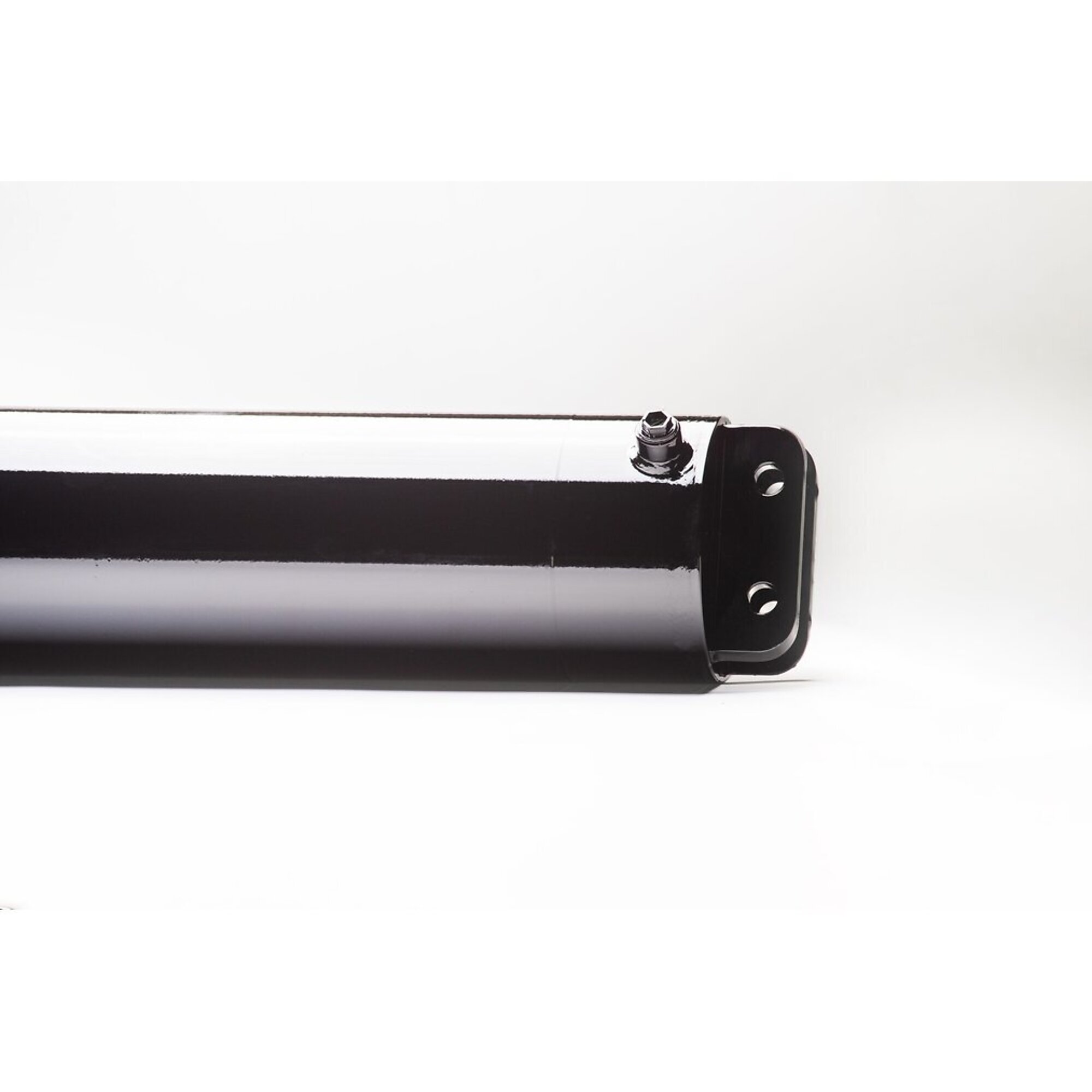

- Extreme Load Capacity: Mounting flange is one solid machined piece as base end, ? 5.5" honed cold-drawn tubing, ? 2.0" heavy-duty chrome-plated rod (steel 1045) with through-hole end for pin attachment and top-quality
- Wide Range Hydraulic Applications: Engineered for high-force lifting, this dump hoist cylinder is ideal for use in dump trailers, tilt trailers
- Double-Acting Functionality: Provides controlled power in both directions, ensuring efficient and versatile performance for a variety of applications
- High-Quality Construction: Steel piston and steel gland with wear rings, crafted from premium-grade materials, offering exceptional durability, corrosion resistance, and long-lasting service life
See full description
See All Welded Clevis Cylinders
See All Welded Clevis Cylinders
Currently Viewing This Product

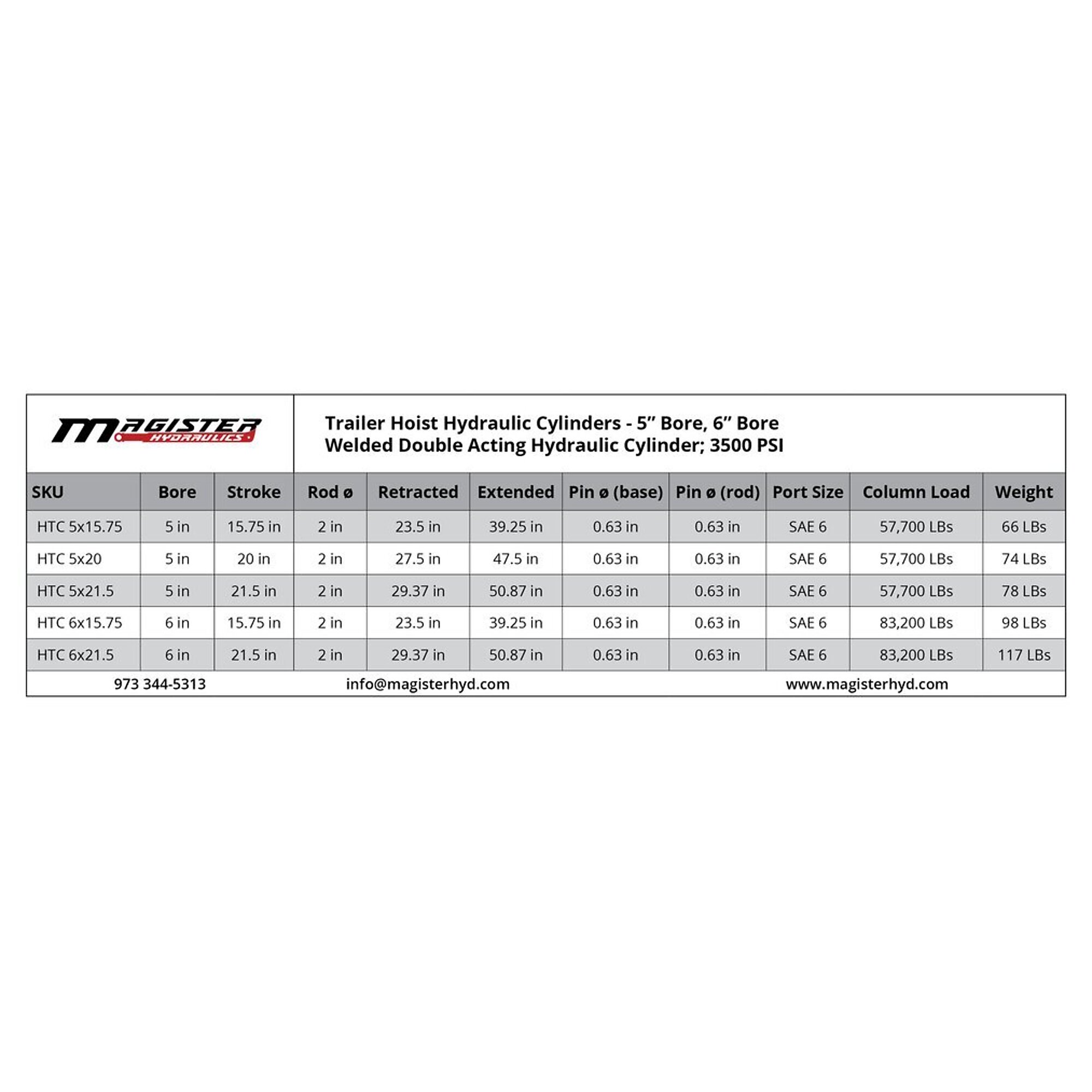

Specifications
3,500
3,000
3,000
3,000
5 in
3 in
2 in
4 in
15.75 in
18 in
10 in
12 in
2 in
1.5 in
-
-
57,724 lb
21,200 lb
-
-
23.5 in
-
-
-
23.5 in
28.25 in
20.25 in
22.25 in
39.25 in
46.25 in
30.25 in
34.25 in
0.63 in
1 in
1 in
1 in
0.375 in
-
-
-
5.36 lb
-
-
-
68.0000 lb
37.0000 lb
19.6400 lb
47.0900 lb
34.0 x 8.0 x 8.0 in
31.0 x 4.0 x 5.0 in
30.25 x 2.0 x 2.0 in
34.25 x 4.0 x 4.0 in
