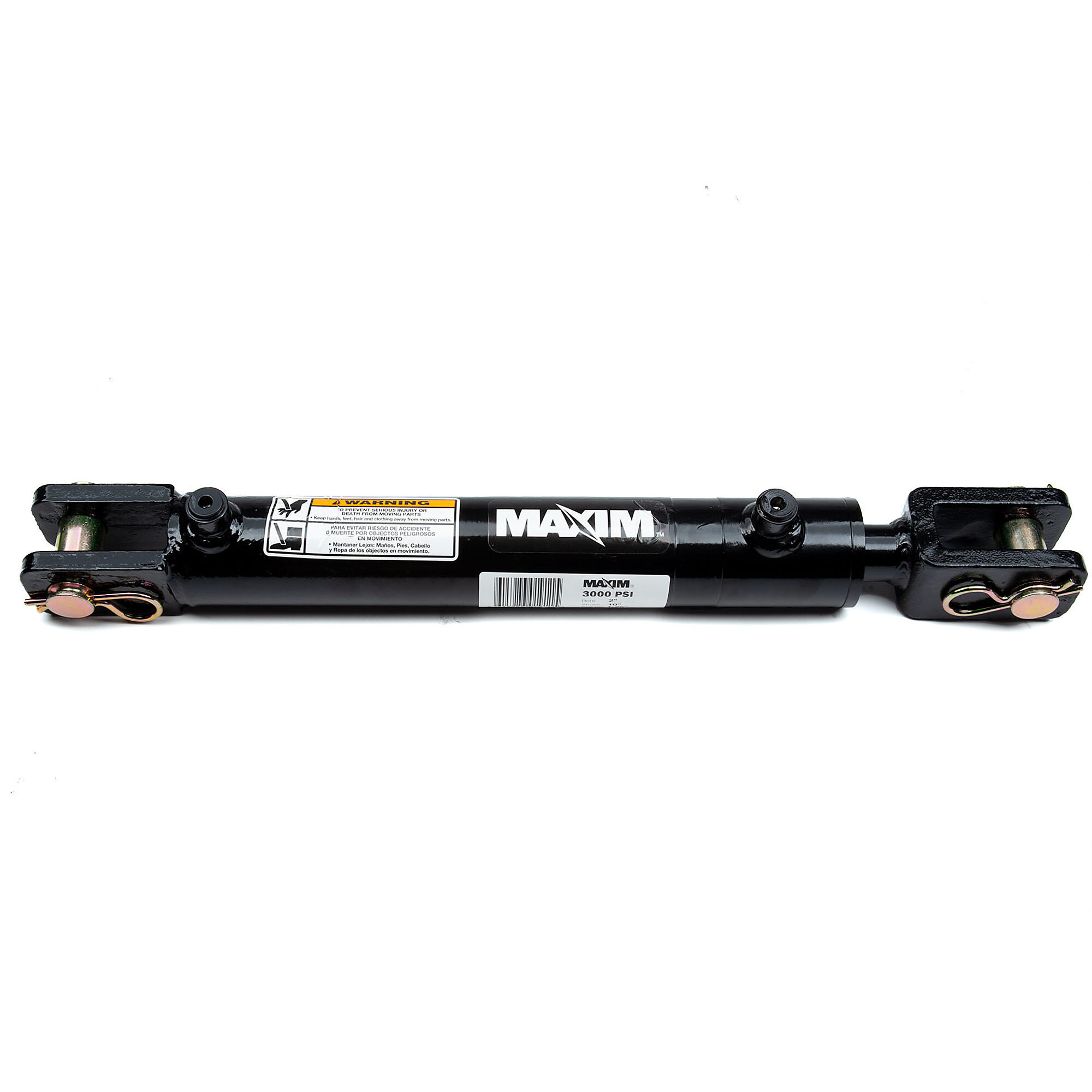

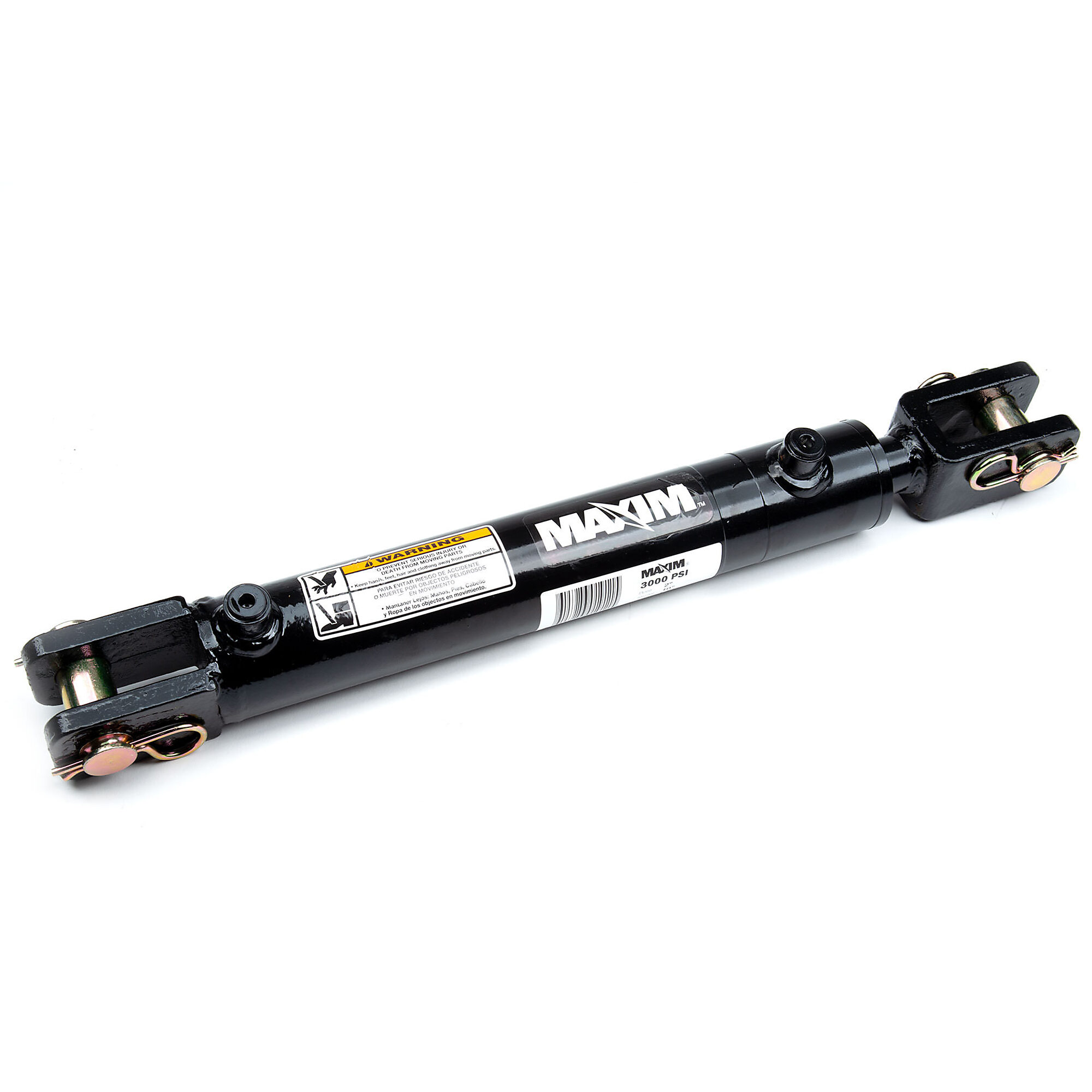

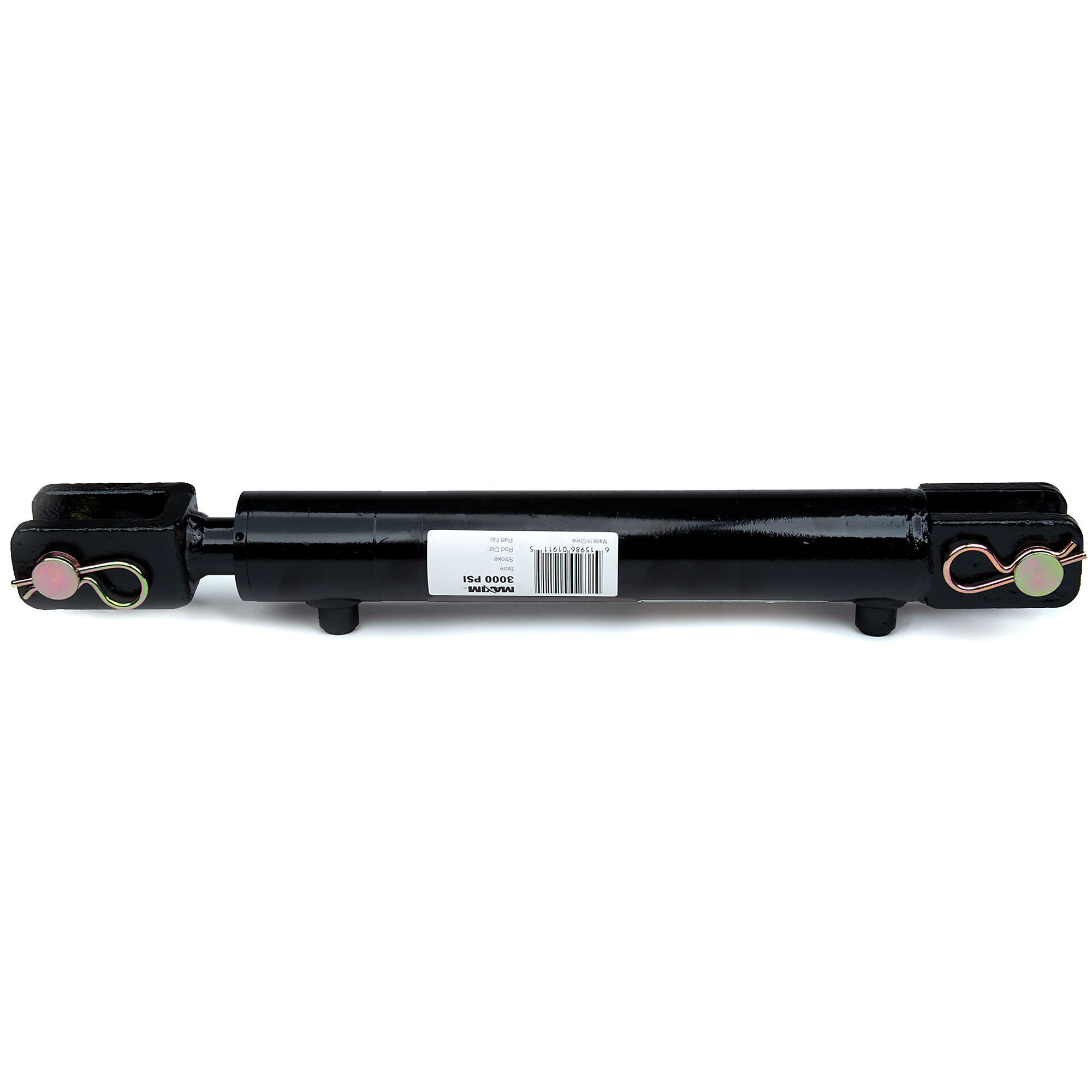

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 6 in, Model# 288401

Item# 4858338
"Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 6 in, Model# 288401"
Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 6 in, Model# 288401

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Maxim, WC Welded Cylinder, Max. PSI 3000, Bore Diameter 2 in, Stroke Length 6 in, Model# 288401

Click or Tap image to Zoom

$181.87

  • Shipping:

    Available now

  • Store Pickup:

    Out of stock at Fredericksburg VA

  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut

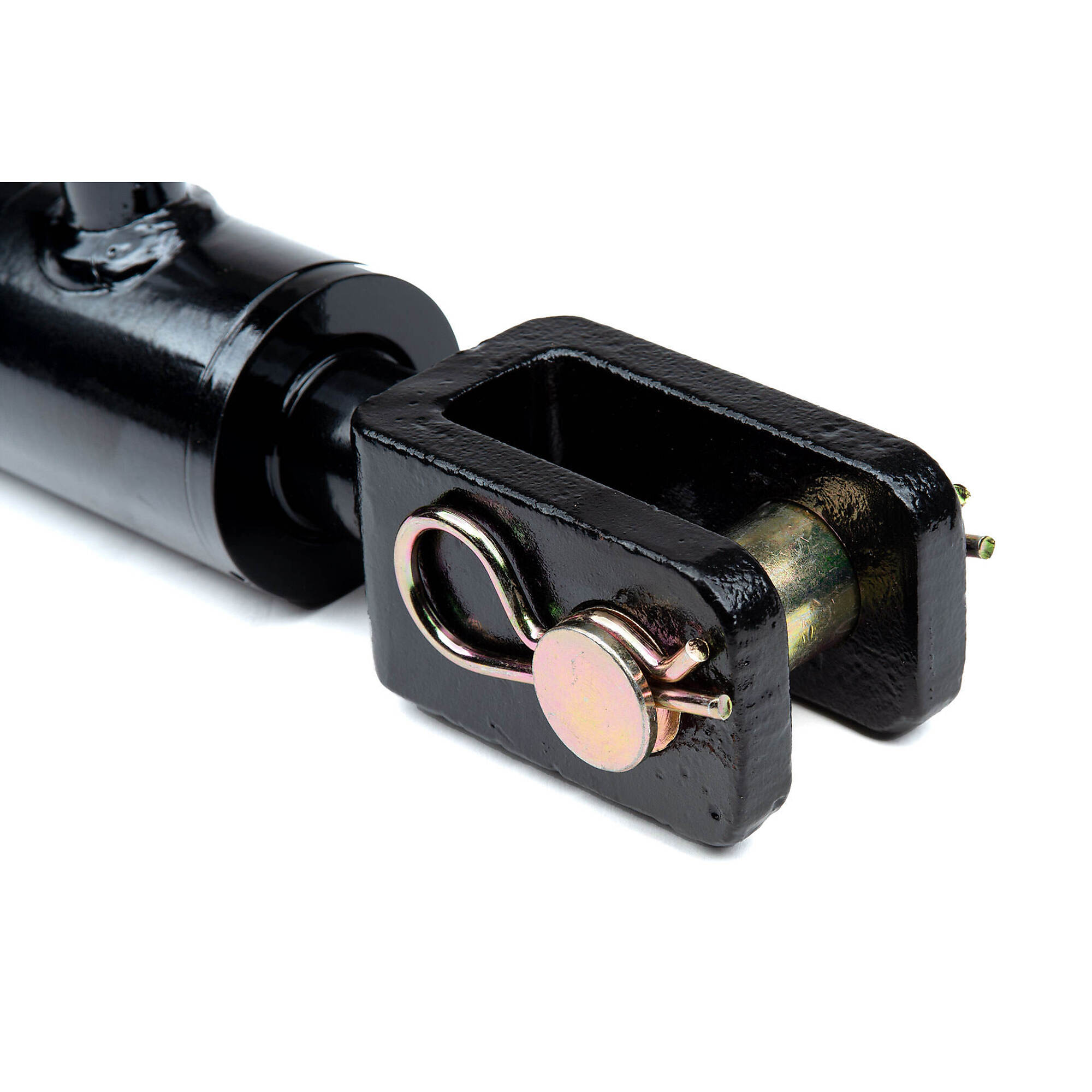

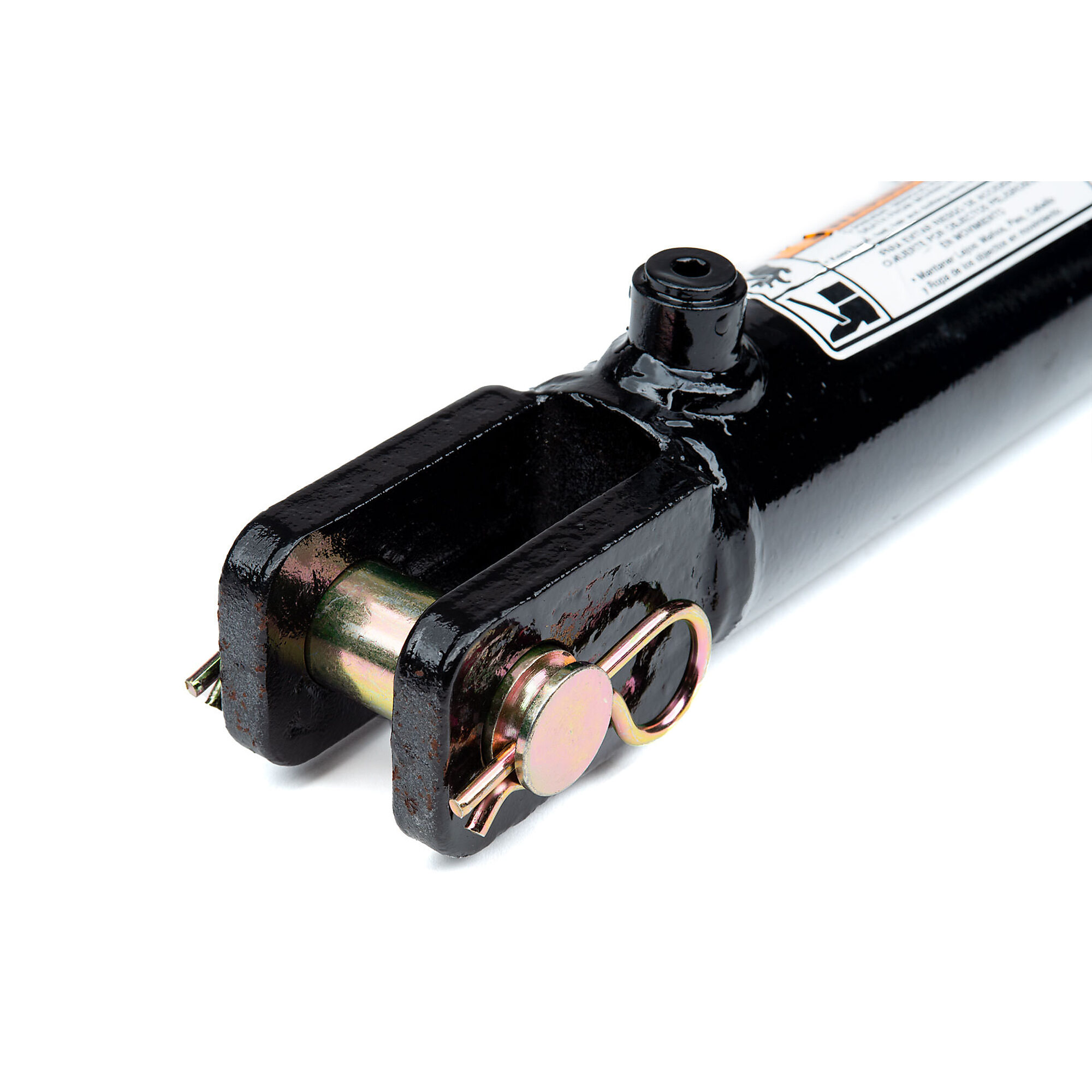

  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Maxim WC welded hydraulic cylinder is designed for demanding applications and built to ensure maximum reliability and performance, exceeding the highest standards. Manufactured from precision-forged steel with a hard chrome-plated rod, this cylinder is made for durability. For maximum flexibility the base-end clevis extends an extra 2in. to offer a greater swing radius. For the highest reliability, the Maxim WC features a piston made from ductile iron with a long-lasting Hallite 755 wear ring, Buna o-ring tube seals, a deep PolyPak rod seal with a B-lip design, and snap-in urethane rod wiper. This cylinder is rated for 3000 psi and female clevis-mounted with included pins and clips. Comes standard in black.

What's Included

    (1) Cylinder

Features + Benefits

  • Ductile iron ASTM A536 65-45-12 for excellent life
  • Grade 8, high tensile zinc-plagted piston lock nut
  • Steel-cast female clevis end mounts
  • Polypak rod seal with B lip design

Key Specs

AttributeSpecification

item#

4858338

Brand

Maxim

Manufacturer's Warranty

1 year limited warranty

Ship Weight

13.8 LB

Max. PSI

3,000

Bore Diameter

2 in
AttributeSpecification

Stroke Length

6 in

Retracted Length

16.25 in

Extended Length

22.25 in

Pin Diameter

1 in

Product Weight

17.7700 lb

Dimensions L x W x H (in.)

22.25 x 2.0 x 2.0 in

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–3 of 3 Questions
Sort by:

  1. CAN THIS BE USED AS A SINGLE ACTING CYLINDR

    1 answer

    1. This double acting cylinder can be used as a single acting cylinder if one of the ports is plugged.

      Helpful?

  2. What is the thread type and size for the fittings?

    1 answer

    1. The port size is an SAE 6 (9/16"-18) O ring straight thread.

      Helpful?

  3. Are those measurements from pin center to center? What is the inside width of the clevis?

    1 answer

    1. The extended and retracted lengths are measured from center of pin to center of pin. The width inside the clevis on the rod end is 2.125”. The width inside the clevis on the base end is 1.225”.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
