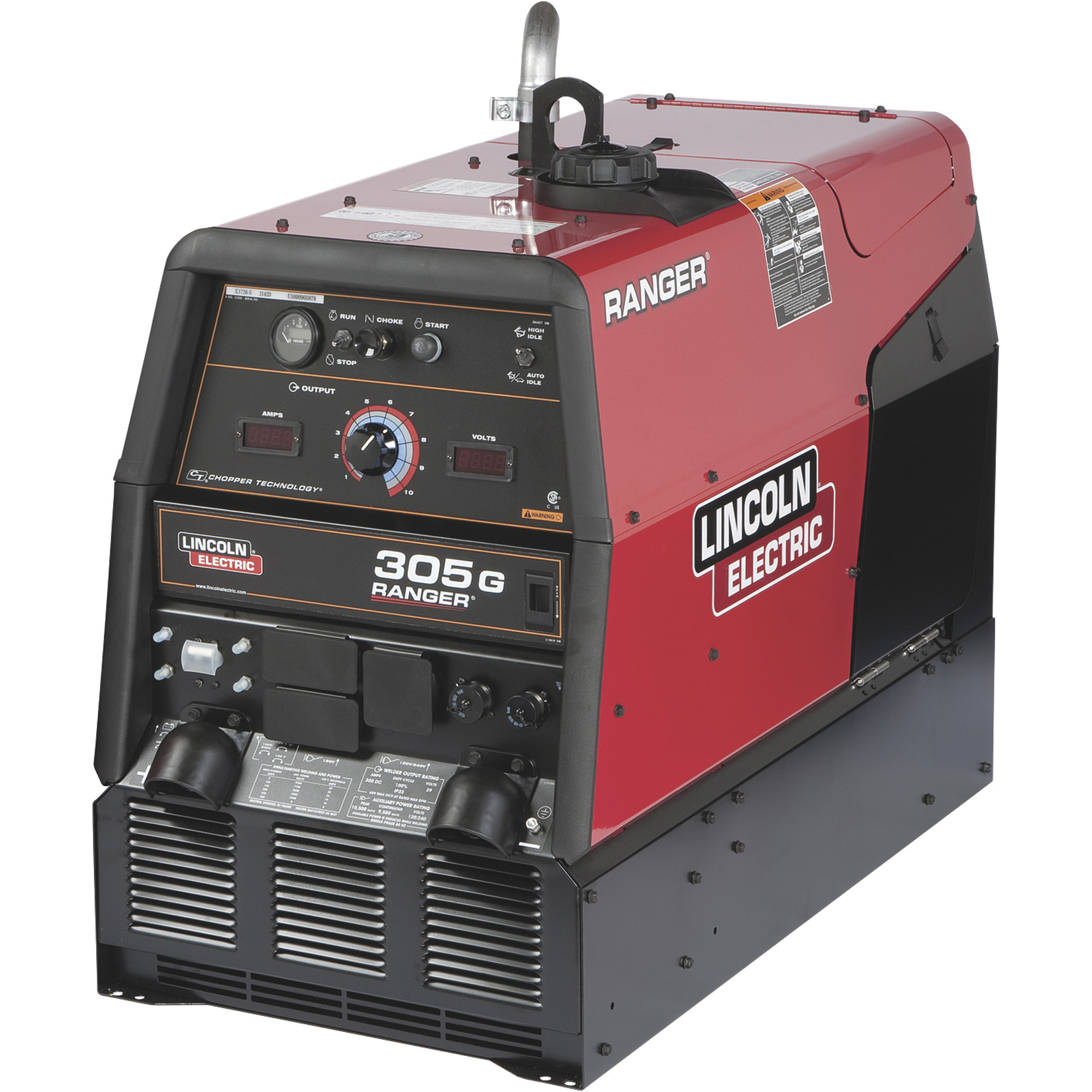

Lincoln Electric, LN RANGER 305 G, Max. Amps 305 Model# K1726-5

Item# 167745
Lincoln Electric, LN RANGER 305 G, Max. Amps 305 Model# K1726-5

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric, LN RANGER 305 G, Max. Amps 305 Model# K1726-5

Click or Tap image to Zoom

  • Powerful 23 HP, 674cc Kohler gas engine with pushbutton electric start
  • 10,500 surge Watts generator power; 9,500 Watts continuous power
  • Stick, TIG, wire and pipe welding capabilities and arc gouging with up to 300 Amp output
  • Welds steel, stainless steel and cast iron
  • Welds using up to 5/32in. stick electrodes

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Lincoln Electric Ranger 305G Welder/Generator with 674CC Kohler Gas Engine and Electric Start is a powerful stick, TIG, wire and pipe welding, engine-driven welder. It is ready for all day, everyday performance and includes Lincoln's Chopper Technology® for superior arc performance. Since it also includes a powerful generator that produces 9,500 Watts of continuous power and 10,500 surge watts, it provides the power needed to run power equipment, lights, grinding equipment or other power tools at a jobsite. The Ranger provides excellent DC welding for general purpose welding and arc gouging operations, providing an unparalleled 29V for 300 Amp power for stick welding. Lincoln's Chopper technology provides easy starts, a smooth, reliable arc, low spatter and excellent bead appearance. The Ranger is powered by a 23 HP Kohler engine.

What's Included

    (1) Lincoln Ranger welder

Downloads

Product Manual

Features + Benefits

  • Powerful 23 HP, 674cc Kohler gas engine with pushbutton electric start
  • 10,500 surge Watts generator power; 9,500 Watts continuous power
  • Stick, TIG, wire and pipe welding capabilities and arc gouging with up to 300 Amp output
  • Welds steel, stainless steel and cast iron
  • Welds using up to 5/32in. stick electrodes
  • Dual digital output meters allow presetting weld amps
  • Duty cycle: 100% @ 305 Amps, 29V
  • CC-Stick mode is optimized for general purpose stick welding using E7018 low hydrogen electrode
  • Downhill pipe welding mode is excellent for cellulosic electrodes, providing fast travel speeds
  • Integrated arc control provides a soft or more forceful digging arc
  • Touch-Start DC TIG® mode lifts tungsten to start arc, with no high frequency required, avoiding contamination in weld
  • Simple controls keep training time to minimum

Key Specs

AttributeSpecification

item#

167745

Brand

Lincoln Electric

Manufacturer's Warranty

36 months parts/36months labor

Ship Weight

510.0 LB

Max. Amps

305

Power Type

DC

Multi-process

Yes

Spool Gun Included

No

Duty Cycle

100% At 305a

Engine Type

Other

Fuel Type

Gasoline

Fuel Capacity

12 Gal

Engine Displacement

44 cc
AttributeSpecification

Electric Start

Yes

Battery Included

Yes

Receptacles Included

Yes

Lifting Hook

Yes

Welding Cables Included

No

Generator Output (Continuous Watts)

9,500

Generator Output (Surge Watts)

10,500

Weldable Materials

Steel, Stainless Steel, Cast Iron

Min. Amps

20

Wire Feed Speed Control

No

Cart Included

No

Mig Ready

No

Reviews

Questions & Answers

Accessories We Recommend

This is a carousel with auto-rotating slides. Activate any of the buttons to disable rotation. Use Next and Previous buttons to navigate, or jump to a slide with the slide dots.

Warranty

Manufacturer's Warranty

36 months parts/36months labor
