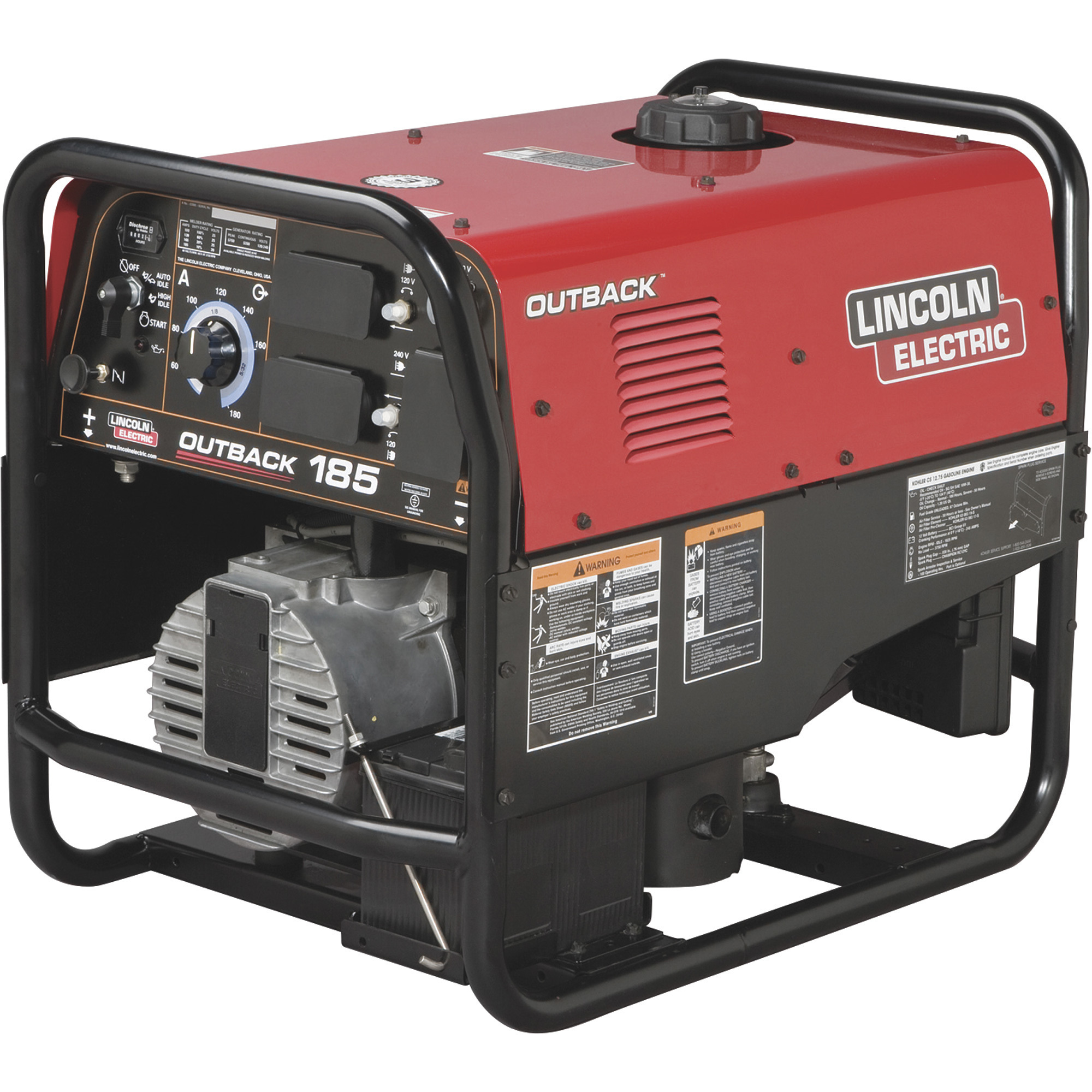

Lincoln Electric Outback 185 Arc Welder/Generator with 360CC Kohler Gas Engine, 50–185 Amp DC Output, 5700 Watt AC Power, Model# K2706-2

Item# 167747
"Lincoln Electric Outback 185 Arc Welder/Generator with 360CC Kohler Gas Engine, 50–185 Amp DC Output, 5700 Watt AC Power, Model# K2706-2"
Lincoln Electric Outback 185 Arc Welder/Generator with 360CC Kohler Gas Engine, 50–185 Amp DC Output, 5700 Watt AC Power, Model# K2706-2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Lincoln Electric Outback 185 Arc Welder/Generator with 360CC Kohler Gas Engine, 50–185 Amp DC Output, 5700 Watt AC Power, Model# K2706-2

Click or Tap image to Zoom

$6999.99

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • The Outback® 185 engine driven welder has portable DC stick welding with AC generator power.
  • Low-Lift™ Grab Bars (Patent Pending)
  • All Engine Controls on Front Control Panel
  • 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
  • 6.8 Gallon (25.7 Liter) Fuel Tank

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Lincoln Electric Outback 185 Arc Welder/Generator with 360CC Kohler Gas Engine, 50–185 Amp DC Output, 5700 Watt AC Power, Model# K2706-2
  • Hobart Filler Metals Stick Welding Electrodes, 7018, 5/32in. x 14in.L, 5-Lb. Container, Model# 770480
  • Hobart Filler Metals Stick Welding Electrodes 6011, 5/32in. x 14in.L, 5-Lb. Container, Model# 770462
  • Hobart Welding Apron, Leather, Brown, One Size Fits Most, Model# 770548
Price for all four:

$7099.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

Built for the Outdoors!™ Great for anyone who needs portable DC stick welding and AC generator power! The Low-Lift™ grab bars on both ends make lifting the Outback® 185 on and off truck beds easy. The compact Outback® 185 is easy to start with all engine controls on the front of the machine, and it’s easy to use for welding. Use the AC generator power for a variety of applications described below with the large 6.8 gallon (25.7 liter) fuel tank! Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding too. Low-Lift™ Grab Bars More leverage for lifting unit on and off truck beds. Extra protection against product damage. Best in class feature! All Engine Controls on Front Control Panel Easy access for starting, especially when mounted on truck beds. Front panel includes electric start switch and engine choke control. Best in class feature! 1-1/4in. (32 mm) Diameter Rugged Tube Frame Great for all-around sturdy protection. Best in class feature! 6.8 Gallon (25.7 Liter) Fuel Tank Less frequent re-fueling, for extended run times. Large fuel fill opening for easy re-fueling too! Best in class feature! Weld with up to 5/32in. (4 mm) Stick Electrode Up to 185 amps of DC output for many applications. 5,700 Watts Peak AC Generator Power (5,200 Watts Continuous). Many uses! Grinder, work lights, pump, motor starting, or emergency power. Plug in a Lincoln Electric POWER MIG® 140C or POWER MIG® 180C for wire welding. Plug in a Lincoln Electric Tomahawk® 375 Air to cut metal.

What's Included

    (1) Outback 185 Engine Driven Welder

Downloads

Product Manual
Safety Data Sheet
Play Item Video

Features + Benefits

  • The Outback® 185 engine driven welder has portable DC stick welding with AC generator power.
  • Low-Lift™ Grab Bars (Patent Pending)
  • All Engine Controls on Front Control Panel
  • 1-1/4 in. (32 mm) Diameter Rugged Tube Frame
  • 6.8 Gallon (25.7 Liter) Fuel Tank
  • Delivers up to 21.6 Amps continuous power from 240V AC receptacle and up to 40 Amps continuous power from 120V AC duplex receptacle
  • Duty cycle: 100% @ 25V DC, 25V
  • Low lift grab bars provide better leverage
  • All engine controls are located on the front control panel for easy access and quick starting, especially from truck beds
  • Rugged tube frame construction
  • Large fuel fill opening for easier refueling
  • 3 outlets feature circuit breaker protection and have weather protective covers

Key Specs

AttributeSpecification

item#

167747

Brand

Lincoln Electric

Manufacturer's Warranty

3 year limited warranty

Ship Weight

320.0 LB

Max. Amps

185

Power Type

DC

Multi-process

No

Spool Gun Included

No

Duty Cycle

100% At 100a

Fuel Type

Gasoline

Fuel Capacity

6.8 Gal

Engine Type

4 Cycle

Engine Displacement

429 cc

Electric Start

Yes

Battery Included

Yes
AttributeSpecification

Welding Power Output Type

DC

Hour Meter Included

Yes

Receptacles Included

Yes

120V Receptacles Included

4

240V Receptacles Included

1

GFCI Protection

Yes

Lifting Hook

Yes

Welding Cables Included

No

Generator Output (Continuous Watts)

5,200

Generator Output (Surge Watts)

5,700

Weldable Materials

Most Metals

Min. Amps

50

Wire Feed Speed Control

No

Cart Included

No

Mig Ready

No

Reviews

Questions & Answers

3 Reviews This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. can you boost a vehicle with this welder?

    1. This Lincoln Electric Outback 185 DC Arc Welder/AC Generator will allow you to give power to a battery charger or jump starter when using the generator supplied with this machine. The generator itself cannot give the boost.

      Helpful?

    2. The generator supplied with this machine is capable of giving power to a battery charger or jump starter if one is plugged into it. The generator itself cannot give the boost.

      Helpful?

  2. I will like to know what is the longest length of cable to use on the k2706-1 outback 185

    1. Per the manufacturer, the longest length of cable that can be used on this machine is 30 ft.

      Helpful?

    2. The cable can be any length but would need to be a heavier cable depending on the length desired.

      Helpful?
