The product specifications for the Lincoln Electric Model #K5387-2 indicate an input current draw of 20 amps at 120 volts.
Lincoln Electric Easy-MIG Welder Kit with Spool Gun — 140A, 120V, Model# K2698-1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedStore Pickup:
Not available - online only
- WELD ANYWHERE: Plug in the EASY MIG® 140 wire feed welder anywhere 120V input power is available
- WELDING CAPABILITES: Weld up to 140 Amps and a maximum thickness of 5/16in
- EXTRA PROTECTION: Metal case provides protection from the elements
- PORTABLE: Ideal for maintenance and mobile welders
- EASY-TO-USE: Simple two-knob control for wire speed and voltage
Prop 65 Warning: See Details
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included

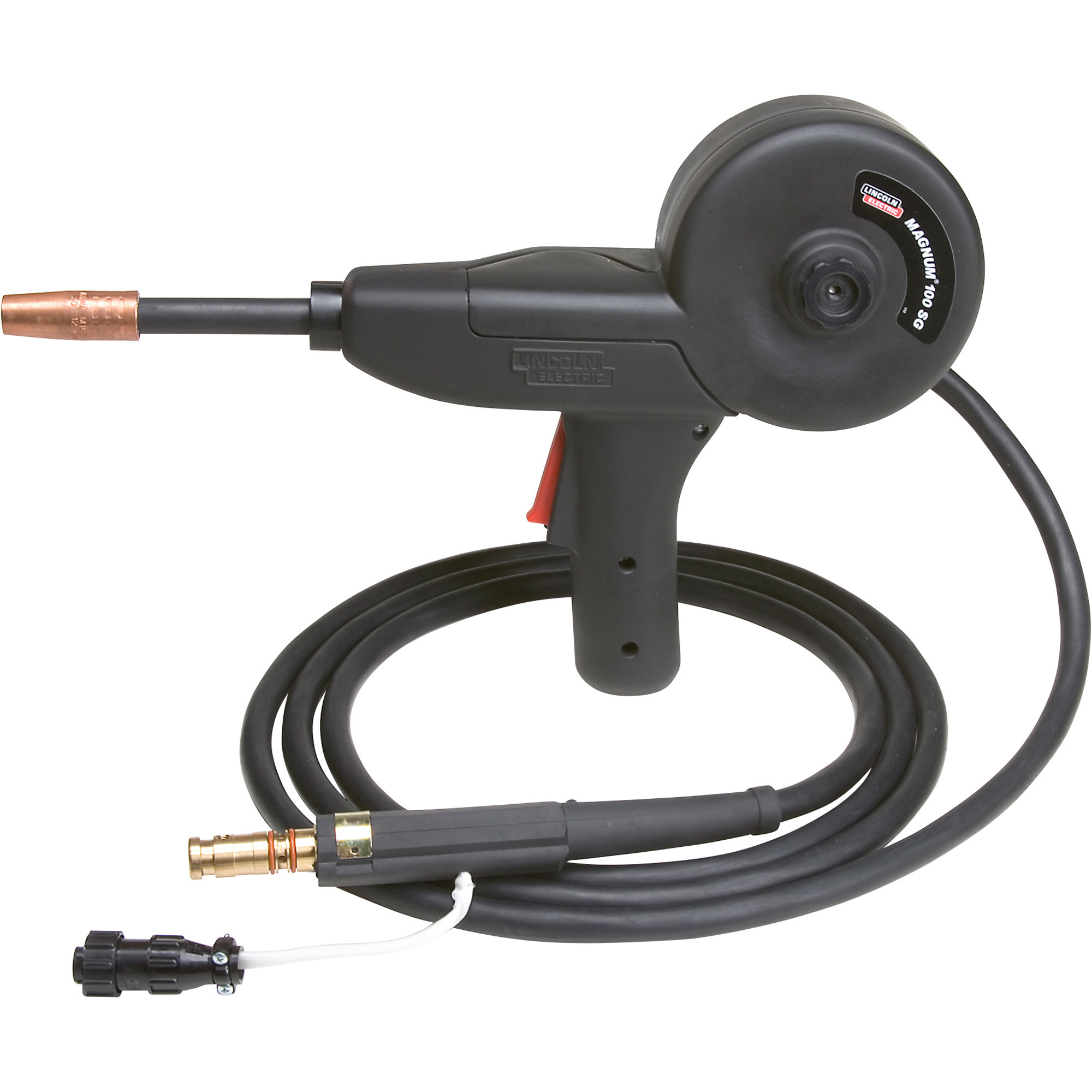

- (1) K2697-1 Easy MIG 140 (1) K2532-1 Spool Gun
Downloads

Features + Benefits
- WELD ANYWHERE: Plug in the EASY MIG® 140 wire feed welder anywhere 120V input power is available
- WELDING CAPABILITES: Weld up to 140 Amps and a maximum thickness of 5/16in
- EXTRA PROTECTION: Metal case provides protection from the elements
- PORTABLE: Ideal for maintenance and mobile welders
- EASY-TO-USE: Simple two-knob control for wire speed and voltage
- PERFECT FOR ANY WELD JOBS: This machine is best for DIY projects, hobbyists, home repairs and more
- HEAVY DUTY WIRE DRIVE: Fully adjustable drive system reduces the chance of wire tangling and crushing
- ENHANCED QUALITY: Brass-to-brass gun connection enhances conductivity
- Application: Shop, Farm, and Home
- MIG Aluminum Welder capabilities
Key Specs
| Attribute | Specification |
|---|---|
item# | 113752 |
Brand | Lincoln Electric |
Manufacturer's Warranty | 3 year limited warranty |
Ship Weight | 75.0 LB |
Volts | 120 |
Max. Amps | 140 |
Power Type | AC |
Multi-process | Yes |
Spool Gun Included | Yes |
Welding Processes | Flux-Core, MIG |
Max. Weld Thickness | 0.18 in |
Max. Welding Wire Diameter | 0.035 in |
Duty Cycle | 20% At 90a |
| Attribute | Specification |
|---|---|
Weldable Materials | Mild Steel, Aluminum |
Min. Amps | 30 |
Wire Feed Speed Control | Yes |
Cart Included | No |
Mig Ready | Yes |
Power Cord Length | 10 ft |
Clamp Cable Length | 10 ft |
Electrode Cable Length | 10 ft |
Regulator and Gas Hose Included | Yes |
Shielding Gas Required | No |
Product Weight | 22.7000 lb |
Dimensions L x W x H (in.) | 13.7 x 10.15 x 17.9 in |
Reviews
Questions & Answers
Questions
-
· 5 months ago
Can this welder be used on 20 amp circuit in my shop
1 answer-
ProductExpert13· 5 months ago
Helpful?
-
-
· 2 years ago
can i use a generator with this, I have been told if the power supply is is modern yes (IGBT) even if final is transformer
1 answer-
ProductExpert6· 2 years ago
The welder can be used with a generator. It would require a minimum 2400 running watts to operate.
Helpful?
-
-
· 3 years ago
What aluminum wire should I run
1 answer-
ProductExpert12· 3 years ago
A 4043 size 0.035" aluminum wire like item 5018082 is recommended for use with this welder.
Helpful?
-
