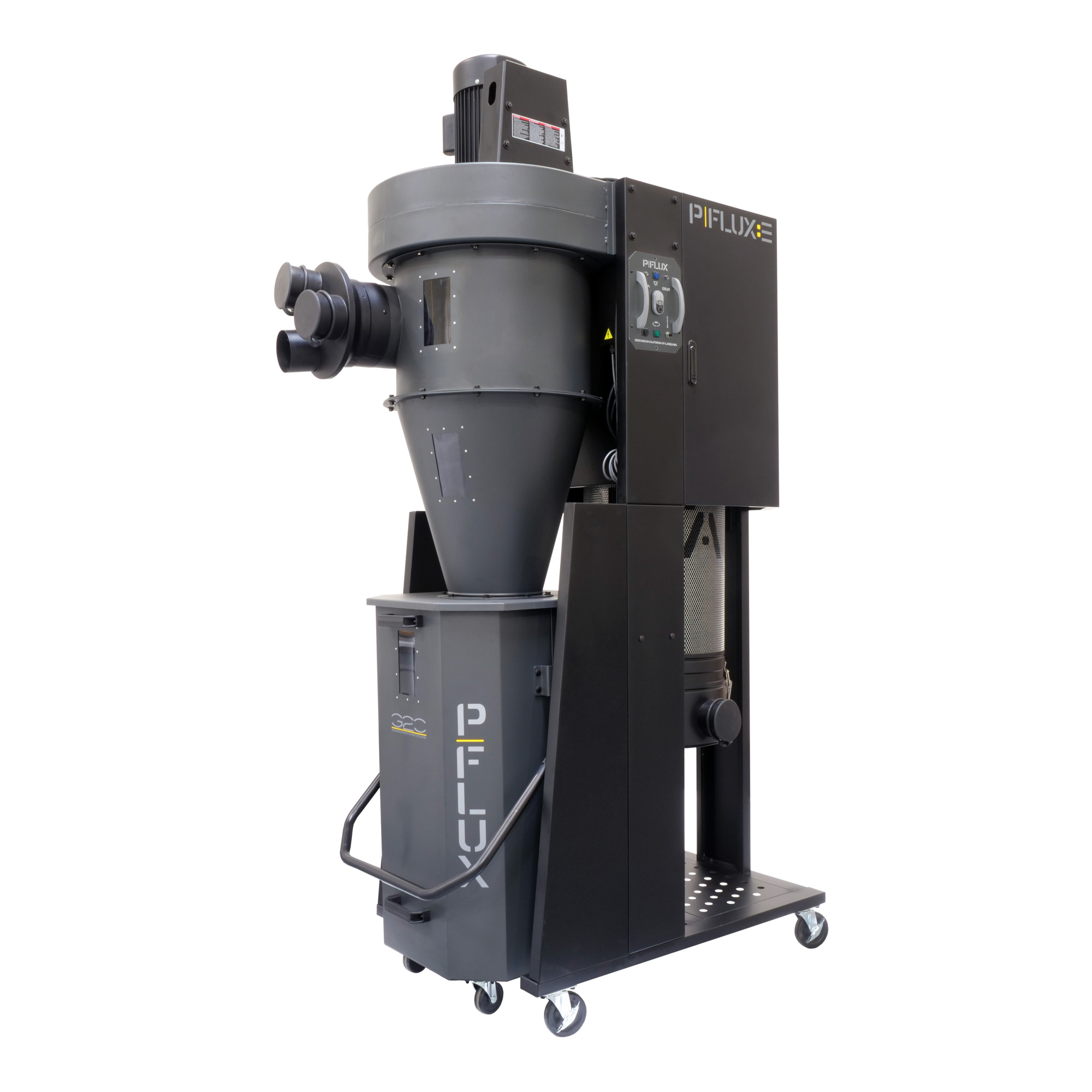

Laguna Cyclone Dust Collector - 3HP, 220V, 46-Gallon Capacity, HEPA Filter, Model# P|FLUX: 3

Item# 6490231
Laguna Cyclone Dust Collector - 3HP, 220V, 46-Gallon Capacity, HEPA Filter, Model# P|FLUX: 3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Laguna Cyclone Dust Collector - 3HP, 220V, 46-Gallon Capacity, HEPA Filter, Model# P|FLUX: 3

Click or Tap image to Zoom

$4929.78

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Motor Specs: 3HP Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM Running AMP: (8? Inlet) 22A at 220V; Maximum Air Flow: 2718 CFM (Cubic Feet Per Minute) Shop Setting Air Flow*: 1624 CFM Max Static Pressure: 11.2?
  • Fan Size: 15.5? Inlet: 8? (8? x 4? x 3 Ports) Auto Clean: 10 min. Interval 10 Seconds F+R Remote Control: High Frequency Collection Capacity: 46 Gallon Octagon Drum Decibel Reading: 76 dB (@9.8ft)

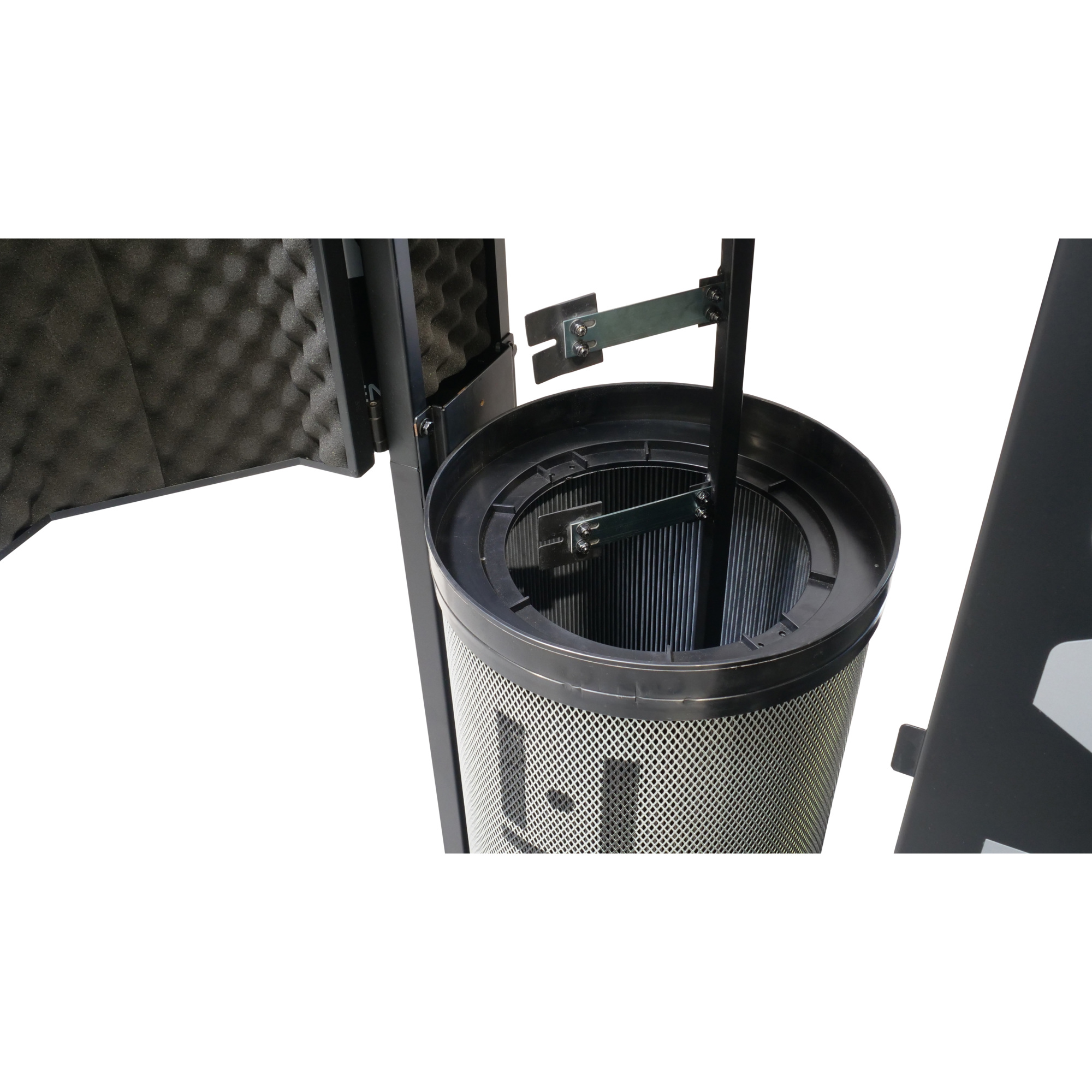

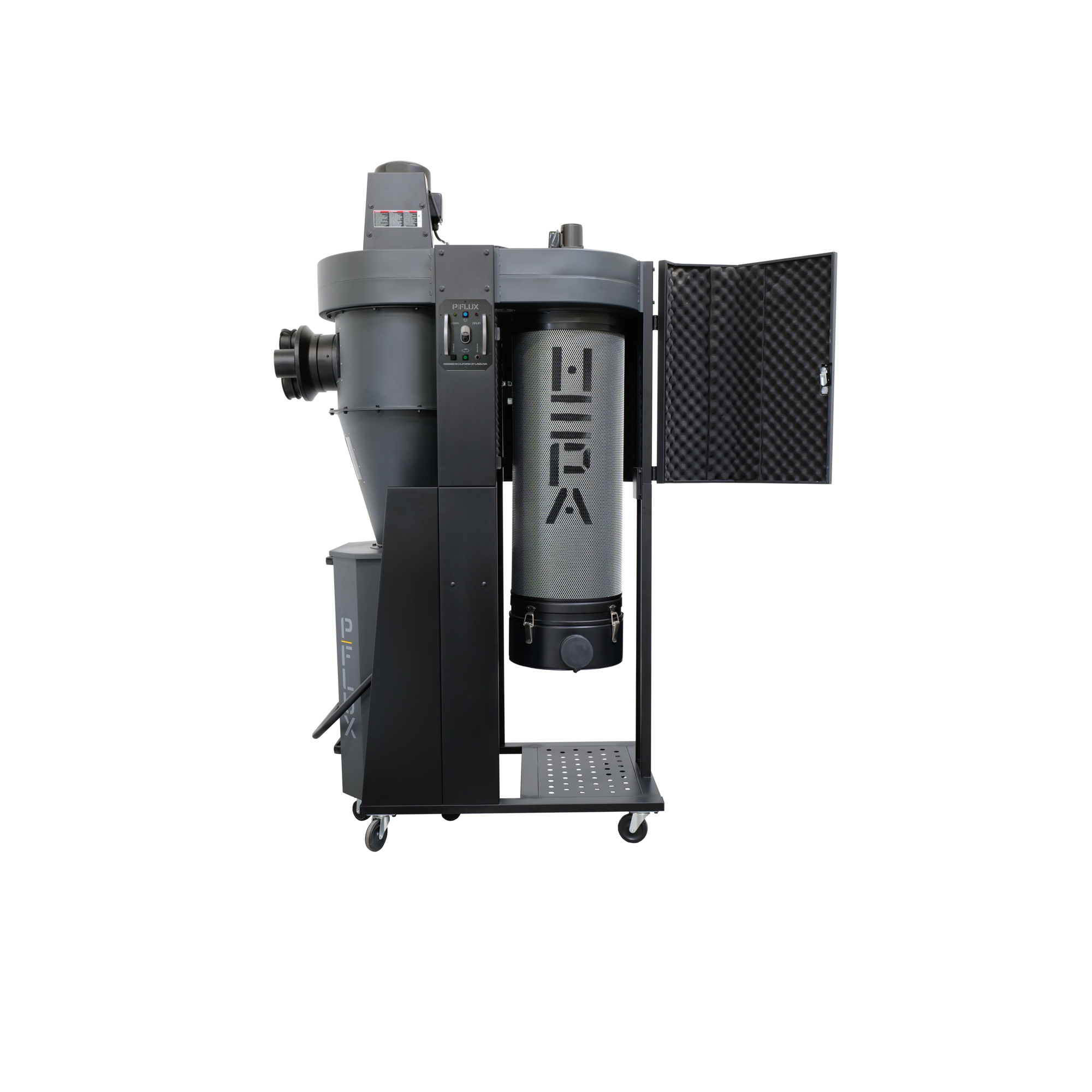

  • Assembled Dimensions (L x W x H): 48? x 28? x 88? Packing Size (L x W x H): 50? x 31.5? x 50.6? (127 x 80 x 128.5 cm) Machine Weight: 372 lbs. (169 kg) Shipping Weight: 441 lbs. (200 kg) Filter Specs Filtering Area: 102 sq/ft (9.5 sq/m) Cartridge Filter**: HEPA, 15.74? x 35.43? (40 x 90 cm) x 1pc

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The P|Flux series gets a host of exciting new upgrades including an auto-cleaning feature standard on all models in this line. The auto-clean conveniently activates every 10 minutes, or you can simply activate from the sleek redesigned remote. Overfilling the drum is a thing of the past, thanks to the super-sized 46-gallon octagonal drum (P|Flux 2 and 3), and a bright LED light illuminating the drum on all P|Flux models. Plus, LED and audio warning lets you know when the drum is full – features that are now standard in this line. 3 HP Motor 2817 CFM Maximum Air Flow 46 Gallon Octagon Drum

What's Included

    (1) dust collector
Play Item Video

Features + Benefits

  • Motor Specs: 3HP Electrical Specs: 220V / 60Hz / 1PH / 3450 RPM Running AMP: (8? Inlet) 22A at 220V; Maximum Air Flow: 2718 CFM (Cubic Feet Per Minute) Shop Setting Air Flow*: 1624 CFM Max Static Pressure: 11.2?
  • Fan Size: 15.5? Inlet: 8? (8? x 4? x 3 Ports) Auto Clean: 10 min. Interval 10 Seconds F+R Remote Control: High Frequency Collection Capacity: 46 Gallon Octagon Drum Decibel Reading: 76 dB (@9.8ft)
  • Assembled Dimensions (L x W x H): 48? x 28? x 88? Packing Size (L x W x H): 50? x 31.5? x 50.6? (127 x 80 x 128.5 cm) Machine Weight: 372 lbs. (169 kg) Shipping Weight: 441 lbs. (200 kg) Filter Specs Filtering Area: 102 sq/ft (9.5 sq/m) Cartridge Filter**: HEPA, 15.74? x 35.43? (40 x 90 cm) x 1pc

Key Specs

AttributeSpecification

item#

6490231

Brand

Laguna

Manufacturer's Warranty

2 year limited warranty

Ship Weight

287.0 LB
AttributeSpecification

Product Type

Dust Collector

Product Weight

210.0000 lb

Dimensions L x W x H (in.)

38.0 x 25.0 x 42.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

2 year limited warranty
