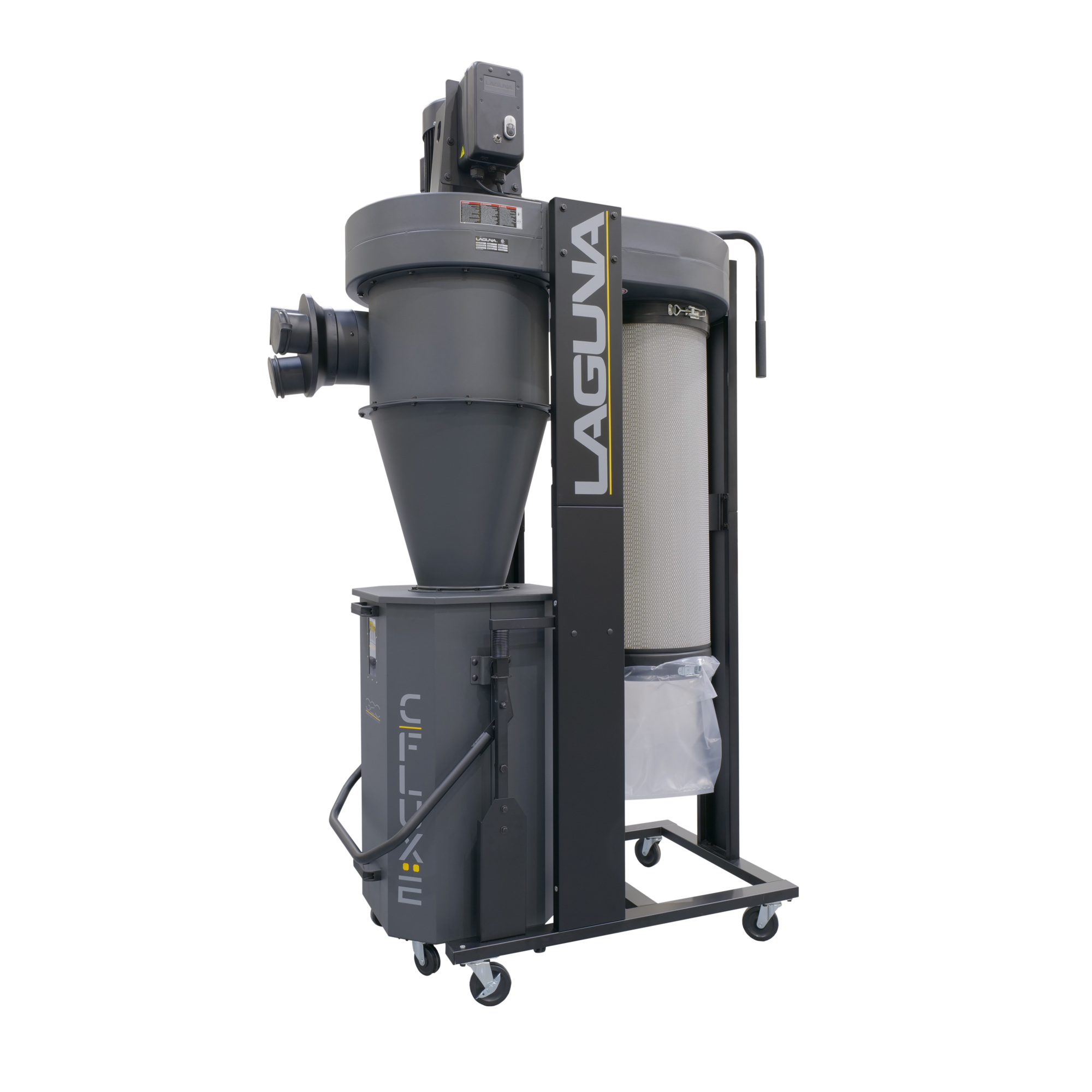

Laguna Cyclone Dust Collector - 2HP, 220V, 1740 CFM, 46-Gallon Capacity, Model# C|Flux: 2
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Motor Specs: 2HP Electrical Specs: 220V/ 60Hz / 1PH / 3450 RPM Running AMP: (6" inlet) 14A at 220V Maximum Air Volume: 1740 CFM (Cubic Feet Per Minute) Shop Setting Air Flow*: 1166 CFM Max Static Pressure: 9.3"
- Fan Size: 14.5" Inlet: 6" (8" x 6") Or (8" x 4" x 2 Ports) Remote Control: High Frequency Collection Capacity: 46 Gallon Octagon Drum Decibel Reading: 88 dB (@9.8ft)
- Assembled Dimensions (L x W x H): 48" x 28" x 87" Packing Size (L x W x H): 50" x 31.5" x 50.6" (127 x 80 x 128.5 cm) Machine Weight: 301 lbs. (140 kg) Shipping Weight: 377 lbs. (171 kg) Filter Specs Filtering Area: 102 sq/ft (9.5 sq/m) Cartridge Filter: 1 Micron, 15.74" x 35.43" (40 x 90 cm) x 1pc
See full description
See All Dust Collection + Containment
See All Laguna Dust Collection + Containment
Currently Viewing This Product
Specifications
Dust Collector
Dust Collector
Dust Collector
Accessories
220.0000 lb
lb
157.0000 lb
86.0000 lb
30.0 x 24.0 x 39.0 in
46.0 x 23.0 x 28.0 in
32.0 x 28.0 x 33.0 in
15.5 x 16.0 x 32.25 in
-
1,891 cfm
490 cfm
472 cfm
-
3 HP
1.5 HP
0.5 HP
-
230/460
115
115
-
Bag
Micro Steel Mesh
Non-woven, Heat-resistant Cotton
-
15
15
30
