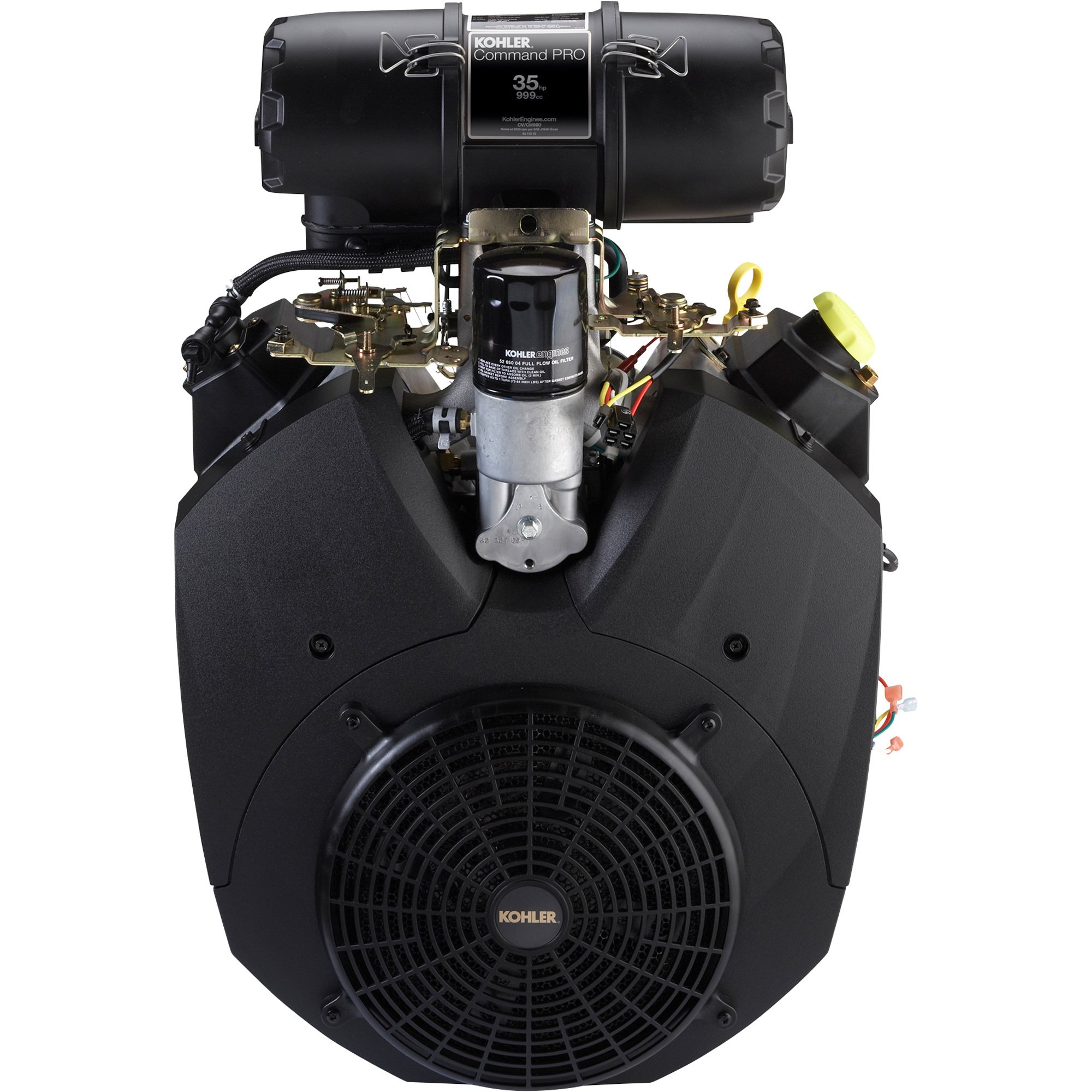

Kohler Command Pro OHV Horizontal Engine — 999CC, 35 HP, 25 Amp, Model# PA-CH980-2002

Item# 56106
Kohler Command Pro OHV Horizontal Engine — 999CC, 35 HP, 25 Amp, Model# PA-CH980-2002
Kohler Command Pro OHV Horizontal Engine — 999CC, 35 HP, 25 Amp, Model# PA-CH980-2002

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Kohler Command Pro OHV Horizontal Engine — 999CC, 35 HP, 25 Amp, Model# PA-CH980-2002

Click or Tap image to Zoom

  • Model PA-CH980-3000; 35 HP, 999cc engine with 1.437in.dia. x 4.46in.L horizontal shaft
  • 25 Amp OHV overhead valve design with mechanical fuel pump
  • Electronic ignition system featuring electric start with regulator to provide easy, dependable starts
  • 5 5/8in. and 7 3/4in. bolt circles; 7in. pilot
  • 5 5/8in. x 7 3/4in. dia. mounting base

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Kohler Command Pro® OHV Horizontal Engine has a full pressure lubrication system and user-friendly maintenance for quiet and smooth operation, high performance and exceptional reliability. 25 Amp charging. Not for sale in CA.

What's Included

    (1) Kohler Command Pro OHV Horizontal Engine

Downloads

Product Manual Product Manual2

Features + Benefits

  • Model PA-CH980-3000; 35 HP, 999cc engine with 1.437in.dia. x 4.46in.L horizontal shaft
  • 25 Amp OHV overhead valve design with mechanical fuel pump
  • Electronic ignition system featuring electric start with regulator to provide easy, dependable starts
  • 5 5/8in. and 7 3/4in. bolt circles; 7in. pilot
  • 5 5/8in. x 7 3/4in. dia. mounting base
  • Cast iron cylinder liners offer exceptional durability
  • Ideal for construction, log splitter, chipper/shredder, and mower applications
  • High-performance spark plugs
  • Full pressure lubrication system
  • Large dual oil drains for faster oil changes
  • Integrated oil cooler
  • High-efficiency fan and screen
  • Easy access top-mounted quick-change spin-on oil filter
  • Large in-line fuel filter
  • Heavy-duty air cleaner
  • Heavy-duty bearings
  • Hardened crank shaft journals
  • 2-barrel carburetor
  • Solenoid shift starter
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

56106

Brand

Kohler

Manufacturer's Warranty

3 year limited warranty

Ship Weight

140.0 LB

Engine Displacement

999 cc

Engine Type

Command Pro OHV

Shaft Diameter

1 7/16 in

Shaft Length

4.46 in

Start Type

Electric

Shaft Keyway

0.375 in

Crankshaft

Hardened

Cylinders (qty.)

2

Cylinder Bore

Cast iron sleeve

Net Power Output

35 HP

Compression Ratio

8.8:1

Oil Capacity

2 qt

Low Oil Shutdown

Yes, Oil sentry, installed/wired, not connected
AttributeSpecification

Low Oil Alert

Oil sentry, installed/wired, not connected

Shaft Rotation (From PTO Shaft Side)

Counterclockwise

Governor System

Variable speed

Ignition System

Electronic

Carburetor

Smart choke

Lubrication System

Full pressure

Auto Compression Release

Yes

Cooling System

Air cooled

Bore

3.5 in

Stroke

3.1 in

Air Cleaner Type

Canister type

Choke Control

Smart choke

Throttle Control

Remote

Fuel Filter

Large capacity in-line

Charging System Amps

25

Muffler Included

No

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–5 of 5 Questions
Sort by:

  1. Is there a mounting bracket available for this?

    1 answer

    1. There is not a mounting bracket available for this engine.

      Helpful?

  2. Does this unit have a manual throttle control lever ? Can't see it on the picture. Please advise. On the 25Hp unit we have the throttle control and choke is in the front as well as the key start slot. We need to be able to control the rpm's manually.

    1 answer

    1. This engine would have a manual throttle control lever.

      Helpful?

  3. Where do I purchase muffler for this engine

    1 answer

    1. Parts may be available by contacting our parts department at the 1-800-657-0516 telephone number.

      Helpful?

  4. will this engine run without a battery

    1 answer

    1. This engine does require a 12 volt power source to operate the starter. There is no recoil backup for starting. Once it has been started the 12 volt power source would no longer be required to keep it running.

      Helpful?

  5. Hi, is this engine Made In USA or Imported?

    1 answer

    1. This engine is made in the United States Of America.

      Helpful?
