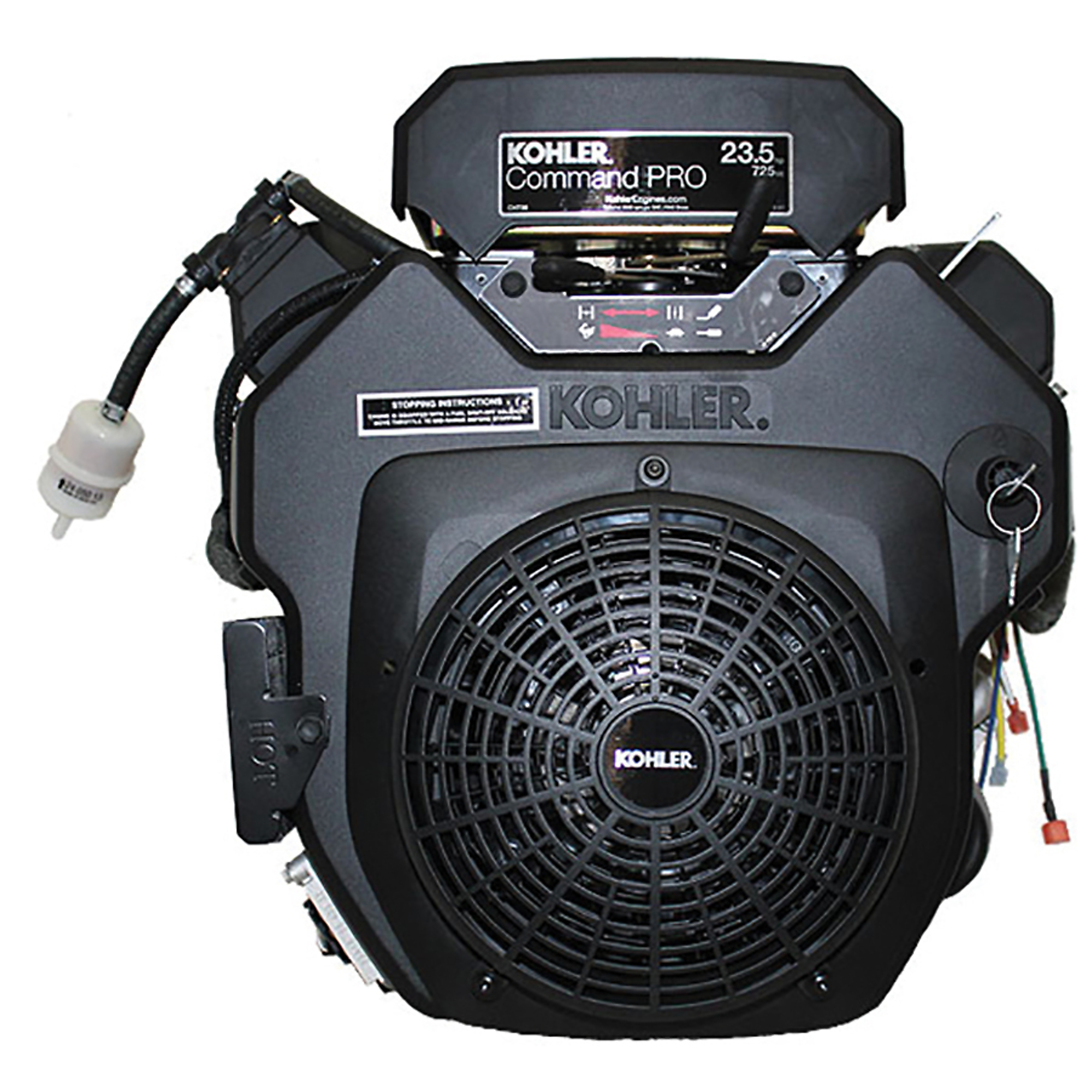

Kohler Horizontal Engine - 23.5 HP, 725cc, Gasoline, Model# PA-CH730-3008

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Click or Tap image to Zoom
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
- This engine powers the following equipments
- Extra-large sleeve bearings support heavy loads in commercial and industrial environments
See full description
Description
Key Specs
Reviews
Q & A
Warranty
Compare
Product Summary
What's Included
- (1) Engine
Features + Benefits
- Integrated oil coolers extend oil-change intervals and maintain low temperatures during the entire power range
- This engine powers the following equipments
- Extra-large sleeve bearings support heavy loads in commercial and industrial environments
Key Specs
| Attribute | Specification |
|---|---|
item# | 6042084 |
Brand | Kohler |
Manufacturer's Warranty | 3 year limited warranty |
Ship Weight | 151.0 LB |
Engine Displacement | 725 cc |
Engine Type | Gasoline |
Shaft Diameter | 0 in |
Shaft Diameter Metric | 28.5 mm |
Shaft Length | 4 in |
Shaft Length Metric | 102 mm |
Fuel Type | Gasoline |
Start Type | Electric |
Shaft Keyway | 1.5 deep 7/16-20 UNF in |
Net Torque | 38.4 ft-lbs. |
Crankshaft | Hardened |
Cylinders (qty.) | 2 |
Cylinder Bore | Cast Iron |
Net Power Output | 23.5 HP |
Compression Ratio | 9.0:1 |
Fuel Tank | No |
Oil Capacity | 2 qt |
Low Oil Shutdown | Yes |
Low Oil Alert | Yes |
Max. RPM | 3,600 |
| Attribute | Specification |
|---|---|
Grade | 87 |
CARB Approved | Yes |
Shaft Rotation (From PTO Shaft Side) | Counter Clockwise |
Governor System | CCW |
Ignition System | Magneto digital |
Carburetor | Smart Choke |
Lubrication System | Full Pressure |
Bearing Type | Plain |
Auto Compression Release | Yes |
Cooling System | Air |
Bore | 3.3 in |
Stroke | 2.6 in |
Air Cleaner Type | Dual Element |
Choke Control | Manual |
Throttle Control | Manual |
Fuel Filter | Yes |
Charging System Amps | 20 |
Muffler Included | No |
Bolt Circle | 7 in |
Mounting Base Length | 5.625 in |
Mounting Base Width | 7.75 in |
Product Weight | 90.0000 lb |
Dimensions L x W x H (in.) | 14.0 x 20.0 x 21.0 in |
Reviews
Questions & Answers
Questions
Warranty
Manufacturer's Warranty
3 year limited warranty
Compare with Most Popular in Horizontal Engines
See All Horizontal Engines
See All Kohler Horizontal Engines
Currently Viewing This Product
$2479.99Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
- $1465.63
Shipping:
Factory shippedHeavy/large item. Lift gate service available.
Store Pickup:
Not available - online only
Item # 706028
$572.28Shipping:
Factory shippedStore Pickup:
Not available - online only
Item # 114656
$699.99Shipping:
Available nowStore Pickup:
Not Available
Specifications
725 cc
479 cc
208 cc
420 cc
Gasoline
Vanguard V-twin
Command Pro OHV
OHV
0 in
1 in
3/4 in
1 in
28.5 mm
-
61.722 mm
25.4 mm
4 in
3 in
2.43 in
3.48 in
102 mm
-
61.722 mm
88.5 mm
Gasoline
-
Gasoline
-
Electric
Electric and Recoil
Recoil
Electric and Recoil
1.5 deep 7/16-20 UNF in
0.25 in
5/16-24 28 UNF in
2 13/64 in
38.4 ft-lbs.
-
10.5 ft-lbs.
25 ft-lbs.
Hardened
Horizontal
-
SAE J609 EXT 4 Straight Keyed Shaft Dia.: 25.4mm (1 In.)
2
2
1
1
Cast Iron
Cast Iron
Cast Iron
3.54in.
23.5 HP
16 HP
7 HP
9.8 HP
9.0:1
-
8.5:1
8.5:1
No
Yes
Yes
Yes
2 qt
1.5 qt
0.63 qt
1.16 qt
Yes
No
Yes
Yes
Yes
No
Yes
Yes
3,600
-
3,000
-
87
-
87
-
Yes
No
Yes
-
Counter Clockwise
Counter Clockwise
Counter Clockwise
Counter Clockwise
CCW
Mechanical
Mechanical
Yes
Magneto digital
Electronic
Electronic
CDI
Smart Choke
Float
Float
EFI
Full Pressure
Full Pressure
Splash
Splash
Plain
Ball
Ball
Ball
Yes
Yes
Yes
Yes
Air
Air
Air
Air
3.3 in
2.68 in
2.8 in
3.54 in
2.6 in
2.6 in
2.1 in
2.6 in
Dual Element
Single Element
Single Element
Foam + paper
Manual
Yes
-
-
Manual
Remote
-
Adjustable
Yes
Yes
Yes
-
20
16
-
3
No
Yes
Yes
Yes
7 in
-
-
5 and 6.5 in in
5.625 in
-
-
7.7 in
7.75 in
-
-
3.38 in
90.0000 lb
-
38.5 lb
-
14.0 x 20.0 x 21.0 in
-
-
-
-
5.25 in
4.173 in
-
-
9 qt
4 qt
6.55 qt
