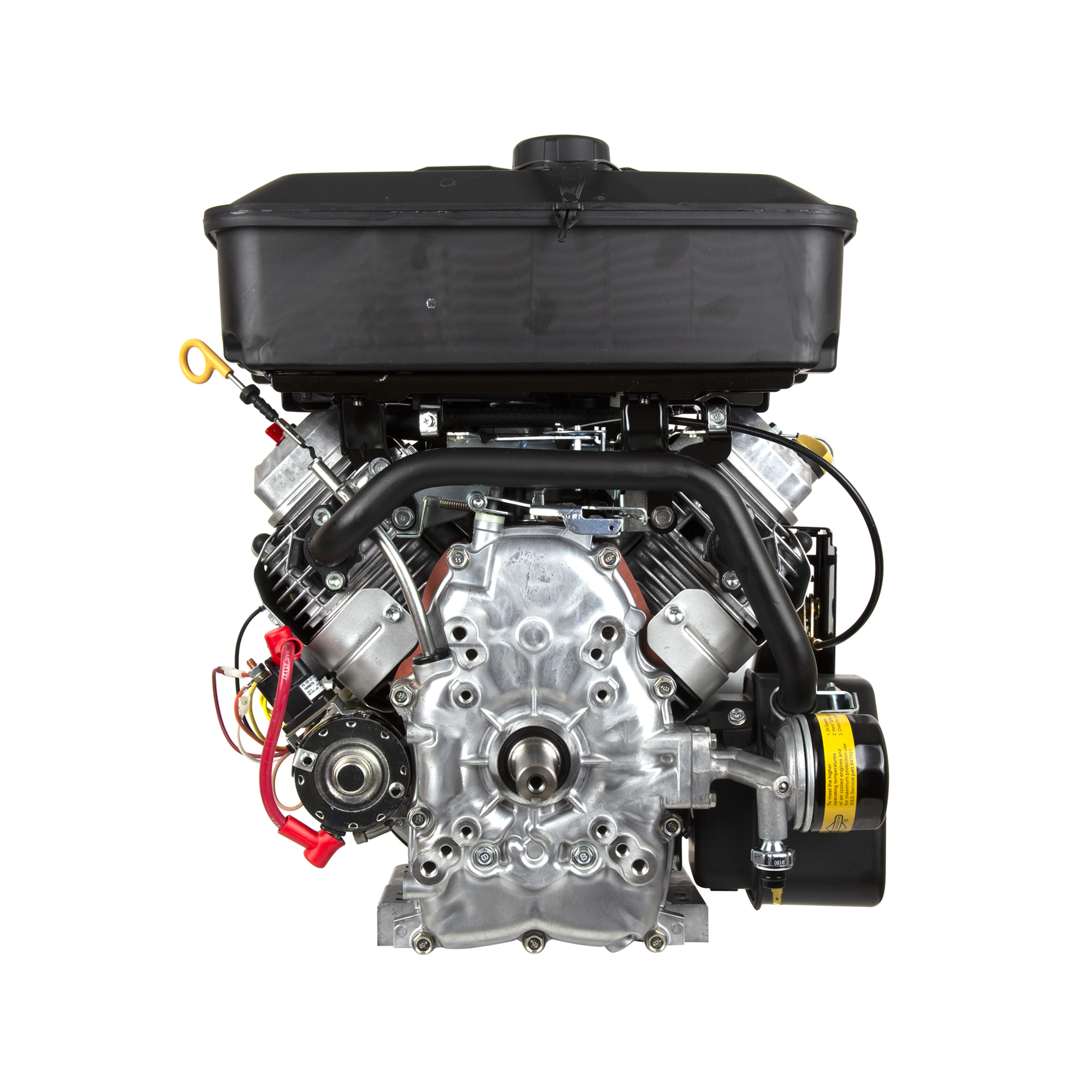

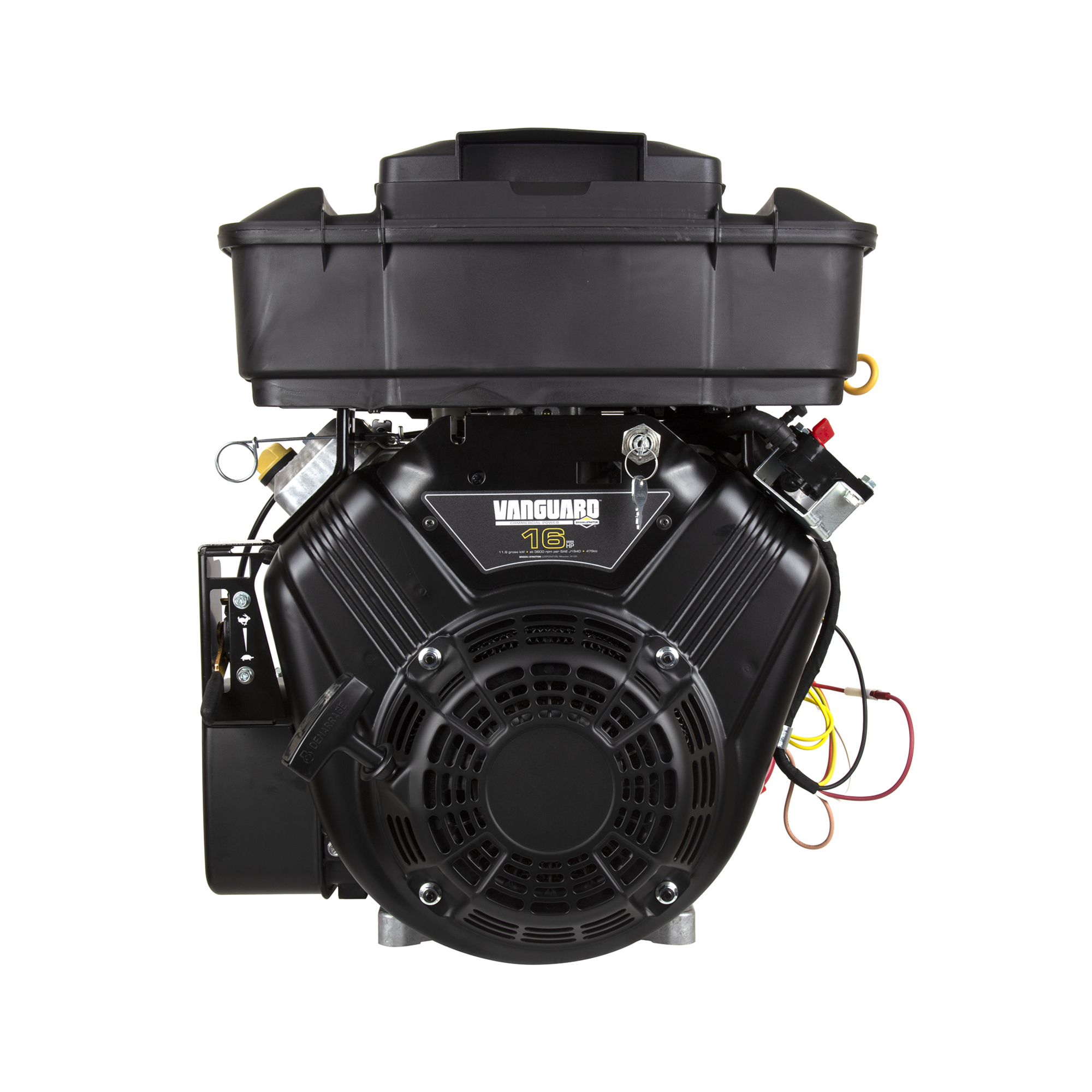

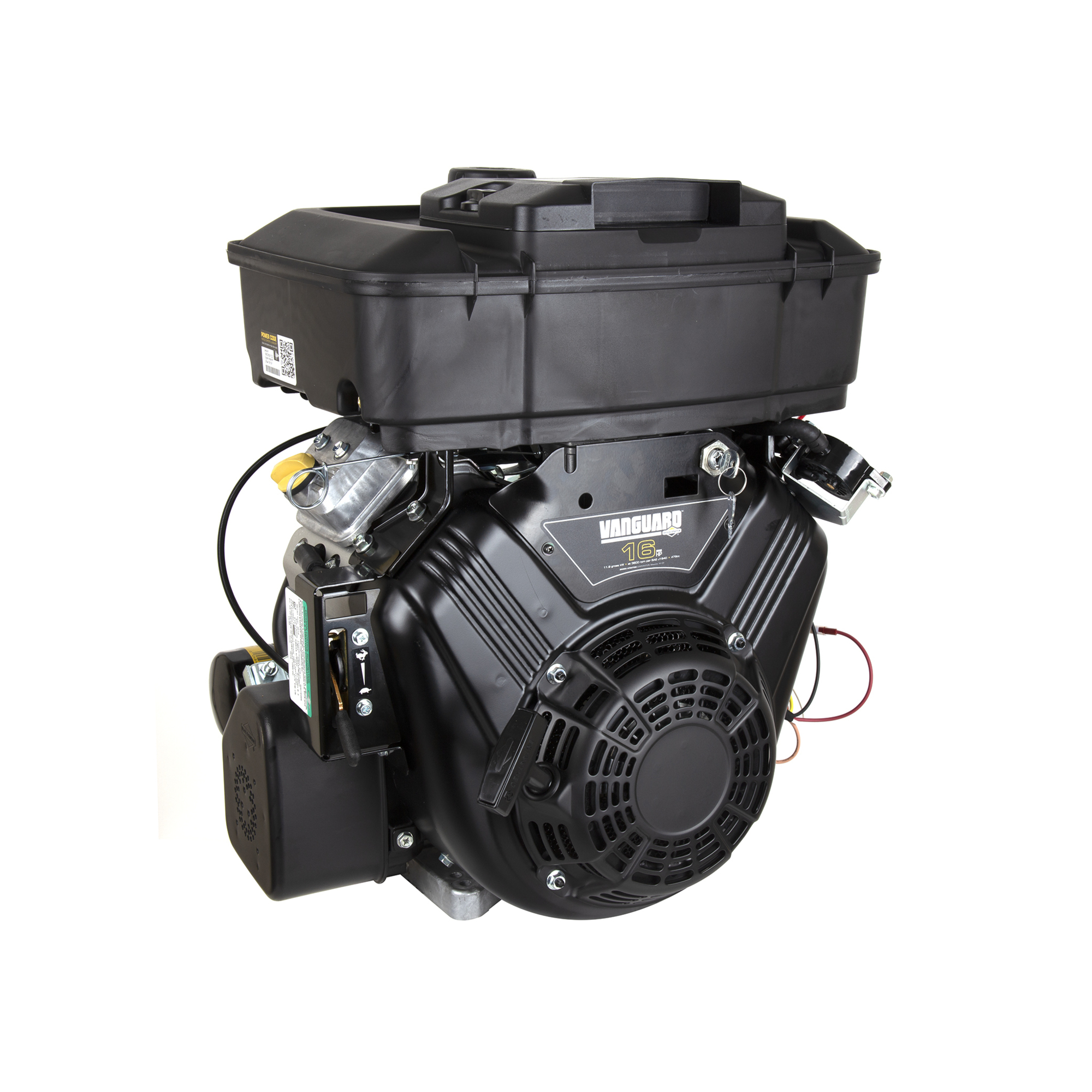

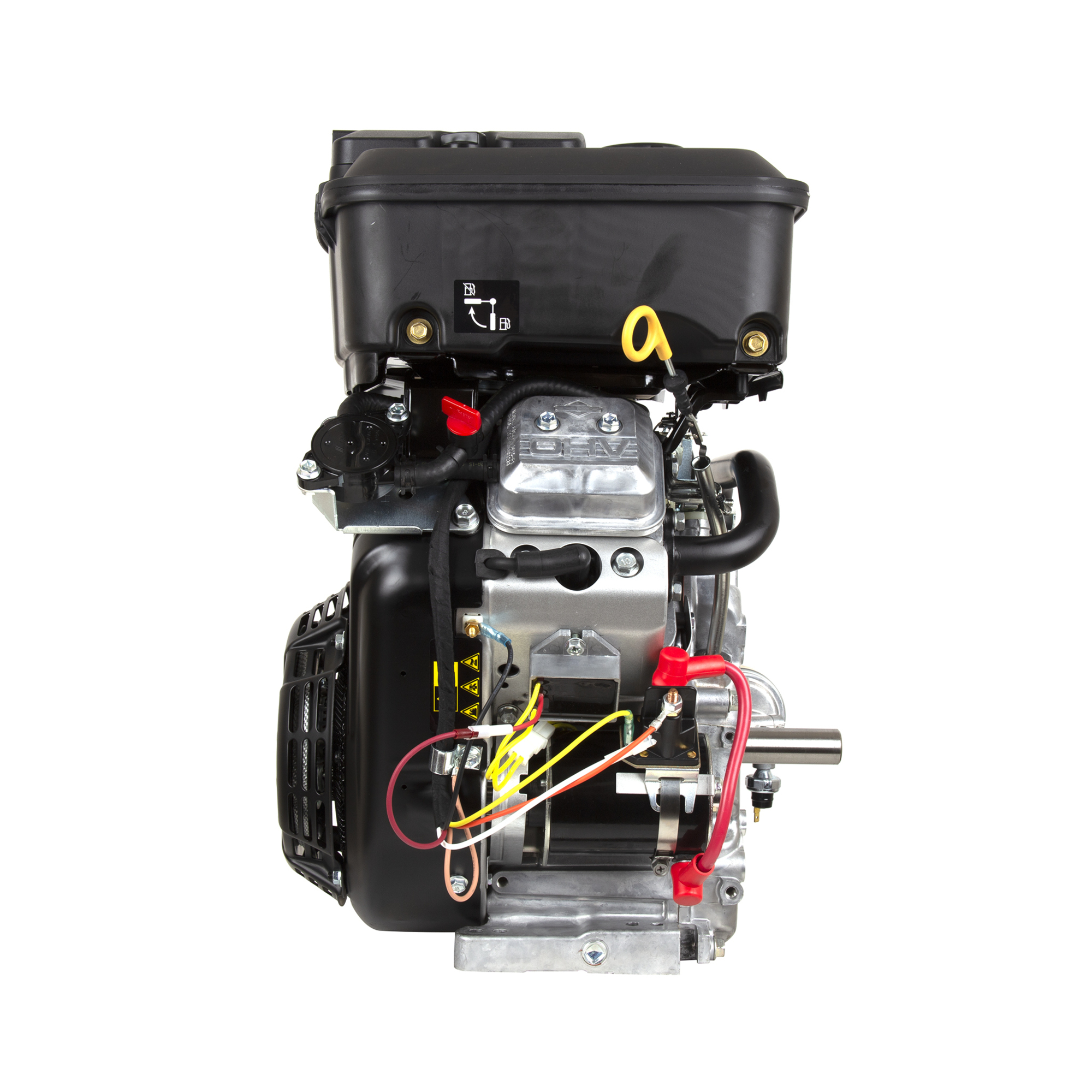

Briggs & Stratton Vanguard Small Block V-Twin Horizontal Engine with Electric Start, 479cc, 1in. x 3in. Shaft, Model# 305447-0615-F1

Item# 102405
Briggs & Stratton Vanguard Small Block V-Twin Horizontal Engine with Electric Start, 479cc, 1in. x 3in. Shaft, Model# 305447-0615-F1

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Briggs & Stratton Vanguard Small Block V-Twin Horizontal Engine with Electric Start, 479cc, 1in. x 3in. Shaft, Model# 305447-0615-F1

Click or Tap image to Zoom

$1465.63

  • Shipping:

    Factory shipped

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not available - online only
  • Model 305447-0615-F1; 479cc small block engine displacement with 16 HP net power output and 1in. dia. x 3in.L horizontal shaft
  • OHV overhead valve design
  • Maintenance-free Magnetron® electronic ignition with electric start/recoil backup for quick, dependable starts
  • Dura Bore™ cast iron cylinder sleeve for extended life
  • Replacement engine for pumps and the most demanding commercial applications

See full description

Complete Your Solution

  • Briggs & Stratton Vanguard Small Block V-Twin Horizontal Engine with Electric Start, 479cc, 1in. x 3in. Shaft, Model# 305447-0615-F1
  • Powerhorse 10W-30 Engine Oil, 1 Quart
  • Powerhorse 5W-30 Engine Oil, 1 Quart
Price for all three:

$1481.61

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This Briggs Stratton 479cc Vanguard Small Block V-Twin Horizontal Engine is designed and engineered to handle the most demanding commercial applications. The powerhouse engine is energetic and quick starting, features a number of advanced technologies and integrated components, and is also lighter and more compact than most comparable engines.

What's Included

    (1) Engine, Model# 305447-0615-F1

Downloads

Product Manual

Features + Benefits

  • Model 305447-0615-F1; 479cc small block engine displacement with 16 HP net power output and 1in. dia. x 3in.L horizontal shaft
  • OHV overhead valve design
  • Maintenance-free Magnetron® electronic ignition with electric start/recoil backup for quick, dependable starts
  • Dura Bore™ cast iron cylinder sleeve for extended life
  • Replacement engine for pumps and the most demanding commercial applications
  • Low profile Dual Clean™ air cleaner pleated paper filter with a foam pre-cleaner ensures maximum protection for extended engine life
  • Float carburetor for consistently easy starting
  • Large-capacity cooling fan
  • Includes 9-qt. fuel tank and exhaust manifold with muffler
  • Advanced debris management system keeps the engine running clean
  • Full-pressure lubrication with spin-on oil filter assures controlled lubrication for extended component life
  • Built-in oil cooler for cooler operation and longer life
  • Centrally located oil pump and pickup for easy access and maintenance
  • High-efficiency head design
  • Lightweight piston and ring package
  • Dynamically balanced crankshaft with counterclockwise rotation
  • Mechanical compression release
  • Rugged poly-core blower housing for long life
  • Commercial-style carburetor stands up to rugged use
  • Not for sale in CA

Key Specs

AttributeSpecification

item#

102405

Brand

Briggs & Stratton

Manufacturer's Warranty

36 months parts/36months labor

Ship Weight

151.0 LB

Engine Displacement

479 cc

Engine Type

Vanguard V-twin

Shaft Diameter

1 in

Shaft Length

3 in

Start Type

Electric and Recoil

Shaft Keyway

0.25 in

Crankshaft

Horizontal

PTO Height

5.25 in

Cylinders (qty.)

2

Cylinder Bore

Cast Iron

Net Power Output

16 HP

Fuel Tank

Yes

Fuel Tank Capacity

9 qt

Oil Capacity

1.5 qt

Low Oil Shutdown

No
AttributeSpecification

Low Oil Alert

No

CARB Approved

No

Shaft Rotation (From PTO Shaft Side)

Counter Clockwise

Governor System

Mechanical

Ignition System

Electronic

Carburetor

Float

Lubrication System

Full Pressure

Bearing Type

Ball

Auto Compression Release

Yes

Cooling System

Air

Bore

2.68 in

Stroke

2.6 in

Air Cleaner Type

Single Element

Choke Control

Yes

Throttle Control

Remote

Fuel Filter

Yes

Charging System Amps

16

Muffler Included

Yes

Reviews

Questions & Answers

2 Reviews This action will navigate to reviews.

Questions

1–10 of 10 Questions
Sort by:

  1. Rpm?

    1 answer

    1. The engine would be rated at 3600 RPM.

      Helpful?

  2. what are the dimensions for the mounting holes at the very bottom of the engine? front to back? and from side to side ?

    1 answer

    1. The bottom mounting dimensions would be 7.37" side to side and 3.58" front to back.

      Helpful?

  3. What is the mounting bolt pattern on this engine? Mine is 7.75" x 4.0"

    1 answer

    1. The engine would have 3 different mounting bolt circles, a 5 inch, a 6 1/2 inch and a 7 3/4 inch bolt circle.

      Helpful?

  4. What oil does it needs

    1 answer

    1. The engine would use standard SAE 10W-30 or 5W-30 engine oil.

      Helpful?

  5. Could you give me the specs on this engine such as height. Width. Length.  Distance from bottom of engine to center of shaft

    1 answer

    1. The dimensions for this engine are 15.92" W x 12.5" D x 17.25" H. The PTO height (bottom of engine to center shaft) is 5.25". The shaft size is 1" x 3". It has a 1/4" keyway with a 3/8"-24 tapped end.

      Helpful?

  6. Hi, is this engine Made In USA or Imported?

    1 answer

    1. This engine is manufactured in the United States.

      Helpful?

  7. Where does the battery hook up?

    1 answer

    1. It would depend on what equipment you are installing this engine to as to how the battery would hook up to the engine. There should be a cable solenoid on the battery on the equipment to attach to the charging wire on the engine.

      Helpful?

  8. What is the rated fuel consumption?

    1 answer

    1. Briggs and Stratton does not rate fuel consumption.

      Helpful?

  9. Can this motor be converted to run on propane or is there another that is set up for propane?

    1 answer

    1. A propane conversion kit is not currently available for this engine. We do not recommend this type of modification. At this time, we do not offer another small engine that runs on propane.

      Helpful?

  10. What are length ,width and height of this engine

    1 answer

    1. The engine is 13.351 inches long without the shaft and 16.351 inches long with the engine shaft. It is 16.102 inches wide and 17.235 inches high.

      Helpful?
