Klutch Chain Hoist Kit, KLiQ 20V, Battery-Powered, 500-Lb. Capacity, 9.85ft. Lift Height, Brushless, 4.0Ah

Item# 6077148
On Sale
Klutch Chain Hoist Kit, KLiQ 20V, Battery-Powered, 500-Lb. Capacity, 9.85ft. Lift Height, Brushless, 4.0Ah

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch Chain Hoist Kit, KLiQ 20V, Battery-Powered, 500-Lb. Capacity, 9.85ft. Lift Height, Brushless, 4.0Ah

Click or Tap image to Zoom

$349.99
Reg $399.99Save $50.00

Order today to get this price.

  • Offer: FREE Klutch KLiQ 20V Battery with Purchase of a Qualifying KliQ 20V Tool See Details

  • Shipping:

    Available now

  • Store Pickup:

    Not Available
  • Portable: KLiQ battery-operated hoist includes a 20V, 4Ah Li-ion battery, ideal for use in areas without AC power access
  • High Strength: Supports up to 500 lbs. with a 9.85ft. lift height
  • Reliable: High-efficiency brushless DC motor delivers over 95% efficiency and requires no maintenance—no carbon brush replacement needed
  • Enhanced Safety: Dual braking system—electrical and mechanical—prevents brake failure and protects against potential equipment damage
  • Durable: Aluminum die-cast body offers excellent dust and water resistance, while the soft PA chain box resists deformation for long-lasting use

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

The Klutch Chain Hoist features battery-powered operation with a 500-lb. capacity and 9.85ft. lift height, providing an ideal solution for applications where AC power is unavailable. This hoist features a high-efficiency brushless DC motor that operates with over 95% efficiency and requires no maintenance—there’s no need to replace carbon brushes. Equipped with double brake protections (electrical and mechanical), the hoist ensures safety by preventing brake failure that could cause damage. It also includes a durable steel-forged load hook with 360° rotation, providing high strength and reliability, along with an aluminum die-cast body offering excellent dust and water protection. The soft PA material chain box is built to resist deformation, ensuring long-term durability. With a 40% duty cycle, the hoist handles tough industrial tasks without excessive strain on the motor. It also features multiple intelligent protections, such as overvoltage, undervoltage, over-temperature, overload and soft start, ensuring optimal performance. The 80G chain, carburized for high strength and durability, and the convenient portable design make this hoist an excellent choice for heavy-duty lifting in challenging environments. This hoist uses high-performance Klutch KLiQ 20V Lithium-Ion Batteries, designed to work with all Klutch KLiQ 20V power tools. With advanced technology, durable, chemical-resistant housings and convenient battery fuel gauges, Klutch KLiQ Lithium-Ion Batteries are your total power solution.

What's Included

    (1) Chain hoist (1) 20V, 4.0Ah Li-ion battery pack (1) Charger

Downloads

Safety Data Sheet

Features + Benefits

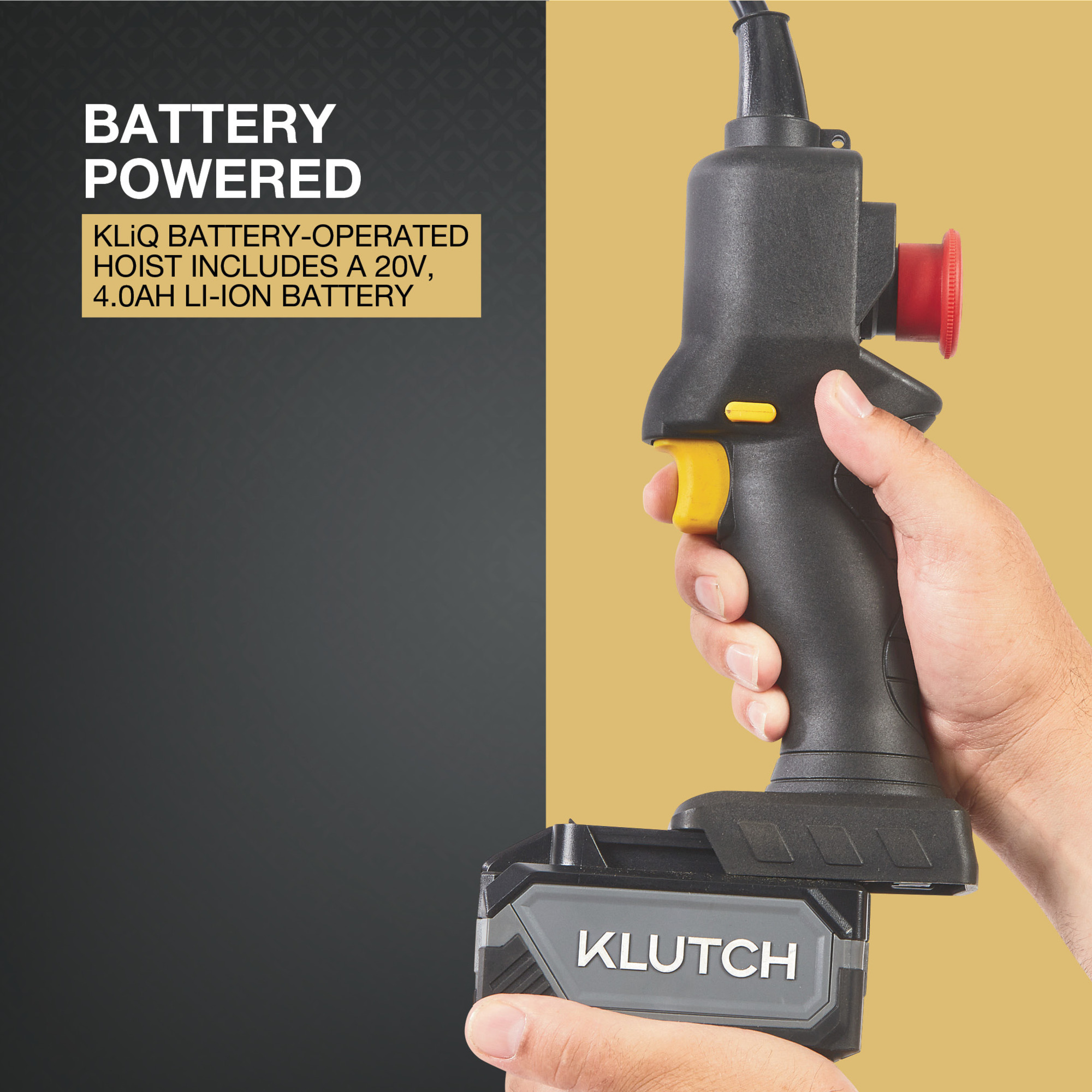

  • Portable: KLiQ battery-operated hoist includes a 20V, 4Ah Li-ion battery, ideal for use in areas without AC power access
  • High Strength: Supports up to 500 lbs. with a 9.85ft. lift height
  • Reliable: High-efficiency brushless DC motor delivers over 95% efficiency and requires no maintenance—no carbon brush replacement needed
  • Enhanced Safety: Dual braking system—electrical and mechanical—prevents brake failure and protects against potential equipment damage
  • Durable: Aluminum die-cast body offers excellent dust and water resistance, while the soft PA chain box resists deformation for long-lasting use
  • Intelligent Protection: Equipped with multiple safeguards—including overvoltage, undervoltage, over-temperature, overload and soft start—plus a 40% duty cycle to ensure peak performance during demanding industrial tasks

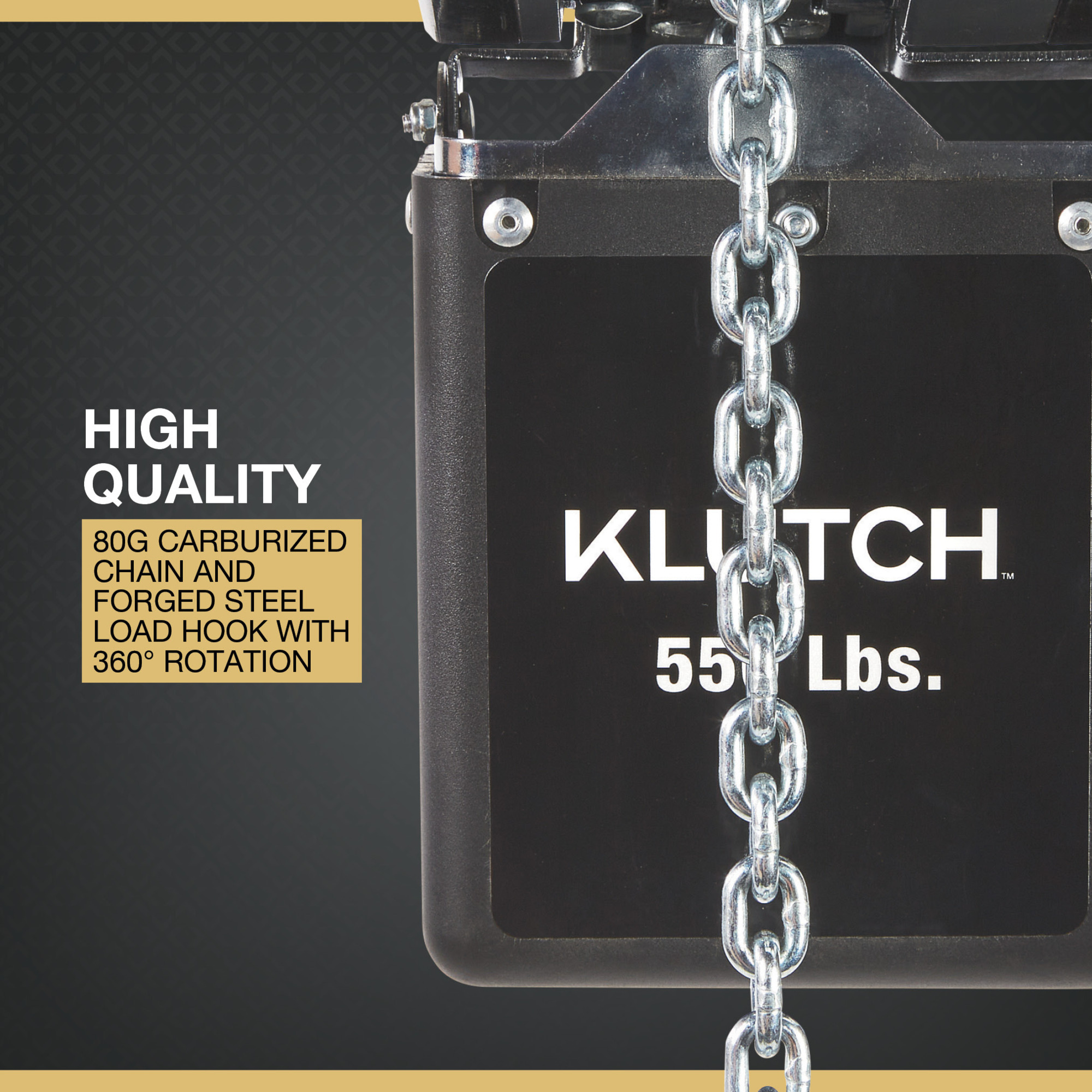

  • High Quality: Features an 80G chain with carburizing treatment and a durable steel-forged load hook with 360° rotation, providing exceptional strength and reliability for secure lifting
  • Compact: Lightweight design for effortless portability and easy installation in diverse environments

Key Specs

AttributeSpecification

item#

6077148

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

32.0 LB

Capacity

550 lb

Lift Height

9.85 ft

Lift Speed

11.5 ft./min.

Duty Cycle

0.4 %

Volts

20

Brake Type

Combination
AttributeSpecification

Control Type

Push Button

Chain Bag Included

Yes

Required Head Room

13.8 in

Watts

320

Lift Chain Diameter (SAE)

1/6 in

Lift Chain Diameter

4 mm

Motor Output

450

Thermal Overload Protection

Yes

Dimensions L x W x H (in.)

12.2 x 4.7 x 5.1 in

Product Weight

22.0000 lb

Reviews

Questions & Answers

1 Review This action will navigate to reviews.

Questions

1–2 of 2 Questions
Sort by:

  1. Whats the gantry crane info for this specific model? Or in photos?

    1 answer

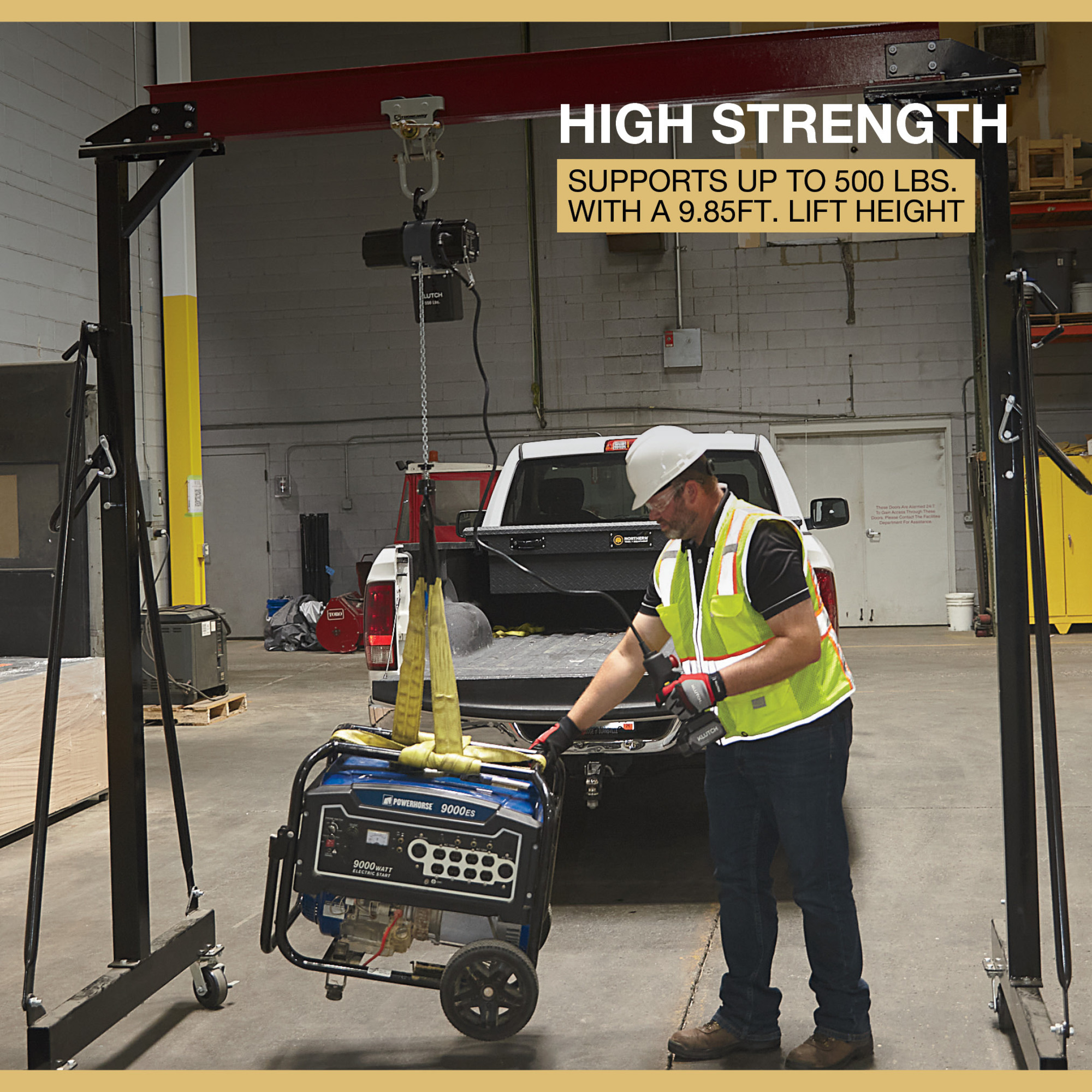

    1. The gantry crane used in the pictures is the Strongway adjustable gantry crane item number 5071182. The crane is a 4000 lb. maximum capacity 7.8-11.7 ft. lift.

      Helpful?

  2. Does the control have a quick connector?

    1 answer

    1. The remote control does not come with a quick connector installed. It has a 4-pin M20 connector.

      Helpful?

Warranty

Manufacturer's Warranty

1 year limited warranty
