Klutch 6000 Watt Dual-Voltage Engine-Driven Inverter DC Arc Welder/AC Generator with Wheel Kit, 20–195 Amp DC Output, 120/240 Volt, 6000 Watt AC Power Output

Item# 114007
On Sale
Klutch 6000 Watt Dual-Voltage Engine-Driven Inverter DC Arc Welder/AC Generator with Wheel Kit, 20–195 Amp DC Output, 120/240 Volt, 6000 Watt AC Power Output

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 6000 Watt Dual-Voltage Engine-Driven Inverter DC Arc Welder/AC Generator with Wheel Kit, 20–195 Amp DC Output, 120/240 Volt, 6000 Watt AC Power Output

Click or Tap image to Zoom

$1699.99
Reg $1999.99Save $300.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available

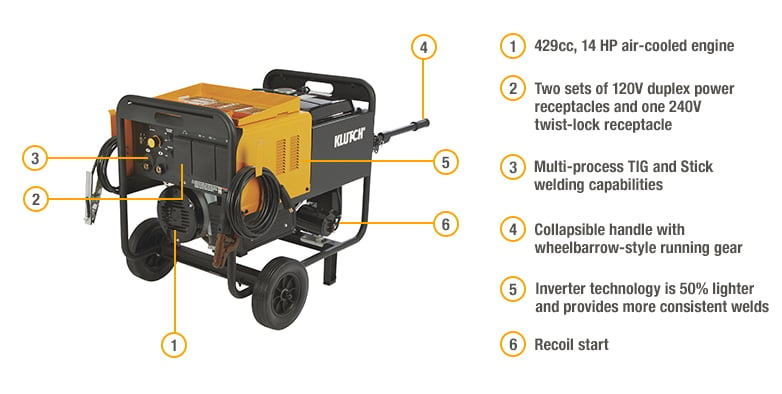

  • Extra-Versatile Operation: Multi-process TIG/stick welding functions offer the welding capabilities you need to handle a variety of projects
  • Delivers Dual-Voltage Capabilities: 6,000 Watt auxiliary power (6,500W peak) via (2) 120V duplex power receptacles and (1) 240V twist-lock receptacle
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel, aluminum, cast iron and hard surfacing up to 3/8in. thick
  • Dependable Engine Delivers the Power You Need: A 429cc, 14 HP air-cooled engine with recoil start drives the welder and blasts out the power you need
  • Extended Run Time: Large 5-gallon fuel capacity provides up to 5 hours of run time on 1 tank

  • Prop 65 Warning: See Details

See full description

Complete Your Solution

  • Klutch 6000 Watt Dual-Voltage Engine-Driven Inverter DC Arc Welder/AC Generator with Wheel Kit, 20–195 Amp DC Output, 120/240 Volt, 6000 Watt AC Power Output
  • Klutch MonsterView 1400 Auto-Darkening Welding Helmet
  • Hobart Welding Apron, Leather, Brown, One Size Fits Most, Model# 770548
  • Klutch Steel Welding Table with Tool Kit, 36in.L x 24in.W x 33-1/4in.H
Price for all four:

$1999.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

The Klutch Engine-Driven Inverter Powered DC Arc Welder/AC Generator with Wheel Kit provides 195 Amp DC welding output and 6,000 Watt (6,500W peak) auxiliary power output. This unit features a powerful 429cc, 14 HP LC air-cooled engine with recoil starter. A 5-gallon fuel tank provides up to 5 hours of operation on a single fill, making this unit a great choice for a variety of applications. The smooth DC welding output can weld a wide variety of materials including steel, stainless steel, cast iron, hard surfacing and aluminum. This unit offers a duty cycle of 30% @ 195A and a range of 20–195A. The 6,000 Watt auxiliary power (6,500W peak) is supplied through (2) 120V duplex receptacles and (1) 240V twist-lock receptacle. Collapsible handles with wheelbarrow-style running gear allow easy maneuverability. Includes a 13ft. ground cable and 20ft. electrode holder.

What's Included

    (1) Welder generator with running gear (1) 13ft. ground cable (1) 20ft. electrode holder

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Extra-Versatile Operation: Multi-process TIG/stick welding functions offer the welding capabilities you need to handle a variety of projects
  • Delivers Dual-Voltage Capabilities: 6,000 Watt auxiliary power (6,500W peak) via (2) 120V duplex power receptacles and (1) 240V twist-lock receptacle
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel, aluminum, cast iron and hard surfacing up to 3/8in. thick
  • Dependable Engine Delivers the Power You Need: A 429cc, 14 HP air-cooled engine with recoil start drives the welder and blasts out the power you need
  • Extended Run Time: Large 5-gallon fuel capacity provides up to 5 hours of run time on 1 tank
  • Extra-Lightweight Inverter Design: Special inverter technology weighs in at up to 50% lighter than comparable models and delivers ultra-consistent welds
  • Take-Anywhere Portability: Collapsible handle teams with wheelbarrow-style running gear to help make transport to, from or around the jobsite much easier
  • Extras: Includes 13ft. ground cable and 20ft. electrode holder

Key Specs

AttributeSpecification

item#

114007

Brand

Klutch

Manufacturer's Warranty

3 year limited warranty

Ship Weight

317.0 LB

Volts

240

Max. Amps

195

Power Type

AC

Multi-process

Yes

Spool Gun Included

No

Welding Processes

Stick, TIG

Max. Weld Thickness

0.38 in

Duty Cycle

30% At 195a

Fuel Type

Gasoline

Fuel Capacity

4.8 Gal

Engine Type

Single Cylinder

Engine Brand

Loncin

Engine Displacement

420 cc

Electric Start

No

Battery Included

No

Generator Power Output Type

AC
AttributeSpecification

Welding Power Output Type

DC

Hour Meter Included

No

Receptacles Included

Yes

120V Receptacles Included

4

240V Receptacles Included

1

GFCI Protection

Yes

Lifting Hook

Yes

Welding Cables Included

Yes

Generator Output (Continuous Watts)

6,000

Generator Output (Surge Watts)

6,500

Weldable Materials

Steel, Stainless Steel, Cast Iron, Hard Surfacing, Aluminum

Min. Amps

20

Wire Feed Speed Control

No

Cart Included

Yes

Mig Ready

No

Clamp Cable Length

13 ft

Electrode Cable Length

20 ft

Regulator and Gas Hose Included

No

Shielding Gas Required

No

Reviews

Questions & Answers

14 Reviews This action will navigate to reviews.

Questions

1–10 of 27 Questions
Sort by:

  1. does this unit use gas or diesel?

    1. This Klutch engine driven welder/generator uses gasoline. This features a 5 gallon gas tank that provides up to 8 hours of operation.

      Helpful?

    2. Gas

      Helpful?

  2. Does it come with oil??

    1 answer

    1. This machine is not shipped with oil.

      Helpful?

  3. What is the dimensions; height, width length as well as weight?

    1 answer

    1. The overall dimensions with the wheel kit are 49.49" L x 28.58" W x 32.48" H. The overall weight is 317 lbs.

      Helpful?

  4. What size welding rod will work with this unit

    1 answer

    1. This welder is compatible with electrodes ranging in diameter from 1/16" to 5/32".

      Helpful?

  5. what is the amp rating for the 240 outlet

    1 answer

    1. The generator has a 240V, 40 amp output rating.

      Helpful?

  6. Can i use this as a generator alone?

    1 answer

    1. The generator can be used as auxiliary power when not using the welder. You will need to switch the auxiliary power switch to on.

      Helpful?

  7. What are the diminutions

    1 answer

    1. The overall dimensions with the wheel kit is 49.49" L x 28.58" W x 32.48" H. The dimensions with out the wheel kit will be 32.76" L x 21.89" W x 26.97" H.

      Helpful?

  8. The welder can work how many continuous hours and how much time should she rest?

    1 answer

    1. The duty cycle at 195 amps is 30%. The duty cycle at 107 amps is 100%. Allow proper cooling time between duty cycles. Cooling time will vary per application.

      Helpful?

  9. Can you connect a tig torch and argon gas to this machine?

    1 answer

    1. We do not offer a TIG torch that is compatible with this welder any longer. This arc welder does not require the use of shielding gas.

      Helpful?

  10. Can i run a small mig off of this I wanted to?

    1 answer

    1. The generator can power up to 6000 continuous watts and provides up to 25 amps at 120V and up to 40 amps at 240V. Please check the requirements of the welder before using it with this machine.

      Helpful?
