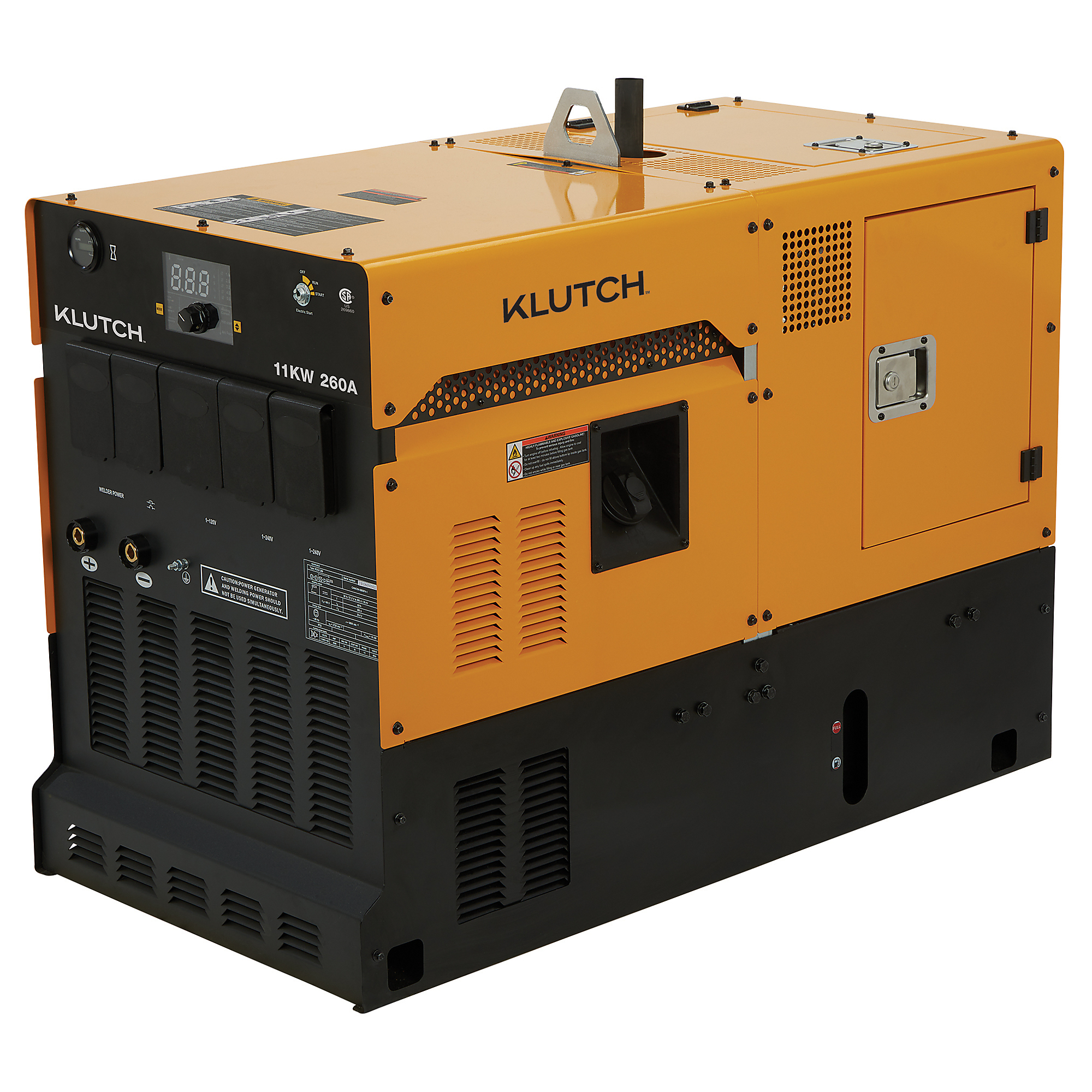

Klutch 11kW Engine-Driven Inverter Stick Welder/Generator with LCD Screen, High-Performance 260 Max. Amp DC Output, 120/240 Volt, 11kW Max. Power Output

Item# 5910151
Top SellerOn Sale
Klutch 11kW Engine-Driven Inverter Stick Welder/Generator with LCD Screen, High-Performance 260 Max. Amp DC Output, 120/240 Volt, 11kW Max. Power Output

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Klutch 11kW Engine-Driven Inverter Stick Welder/Generator with LCD Screen, High-Performance 260 Max. Amp DC Output, 120/240 Volt, 11kW Max. Power Output

Click or Tap image to Zoom

$3799.99
Reg $3999.99Save $200.00

Order today to get this price.

  • Shipping:

    Free shipping (lower 48 states) - Available now

    Heavy/large item. Lift gate service available.

  • Store Pickup:

    Not Available

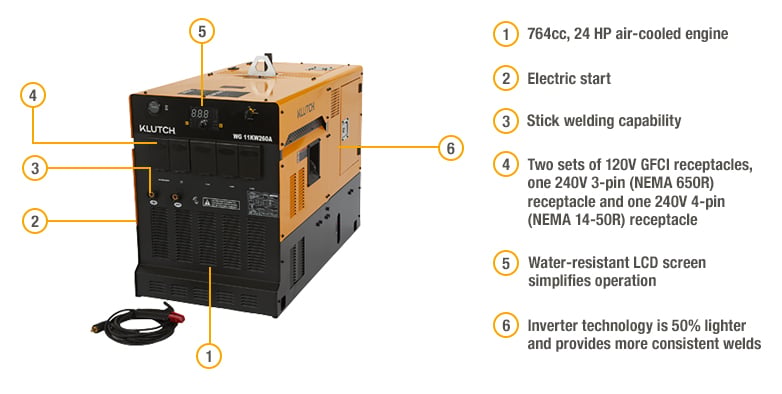

  • Exceptional Stick Welding Capabilities: The perfect choice for any stick welding projects
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel, aluminum, cast iron and hard surfacing up to 5/8in. thick

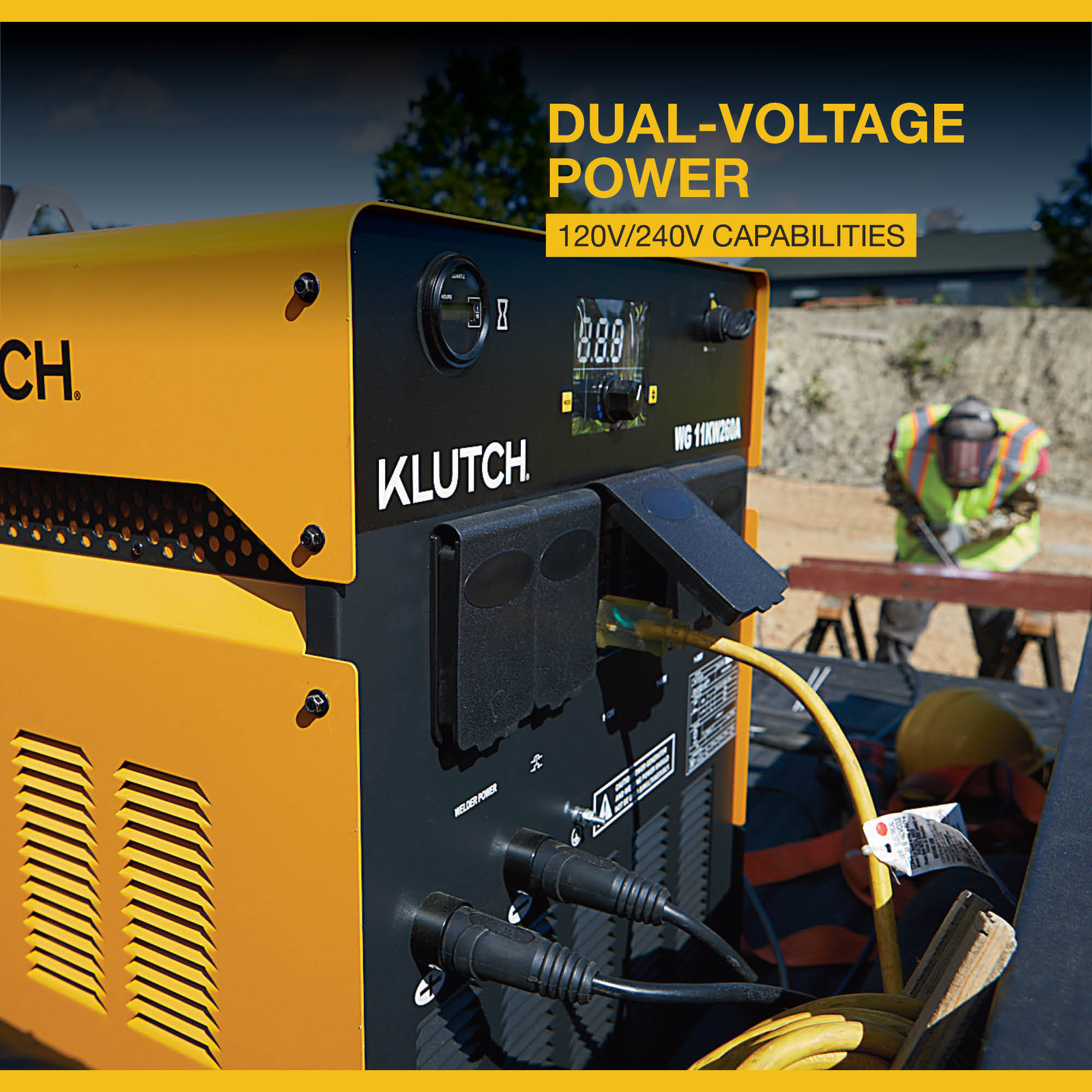

  • Delivers Dual-Voltage Power Right to Your Jobsite: 120/240V capability includes 2 sets of 120V GFCI receptacles, (1) 240V 3-pin (NEMA 650R) receptacle and (1) 240V 4-pin (NEMA 14-50R) receptacle
  • Dependable Engine with Electric Start Instantly Delivers the Power You Need: A 764cc, 24 HP air-cooled engine with electric start along with recoil backup drives the welder and blasts out the power you need
  • Extended Run Time: Large 8-gallon fuel capacity provides up to 6 hours of run time on 1 tank

See full description

Complete Your Solution

  • Klutch 11kW Engine-Driven Inverter Stick Welder/Generator with LCD Screen, High-Performance 260 Max. Amp DC Output, 120/240 Volt, 11kW Max. Power Output
  • Klutch MonsterView 1400 Auto-Darkening Welding Helmet
  • Hobart Welding Apron, Leather, Brown, One Size Fits Most, Model# 770548
  • Klutch Steel Welding Table with Tool Kit, 36in.L x 24in.W x 33-1/4in.H
Price for all four:

$4099.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

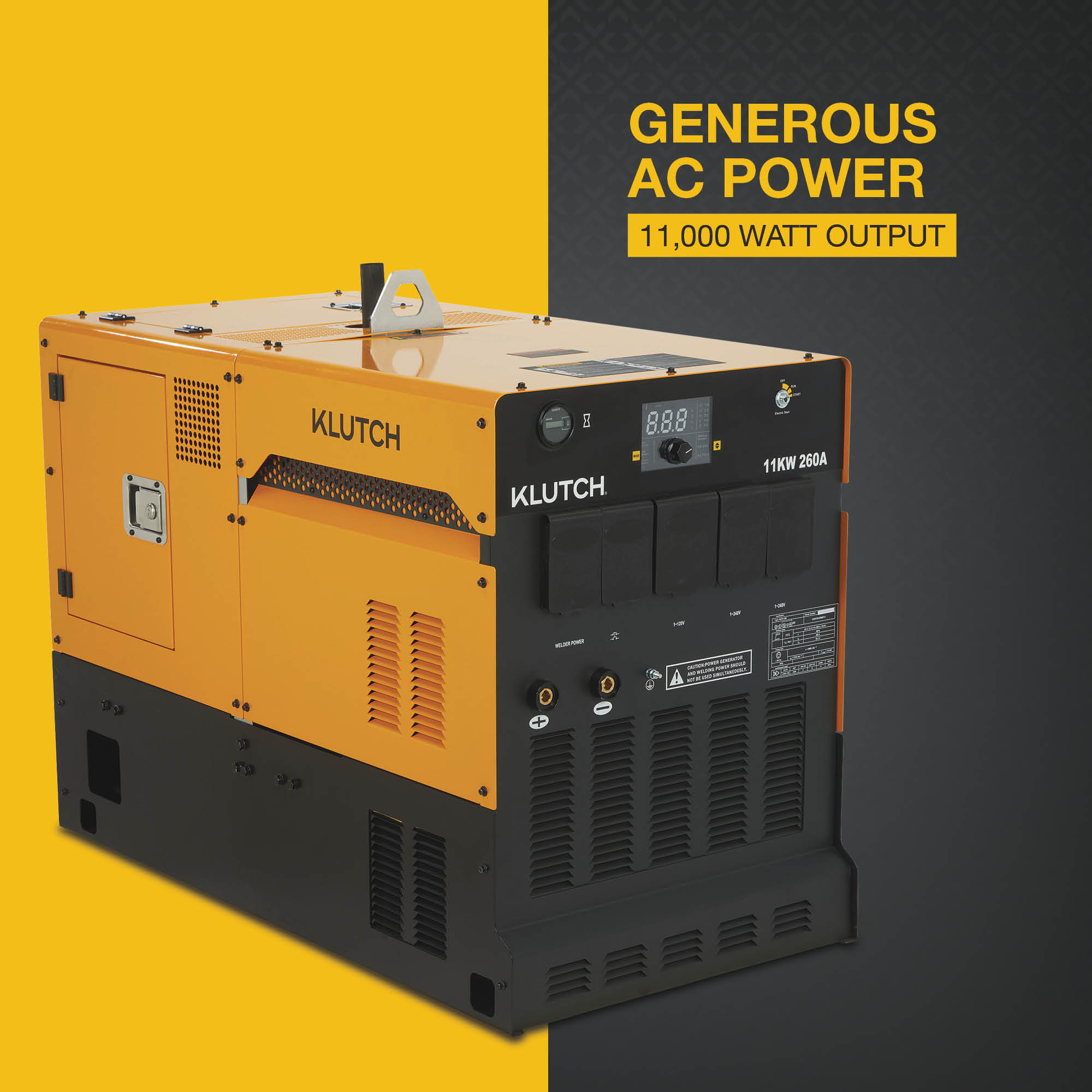

The Klutch Inverter Stick Welder Generator features advanced inverter technology to provide smooth performance. The large LCD display allows easy reading, and the electrode type selection guide makes your job easier. Hot start and arc force can be adjusted for different diameter electrodes. Infinite amperage adjustment ensures smoothness. The 78V no-loading voltage design is available for cellulose electrodes. The auxiliary power supply rated output is 10kW; max. output is 11kW; start is electric. 8-gallon fuel tank allows for up to 6 hours of run time. 120–240V auxiliary power includes 2 sets of 120V GFCI receptacles, (1) 240V 3-pin receptacle and (1) 240V 4-pin receptacle. The circuit breaker protects the machine from overloading. Also features a duty cycle of 60% @ 260A and an amperage range adjustment of 20–260A. Works with materials up to 5/8in. including steel, stainless steel, cast iron and hard surfacing. The lifting eye allows for convenient lifting and hanging. Total enclosed design reduces noise. Multiple doors allow service access; exhaust is on top. Includes 20ft. grounding cable with clamp and 20ft. welding cable with electrode holder. CSA and EPA approved.

What's Included

    (1) Welder generator (1) 20ft. welding cable with electrode holder (1) 20ft. grounding cable with clamp

Downloads

Product Manual
Play Item Video

Features + Benefits

  • Exceptional Stick Welding Capabilities: The perfect choice for any stick welding projects
  • Handles the Heavy Metals: Get powerful performance welding steel, stainless steel, aluminum, cast iron and hard surfacing up to 5/8in. thick
  • Delivers Dual-Voltage Power Right to Your Jobsite: 120/240V capability includes 2 sets of 120V GFCI receptacles, (1) 240V 3-pin (NEMA 650R) receptacle and (1) 240V 4-pin (NEMA 14-50R) receptacle
  • Dependable Engine with Electric Start Instantly Delivers the Power You Need: A 764cc, 24 HP air-cooled engine with electric start along with recoil backup drives the welder and blasts out the power you need
  • Extended Run Time: Large 8-gallon fuel capacity provides up to 6 hours of run time on 1 tank
  • Extra-Lightweight Inverter Design: Special inverter technology weighs in at up to 50% lighter than comparable models and delivers ultra-consistent welds

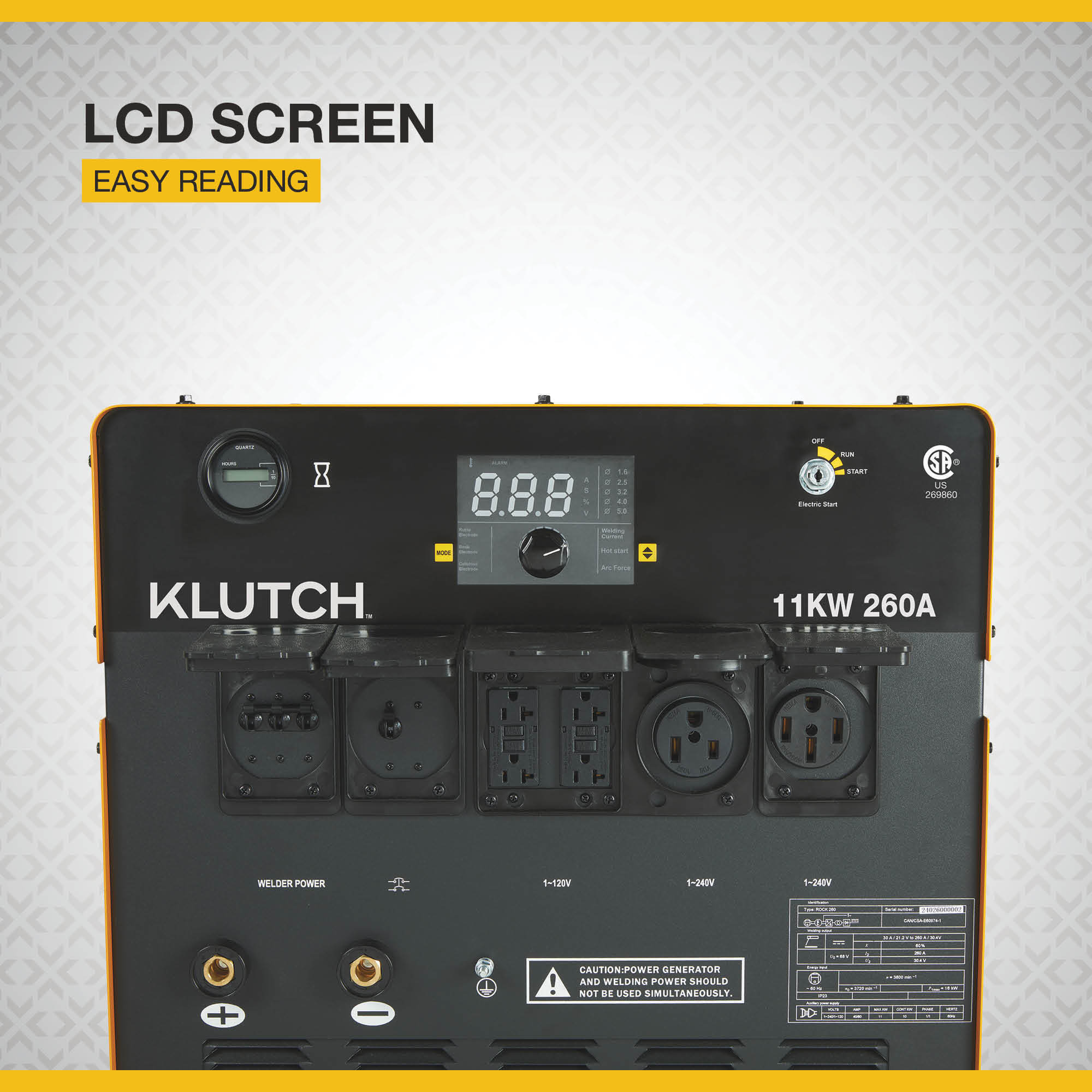

  • LCD Screen Simplifies Operation: An easy-to-read, water-resistant LCD screen makes it quick and easy to operate your welder generator in the most efficient way possible
  • Circuit breaker to protect machine from overloading
  • Hot start and arc force can be adjusted for different diameter electrodes
  • Top exhaust design
  • Lifting eye for lifting and hanging
  • Total enclosed design to reduce noise
  • Multiple doors for service access

Key Specs

AttributeSpecification

item#

5910151

Brand

Klutch

Manufacturer's Warranty

1 year limited warranty

Ship Weight

550.0 LB

Volts

120/240

Max. Amps

260

Power Type

DC

Multi-process

No

Spool Gun Included

No

Max. Weld Thickness

0.6 in

Duty Cycle

60% at 260A

Fuel Type

Gasoline

Fuel Capacity

8 Gal

Engine Type

Twin Cylinder

Engine Displacement

764 cc

Electric Start

Yes

Battery Included

Yes

Hour Meter Included

No

Receptacles Included

Yes
AttributeSpecification

120V Receptacles Included

Yes

240V Receptacles Included

Yes

GFCI Protection

Yes

Lifting Hook

Yes

Welding Cables Included

Yes

Generator Output (Continuous Watts)

10,000

Generator Output (Surge Watts)

11,000

Weldable Materials

Steel,Stainless steel, cast Iron

Min. Amps

20

Wire Feed Speed Control

No

Cart Included

No

Mig Ready

No

Clamp Cable Length

20 ft

Electrode Cable Length

20 ft

Regulator and Gas Hose Included

No

Shielding Gas Required

No

Product Weight

455.0000 lb

Dimensions L x W x H (in.)

43.7 x 22.0 x 35.0 in

Reviews

Questions & Answers

5 Reviews This action will navigate to reviews.

Questions

1–10 of 22 Questions
Sort by:

  1. Does it have a 220 outlet

    1 answer

    1. The generator features two sets of 120V GFCI receptacles, one 240V 3-pin (NEMA 650R) receptacle, and one 240V 4-pin (NEMA 14-50R) receptacle.

      Helpful?

  2. Is this unit water proof, will it be safe to have in the bed of my truck without a canopy?

    1 answer

    1. The welder/generator is not waterproof. Do not operate the welder if the output cable, electrode, torch, wire or wire feed system is wet. Do not immerse them in water. These components and the welder must be completely dry before attempting use.

      Helpful?

  3. What is the maximum air arc carbon gouging electrode diameter that can be used with this unit?

    1 answer

    1. The stick welder is intended use is for welding steel, stainless steel, cast iron and hard surfacing using electrodes from 1/16" to 5/32".

      Helpful?

  4. What are the dimensions of the machine?

    1 answer

    1. This machine is 43.7 in. long x 22 in. wide x 35 in. high.

      Helpful?

  5. Is this gen 60 cycle no where do I see 60 cycle

    1 answer

    1. The duty cycle of this machine is 60% at 260 amps.

      Helpful?

  6. Can this machine do tig welding

    1 answer

    1. This stick welder does not have a TIG function.

      Helpful?

  7. What is engine rpm with no load (idle) and rpm under load? Does engine return to idle when there is no load ?

    1 answer

    1. The engine does not auto idle, it runs at 3600 RPM constantly.

      Helpful?

  8. Will a suitcase wire feeder work with this welder, and if so which one and which brand?

    1 answer

    1. We do not recommend using a suitcase wire feeder or any other auxiliary welders with this welder generator. Any auxiliary machine may not perform as well as intended and its life may be shortened.

      Helpful?

  9. Is it CARB compliant?

    1 answer

    1. The welder/generator is not CARB compliant.

      Helpful?

  10. Does this welder have auto idle?

    1 answer

    1. The welder/generator does not have auto idle.
