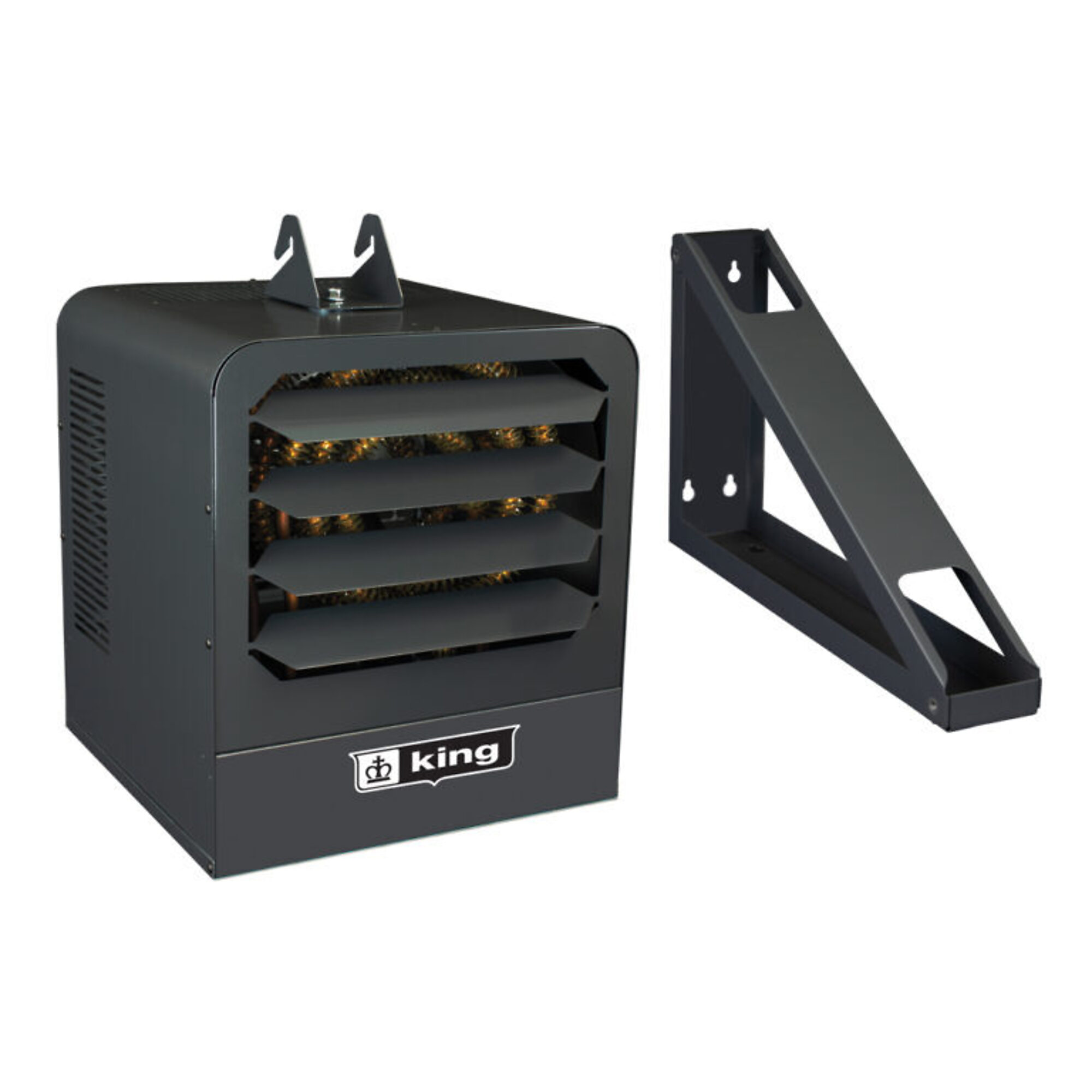

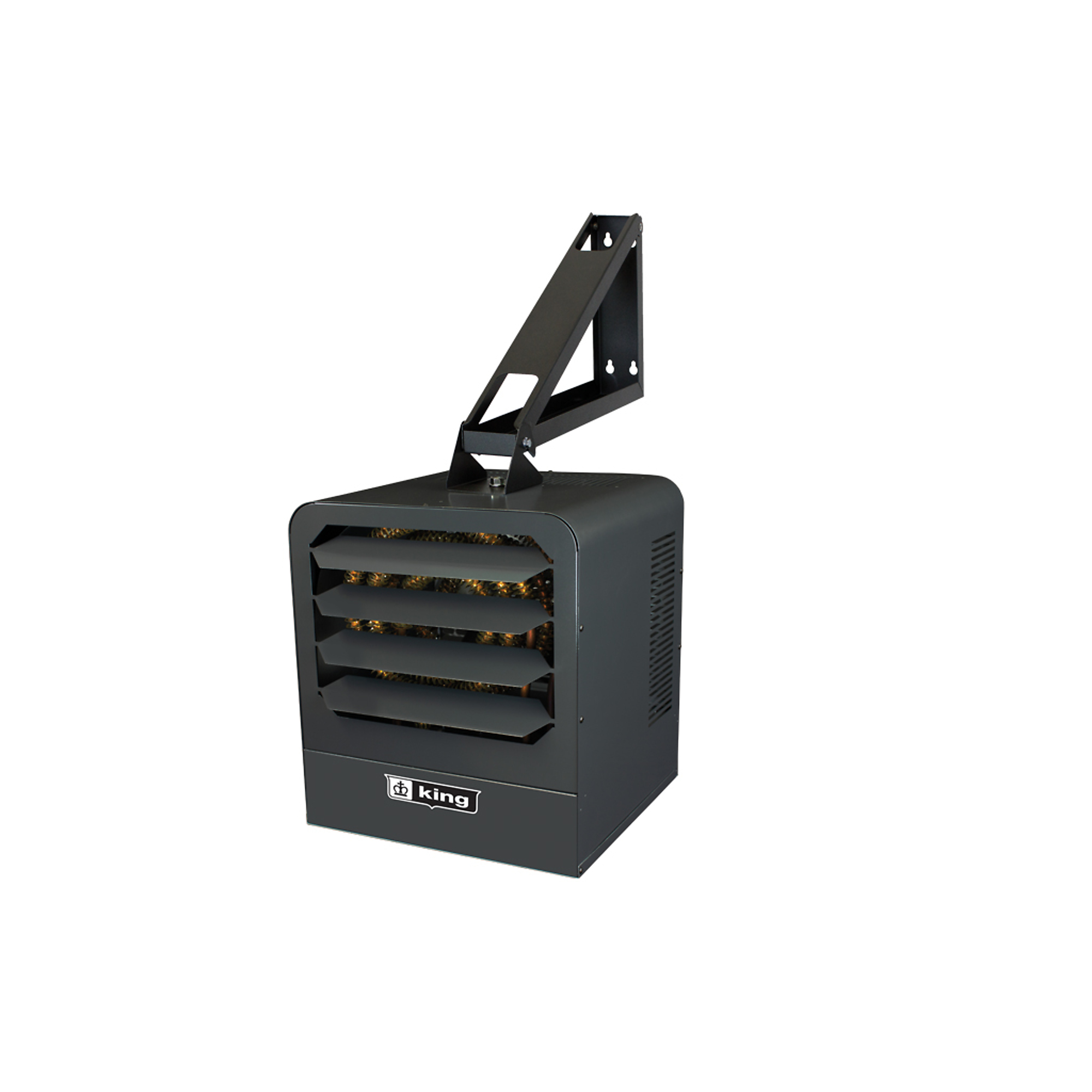

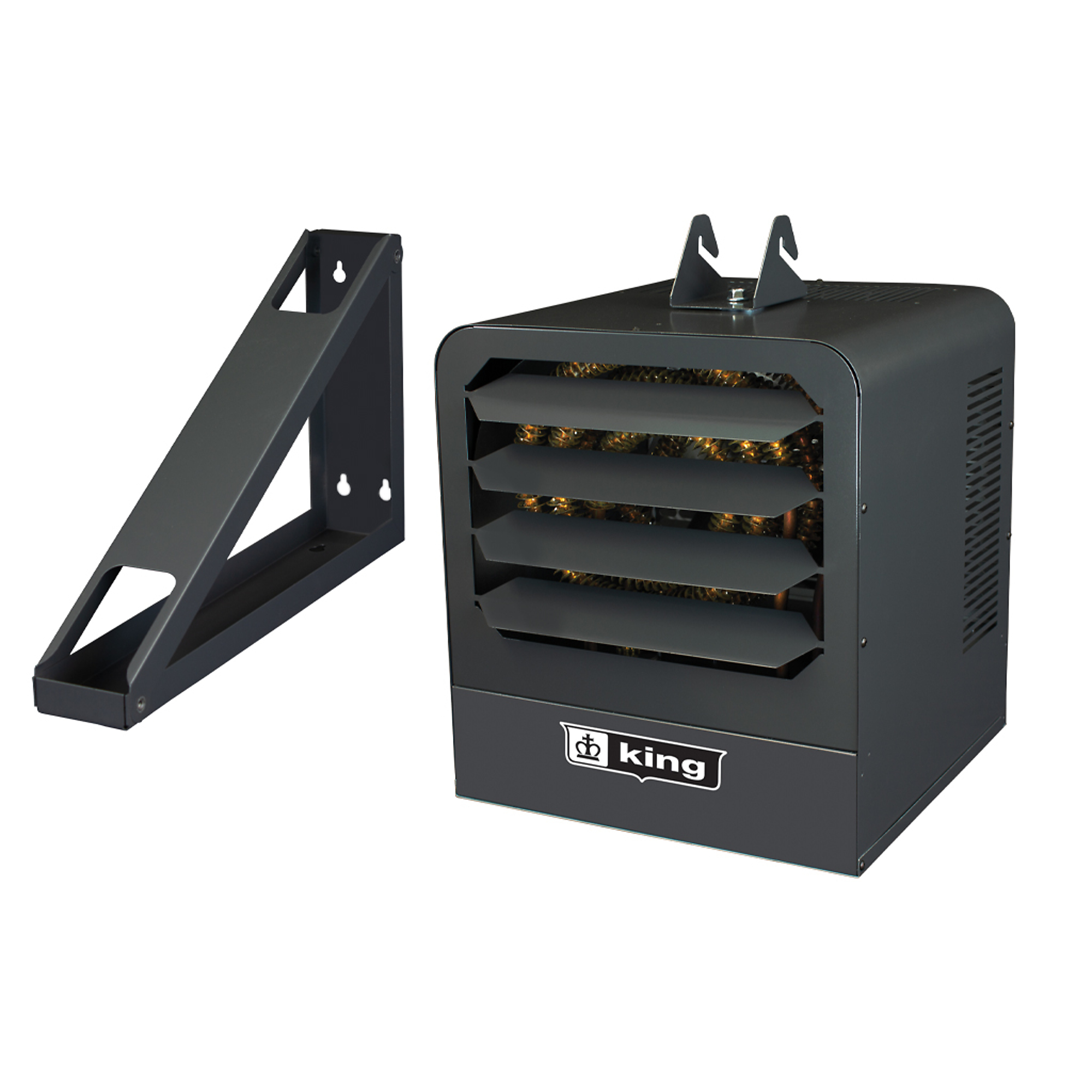

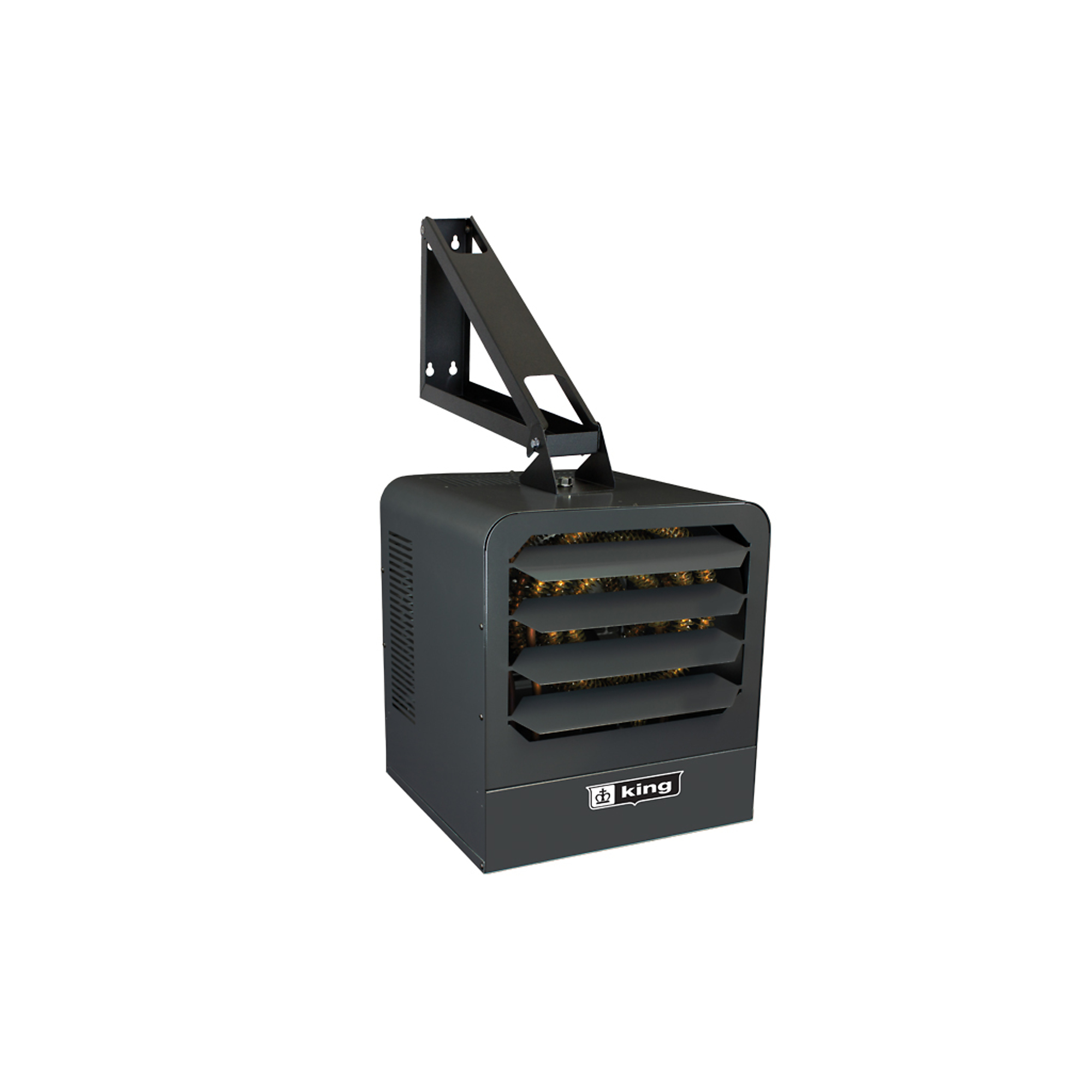

King Electric KB Unit Heater, 480V, 20KW, 1-3 Ph, W/Sp Stat & Bracket, 68260 BTU/Hour Heat Output, Heating Capacity 2000 ft², Model# KB4820-3MP-T-B2

Item# 6932651
King Electric KB Unit Heater, 480V, 20KW, 1-3 Ph, W/Sp Stat & Bracket, 68260 BTU/Hour Heat Output, Heating Capacity 2000 ft², Model# KB4820-3MP-T-B2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

King Electric KB Unit Heater, 480V, 20KW, 1-3 Ph, W/Sp Stat & Bracket, 68260 BTU/Hour Heat Output, Heating Capacity 2000 ft², Model# KB4820-3MP-T-B2

Click or Tap image to Zoom

$7279.99

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Adjustable Louvers to Direct Air
  • Built-In Thermostat
  • High Mass Steel Fin Heat Exchanger
  • Patented Smart Limit Protection®
  • Permanent Lubricated Unit Bearing Motor

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

King’s KB series unit heaters are designed for use as primary or supplemental heat sources in large or exposed areas, including high-rise buildings, stores, warehouses, garages, water treatment and fire room vaults to prevent freezing. Spiral finned steel elements and high CFM ensure even air distribution producing cooler element operation, prolonging heater life. By combining the highest quality components, with a dynamically balanced fan blade and in-built thermostat, the KB unit heater will provide years of trouble-free service. Includes universal wall/ceiling bracket for simple installation.

What's Included

    (1) Heater

Downloads

Product Manual Product Manual2

Features + Benefits

  • Adjustable Louvers to Direct Air
  • Built-In Thermostat
  • High Mass Steel Fin Heat Exchanger
  • Patented Smart Limit Protection®
  • Permanent Lubricated Unit Bearing Motor
  • Universal Wall/Ceiling Bracket Included
  • Built-In Fan Delay to Dissipate Heat (Models 12.5-kW & Above Only)
  • Proudly Made in the USA with U.S. & Global Materials
  • 5 Year Limited Warranty

Key Specs

AttributeSpecification

item#

6932651

Brand

King Electric

Manufacturer's Warranty

5 year limited warranty

Ship Weight

62.0 LB

Heat Output

68,260 Btu/hour

Heat Type

Forced Air

Heating Capability

2,000 ft²

Needs Direct Venting

No

Blower Included

Yes

Blower CFM

1,750 cfm

Amps

41.7

Thermostat Included

Yes
AttributeSpecification

Heat Settings (qty.)

1

Remote Included

No

Phase

Multi-phase

Power Cord Length

0 ft

Volts

480

Watts

20,000

Oxygen Depletion Sensor

No

Fuel Consumption

0 GPH

Hardwired

Yes

Product Weight

60.0000 lb

Dimensions L x W x H (in.)

15.0 x 18.0 x 20.5 in
