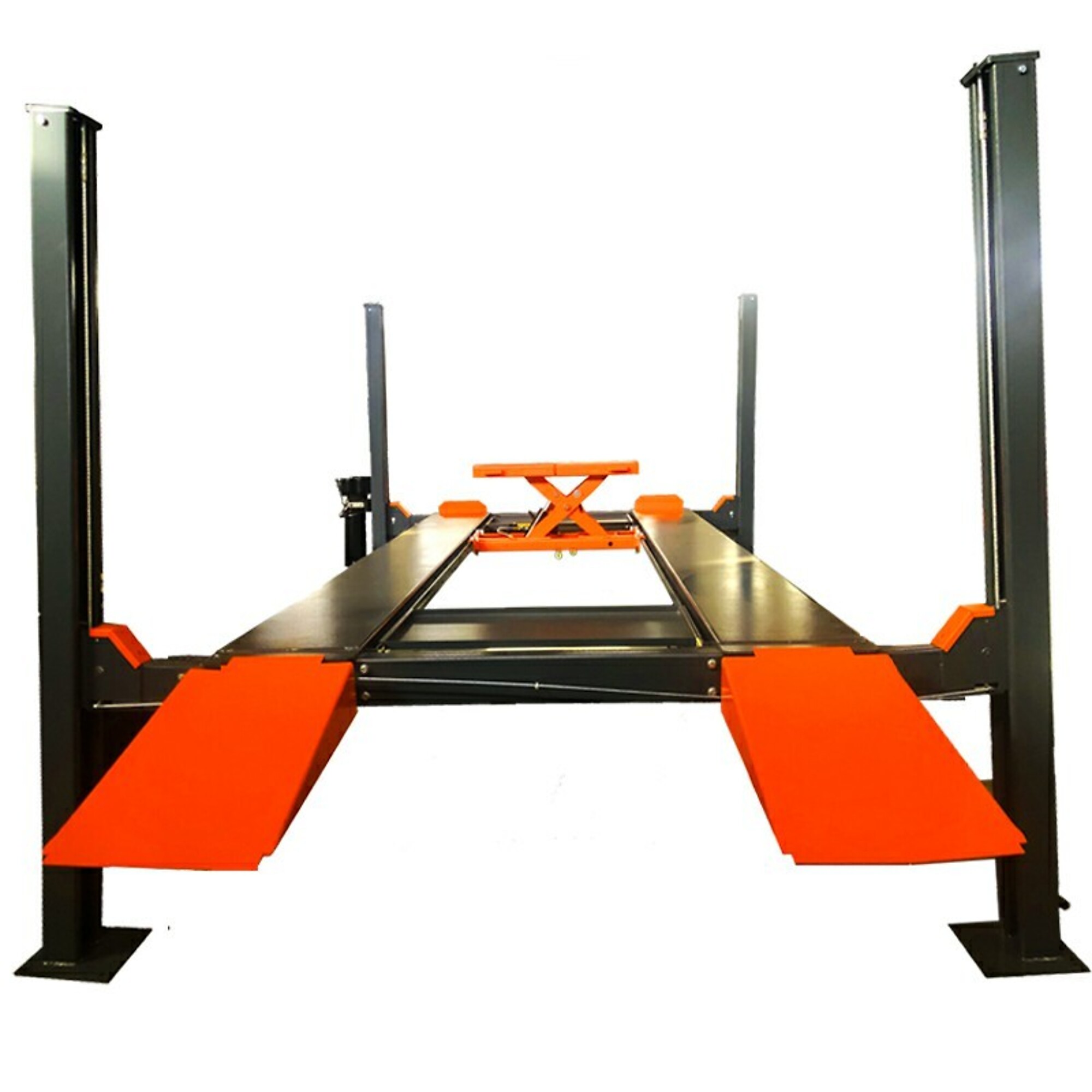

Katool 4-Post Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-4H110

Item# 6349465
"Katool 4-Post Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-4H110"
Top Seller
Katool 4-Post Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-4H110

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Katool 4-Post Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-4H110

Click or Tap image to Zoom

$3999.00

  • Shipping:

    Free shipping (lower 48 states) - Factory shipped

  • Store Pickup:

    Not available - online only
  • 11000 lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Single Point Manual Safety Lock Release.
  • Four mechanical locking devices, each equipped with both primary and secondary safety locks.
  • Powerside column can be installed at both sides, front or rear.

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Revolutionize your parking and maintenance experience with the KT-4H110 Four Post Vehicle Lift, boasting an impressive 11,000 lbs lifting capacity. This lift is not just a tool; it's a game-changer for your garage. Effortlessly create additional parking space by securely elevating your vehicle, transforming your garage into a multi-functional haven. The sturdy construction ensures stability, making it a reliable choice for extended parking durations. Say goodbye to cramped parking and hello to an organized, efficient space. Elevate your garage with the KT-4H110 – where convenience meets capacity, and parking becomes a stress-free affair. Due to the size of the packaging, a forklift is required to unload it from a box-truck or flatbed.

What's Included

    (8) Anchor Bolts (1) Hydraulic Pump
Play Item Video

Features + Benefits

  • 11000 lbs lifting capacity.
  • CE Approved and Certified. It has adopted the 115% dynamic loading capacity standard and was 150% static loading capacity tested.
  • Single Point Manual Safety Lock Release.
  • Four mechanical locking devices, each equipped with both primary and secondary safety locks.
  • Powerside column can be installed at both sides, front or rear.
  • Can be used with a caster kit sold separately for moving the lift around.
  • Comes with two drip trays and a jack tray.
  • A forklift is required to offload the lift from a box truck or a dock-height flatbed trailer.

Key Specs

AttributeSpecification

item#

6349465

Brand

KATOOL

Manufacturer's Warranty

3 year limited warranty

Ship Weight

2150.0 LB

Capacity

11,000 lb

Max. Rise

7 ft
AttributeSpecification

Horsepower

3 HP

Motor Phase

Single-phase

Volts

110

Locking Position (qty.)

10

Product Weight

2116.0000 lb

Dimensions L x W x H (in.)

229.0 x 136.0 x 90.0 in

Reviews

Questions & Answers

11 Reviews This action will navigate to reviews.

Questions

1–10 of 23 Questions
Sort by:

  1. Is there a camera that I could put in front of the lift so I could line up the car and see it on my phone?

    1. Get a wireless trailer camera and mount it wherever you want to see

      Helpful?

    2. A camera accessory is not currently available for this vehicle lift.

      Helpful?

  2. Does the come with anchor bolts and what size?

    1 answer

    1. This lift comes with 5/8 inch diameter sleeve anchors.

      Helpful?

  3. Does this slide in the middle for super narrow cars? We have mini trucks that have a base of 3 feet wide. Will this accommodate for that?

    1 answer

    1. The distance between the runway is 42.3" (1075MM). This distance can not be adjusted.

      Helpful?

  4. My floor where im putting this lift is slightly sloped for draining. Are there shims available for the downhill posts?

    1 answer

    1. Shims can be used to level the lift depending on the slope. Shims are currently not available through the manufacturer.

      Helpful?

  5. What is the ambient operating temperature of the lift?

    1 answer

    1. The ambient temperatures would range from 40 degrees F up to 100 degrees F.

      Helpful?

  6. Where is this left made?

    1 answer

    1. The Katool KT-4H110 4-Post Vehicle Lift is primarily manufactured in China.

      Helpful?

  7. Does this katool 11,000 pound 4 post lift come with 1 air jack like website picture shows?  I need 2 air jacks for katool 11,000 pond lift air operated jacks. That will allow me to remove all 4 wheels on a vehicle that’s on the katool 11,000 pound lift

    1 answer

    1. The lift does not come with air jacks, it comes with a hydraulic system and includes drip trays and a jack tray. Rolling jacks in air or hydraulic are sold separately and available through the manufacturer.

      Helpful?

  8. The max lifting weight is 11,000 pounds does that include the ramps or will it lift the 11,000 pounds plus the ramps

    1 answer

    1. The 11,000 pounds would be the vehicle weight the lift is rated for. It would not include the ramps.

      Helpful?

  9. What is the foot print and inside measurements of the length and width

    1 answer

    1. The overall footprint is 126" W x 229.73" L (including ramps). The inside measurements are 112.81" L x 113" L (inside runways).

      Helpful?

  10. What is amperage draw at 110V? Can hydraulic motor be wired for 230V (dual voltage motor)?

    1 answer

    1. The Katool KT-4H110 lift draws approximately 26–30 amps at 110V and should be connected to a dedicated 30A breaker. Although a 220V upgrade is available, the motor itself is not dual-voltage and requires a separate 220V motor setup, which runs on a 20A breaker.

      Helpful?

Warranty

Manufacturer's Warranty

3 year limited warranty

Compare with Most Popular in Four-Post Lifts

See All Four-Post Lifts

See All KATOOL Four-Post Lifts

Specifications

Specifications
Katool 4-Post Vehicle Lift, 11,000-Lb. Capacity, 3 HP, Model# KT-4H110
BendPak, 12K Cap. Parking Lift Tandem Independent Platforms, Capacity 12000 lb, Max. Rise 7 ft, Horsepower 3 HP, Model# PL-12000DP
BendPak, 9000 7000lb Extended Tri-Level Parking Lift, Capacity 16000 lb, Max. Rise 13 ft, Horsepower 3 HP, Model# HD-973PX
BendPak, 7500lb. Capacity Vehicle Boat Storage Lift, Capacity 7000 lb, Max. Rise 7 ft, Horsepower 3 HP, Model# HD-75BXT
Capacity
Same

11,000 lb

12,000 lb

16,000 lb

7,000 lb

Max. Rise
Same

7 ft

7 ft

13 ft

7 ft

Horsepower
Same

3 HP

3 HP

3 HP

3 HP

Motor Phase
Same

Single-phase

Single-phase

Single-phase

Single-phase

Volts
Same

110

220

220

220

Locking Position (qty.)
Same

10

6

34

17

Product Weight
Same

2116.0000 lb

4692.0000 lb

5892.0000 lb

1968.0000 lb

Dimensions L x W x H (in.)
Same

229.0 x 136.0 x 90.0 in

242.5 x 221.5 x 130.5 in

252.25 x 110.5 x 173.0 in

248.5 x 133.75 x 103.0 in

Lock Spacing
Same

-

3.976 in

3.976 in

3.976 in

Time of Full Rise
Same

-

45 sec.

90 sec.

50 sec.

Material
Same

-

Steel

Steel

Steel
