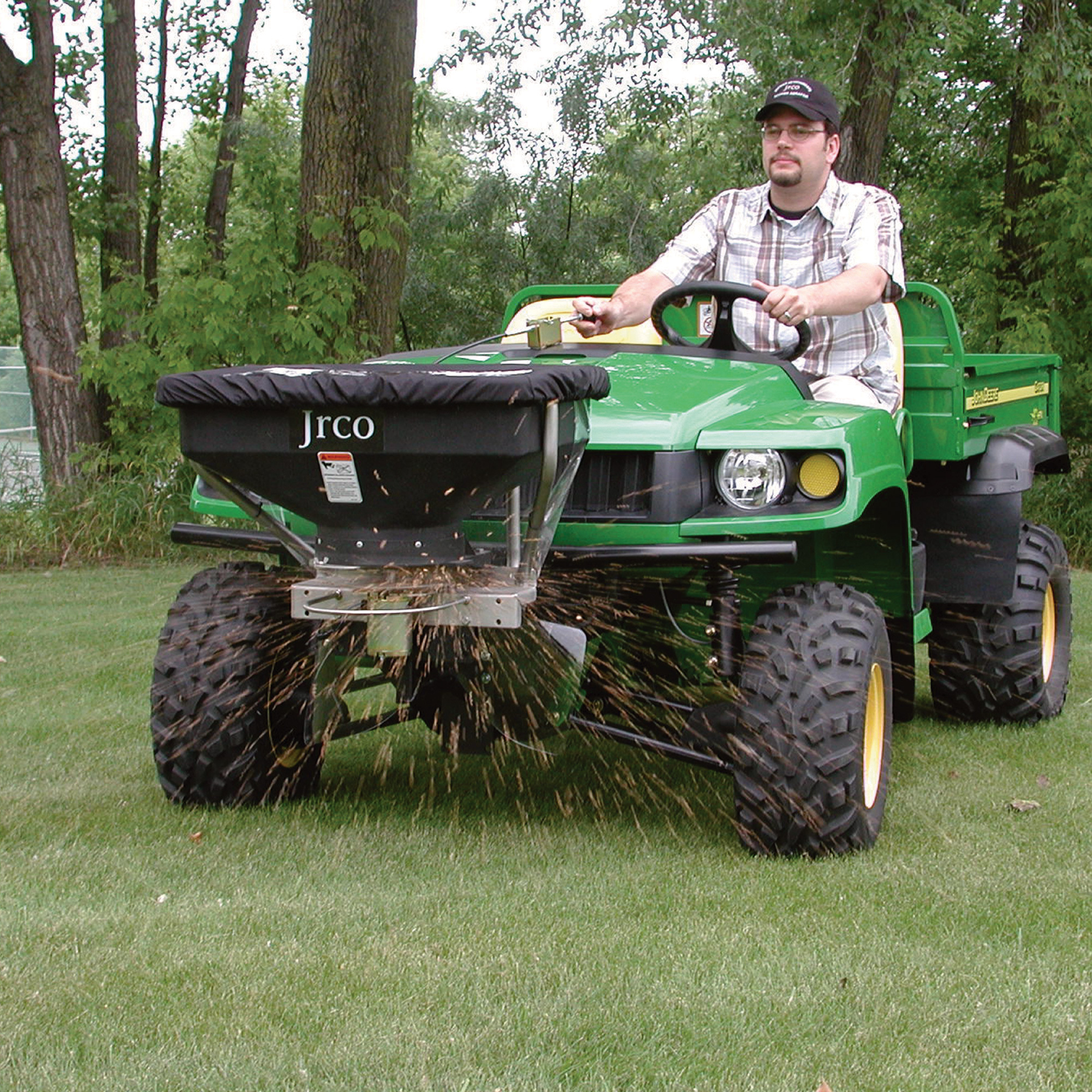

JRCO Broadcast Spreader for UTV, 120-LB. Capacity, Model# 504U.JRC

Item# 51575
"JRCO Broadcast Spreader for UTV, 120-LB. Capacity, Model# 504U.JRC"
JRCO Broadcast Spreader for UTV, 120-LB. Capacity, Model# 504U.JRC

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

JRCO Broadcast Spreader for UTV, 120-LB. Capacity, Model# 504U.JRC

Click or Tap image to Zoom

$1529.99

Buy 2 or more at $1468.79 ea.

  • Shipping:

    Factory shipped

  • Store Pickup:

    Not available - online only
  • Corrosion-resistant polyethylene hopper has a 2.2 cu. ft./120-lb. capacity
  • 4-bladed fan with 12V electronic speed control accurately spreads granular and pelletized fertilizer, seed, and ice-melting pellets in widths from 5 to 24ft.
  • Rugged, all stainless steel tubular frame
  • Stainless steel gate design is non-gumming for easy opening and tight closures
  • Durable molded base solidly supports the gate controls

See full description

Complete Your Solution

  • JRCO Broadcast Spreader for UTV, 120-LB. Capacity, Model# 504U.JRC
  • JRCO, SPREADER MOUNT 1-1/4in. LONG, Model# 125L.JRC
  • JRCO, SPREADER MOUNT 1-1/4in.SHORT, Model# 125S.JRC
  • JRCO, SPREADER ADAPTER 2in. TO 1-1/4in., Model# 125ADAP.JRC
Price for all four:

$2209.96

Frequently Bought Together

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Accessories

  • Warranty

  • Compare

Product Summary

This JRCO Electric Broadcast Spreader attaches to the 1 1/4in. hitch mount on the front or rear of your utility vehicle using mount bars (Item#s 51572 or 51573, sold separately) to increase productivity with an accurate spread pattern at higher ground speeds. Utility vehicles with a 2in. hitch mount will require an adapter (Item# 51574, sold separately).

What's Included

    (1) Spreader (1) Moisture cover (1) Battery harness (1) Control extension cable (1) Control cable

Downloads

Product Manual

Features + Benefits

  • Corrosion-resistant polyethylene hopper has a 2.2 cu. ft./120-lb. capacity
  • 4-bladed fan with 12V electronic speed control accurately spreads granular and pelletized fertilizer, seed, and ice-melting pellets in widths from 5 to 24ft.
  • Rugged, all stainless steel tubular frame
  • Stainless steel gate design is non-gumming for easy opening and tight closures
  • Durable molded base solidly supports the gate controls
  • Pattern centering control adjusts for uniform speed of various materials
  • Out-front opening gauge adjustment provides easy, accurate readings
  • 4-blade stainless steel fan can be removed for easy cleaning
  • Electronic speed control governs the fan speed to ensure accurate width of spread

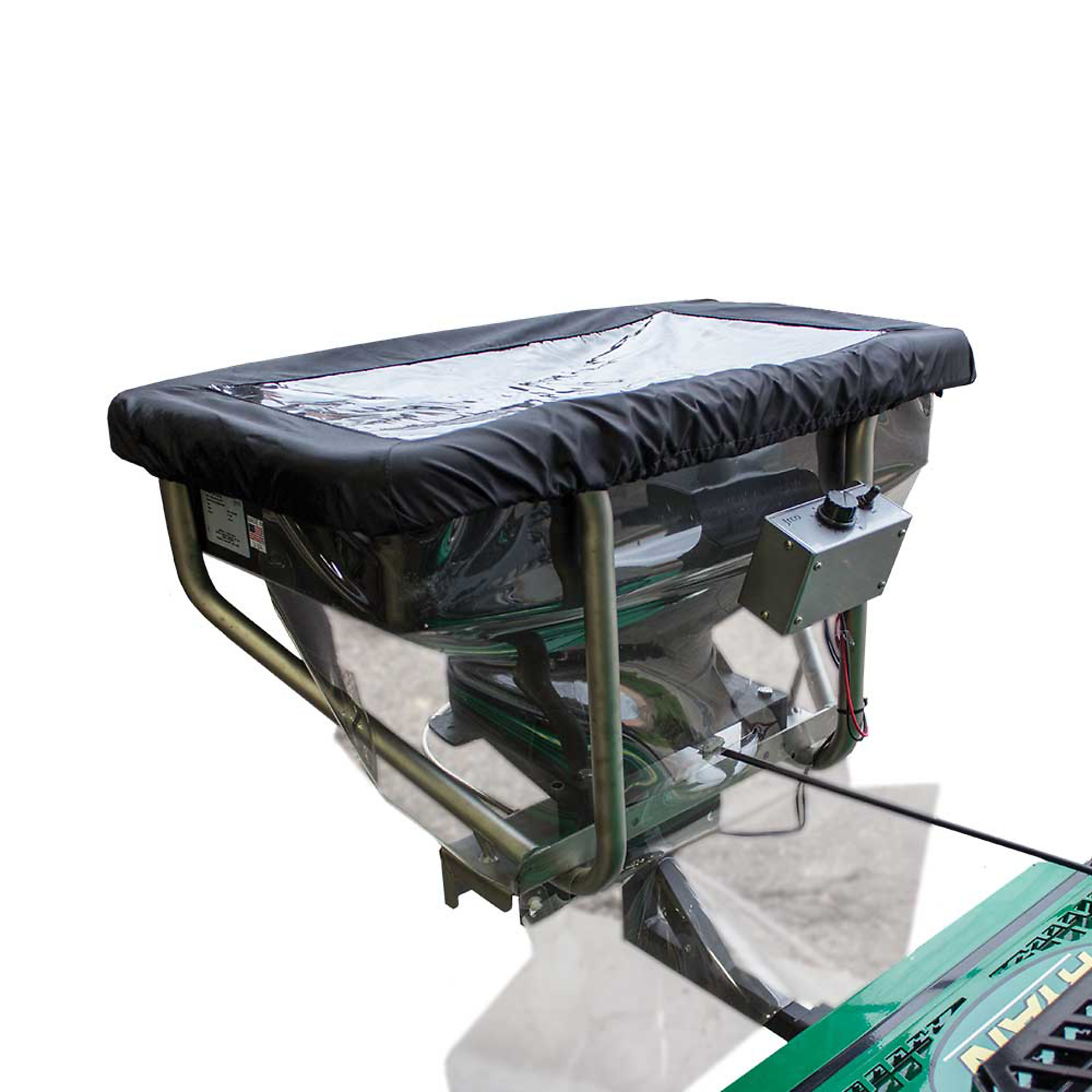

  • Clear-view moisture cover and rear dust shield protect the mower and operator
  • Includes battery harness, control extension cable and control cable

Key Specs

AttributeSpecification

item#

51575

Brand

JRCO

Manufacturer's Warranty

3 month limited warranty

Ship Weight

50.0 LB

Product Type

Spreaders

Spreader Type

Broadcast
AttributeSpecification

Capacity

120 lb

Spreadable Material

Multiple

Spreading Width

24 ft

Hopper Material

Poly

Assembly Required

Yes

Reviews

Questions & Answers

42 Reviews This action will navigate to reviews.

Questions

1–10 of 11 Questions
Sort by:

  1. can this be controlled from inside the cab of a utv

    1. Yes. You turn on the spreader speed control and it runs continuously. Then you mount the shudder door push/pull handle in your cab. I went around the side of the UTV and mounted the control on the headliner in the location that a rear view mirror would be in a car. Works great and is removable when not in use.

      Spike

      Helpful?

    2. The JRCO Electric Broadcast Spreader can be controlled inside the cab of a UTV with the supplied cable control extension.

      Helpful?

  2. Can you spread herbicide with this

    1 answer

    1. This unit can be used to spread all types of Fertilizer, seed, fire ant bait, and ice melting or lime pellets.

      Helpful?

  3. Why can't this open- close function also be controlled by an electric solenoid? By the time I get back in the cab, I've dropped a pound of fertilizer on the ground and killed my grass!

    1 answer

    1. The manufacturer does not offer this as an option for the spreader. It has not been tested on the spreader. It is only available with a push pull cable.

      Helpful?

  4. Does this unit have a elec. control for opening or closing the amount of seed/fertlizer that comes out of the hopper or does the setting have to be manually?

    1 answer

    1. The spreader will come with an electronic speed control. The opening and gauge control is manual.

      Helpful?

  5. Does the unit have an agitator that is connected to spinner to remove fertilizer and/or wheat/oats seed to have a completely clean empty container when done spreading material? Does the unit come with a connection to open and close bottom opening in cab?

    1 answer

    1. This is equipped with an agitator. There is a control cable and extension cable to control the gate opening from the seat of your utility vehicle. This is shown in the first thumbnail image.

      Helpful?

  6. can you calibrate this?

    1 answer

    1. The spreader would have a speed control that adjusts or calibrates the spread from 5-24 feet.

      Helpful?

  7. I am wanting to attach to the front of a Kubota RTV. I understand that that I need to switch it from 1.25" to 2" but is not clear how you mount the spreader to the receiver hitch. Does it have an adapter with it? Shows the hardware to mount to mowers,

    1 answer

    1. A 2" to 1.25" receiver adapter is not included. Please view item 32800 for a 2" to 1.25" adapter. The adapter requires 1/2" and 5/8" pins (not included) to attach to the spreader hitch and the vehicle's receiver hitch.

      Helpful?

  8. So how does this unit mount to an ATV in the front ?

    It looks like a mounting bar that mounts to a receiver hitch and a poly deflector to keep fertilizer off of the ATV is used in a picture ? Does this stuff come with the spreader...? It does not mention it at all. ????

    1 answer

    1. The spreader will attach to a 1-1/4" hitch mount on the front of the ATV using the appropriate mounting extension. The long extension is item 51572 and the short extension is item 51573. If the ATV used has a 2" hitch mount, the adapter, item 51574 is required. The mounting plate will keep some of the spreadable material away from the ATV as it is being spread; however, there is an optional deflector kit available, item 51576.

      Helpful?

  9. Can one spread pelletized lime with this product?

    1 answer

    1. This unit will spread lime in pellet form.

      Helpful?

  10. Does this spreader have gate settings and a chart with ground speeds so an operator can determine how much fertilizer is being applied to the acre?

    Basically are there calibration settings with ground speeds to calculate application rates to the acre. Say if I want to put 100 pounds of fertilizer to the acre, can this be determined with a chart for this spreader. Does it have that ?

    1 answer

    1. This spreader includes a gate setting and speed chart in the owner's manual. To view the manual, click the "Product Manual" link located below the Product Summary section.

      Helpful?
